    How to Change Settings for Windows Backup in Windows 10

    information   Information
    The Backup and Restore (Windows 7) feature (aka: Windows Backup) was originally included in Windows 7. It was deprecated in Windows 8 and removed in in Windows 8.1, but has been included in Windows 10.

    While you can use Backup and Restore (Windows 7) to restore any Windows 7 backups on your Windows 10 PC, you can also use it to back up and restore files on your Windows 10 PC.

    Windows Backup will backup all files in the libraries, folders, and drives you choose or let Windows choose. You will have a choice to include a system image in the backup. You can also choose to have these items be backed up on a regular schedule.

    After you have set up Windows Backup, you can make changes to these settings as needed.

    This tutorial will show you how to change settings for Windows Backup on your Windows 10 PC.

    You must be signed in as an administrator to be able to change settings for Windows Backup.



    Here's How:

    1. Open Settings, click/tap on the Update & security icon, click/tap on Backup on the left side, and click/tap on the Go to Backup and Restore (Windows 7) link under Looking for and older backup on the right side. (see screenshot below)
    Note   Note
    You can also open Backup and Restore (Windows 7) by opening the Control Panel (icons view), and click/tap on the Backup and Restore (Windows 7) icon.


    Click image for larger version.

Name:	Windows_Backup_change_settings-1.png
Views:	263
Size:	50.1 KB
ID:	118167

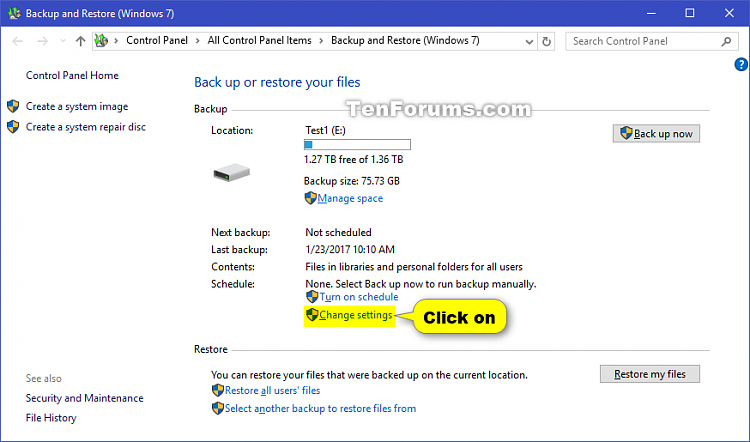

    2. Click/tap on the Change settings link. (see screenshot below)

    Click image for larger version.

Name:	Windows_Backup_change_settings-2.png
Views:	267
Size:	38.9 KB
ID:	118168

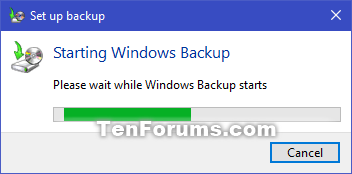

    3. Windows Backup will now start. (see screenshot below)

    Name:  Windows_Backup_change_settings-3.png
Views: 3706
Size:  12.0 KB

    4. Do step 5 (local drive) or step 6 (network location) below for where you want to save your backup.


     5. To Save Backup On Local (internal or external) Drive

    A) Select a drive (ex: "Test1 (E:)"), click/tap on Next, and go to step 7 below. (see screenshot below)

    Name:  Setup_Windows_Backup_local_drive-3.png
Views: 3684
Size:  31.6 KB


     6. To Save Backup On a Network Location

    A) Click/tap on the Save on a network button. (see screenshot below)

    Name:  Setup_Windows_Backup_network_location-4.png
Views: 3736
Size:  26.7 KB

    B) Click/tap on Browse, browse to and select the network location (ex: "\\BRINK-ROUTER\MyBook"), and click/tap on OK. (see screenshot below)
    Note   Note
    If you like, you could manually enter the network location path instead of browsing to and selecting it.


    Name:  Setup_Windows_Backup_network_location-4b.png
Views: 3750
Size:  109.8 KB

    C) Enter your username and password credentials for this network location, and click/tap on OK. (see screenshot below)

    Name:  Setup_Windows_Backup_network_location-4c.png
Views: 3724
Size:  31.4 KB

    D) Select this network location (ex: "\\BRINK-ROUTER\MyBook"), click/tap on Next, and go to step 7 below. (see screenshot below)

    Name:  Setup_Windows_Backup_network_location-4d.png
Views: 3740
Size:  34.8 KB


    7. Select (dot) Let me choose, and click/tap on Next. (see screenshot below)
    Note   Note
    If you do not want to choose what to back up, then you could select (dot) Let Windows choose and go to step 9 below instead.


    Name:  Setup_Windows_Backup_network_location-5.png
Views: 3739
Size:  32.8 KB

    8. Select the check boxes of the items you want to include in the backup, select if you want to include a system image or not, and click/tap on Next. (see screenshot below)

    Name:  Setup_Windows_Backup_network_location-6.png
Views: 3814
Size:  26.5 KB

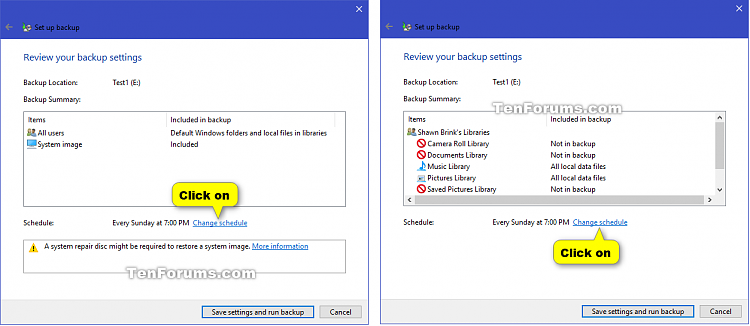

    9. Click/tap on the Change schedule link. (see screenshot below)

    Click image for larger version.

Name:	Setup_Windows_Backup_network_location-7.png
Views:	248
Size:	52.2 KB
ID:	118177

    10. Do step 11 (on) or step 12 (off) below for if you want to automatically run this backup on a schedule or not.
    Note   Note
    You will always be able to turn on or off the schedule as needed.



     11. To Turn On Automatically Run backup on a Schedule

    A) Check the Run backup on a schedule box. (see screenshot below)

    B) Select How often, What day, and What time you want for the backup schedule.

    C) Click/tap on OK, and go to step 13 below.

    Name:  Setup_Windows_Backup_network_location-8.png
Views: 3686
Size:  38.7 KB


     12. To Turn Off Automatically Run backup on a Schedule

    A) Uncheck the Run backup on a schedule box, click/tap on OK, and go to step 13 below. (see screenshot below)

    Name:  Setup_Windows_Backup_network_location-9.png
Views: 3695
Size:  20.0 KB


    13. Click/tap on the Save settings and exit button. (see screenshot below)

    Name:  Setup_Windows_Backup_network_location-10.png
Views: 3768
Size:  22.8 KB

    14. It is recommended to click/tap on the Back up now button to create a new backup with your changes. (see screenshot below)

    Click image for larger version.

Name:	Windows_Backup_now.png
Views:	185
Size:	38.8 KB
ID:	118181

    15. When finished, you can now close Backup and Restore (Windows 7) if you like.


    That's it,
    Shawn


  1.    21 Jul 2017 #1

    Just upgraded Win 7 Pro to Win 10 Pro. "Backup and Restore(Windows 7) says "The disk that your backup is saved on is about to fail." I do not believe this is accurate, as the selected drive is on an NAS that is working perfectly.

    I read that this can be caused by old backups from Win 7 in that location, so I tried to change the location but nothing in that window works. I click on "Change Location", "Back up now", "Manage space", or "Change settings" and the cursor briefly changes to an hour glass but nothing else happens.
      My ComputerSystem Spec


  2. Posts : 31,341
    64-bit Windows 10 Pro build 18219
    Thread Starter
       21 Jul 2017 #2

    Hello Ronzie, :)

    To be safe, I would recommend to go the NAS manufacturer's site to see if they have a utility that you can use to test the health of the NAS's drives.

    As a test, disconnect the NAS to see if you are able to change the backup drive afterwards.
      My ComputersSystem Spec

  3.    22 Jul 2017 #3

    Brink said: View Post
    Hello Ronzie, :)

    To be safe, I would recommend to go the NAS manufacturer's site to see if they have a utility that you can use to test the health of the NAS's drives.

    As a test, disconnect the NAS to see if you are able to change the backup drive afterwards.
    I ran the quick test on the NAS utilities page of its web interface, and it found no problems. I deleted the old backups, they were system images, but that didn't help. I disconnected the pc from the network temporarily and that didn't work either.

    I don't understand why Windows 10 won't let me change any of the backup settings. It doesn't even give an error when I try, it just doesn't work. Maybe there is a service that got disabled during the upgrade? I first tried upgrading this pc months ago, and went back to Windows 7 Pro for some reason that I can't recall, and now I'm wondering if I should go back again!
      My ComputerSystem Spec


  4. Posts : 31,341
    64-bit Windows 10 Pro build 18219
    Thread Starter
       22 Jul 2017 #4

    You can check to see if the Windows Backup service is still set to "Manual" (default), or "Automatic".

    If you like, you could try the context menu below to test if it may work for your Windows Backup using commands instead of the UI.

    Add Windows Backup and Restore context menu in Windows 10 Windows 10 Backup Restore Tutorials
      My ComputersSystem Spec

  5.    22 Jul 2017 #5

    Brink said: View Post
    You can check to see if the Windows Backup service is still set to "Manual" (default), or "Automatic".

    If you like, you could try the context menu below to test if it may work for your Windows Backup using commands instead of the UI.

    Add Windows Backup and Restore context menu in Windows 10 Windows 10 Backup Restore Tutorials
    I don't know why, but my pc awoke from sleep at the scheduled time this morning and successfully created a system image backup on the NAS. Thanks for your help and suggestions!
      My ComputerSystem Spec


  6. Posts : 31,341
    64-bit Windows 10 Pro build 18219
    Thread Starter
       22 Jul 2017 #6

    That's great news.

    If you like, you could look under Windows Logs > Application in the Event Viewer for events from Windows Backup and Restore. A failed backup will generally appear as an "Error" entry from "Windows Backup" source, and an event ID of 4106.

    Hopefully, this may help reveal what caused it to fail last time.
      My ComputersSystem Spec
