Hyper-V virtualization - Setup and Use in Windows 10

Page 15 of 47 FirstFirst ... 5131415161725 ... LastLast
  1. Cliff S's Avatar
    Posts : 25,534
    Win10 Pro, Win10 Pro N, Win10 Home, Windows 8.1 Pro, Ubuntu
       #140

    Sorry it took so long, my Gott Verfl***ten ISP did it's time out just now

    Code:
    Log Name:      Microsoft-Windows-Hyper-V-VMMS-Admin
    Source:        Microsoft-Windows-Hyper-V-VMMS
    Date:          28-Nov-15 14:12:33
    Event ID:      15130
    Task Category: None
    Level:         Error
    Keywords:
    User:          SYSTEM
    Computer:      Desktop-Tower
    Description:
    'Ubuntu' failed to start. (Virtual machine ID 64FA0096-047B-49B3-B67C-6E53EF2A63F9)
    Event Xml:
    <Event xmlns="http://schemas.microsoft.com/win/2004/08/events/event">
      <System>
        <Provider Name="Microsoft-Windows-Hyper-V-VMMS" Guid="{6066F867-7CA1-4418-85FD-36E3F9C0600C}" />
        <EventID>15130</EventID>
        <Version>0</Version>
        <Level>2</Level>
        <Task>0</Task>
        <Opcode>0</Opcode>
        <Keywords>0x8000000000000000</Keywords>
        <TimeCreated SystemTime="2015-11-28T13:12:33.420951800Z" />
        <EventRecordID>96</EventRecordID>
        <Correlation />
        <Execution ProcessID="2156" ThreadID="5556" />
        <Channel>Microsoft-Windows-Hyper-V-VMMS-Admin</Channel>
        <Computer>Desktop-Tower</Computer>
        <Security UserID="S-1-5-18" />
      </System>
      <UserData>
        <VmlEventLog xmlns="http://www.microsoft.com/Windows/Virtualization/Events">
          <VmName>Ubuntu</VmName>
          <VmId>64FA0096-047B-49B3-B67C-6E53EF2A63F9</VmId>
        </VmlEventLog>
      </UserData>
    </Event>
    Code:
    Log Name:      Microsoft-Windows-Hyper-V-Worker-Admin
    Source:        Microsoft-Windows-Hyper-V-Worker
    Date:          28-Nov-15 14:12:32
    Event ID:      3062
    Task Category: None
    Level:         Error
    Keywords:
    User:          NT VIRTUAL MACHINE\64FA0096-047B-49B3-B67C-6E53EF2A63F9
    Computer:      Desktop-Tower
    Description:
    Virtual Machine Worker Process initialization has timed out, and will terminate.
    Event Xml:
    <Event xmlns="http://schemas.microsoft.com/win/2004/08/events/event">
      <System>
        <Provider Name="Microsoft-Windows-Hyper-V-Worker" Guid="{51DDFA29-D5C8-4803-BE4B-2ECB715570FE}" />
        <EventID>3062</EventID>
        <Version>0</Version>
        <Level>2</Level>
        <Task>0</Task>
        <Opcode>0</Opcode>
        <Keywords>0x8000000000000000</Keywords>
        <TimeCreated SystemTime="2015-11-28T13:12:32.917377000Z" />
        <EventRecordID>6</EventRecordID>
        <Correlation />
        <Execution ProcessID="7816" ThreadID="6244" />
        <Channel>Microsoft-Windows-Hyper-V-Worker-Admin</Channel>
        <Computer>Desktop-Tower</Computer>
        <Security UserID="S-1-5-83-1-1694105750-1236468859-1399749814-4184025839" />
      </System>
      <EventData>
      </EventData>
    </Event>
      My Computers

  2. Kari's Avatar
    Posts : 17,434
    Windows 10 Pro
    Thread Starter
       #141

    Cliff, sorry to be so PITA but a few more questions:
    • How much RAM on your host?
    • How much free space your F: disk has, the disk where you store the VHDs?
    • Does the VHD folder only have one VHD or VHDX file for your vm, or does it also have an .avhdx file?
    • The virtual machines folder, does it contain any other file types for your vm than VM_ID.vmcx and VM_ID.vmrs? It should only have one folder and these two files for each vm just created.

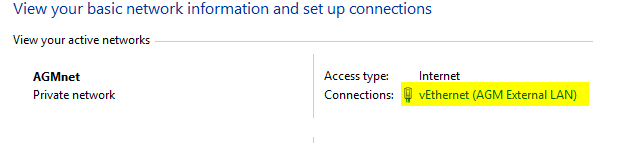

    • On host, does Network and Sharing Center show it is using the vEthernet adapter (external switch):

    Hyper-V virtualization - Setup and Use in Windows 10-2015_11_28_13_47_051.png
      My Computer

  3. Cliff S's Avatar
    Posts : 25,534
    Win10 Pro, Win10 Pro N, Win10 Home, Windows 8.1 Pro, Ubuntu
       #142

    I hope this is what your asking about, and you are not being a PITA

    Kari said:
    Cliff, sorry to be so PITA but a few more questions:


    • How much RAM on your host?
    • 16GB
    • How much free space your F: disk has, the disk where you store the VHDs?
    • 836GB
    • Does the VHD folder only have one VHD or VHDX file for your vm, or does it also have an .avhdx file?

    Hyper-V virtualization - Setup and Use in Windows 10-image-003.png

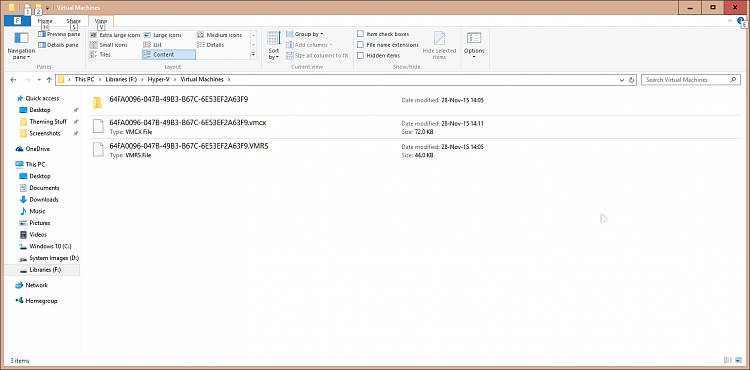

    • The virtual machines folder, does it containg any other file types for your vm than VM_ID.vmcx and VM_ID.vmrs?


    Hyper-V virtualization - Setup and Use in Windows 10-image-002.png

    • On host, does Network and Sharing Center show it is using the vEthernet adapter (external switch):

    Hyper-V virtualization - Setup and Use in Windows 10-image-001.png
      My Computers

  4. Kari's Avatar
    Posts : 17,434
    Windows 10 Pro
    Thread Starter
       #143

    OK, everything should be OK. Next step is to stop and restart the service. First stop the service, right pane of the Hyper-V Manager:
    Hyper-V virtualization - Setup and Use in Windows 10-2015_11_28_13_58_401.png

    Accept by clicking Turn off:
    Hyper-V virtualization - Setup and Use in Windows 10-2015_11_28_13_59_062.png

    Reboot, start the service:
    Hyper-V virtualization - Setup and Use in Windows 10-2015_11_28_13_59_573.png

    Try to start the vm.
      My Computer

  5. Cliff S's Avatar
    Posts : 25,534
    Win10 Pro, Win10 Pro N, Win10 Home, Windows 8.1 Pro, Ubuntu
       #144

    It didn't work. I tried with reboot, and once with out(just restarted).

    You don't happen to have a working VM(non windows of course, unless it's not activated) I might try importing(I see there is an option for that) to see if it is my system somehow?
      My Computers

  6. Cliff S's Avatar
    Posts : 25,534
    Win10 Pro, Win10 Pro N, Win10 Home, Windows 8.1 Pro, Ubuntu
       #145

    I just tried creating a Win10 b.10586 VM and it failed too
    Hyper-V virtualization - Setup and Use in Windows 10-image-001.png
      My Computers

  7. Cliff S's Avatar
    Posts : 25,534
    Win10 Pro, Win10 Pro N, Win10 Home, Windows 8.1 Pro, Ubuntu
       #146

    In event viewer the problem looks like the VM time outs are causing it not to start.
      My Computers

  8. Kari's Avatar
    Posts : 17,434
    Windows 10 Pro
    Thread Starter
       #147

    Cliff, let's check the permissions once again. That Ubuntu vm, go to properties of its VHDX file and grant Everyone full permissions to that file. Do the same with UBUNTU_VM_ID folder and both UBUNTU_VM_ID.vmcx and UBUNTU_VM_ID.vmrs files in Virtual Machines folder.

    Try to run the vm.
      My Computer

  9. Cliff S's Avatar
    Posts : 25,534
    Win10 Pro, Win10 Pro N, Win10 Home, Windows 8.1 Pro, Ubuntu
       #148

    Kari all 3 look like this: Hyper-V virtualization - Setup and Use in Windows 10-image-002.png
    Is this how they should be set? or does it need Special Permissions too? I could try using "take ownership" right click if you think that will help...
      My Computers

  10. Kari's Avatar
    Posts : 17,434
    Windows 10 Pro
    Thread Starter
       #149

    We lose nothing if we try. Take ownership of all four items, the VHDX file, the config folder plus the vmcx and vmrs files.

    In the mean time I upload my Ubuntu vm's VHDX file for you to test importing, I created it yesterday for screenshots and it works perfectly. it's over 4 GB so it will take some time, especially as I am currently backing up my Windows 10 TH2 1511 ISO images to OneDrive.
      My Computer
