Realtek Audio Console REQUIRES a Realtek HD (UAD) Driver!!

Page 1 of 12 12311 ... LastLast
  1.    16 Nov 2018 #1

    Realtek Audio Console REQUIRES a Realtek HD (UAD) Driver!!


    Earlier this year, rumors started floating around about a Microsoft Store App called the Realtek Audio Console. By the end of August, I myself was able to grab it from the store. I wrote a post about this stuff for Win10.Guru called Putting Realtek Audio Console to Work. In looking at driver updates for Realtek stuff, I've now figured out that the usual drivers to which @Brink links in the Latest Realtek HD Audio Driver Version - Windows 10 Forums thread don't work with this tool.



    Click image for larger version.

Name:	image.png
Views:	4
Size:	72.1 KB
ID:	212553

    Instead, you need to grab a driver named Realtek HD Audio (UAD) Driver. Right now, the best source for this driver is at the excellent French driver site Station-Drivers. The page I turn to there is entitled Others & Generics: Realtek HD Audio (UAD) Drivers. This is a good link to use if you want to check in from time to time to see what's available there.

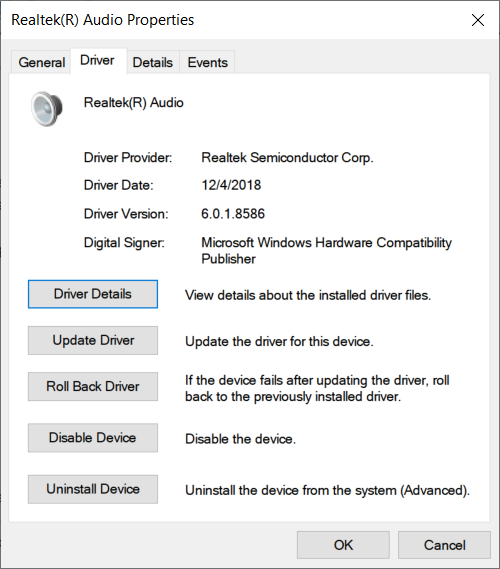

    As I write this post (which will be the first item in an ongoing sticky thread that I plan to update regularly) the most current version of that driver is labeled Realtek HD Audio (UAD) Drivers Version R2.8x (8586) WHQL. Here's what its Driver properties look like in Device Manager:

    Click image for larger version.

Name:	image.png
Views:	178
Size:	93.5 KB
ID:	219601

    The new Realtek Audio Console works well and is a nice alternative to the Realtek HD Audio controller. This thread will help you keep up with the latest drivers that work with this UWP app.

    HTH,
    --Ed--

    [PS added 3 mins later:] After just updating my Dell Venue Pro 11 7130 to the 8564 drivers, I was reminded that these drivers install WAY FASTER than those in the other Realtek HD Audio driver fork. It finished in under 30 seconds on both my i7 6700K desktop (a beast) and on the Venue Pro (i5 mobile CPU 1.86 GHz, more of a mouse than a beast). I installed by using the "Update drivers" button in Device Manager, I didn't run the realtek exe file (which requires 2 reboots). Just FYI.

    [PS Added 2/3/2019: Check out the @Cliff S Post #103 for great instructions on how to clean out old Realtek stuff before switching over to newer drivers (of any kind). Find it here: Realtek Audio Console REQUIRES a Realtek HD (UAD) Driver!! - Page 11 - Windows 10 Forums.]
    Last edited by EdTittel; 2 Weeks Ago at 13:28.
      My ComputersSystem Spec

  2. johngalt's Avatar
    Posts : 1,644
    WinX Pro x64 IP current
       17 Nov 2018 #2

    Interesting - I was massively upset when the included Windows drivers in 1803 completely removed my own RealTek drivers that included the RealTek HD Audio manager, which has everything that you show in in that screenshot plus a lot more, including a tab for room correction, assigning the default of output and input audio, tabs for the different types of output and input, and the ability to tie front panel and rear panel jacks or let them run independently.

    Luckily, I found Snappy Driver Installer Origin, which has me back with the RHDAM on version 8552. Ever since installing one of the IP builds just prior to 1803, I could get none of the Micro$oft catalog drivers to install and allow install of the RHDAM to work, but sometime in July / August it all started working again (after a clean install). Since then RHDAM has been working, and even with my latest clean install it is still there.

    I think I'll stick with it for now - but when my hardware does, finally, get replaced, I might give the 'WinX' version a shot.

    Thanks for the heads up, Ed!
      My ComputersSystem Spec

  3.    18 Nov 2018 #3

    You're welcome, JLG. Always trying to share useful info with the community. Perhaps it will come in handy for you someday!
    Best wishes,
    --Ed--
      My ComputersSystem Spec

  4.    02 Dec 2018 #4

    More About These New Universal Drivers + Some Questions


    It looks like these new Universal Drivers also apply to graphics drivers. In fact, I read that to get certification for the October 2018 Update, Universal Windows Drivers (aka Windows Modern Drivers) are a REQUIREMENT for the graphics drivers.

    Intel just released their first UWD but they note that these drivers should NOT be installed via INF files - they MUST be installed via their installer. As a result, they are currently shipping these drivers only as an EXE and not a ZIP to try to force installation through their installer.

    So this brings up a question in my mind: The process of injecting drivers into a Windows image makes use of the INF files. Does anyone know if there is a new process for injecting these new drivers or is the problem with using the INFs just a temporary issue unique to Intel? I can't find any documentation regarding this.

    As with the Audio drivers, the Intel Graphics drivers also have a graphics control panel component that must be installed from the Microsoft Store.

    More info can be found here:

    Introduction of Windows Modern Drivers for Intel Products
      My ComputerSystem Spec

  5.    03 Dec 2018 #5

    Hmmm. Hadn't thought of the need for standalone driver files for injection via DISM. This could get interesting... We'll have to see what unfolds as a consequence. Thanks for pointing this out!
    --Ed--
      My ComputersSystem Spec

  6. johngalt's Avatar
    Posts : 1,644
    WinX Pro x64 IP current
       03 Dec 2018 #6

    Indeed. This makes things more ... interesting.
      My ComputersSystem Spec

  7.    07 Dec 2018 #7

    Hi I am new here. Just to provide my input, there is a repository which says it mirrors the Realtek FTP (which I can't find)
    GitHub - alanfox2000/realtek-hda-release: A non-official repository for downloading Realtek High Definition Audio Driver and USB Audio Driver standalone packages which were released from Realtek FTP Server.

    I am not sure why Realtek don't release these for available on there website and I can only guess because it is the manufactures responsibility to do this.
      My ComputerSystem Spec

  8.    08 Dec 2018 #8

    EdTittel said: View Post
    I installed by using the "Update drivers" button in Device Manager, I didn't run the realtek exe file (which requires 2 reboots). Just FYI.
    Would you mind please explaining step-by-step how to do this? I tried running Setup.exe in the "PG468_Rtlupdv3206" subfolder, but it errored out saying "No driver supported in this driver package." For reference, I have an HP laptop with Realtek High Definition Audio, driver version 6.0.1.8560 currently installed on it.
      My ComputersSystem Spec

  9.    09 Dec 2018 #9

    Dear @jeffrey:
    You want to go to Device manager, then right-click on the Realtek device under Sound, video and game controllers.
    Select "Update Driver" from the resulting pop-up menu.
    Click "Browse my computer for driver software."
    In the "Search for drivers in this location text box" window, click the Browse button, then navigate to the subdirectory that is created when you unpack the contents of the Station Drivers exe file onto a hard disk. In my case, I used 7zip to unpack the contents for that .exe file into a folder named D:\RealTekUAD\realtek_uad_8564(www dot station-drivers dot com).

    Looks like this:
    Click image for larger version.

Name:	uad-window.jpg
Views:	3
Size:	41.9 KB
ID:	216742

    Then click the "Next" button and it should run to completion -- and install the driver -- from there.

    HTH,
    --Ed--

    Note: the actual directory spec includes the URL for Station Drivers. But when I tried to post that it totally freaked out the website parser. Had to work through a six-message sequence of back-n-forth with @Brink before we figured it out! I just can't include its URL in a post to TF for some reason. Weird.
      My ComputersSystem Spec

  10.    11 Dec 2018 #10

    EdTittel said: View Post
    Dear @jeffrey:
    You want to go to Device manager, then right-click on the Realtek device under Sound, video and game controllers.
    Select "Update Driver" from the resulting pop-up menu.
    Click "Browse my computer for driver software."
    Thanks, but I've already tried this. It just says that "The best drivers for your device are already installed." I think it must be that my laptop has some weird custom part, hardware id is "HDAUDIO\FUNC_01&VEN_10EC&DEV_0290&SUBSYS_103C80A4".
    According to the Github wiki someone else linked, looks like if my Hardware ID is not found, then the only option remaining is to force the install using some built-in "PnPUtil" I've never heard of.
      My ComputersSystem Spec
