  1.    03 Sep 2017 #1
    Join Date : Jul 2016
    Posts : 16
    sunandoghosh

    Windows 10 64 Bit Professional UEFI GPT Laptop Lenovo - Virtualise??


    Windows 10 64 Bit Professional UEFI GPT Laptop Lenovo - Virtualise??

    I have gone through so many You tubes and forums and tutorials but unable to do successfully. All i want is to virtualise my existing lenovo laptop which is UEFI GPT and Windows 10 Pro. Tried Disk2VHD etc.
    Everywhere it covers MBR conversion but nowhere it seems i am able to find successful conversion or virtualization from Physical to virtual on Windows 10 64 Bit Professional UEFI GPT Laptop Lenovo ?

    Any one who has done it successfully and detaild steps available?

    Why I dont want to create a empty VM and install OS because so many softwares are installed on my c and therefore I need VM environment for testing with current settings?

    Pls help
      My ComputerSystem Spec
  2.    03 Sep 2017 #2
    Join Date : Oct 2013
    A Finnish expat in Germany
    Posts : 12,976
    Windows 10 Pro

    This Ten Forums tutorial covers virtualizing both MBR and GPT physical machines: Hyper-V - Create and Use VHD of Windows 10 with Disk2VHD Windows 10 Virtualization Tutorials

    Kari
      My ComputerSystem Spec
  3.    03 Sep 2017 #3
    Join Date : Dec 2015
    Posts : 5,974
    Windows10

    One thing to bear in mind, the maximum size of the vhd you create has to be smaller than the free space on the drive containing the VHD even if the actual VHD size is currently smaller than the current free space.
      My ComputerSystem Spec
  4.    03 Sep 2017 #4
    Join Date : Jul 2016
    Posts : 16
    sunandoghosh
    Thread Starter

    Quote Originally Posted by Kari View Post
    This Ten Forums tutorial covers virtualizing both MBR and GPT physical machines: Hyper-V - Create and Use VHD of Windows 10 with Disk2VHD Windows 10 Virtualization Tutorials
    Kari
    Thank you somehow i missed Apologies...I followed all steps but i am getting below error after adding dVD drive and windows iso

    Click image for larger version.

Name:	Capture.PNG
Views:	1
Size:	34.4 KB
ID:	151710

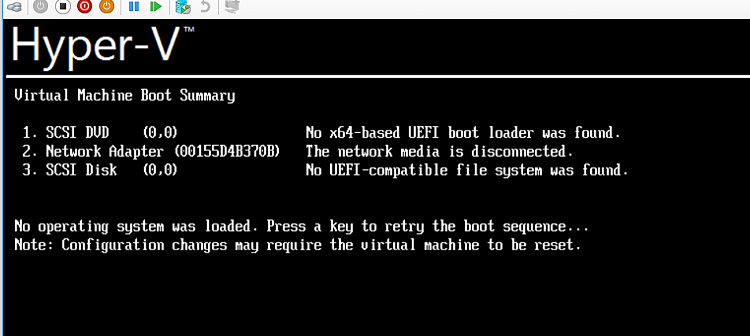

    Hyper-V~_____________________________________
    Uirtual Machine Boot Summary
    1. SCSI DUD (0.0) No x64-based UEFI boot loader was found.
    2. Network Adapter (00155D4B370B) The network media is disconnected.
    3. SCSI Disk (0,0) No UEFI-compatible file system was found.
    No operating system was loaded. Press a key to retry the boot sequence...
    Note: Configuration changes may require the uirtual machine to be reset.

    Tried multiple times recreated VDHX but stuck at above error...even google searches did not help much..

    Kindly guide...
      My ComputerSystem Spec
  5.    03 Sep 2017 #5
    Join Date : Jul 2016
    Posts : 16
    sunandoghosh
    Thread Starter

    Quote Originally Posted by cereberus View Post
    One thing to bear in mind, the maximum size of the vhd you create has to be smaller than the free space on the drive containing the VHD even if the actual VHD size is currently smaller than the current free space.
    yes ensured that especially after you pointed out..thx
      My ComputerSystem Spec
  6.    03 Sep 2017 #6
    Join Date : Oct 2013
    A Finnish expat in Germany
    Posts : 12,976
    Windows 10 Pro

    Quote Originally Posted by sunandoghosh View Post
    Thank you somehow i missed Apologies...I followed all steps but i am getting below error after adding dVD drive and windows iso.
    Are you sure you read the whole tutorial? You can see this in Part Three, step 3.1:

    Click image for larger version.

Name:	image.png
Views:	3
Size:	228.4 KB
ID:	151736

    ... and then starting from step 3.2 the instructions about how to make it bootable.
      My ComputerSystem Spec
  7.    03 Sep 2017 #7
    Join Date : Dec 2015
    Posts : 5,974
    Windows10

    One way to create vm is to make an image backup of current pc using Macrium Reflect Free. Then create a vhd (smaller) and attach to host pc. Restore image backup to vhd (C drive will be shrunk to fit).

    Then detach vhd, create vm (generation 2) type, and select the vhd as the drive.
      My ComputerSystem Spec
  8.    04 Sep 2017 #8
    Join Date : Jul 2016
    Posts : 16
    sunandoghosh
    Thread Starter

    Quote Originally Posted by Kari View Post
    Are you sure you read the whole tutorial? You can see this in Part Three, step 3.1:

    Click image for larger version.

Name:	image.png
Views:	3
Size:	228.4 KB
ID:	151736

    ... and then starting from step 3.2 the instructions about how to make it bootable.
    With due respect this error was different. I followed the steps.

    This is not - No UEFI-compatible file system was found. rather it is No x64-based UEFI boot loader was found

    Thank you for your kind guidance.
      My ComputerSystem Spec
  9.    04 Sep 2017 #9
    Join Date : Jul 2016
    Posts : 16
    sunandoghosh
    Thread Starter

    Quote Originally Posted by cereberus View Post
    One way to create vm is to make an image backup of current pc using Macrium Reflect Free. Then create a vhd (smaller) and attach to host pc. Restore image backup to vhd (C drive will be shrunk to fit).

    Then detach vhd, create vm (generation 2) type, and select the vhd as the drive.
    Thank you. is there a more detailed step by step instructions as I am not technical savvy but end user picking things up after having realized recently power of VM?
      My ComputerSystem Spec
  10.    04 Sep 2017 #10
    Join Date : Dec 2015
    Posts : 5,974
    Windows10

    Quote Originally Posted by sunandoghosh View Post
    Thank you. is there a more detailed step by step instructions as I am not technical savvy but end user picking things up after having realized recently power of VM?
    @Kari has written a great tutorial on how to use Macrium - just look in tutorial section.

    Creating a vhd is obvious from disk management - select create vhd option.

    Creating a new hyper-v vm using an existing hard drive is pretty obvious. @ Kari has written another great tutorial how to create hyper-v vms. Only difference instead of selecting a new vhd, you choose an existing one.

    It would take me longer to show you rather than you reading @Kari's great tutorials here - nothing better on web anywhere.
      My ComputerSystem Spec
