    How to Find Hardware System Specifications in Windows
    Published by Category: Hardware & Drivers
    26 Nov 2017
    Designer Media Ltd

    Published by


    Masterchiefxx17's Avatar
    Power User


    Location: Wisconsin, USA
    Posts: 344

    Show Printable Version


    information   Information
    The Windows Operating System (OS) can run on a plethora of different configurations of hardware. Since every computer has a different configuration from one another, knowing what is inside your computer case can be helpful when posting on online forums.

    Moreover, knowing your hardware configuration can help you plan for computer hardware upgrades, assist with troubleshooting, and know if your current system can run certain programs, operating systems, and games.
    Tip   Tip
    To receive faster, more accurate support on TenForums, it is ideal to add your systemís hardware configuration to your TenForums user profile. You can learn how to add your system hardware configuration using the tutorial below.

    How to Fill in your System Specs at Ten Forums

    CONTENTS:




    Collecting System Specifications in Windows OPTION ONE Collecting System Specifications in Windows
    Using the System Information (msinfo32) within Windows

    Note   Note
    To view the entirety of the msinfo32 command, view the Microsoft TechNet documentation here: Microsoft TechNet Msinfo32

    1. Press the Windows + R keys at the same time to open the Run dialog box.

    2. In the popup box, type msinfo32 and select Ok or hit enter on the keyboard.

    Name:  msinfo321.png
Views: 474
Size:  7.4 KB
    Note   Note
    Windows should now be displaying the System Information for this system. The left hand pane contains categories that will display additional information about the current system.
    Click image for larger version.

Name:	msinfo322.png
Views:	89
Size:	75.7 KB
ID:	164577

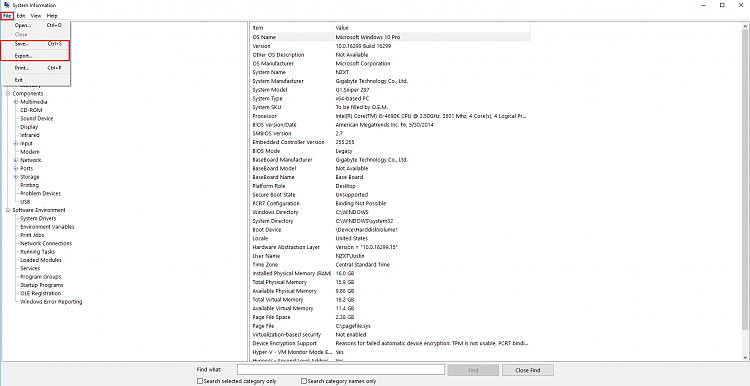

    3. To save this information, select the File option followed by the Save option.
    Tip   Tip
    You can also choose to Export from this File menu to generate a text document instead.
    Click image for larger version.

Name:	msinfo323.png
Views:	67
Size:	75.3 KB
ID:	164578

    4. When prompted for a save location, choose an appropriate save location.





    Collecting System Specifications in Windows OPTION TWO Collecting System Specifications in Windows
    Using the DirectX Diagnostic Tool

    1. Press the Windows + R keys at the same time to open the Run dialog box.

    2. In the popup box, type dxdiag and select Ok or hit enter on the keyboard. If prompted about digital signatures, select Yes

    Name:  dxdiag1.png
Views: 449
Size:  7.3 KB
    Note   Note
    Windows should now be displaying the DirectX Diagnostic Tool for this system. Tabs located at the top of the window categorize the information.
    Name:  dxdiag2.PNG
Views: 459
Size:  26.9 KB

    3. To save this information, click the Save All Information button towards the bottom of the window.
    Name:  dxdiag3.png
Views: 466
Size:  28.4 KB

    4. When prompted for a save location, choose an appropriate save location.




    Collecting System Specifications in Windows OPTION THREE Collecting System Specifications in Windows
    Generating a Speccy Report
    information   Information
    Speccy is a third-party application that is managed by Piriform; an Avast company. The application is a user friendly, yet powerful hardware information collector that has easy exporting options for forums and to share hardware information.
    warning   Warning
    Speccy is a free application and is bundled with, what can be considered, computer bloatware. During the installation of Speccy, ensure to untick and/or decline to any unwanted software.

    1. Download the free version of Speccy using the official download page.

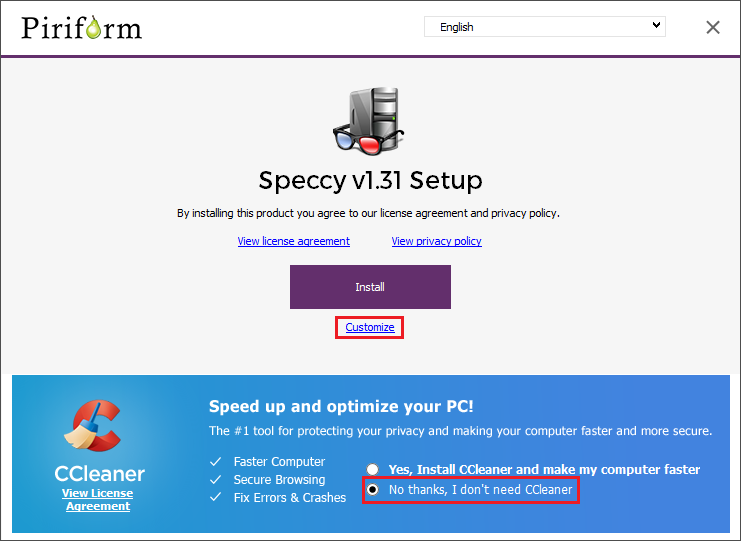

    2. Once downloaded, open the installer and select to not install CCleaner at the bottom. Next, select the Customize option underneath the Install button.
    Name:  Speccy1.PNG
Views: 472
Size:  72.9 KB

    3. Opt in or out of any options you choose to select for your system. Then, select Install.
    Name:  Speccy2.PNG
Views: 449
Size:  23.0 KB

    4. Press the Run Speccy button at the end of installation.
    Name:  Speccy3.PNG
Views: 473
Size:  94.6 KB

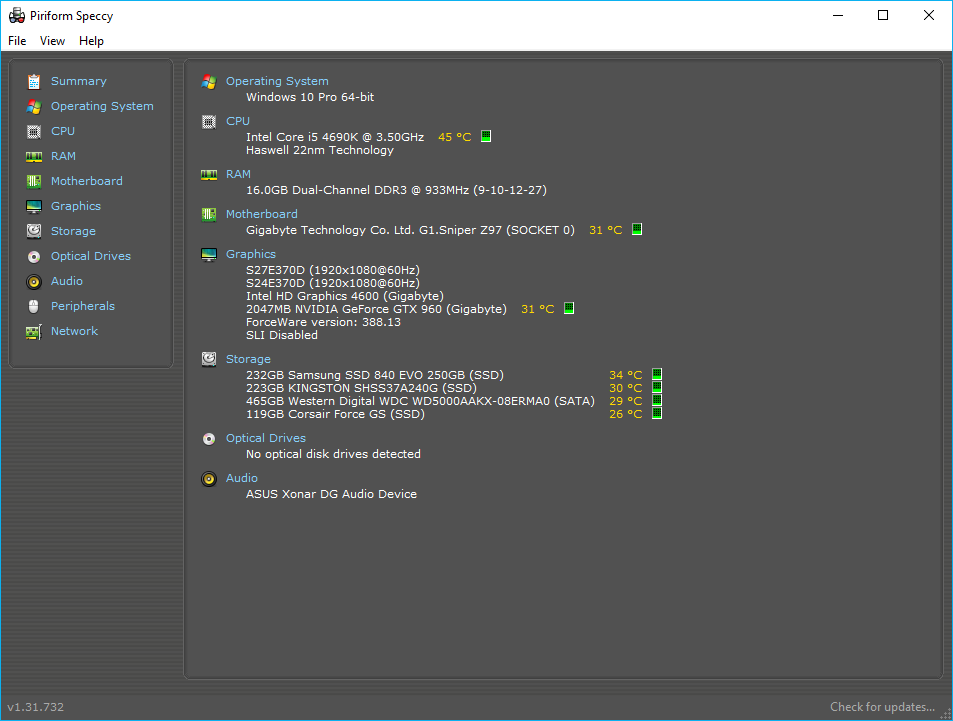

    5. After analyzing your system, Speccy will generate a hardware configuration report within the application.
    Click image for larger version.

Name:	Speccy4.PNG
Views:	85
Size:	49.8 KB
ID:	164585

    6. To share the report, select File then press Publish Snapshot. When prompted to create a URL, select Yes.
    Name:  Speccy5.png
Views: 506
Size:  35.2 KB




    Collecting System Specifications in Windows OPTION FOUR Collecting System Specifications in Windows
    Using the Device Management Tool
    information   Information
    To communicate to Windows, devices uses a device driver. To learn more about what a Windows driver is, visit this page here.

    Since a driver is needed for ideal operation of computer hardware, you can detect and see what is currently communicating with the system through this driver.
    warning   Warning
    If your system is using generic Windows drivers for your computer hardware, the readings from this option may not be accurate. Make sure that all drivers for the system are fully updated before checking them.

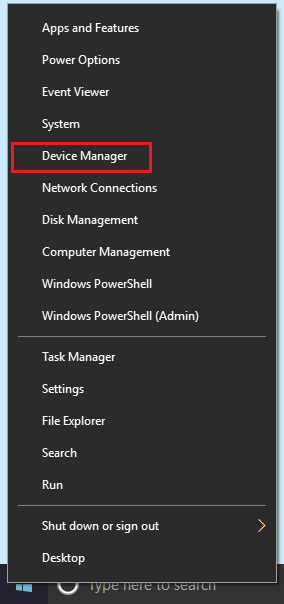

    1. Right click the Windows Start Menu icon and select Device Manager.
    Name:  DeviceManager1.png
Views: 459
Size:  17.0 KB
    information   Information

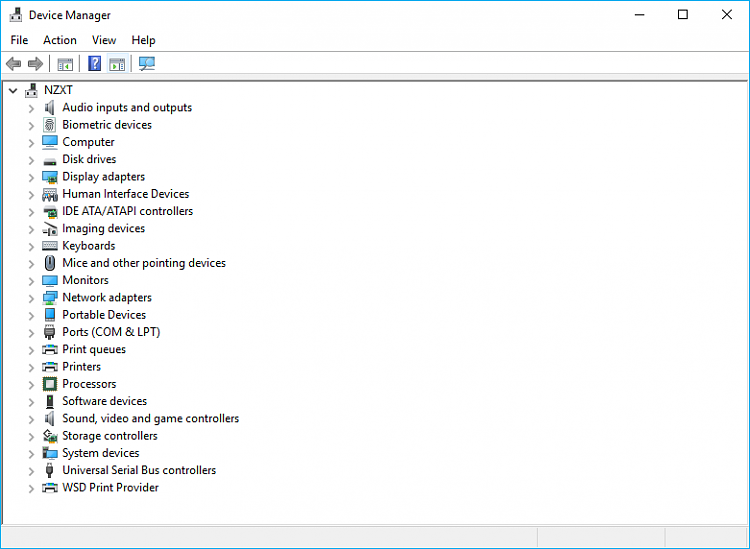

    Each device connected to the system is categorized by type. You can expand each type by pressing the gray right arrow next to each category.
    Click image for larger version.

Name:	DeviceManager2.PNG
Views:	73
Size:	29.2 KB
ID:	164589

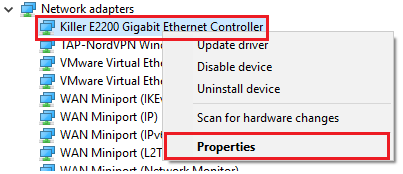

    2. To view hardware, expand the category and right click on the device. Select to view its Properties.
    Name:  DeviceManager4.png
Views: 461
Size:  11.9 KB

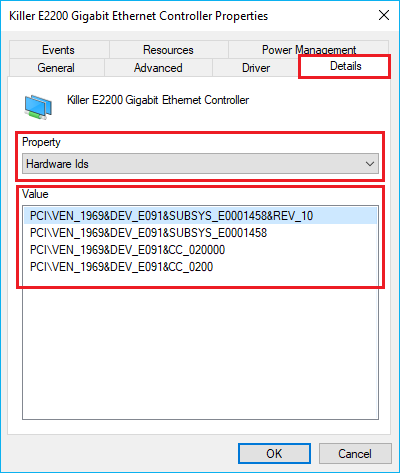

    3. In the tab menu at the top, choose Details and change the Property to Hardware Ids. The information here will be the hardware ID that is being sent from the device.
    Name:  DeviceManager3.png
Views: 480
Size:  16.1 KB

    Thanks for viewing.
