How to Use BitLocker Repair Tool to Recover Encrypted Drive in Windows

information   Information
When you turn on BitLocker for a fixed data drive, you can choose to unlock the drive using a password or smart card. If you turned on BitLocker for the OS drive, then you could also choose to automatically unlock a fixed data drive when you sign in to Windows.

When you turn on BitLocker for a removable data drive, you can choose to unlock the drive using a password, smart card, or automatically unlock when connected.

When you turn on BitLocker for an OS drive, you can choose to unlock the drive at startup with a password, USB flash drive, PIN (with TPM), or automatically unlock.

You may experience a problem that damages an area of a hard disk on which BitLocker stores critical information, and can no longer unlock the OS drive, fixed drive, or removable drive normally. This kind of problem may be caused by a hard disk failure or if Windows exits unexpectedly.

The BitLocker Repair Tool (Repair-bde) can be used to access encrypted data on a severely damaged hard disk if the drive was encrypted by using BitLocker. Repair-bde can reconstruct critical parts of the drive and salvage recoverable data as long as a valid BitLocker password, recovery key, or startup key (.BEK file) is used to decrypt the data.

To recover a damaged OS drive with the BitLocker Repair Tool, the OS drive will need to be connected to another PC if you are not multi-booting with another Windows on the same PC to run the BitLocker Repair Tool from.

You will need to have an empty output volume (drive) of equal or larger size than the damaged BitLocker encrypted drive. The contents of the output volume will be completely deleted and overwritten by the decrypted contents of the damaged BitLocker drive.

The following limitations exist for Repair-bde:
  • The Repair-bde command-line tool cannot repair a drive that failed during the encryption or decryption process.
  • The Repair-bde command-line tool assumes that if the drive has any encryption, then the drive has been fully encrypted.

This tutorial will show you how to use the BitLocker Repair Tool (repair-bde) to recover the contents of a damaged drive encrypted by BitLocker in Windows 7, Windows 8, and Windows 10.

You must be signed in as an administrator to use the BitLocker Repair Tool.
Note   Note
For Windows 7, BitLocker Drive Encryption is only available in the Windows 7 Professional and Windows 7 Enterprise editions.

For Windows 8/8.1, BitLocker Drive Encryption is only available in the Windows 8 Pro and Windows 8 Enterprise editions.

For Windows 10, BitLocker Drive Encryption is only available in the Windows 10 Pro, Enterprise, and Education editions.

CONTENTS:
  • Option One: Recover Damaged BitLocker Drive with BitLocker Repair Tool using Password
  • Option Two: Recover Damaged BitLocker Drive with BitLocker Repair Tool using Recovery Key
  • Option Three: Recover Damaged BitLocker OS Drive with BitLocker Repair Tool using Startup Key


EXAMPLE: Before and after using BitLocker Repair Tool
Name:  Before.jpg
Views: 205
Size:  66.2 KB Name:  After.jpg
Views: 207
Size:  64.4 KB






Use BitLocker Repair Tool to Recover Encrypted Drive in Windows OPTION ONE Use BitLocker Repair Tool to Recover Encrypted Drive in Windows
Recover Damaged BitLocker Drive with BitLocker Repair Tool using Password

1. Open an elevated command prompt.

2. Type the command below into the elevated command prompt, and press Enter. (see screenshot below)

repair-bde <source drive letter>: <output drive letter>: -pw -f

Note   Note
Substitute <source drive letter> in the command above with the actual drive letter (ex: "H") of the damaged BitLocker drive you want to recover.

Substitute <output drive letter> in the command above with the actual drive letter (ex: "E") of the empty drive you want to copy the contents of the BitLocker drive to. The output drive needs to be of equal or larger size than the damaged BitLocker encrypted drive. The contents of the output drive will be completely deleted and overwritten by the decrypted contents of the damaged BitLocker drive.

For example: repair-bde H: E: -pw -f

3. When prompted, enter the BitLocker password used to unlock this drive, and press Enter. (see screenshot below)

Name:  BitLocker_Repair_Tool_with_password.png
Views: 202
Size:  27.0 KB

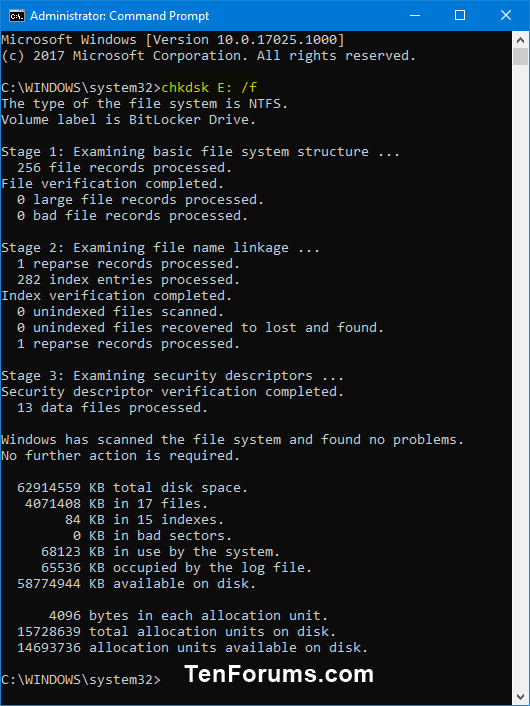

4. Run chkdsk on the output drive (ex: "E") if ACTION REQUIRED. (see screenshot above and below)

Name:  chkdsk.png
Views: 199
Size:  36.0 KB

5. You can now close the elevated command prompt.






Use BitLocker Repair Tool to Recover Encrypted Drive in Windows OPTION TWO Use BitLocker Repair Tool to Recover Encrypted Drive in Windows
Recover Damaged BitLocker Drive with BitLocker Repair Tool using Recovery Key

1. Open an elevated command prompt.

2. Type the command below into the elevated command prompt, and press Enter. Make note of the first section of numbers (ex: "1C689B42") for the Numerical Password ID. This is the key ID to help ID the recovery key for this drive. (see screenshot below)

manage-bde -protectors -get <drive letter>:

Note   Note
Substitute <drive letter> in the command above with the actual drive letter (ex: "H") of the BitLocker drive you want to recover.

For example: manage-bde -protectors -get H:

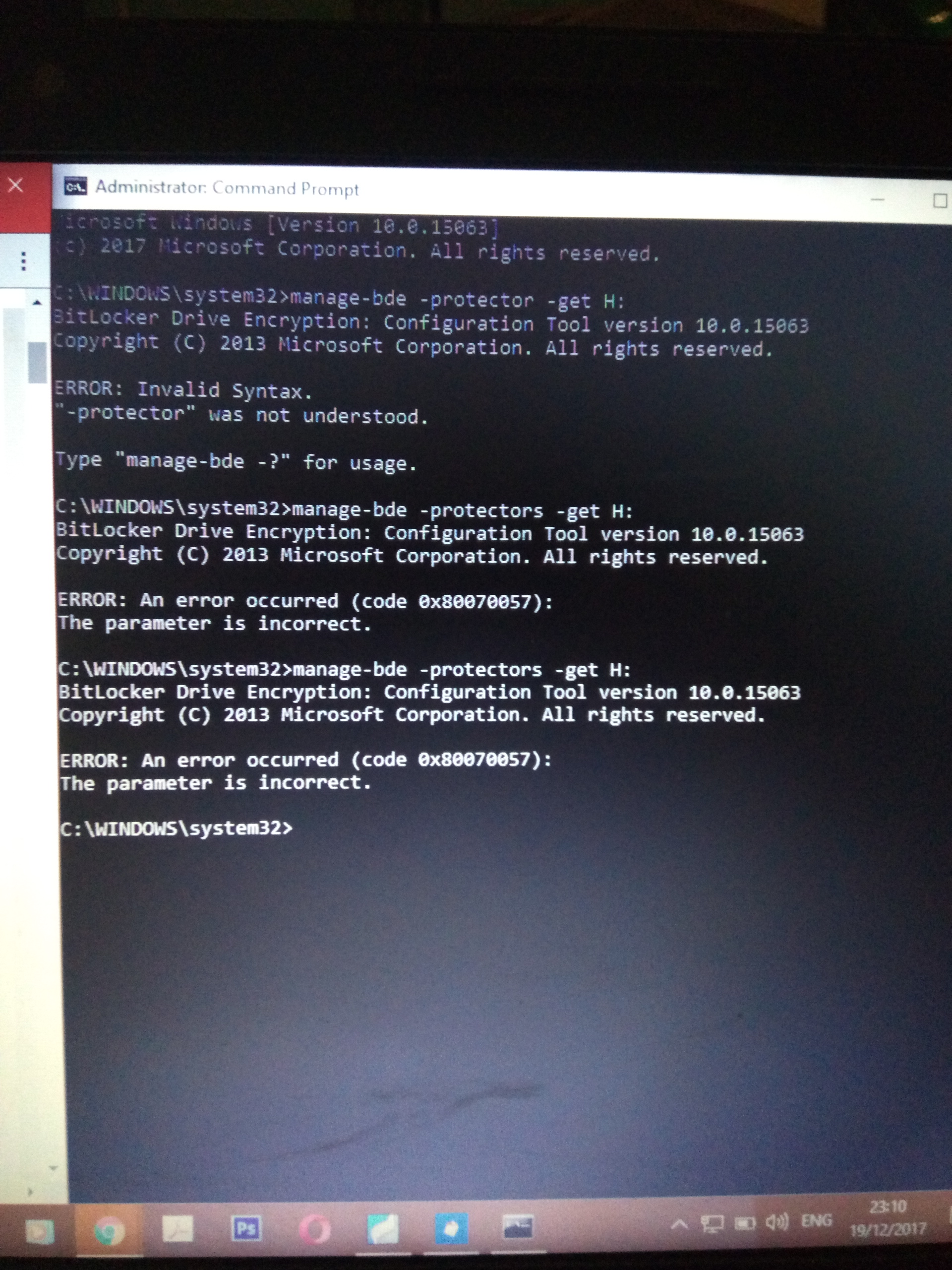

Name:  BitLocker_Repair_Tool_with_recovery_key-1.png
Views: 198
Size:  19.3 KB

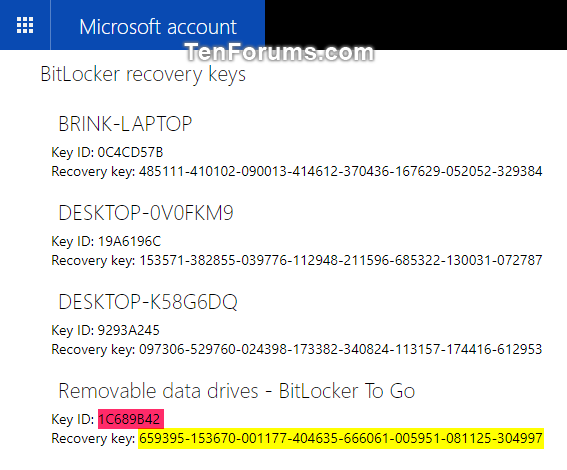

3. Go to where you backed up the BitLocker recovery key for this drive. Look for the 48-digit recovery key for this drive that matches its key ID (ex: "1C689B42") from step 2 above. (see screenshot below)

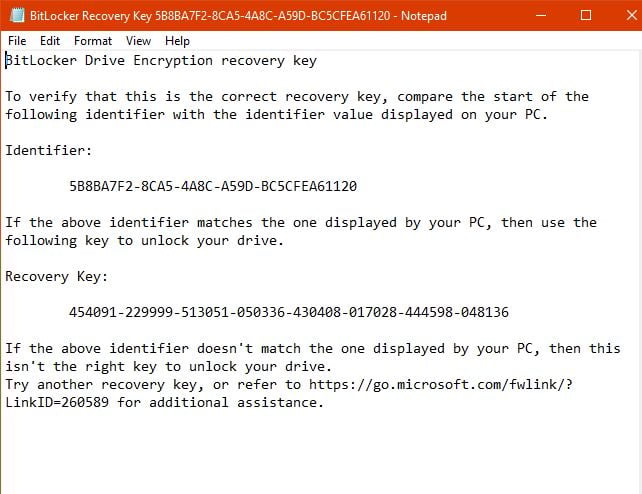

Name:  BitLocker_recovery_key.png
Views: 196
Size:  34.6 KB

4. Type the command below into the elevated command prompt, press Enter. (see screenshot below)

repair-bde <source drive letter>: <output drive letter>: -rp <recovery key> -f

Note   Note
Substitute <source drive letter> in the command above with the actual drive letter (ex: "H") of the damaged BitLocker drive you want to recover.

Substitute <output drive letter> in the command above with the actual drive letter (ex: "E") of the empty drive you want to copy the contents of the BitLocker drive to. The output drive needs to be of equal or larger size than the damaged BitLocker encrypted drive. The contents of the output drive will be completely deleted and overwritten by the decrypted contents of the damaged BitLocker drive.

Substitute <recovery key> in the command above with the 48-digit recovery key from step 3 above for the BitLocker drive (ex: "H").

For example:
repair-bde H: E: -rp 659395-153670-001177-404635-666061-005951-081125-304997 -f

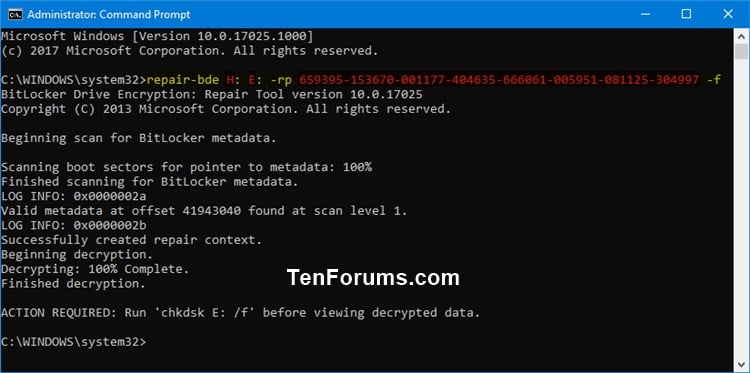

Name:  BitLocker_Repair_Tool_with_recovery_key-2.jpg
Views: 203
Size:  64.8 KB

5. Run chkdsk on the output drive (ex: "E") if ACTION REQUIRED. (see screenshot above and below)

Name:  chkdsk.png
Views: 199
Size:  36.0 KB

6. You can now close the elevated command prompt.






Use BitLocker Repair Tool to Recover Encrypted Drive in Windows OPTION THREE Use BitLocker Repair Tool to Recover Encrypted Drive in Windows
Recover Damaged BitLocker OS Drive with BitLocker Repair Tool using Startup Key

1. Open an elevated command prompt.

2. Type the command below into the elevated command prompt, and press Enter. Make note of the External Key File Name. This is the name of the BitLocker startup key file for this OS drive. (see screenshot below)

manage-bde -protectors -get <drive letter>:

Note   Note
Substitute <drive letter> in the command above with the actual drive letter (ex: "C") of the BitLocker OS drive you want to recover.

For example: manage-bde -protectors -get C:
Name:  BitLocker_Repair_Tool_with_startup_key-1.png
Views: 201
Size:  23.5 KB

3. Type the command below into the elevated command prompt, press Enter. (see screenshot below)

repair-bde <source OS drive letter>: <output drive letter>: -rk "<Full path of startup key .BEK file>" -f

Note   Note
Substitute <source OS drive letter> in the command above with the actual drive letter (ex: "C") of the damaged BitLocker OS drive you want to recover.

Substitute <output drive letter> in the command above with the actual drive letter (ex: "E") of the empty drive you want to copy the contents of the BitLocker drive to. The output drive needs to be of equal or larger size than the damaged BitLocker encrypted drive. The contents of the output drive will be completely deleted and overwritten by the decrypted contents of the damaged BitLocker drive.

Substitute <Full path of startup key .BEK file> in the command above with the actual full path of where the startup key .BEK file from step 2 above is saved at for the BitLocker OS drive (ex: "C").

For example:
repair-bde C: E: -rk "G:\CFB586D0-6A39-422E-B232-1BE2EDDFA0D6.BEK" -f
Name:  BitLocker_Repair_Tool_with_startup_key-2.jpg
Views: 200
Size:  70.9 KB

4. Run chkdsk on the output drive (ex: "E") if ACTION REQUIRED. (see screenshot above and below)

Name:  chkdsk.png
Views: 199
Size:  36.0 KB

5. You can now close the elevated command prompt.
