How to Unlock a Fixed or Removable BitLocker Drive in Windows

information   Information
BitLocker Drive Encryption is a data protection feature that integrates with the operating system and addresses the threats of data theft or exposure from lost, stolen, or inappropriately decommissioned computers.

When you turn on BitLocker for a fixed data drive, you can choose to unlock the drive using a password or smart card. If you turned on BitLocker for the OS drive, then you could also choose to automatically unlock a fixed data drive when you sign in to Windows.

When you turn on BitLocker for a removable data drive, you can choose to unlock the drive using a password, smart card, or automatically unlock when connected.

If you chose to unlock a fixed or removable drive with a password and forgot your BitLocker password, then you can still unlock the drive with its BitLocker recovery key.

This tutorial will show you different ways on how to unlock a fixed or removable data drive encrypted by BitLocker in Windows 7, Windows 8, and Windows 10.
Note   Note
For Windows 7, BitLocker Drive Encryption is only available in the Windows 7 Professional and Windows 7 Enterprise editions.

For Windows 8/8.1, BitLocker Drive Encryption is only available in the Windows 8 Pro and Windows 8 Enterprise editions.

For Windows 10, BitLocker Drive Encryption is only available in the Windows 10 Pro, Enterprise, and Education editions.

CONTENTS:
  • Option One: Unlock Fixed or Removable BitLocker Drive from File Explorer
  • Option Two: Unlock Fixed or Removable BitLocker Drive from Control Panel
  • Option Three: Unlock Fixed or Removable BitLocker Drive in Command Prompt
  • Option Four: Unlock Fixed or Removable BitLocker Drive in PowerShell





Unlock Fixed or Removable BitLocker Drive in Windows OPTION ONE Unlock Fixed or Removable BitLocker Drive in Windows
Unlock Fixed or Removable BitLocker Drive from File Explorer

1. Open This PC in File Explorer (Win+E) in Windows 8/10, or open Computer in Windows Explorer (Win+E) in Windows 7.

2. Either open the locked fixed or removable BitLocker drive you want to unlock, or right click or press and hold on the drive and click/tap on Unlock Drive. (see screenshot below)

Name:  Unlock_BitLocker_drive_in_This-PC.jpg
Views: 73
Size:  59.6 KB

3. Do step 4 (password) or step 5 (recovery key) for how you want to unlock the drive.


 4. Unlock Fixed or Removable Data Drive with BitLocker Password

A) Enter the password to unlock this drive, click/tap on Unlock, and go to step 6 below. (see screenshot below)

Name:  Unlock_with_password.png
Views: 72
Size:  19.5 KB


 5. Unlock Fixed or Removable Data Drive with BitLocker Recovery Key

A) Click/tap on the More options link. (see screenshot below)
Note   Note
In Windows 7, click on the I forgot my password link instead.
Name:  Unlock_with_recovery_key-1.png
Views: 72
Size:  15.9 KB

B) Click/tap on the Enter recovery key link. (see screenshot below)
Note   Note
In Windows 7, make note of the key ID (ex: "04F0CE27") to help ID the recovery key for this drive, click on Type the recovery key, and go to step 5D instead.
Name:  Unlock_with_recovery_key-2.png
Views: 68
Size:  17.0 KB

C) Make note of the key ID (ex: "04F0CE27") to help ID the recovery key for this drive. (see screenshot below)

Name:  Unlock_with_recovery_key-2b.png
Views: 68
Size:  14.6 KB

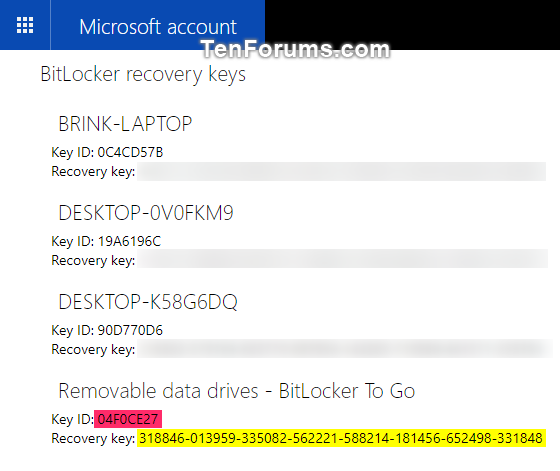

D) Go to where you backed up the BitLocker recovery key for this drive. Look for the 48-digit recovery key for this drive that matches its key ID (ex: "04F0CE27") from step 5C above. (see screenshot below)

Name:  Recovery_key.png
Views: 70
Size:  43.4 KB

E) Repeat step 2 and steps 5A -5B.

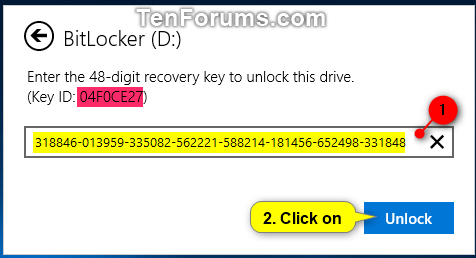

F) Enter the 48-digit recovery key for this drive from step 5D above, click/tap on Unlock, and go to step 6 below. (see screenshot below)

Name:  Unlock_with_recovery_key-3.png
Views: 68
Size:  22.3 KB

6. The drive is now unlocked.






Unlock Fixed or Removable BitLocker Drive in Windows OPTION TWO Unlock Fixed or Removable BitLocker Drive in Windows
Unlock Fixed or Removable BitLocker Drive from Control Panel

1. Open the Control Panel (icons view), and click/tap on the BitLocker Drive Encryption icon.

2. Click/tap on the Unlock drive link for the locked fixed or removable data drive you want to unlock. (see screenshot below)

Name:  Unlock_BitLocker_drive_in_Control_Panel.jpg
Views: 69
Size:  55.7 KB

3. Do step 4 (password) or step 5 (recovery key) for how you want to unlock the drive.


 4. Unlock Fixed or Removable Data Drive with BitLocker Password

A) Enter the password to unlock this drive, click/tap on Unlock, and go to step 6 below. (see screenshot below)

Name:  Unlock_with_password.png
Views: 72
Size:  19.5 KB


 5. Unlock Fixed or Removable Data Drive with BitLocker Recovery Key

A) Click/tap on the More options link. (see screenshot below)

Name:  Unlock_with_recovery_key-1.png
Views: 72
Size:  15.9 KB

B) Click/tap on the Enter recovery key link. (see screenshot below)

Name:  Unlock_with_recovery_key-2.png
Views: 68
Size:  17.0 KB

C) Make note of the key ID (ex: "04F0CE27") to help ID the recovery key for this drive. (see screenshot below)

Name:  Unlock_with_recovery_key-2b.png
Views: 68
Size:  14.6 KB

D) Go to where you backed up the BitLocker recovery key for this drive. Look for the 48-digit recovery key for this drive that matches its key ID (ex: "04F0CE27") from step 5C above. (see screenshot below)

Name:  Recovery_key.png
Views: 70
Size:  43.4 KB

E) Repeat step 2 and steps 5A -5B.

F) Enter the 48-digit recovery key for this drive from step 5D above, click/tap on Unlock, and go to step 6 below. (see screenshot below)

Name:  Unlock_with_recovery_key-3.png
Views: 68
Size:  22.3 KB

6. The drive is now unlocked.






Unlock Fixed or Removable BitLocker Drive in Windows OPTION THREE Unlock Fixed or Removable BitLocker Drive in Windows
Unlock Fixed or Removable BitLocker Drive in Command Prompt

1. Open an elevated command prompt.

2. Do step 3 (password) or step 4 (recovery key) for how you want to unlock the drive.


 3. Unlock Fixed or Removable Data Drive with BitLocker Password

A) Type the command below into the elevated command prompt, and press Enter. (see screenshot below)

manage-bde -protectors -get <drive letter>: -password

Note   Note
Substitute <drive letter> in the command above with the actual drive letter (ex: "D") of the fixed or removable drive you want to unlock.

For example: manage-bde -protectors -get D: -password

B) When prompted, type the BitLocker password for this drive, press Enter, and go to step 5 below.

Name:  Unlock_BitLocker_drive_with_password_command.png
Views: 68
Size:  16.9 KB


 4. Unlock Fixed or Removable Data Drive with BitLocker Recovery Key

A) Type the command below into the elevated command prompt, and press Enter. Make note of the first section of numbers (ex: "04F0CE27") for the Numerical Password ID. This is the key ID to help ID the recovery key for this drive. (see screenshot below)

manage-bde -protectors -get <drive letter>:

Note   Note
Substitute <drive letter> in the command above with the actual drive letter (ex: "D") of the fixed or removable drive you want to unlock.

For example: manage-bde -protectors -get D:
Name:  Unlock_BitLocker_drive_with_recovery_key_command-1.png
Views: 67
Size:  19.2 KB

B) Go to where you backed up the BitLocker recovery key for this drive. Look for the 48-digit recovery key for this drive that matches its key ID (ex: "04F0CE27") from step 4A above. (see screenshot below)

Name:  Recovery_key.png
Views: 70
Size:  43.4 KB

C) Type the command below into the elevated command prompt, press Enter, and go to step 5 below. (see screenshot below)

manage-bde -unlock <drive letter>: -rp <recovery key>

Note   Note
Substitute <drive letter> in the command above with the actual drive letter (ex: "D") of the fixed or removable drive you want to unlock.

Substitute <recovery key> in the command above with the 48-digit recovery key from step 4B above for this drive (ex: "D").

For example:
manage-bde -unlock D: -rp 318846-013959-335082-562221-588214-181456-652498-331848
Click image for larger version.

Name:	Unlock_BitLocker_drive_with_recovery_key_command-2.png
Views:	4
Size:	15.5 KB
ID:	162070

5. The drive is now unlocked. You can now close the elevated command prompt if you like.






Unlock Fixed or Removable BitLocker Drive in Windows OPTION FOUR Unlock Fixed or Removable BitLocker Drive in Windows
Unlock Fixed or Removable BitLocker Drive in PowerShell

Note   Note
This option is only available in Windows 8 and Windows 10.

To see more Unlock-BitLocker command usage options, see: Unlock-BitLocker - Microsoft Docs

1. Open an elevated PowerShell.

2. Do step 3 (password with prompt), step 4 (password without prompt). or step 5 (recovery key) for how you want to unlock the drive.


 3. Unlock Fixed or Removable Data Drive using BitLocker Password with Prompt for Password

A) Type the command below into the elevated PowerShell, and press Enter. (see screenshot below)

Unlock-BitLocker -MountPoint "<drive letter>:" -Password (Read-Host "Enter Password" -AsSecureString)

Note   Note
Substitute <drive letter> in the command above with the actual drive letter (ex: "D") of the fixed or removable drive you want to unlock.

For example: Unlock-BitLocker -MountPoint "D:" -Password (Read-Host "Enter Password" -AsSecureString)

B) When prompted, type the BitLocker password for this drive, press Enter, and go to step 6 below.

Click image for larger version.

Name:	Unlock_BitLocker_drive_with_password_PowerShell-1.png
Views:	3
Size:	22.8 KB
ID:	162071


 4. Unlock Fixed or Removable Data Drive using BitLocker Password without Prompt for Password

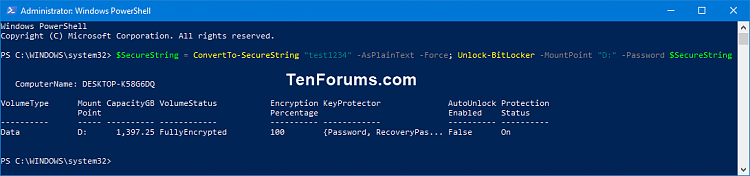

A) Type the command below into the elevated PowerShell, press Enter, and go to step 6 below. (see screenshot below)

$SecureString = ConvertTo-SecureString "<password>" -AsPlainText -Force; Unlock-BitLocker -MountPoint "<drive letter>:" -Password $SecureString

Note   Note
Substitute <password> in the command above with the actual BitLocker password (ex: "test1234") for this drive (ex: "D").

Substitute <drive letter> in the command above with the actual drive letter (ex: "D") of the fixed or removable drive you want to unlock.

For example:
$SecureString = ConvertTo-SecureString "test1234" -AsPlainText -Force; Unlock-BitLocker -MountPoint "D:" -Password $SecureString
Click image for larger version.

Name:	Unlock_BitLocker_drive_with_password_PowerShell-2.png
Views:	4
Size:	17.7 KB
ID:	162072

 5. Unlock Fixed or Removable Data Drive with BitLocker Recovery Key

A) Type the command below into the elevated PowerShell, and press Enter. Make note of the first section of numbers (ex: "04F0CE27") for the Numerical Password ID. This is the key ID to help ID the recovery key for this drive. (see screenshot below)

manage-bde -protectors -get <drive letter>:

Note   Note
Substitute <drive letter> in the command above with the actual drive letter (ex: "D") of the fixed or removable drive you want to unlock.

For example: manage-bde -protectors -get D:
Name:  Unlock_BitLocker_drive_with_recovery_key_PowerShell-1.png
Views: 65
Size:  21.6 KB

B) Go to where you backed up the BitLocker recovery key for this drive. Look for the 48-digit recovery key for this drive that matches its key ID (ex: "04F0CE27") from step 5A above. (see screenshot below)

Name:  Recovery_key.png
Views: 70
Size:  43.4 KB

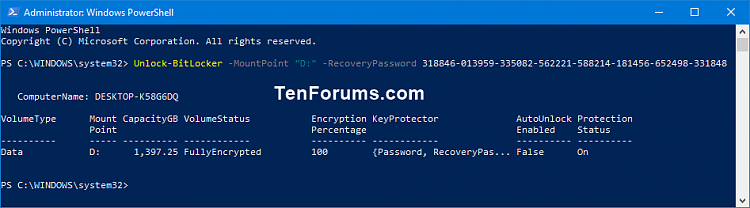

C) Type the command below into the elevated PowerShell, press Enter, and go to step 6 below. (see screenshot below)

Unlock-BitLocker -MountPoint "<drive letter>:" -RecoveryPassword <recovery key>

Note   Note
Substitute <drive letter> in the command above with the actual drive letter (ex: "D") of the fixed or removable drive you want to unlock.

Substitute <recovery key> in the command above with the 48-digit recovery key from step 5B above for this drive (ex: "D").

For example:
Unlock-BitLocker -MountPoint "D:" -RecoveryPassword 318846-013959-335082-562221-588214-181456-652498-331848
Click image for larger version.

Name:	Unlock_BitLocker_drive_with_recovery_key_PowerShell-2.png
Views:	3
Size:	16.8 KB
ID:	162074

6. The drive is now unlocked. You can now close the elevated PowerShell if you like.


That's it,
Shawn
