    Clean Install Windows 10 without DVD or USB Flash Drive

    Clean Install Windows 10 without DVD or USB Flash Drive

    How to Clean Install Windows 10 without any External Installation Media
    Published by Category: Installation & Upgrade
    04 Nov 2017
    Designer Media Ltd

    Published by


    Kari's Avatar
    Finnish but not finished


    Location: A Finnish expat in Germany
    Posts: 12,940

    Show Printable Version


    information   Information
    Sometime ago I had an interesting dilemma: A Windows tablet simply refused to upgrade from Windows 10 version 1607, the Anniversary Update. Due my own actions the only USB port was broken, not recognizing any USB flash drives. I had no SD cards available and even if I had found one, Windows installation can't be booted from SD card. In addition, to get more storage space I had removed factory restore partition and extended C: drive to that freed space.

    I wanted to clean install wiping the hard disk (removing and recreating Windows partitions). I knew from earlier experience that when clean installed, although Windows 10 usually is pretty good in finding and installing correct drivers, setup would be unable to find correct network drivers for this device (a tablet with Intel Atom CPU). These drivers would need to be manually installed after the installation. Otherwise the tablet would be just a worthless brick, a Windows device without network / Internet access, no way to add and install them and therefore unable to install rest of the drivers.

    Short: I had to find a way to install without any external media, and be sure installers for network drivers would be available after installation.

    This tutorial will show how to do this, how to clean install using it without any external media. Screenshots are from a simulation on a Hyper-V virtual machine but the method shown will be and work exactly the same on any PC, laptop or tablet regardless if the machine in question is UEFI / GPT or BIOS / MBR device.

    This method can of course also be used even if you have DVD or USB device available as an alternative method to clean install.

    The instructions might look complicated but trust me, this is an easy and straight forward procedure. I've tried to make instructions as complete as possible to be sure that any user even with limited knowledge of Windows can manage it by following the instructions to the letter.

    warning   Warning
    In my case, the tablet in question I had issues with upgrading had detachable keyboard which made the reinstall possible. If your device is touch only with no keyboard this method might not work for you.

    Before proceeding, test if the touch control works when device is booted to Command Prompt as told in steps 2.1 through 2.3. If touch control is not working, this method does not work for you. Do a hard reset (power off, power on) to boot back to Windows.




    Clean Install Windows 10 without DVD or USB Flash Drive Contents Clean Install Windows 10 without DVD or USB Flash Drive
     Use links to go to any part of tutorial, back button of your browser to return to this list.

    Part One: Preparations
    Part Two: Boot to Command Prompt
    Part Three: Run Windows Setup from partition on same PC
    Part Four: Run Windows Setup from a networked PC
    Part Five: Post install tasks

    Note   Note
    Parts Three & Four are alternative ways to do the same thing. Go through parts One & Two, then depending on if you are doing this on a single device without access to a networked PC do part Three, or if you have access to a networked PC do part Four instead.

    Finish the install doing Part Five.




    Clean Install Windows 10 without DVD or USB Flash Drive Part One: Clean Install Windows 10 without DVD or USB Flash Drive
     Preparations


    1.1) Download Windows 10 ISO image for version you want to install. See this tutorial for how: Download Windows 10 ISO File Windows 10 Installation Upgrade Tutorials

    1.2) Download device driver installers for chipset and network drivers for your device from its manufacturer's site. You can of course download all drivers but to get going after clean install in case device has no network connection, at least the two drivers mentioned should be available
    Note   Note
    If you have another PC available on your network, clean reinstall without DVD or USB can be done over network. In that case download ISO and drivers on that another PC.

    If the device you want to clean reinstall is your only available device, download ISO and driver installers on it.

    Steps 1.3 through 1.9 are required only if you have no other computers available on your local network, and your device only has Windows partition C:. If you have other computers available on network, or if the hard disk on your device you want to reinstall already contains additional partitions, you can skip these step and continue from step 1.8.

    1.3) Create a partition to store Windows ISO image and driver installers by shrinking the C: partition. To do this, open Disk Management (right click Start, select Disk Management), right click C: partition and select Shrink Volume:
    Name:  image.png
Views: 1371
Size:  206.4 KB

    1.4) Shrink C: with 6 GB (6,144 MB):
    Name:  image.png
Views: 1368
Size:  123.7 KB

    1.5) Right click new partition, select New Simple Volume:
    Name:  image.png
Views: 1196
Size:  91.3 KB

    1.6) New Volume Wizard will open. Accept all defaults by clicking four times Next, finally create the new volume (partition) by clicking Finish:
    Name:  image.png
Views: 1372
Size:  142.8 KB

    1.7) New partition will be created and formatted:
    Name:  image.png
Views: 1355
Size:  66.7 KB

    1.8) On new partition, create a folder naming it ISO_Files. Mount the downloaded ISO image as virtual DVD simply by double clicking it. Open mounted ISO in Explorer, select all files and folders with CTRL + A and copy them with CTRL + C, paste the ISO content to ISO_Files folder on new partition:

    Copy ISO content:
    Click image for larger version.

Name:	image.png
Views:	22
Size:	241.1 KB
ID:	155756

    Paste to ISO_Files folder:
    Click image for larger version.

Name:	image.png
Views:	17
Size:	208.2 KB
ID:	155757

    1.9) Copy the downloaded driver installers to new partition. In my case now, when done I had the contents of ISO and driver installers where I wanted to have them, on additional small 6 GB partition:
    Click image for larger version.

Name:	image.png
Views:	19
Size:	133.8 KB
ID:	155755

    Note   Note
    Steps 1.10 through 1.14 below only for users with network access to another PC. If working on a single device, continue from step 2.1.

    1.10) Create a new folder on other PC, name it as you wish. In this tutorial I use folder name W10 Image. Copy driver installers to this folder, create a subfolder W10 Image\ISO_Files and copy all content from mounted Windows ISO image this subfolder (see steps 1.8 & 1.9

    1.11) Right click the folder containing the ISO files and driver installers, select Properties.

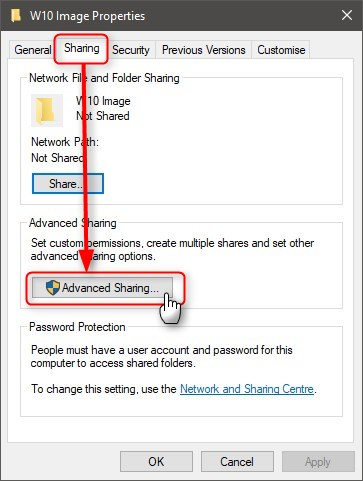

    1.12) Select Sharing tab, click Advanced Sharing:
    Name:  image.png
Views: 1361
Size:  147.8 KB

    1.13) Select Share this folder, name the share if you are not happy with the default name (folder name), select Permissions:
    Name:  image.png
Views: 1364
Size:  96.0 KB

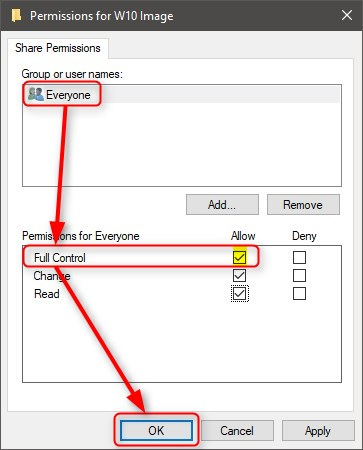

    1.14) Enable full control for everyone, click OK to close Permissions, click OK to close Advanced Sharing, click Close to save changed properties:
    Name:  image.png
Views: 1359
Size:  93.6 KB





    Clean Install Windows 10 without DVD or USB Flash Drive Part Two Clean Install Windows 10 without DVD or USB Flash Drive
     Boot to Command Prompt


    2.1) Open Run prompt (right click Start > select Run) and enter following command to restart to Advanced Startup Options:

    shutdown /r /f /o /t 0

    More about booting to Advanced Startup Options: Boot to Advanced Startup Options in Windows 10 Windows 10 Installation Upgrade Tutorials

    2.2) On Advanced Startup Options, select Troubleshoot, select Advanced Options and finally Command Prompt:
    Click image for larger version.

Name:	image.png
Views:	25
Size:	275.9 KB
ID:	155747

    Tutorial: Open Command Prompt at Boot in Windows 10 Windows 10 General Tips Tutorials

    2.3) Select one of the listed administrator accounts. In this case now I only have one admin account, I'll select it and enter my password in next screen to open Command Prompt:
    Name:  image.png
Views: 1354
Size:  45.7 KB





    Clean Install Windows 10 without DVD or USB Flash Drive Part Three Clean Install Windows 10 without DVD or USB Flash Drive
     Run Windows Setup from partition on same PC

    Note   Note
    If you are using a networked computer for reinstall, skip to Part Four below. This Part Three is only for users running Windows Setup from additional partition on device in question.

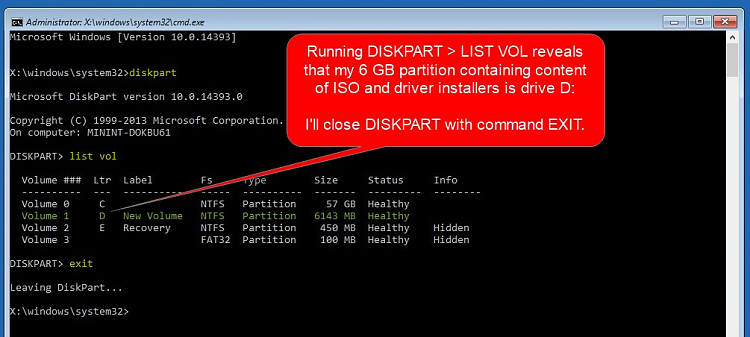

    3.1) Drive letters might not be the same when booting to Command Prompt. To be sure, we will check the drive letter for additional partition containing Windows 10 ISO and downloaded driver installers. This can be done with DISKPART command.

    Enter following commands one by pressing Enter after each command:

    diskpart

    list vol

    exit
    Click image for larger version.

Name:	image.png
Views:	27
Size:	349.1 KB
ID:	155765
    (Click to enlarge.)

    3.2) I can now launch Windows Setup from the ISO_Files folder which in my case is located on drive D: with following command:

    D:\ISO_Files\setup.exe
    Click image for larger version.

Name:	image.png
Views:	35
Size:	331.9 KB
ID:	155766
    (Click to enlarge.)

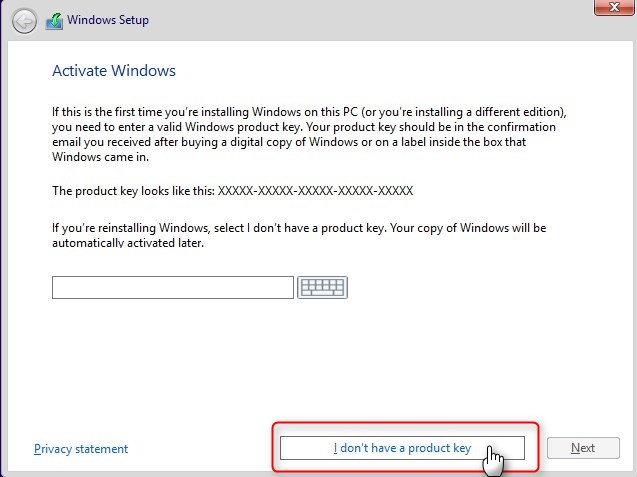

    3.3) Run setup as in normal clean install until you reach the drive options screen asking on which partiton you want to install. When product key is asked, select I don't have a product key. it is not needed in reinstall, Windows 10 will be automatically activated with digital license:
    Name:  image.png
Views: 1367
Size:  166.1 KB

    See Clean Install tutorial if you need any help: Clean Install Windows 10 Windows 10 Installation Upgrade Tutorials

    3.4) In drive options, select each partition one by one (highlighted partitions in screenshot, your actual partition layout may be different) except the additional partition containing Windows ISO files and driver installers and click Delete to remove partitions:
    Name:  image.png
Views: 1362
Size:  216.0 KB

    3.5) When you only have unallocated space and the partition with ISO files and driver installers left, select the unallocated space and click Next to start installing Windows. Windows Setup will repartition the HDD automatically:
    Name:  image.png
Views: 1367
Size:  147.3 KB

    3.6) You can now continue installing Windows normally (tutorial). Continue from Part Five





    Clean Install Windows 10 without DVD or USB Flash Drive Part Four Clean Install Windows 10 without DVD or USB Flash Drive
     Run Windows Setup from a networked PC


    4.1) When booted to Command Prompt, network needs to be initialized before you can connect to another PC to run Windows Setup. This is done with following command:

    wpeinit

    4.2) Map the shared folder on other PC as drive W: with following command, replacing IP-Adress with actual IP address or computer name of the networked computer, and ShareName with the name the folder was shared in step 1.13:

    net use W: "\\IP-Address\ShareName"
    Name:  image.png
Views: 1556
Size:  112.2 KB

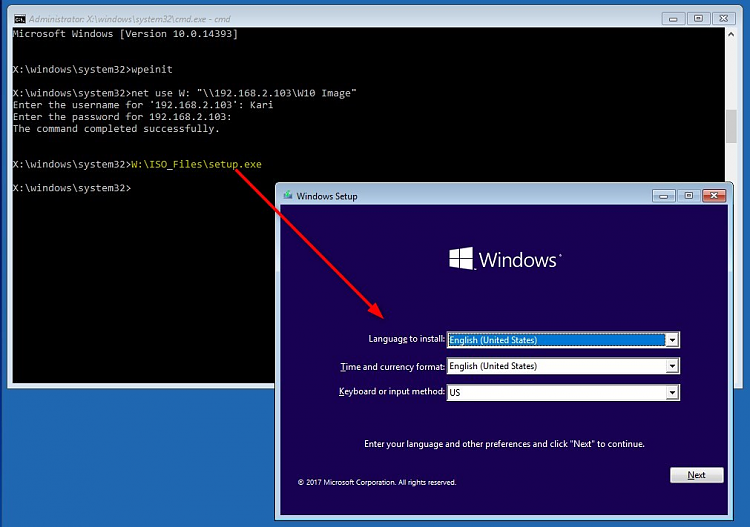

    4.3) In this example the network share was mapped as drive W: and the ISO content on that folder is located in folder ISO_Files, I can start Windows Setup with following command:

    W:\ISO_Files\setup.exe
    Click image for larger version.

Name:	image.png
Views:	33
Size:	288.2 KB
ID:	155776

    4.4) Run Windows Setup normally until you reach drive options. When asked, skip the product key (see how in step 3.3)

    4.5) Remove all partitions from drive 0 by selecting them one by one and clicking Delete (see how in step 3.4) until you only have unallocated space. Now click New. Be careful now, be sure to click New. Do not click Next!:
    Name:  image.png
Views: 1556
Size:  118.1 KB

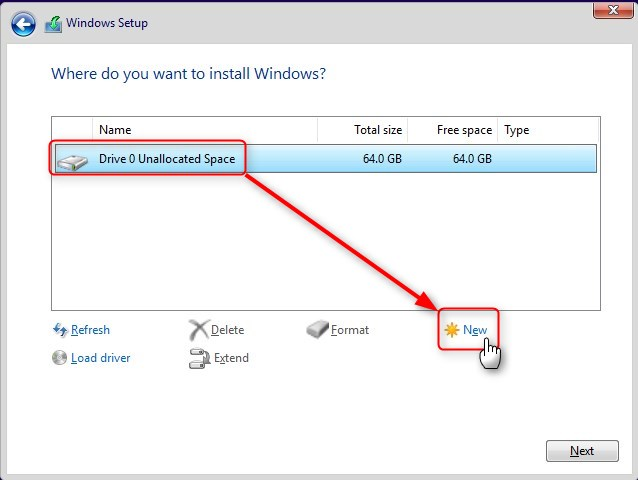

    4.6) By default, setup suggests that you use the full capacity of the HDD for Windows partition:
    Name:  image.png
Views: 1558
Size:  105.9 KB

    4.7) However, we need a small partition for driver installers. In this example I've reduced the suggested size with 2,000 megabits to leave space for an additional partition to store the driver installers. When size have been adjusted, click Apply:
    Name:  image.png
Views: 1561
Size:  130.3 KB

    4.8) Accept with OK:
    Name:  image.png
Views: 1558
Size:  63.5 KB

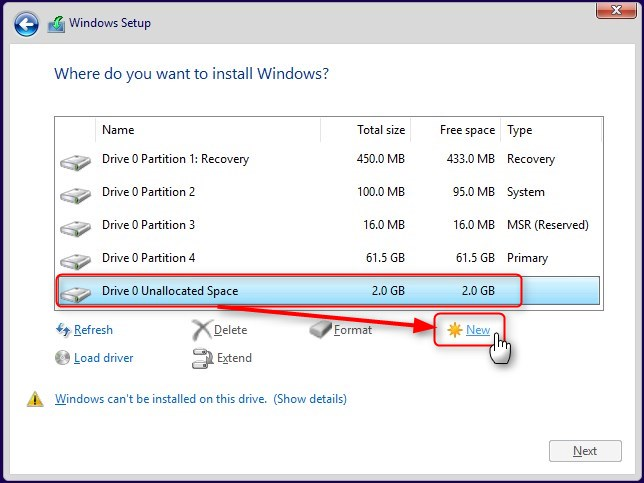

    4.9) Select the small unallocated space at the end of HDD, click New:
    Name:  image.png
Views: 1560
Size:  196.3 KB

    4.10) Click Apply:
    Name:  image.png
Views: 1557
Size:  185.9 KB

    4.11) Click the new, small partition at end of HDD, click Format:
    Name:  image.png
Views: 1561
Size:  184.2 KB

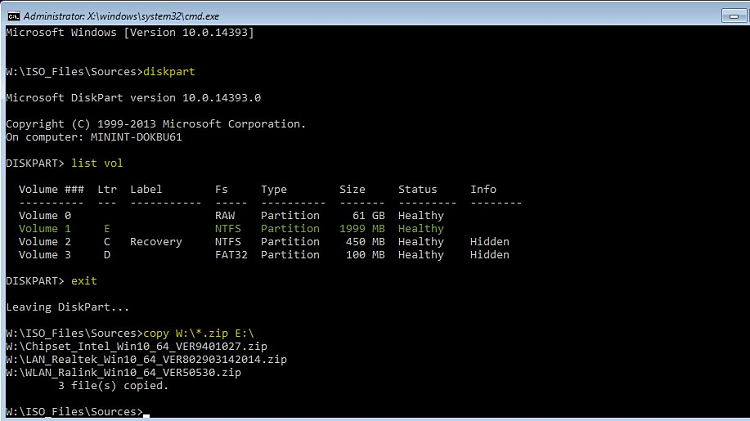

    4.12) Press SHIFT + F10 to reopen Command Prompt. Check the drive letter for new small partition created in 4.10 & 4.11 with DISKPART (see 3.1 for DISKPART instructions).

    Copy driver installers from shared folder on networked PC one by one with following command replacing target drive letter X: with actual drive letter of the small new partition:

    copy W:\DriverInstallerFileNameWithExtension X:\

    For instance, if WLAN driver installer filename would be RealtekWLAN.exe, and the small partition would be drive E:, the command would be as follows:

    copy W:\RealtekWLAN.exe E:\

    If all driver installers have the same extension, you can copy all of them with one command replacing filename with asterisk (*). In my case now, all three driver installers I want to copy are ZIP archive files with extension .zip, and I want to copy them to new small partition E:, the command would be as follows:

    copy W:\*.zip E:\
    Click image for larger version.

Name:	image.png
Views:	29
Size:	234.1 KB
ID:	155786
    (Click to enlarge.)

    This copies all files with given extension, ZIP in this case, to target.

    4.13) Select the Windows partition (partition 4 on UEFI / GPT machines, partition 2 on BIOS / MBR) and continue installing Windows normally (tutorial). Continue from Part Five:
    Name:  image.png
Views: 1581
Size:  194.8 KB




    Clean Install Windows 10 without DVD or USB Flash Drive Part Five: Clean Install Windows 10 without DVD or USB Flash Drive
     Post install tasks


    5.1) Windows 10 is really good in finding correct drivers, in most cases I have had no need to install drivers manually. However, as so often in computing, you should not trust that Windows can do it automatically and be prepared instead.

    That's the reason we downloaded the chipset and network drivers copying them to a small additional partition, to be prepared. In case Windows Setup already installed correct network drivers, you are ready to go and can skip this step, but if Windows Setup was unable to install correct network drivers, you have now partition D: on your HDD containing them.

    Run the installers and install drivers manually. Notice that some network drivers require chipset being up to date, I recommend you start by installing chipset driver, restart and continue installing network drivers.

    When done and you have got network and Internet access, you can run Windows Update and install other missing drivers.
    Click image for larger version.

Name:	image.png
Views:	31
Size:	706.7 KB
ID:	155794

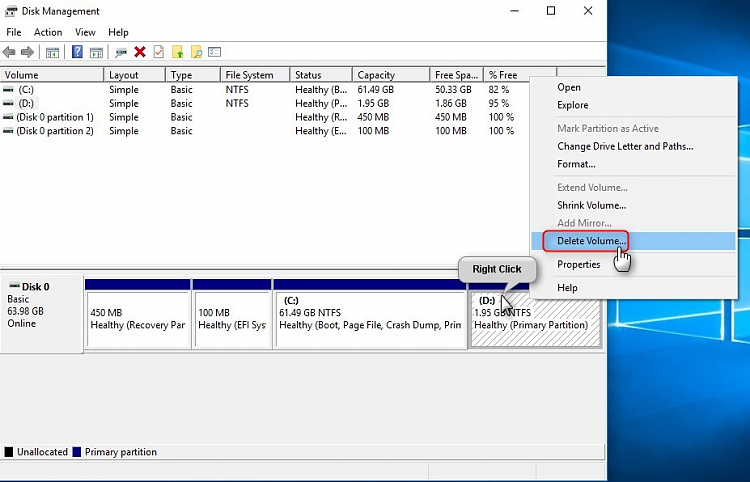

    5.2) When you have network access, you can remove the additional partition where you had ISO files and driver installers (single machine setup) or driver installers (installing from network) in Disk Management:
    Click image for larger version.

Name:	image.png
Views:	36
Size:	339.4 KB
ID:	155798

    5.3) Extend drive C: using the freed space:
    Click image for larger version.

Name:	image.png
Views:	31
Size:	229.4 KB
ID:	155799

    5.4) Accept all defaults by clicking two times Next, then Finish
    Name:  image.png
Views: 1367
Size:  105.4 KB

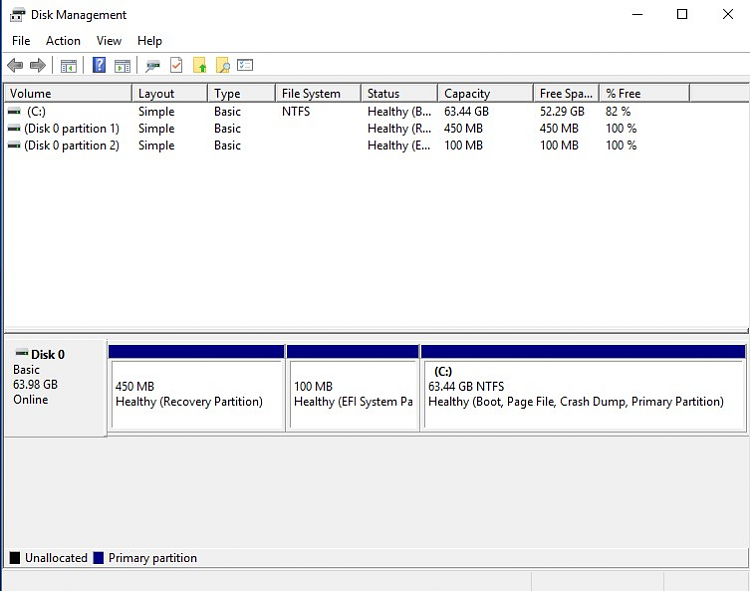

    5.5) You have now full capacity of HDD to be used with Windows:
    Click image for larger version.

Name:	image.png
Views:	29
Size:	184.0 KB
ID:	155801

    That's it! The hard disk was cleaned and wiped and Windows 10 installed without using any external DVD or USB device.
