How to Show Only Specified Control Panel Items in Windows

information   Information
You can use Control Panel to change settings for Windows. These settings control nearly everything about how Windows looks and works, and you can use them to set up Windows so that it's just right for you.

In Windows 10, there are a few different ways to find and change your settings: Settings app, Control Panel, app settings, and search. Most of the settings that you'll want to change can be found in the Settings app.

This tutorial will show you how to show only specified Control Panel items for specific or all users in Windows 7, Windows 8, and Windows 10.

You must be signed in as an administrator to show only specified Control Panel items.
Note   Note
If both the Hide specified Control Panel items setting and the Show only specified Control Panel items setting are enabled, the "Show only specified Control Panel items" setting is ignored.

CONTENTS:
  • Option One: To Show Only Specified Control Panel Items in Local Group Policy Editor
  • Option Two: To Show Only Specified Control Panel Items for Only Current User in Registry Editor
  • Option Three: To Undo Show Only Specified Control Panel Items using a REG file


EXAMPLE: Control Panel (all icons view)
Name:  Control_Panel.jpg
Views: 305
Size:  79.1 KB






Show Only Specified Control Panel Items in Windows OPTION ONE Show Only Specified Control Panel Items in Windows
To Show Only Specified Control Panel Items in Local Group Policy Editor

Note   Note
The Local Group Policy Editor is only available in the Windows 10 Pro, Enterprise, and Education editions.

All editions can use Option Two below.

1. Open the all users, specific users or groups, or all users except administrators Local Group Policy Editor for how you want this policy applied.

2. In the left pane of the Local Group Policy Editor, click/tap on to expand User Configuration, Administrative Templates, and Control Panel. (See screenshot below)

Name:  Show_only_specified_Control_Panel_items_gpedit-1.jpg
Views: 306
Size:  77.9 KB

3. In the right pane of Control Panel, double click/tap on Show only specified Control Panel items to edit it. (see screenshot above)

4. Do step 5 (show) or step 6 (undo) below for what you would like to do.


 5. To Show Only Specified Control Panel Items

A) Select (dot) Enabled, and click/tap on the Show button under "Options". (see screenshot below)

Name:  Show_only_specified_Control_Panel_items_gpedit-3.png
Views: 322
Size:  51.2 KB

B) Enter the names of any Control Panel items one per line you want to show, and click/tap on OK when finished. (see screenshot below)
Note   Note
You would enter the same names as the icons in the Control Panel (icons view).
Name:  Show_only_specified_Control_Panel_items_gpedit-4.png
Views: 308
Size:  19.2 KB

C) Click/tap on OK to apply, and go to step 7 below. (see screenshot below step 5A)


 6. To No Longer Show Only Specified Control Panel Items

A) Select (dot) either Not Configured or Disabled, click/tap on OK, and go to step 7 below. (see screenshot below)

NOTE: Not Configured is the default setting.

Name:  Show_only_specified_Control_Panel_items_gpedit-2.png
Views: 307
Size:  47.2 KB


7. When finished, you can close the Local Group Policy Editor if you like.

8. If the Control Panel is currently open, then close and reopen it to apply.






Show Only Specified Control Panel Items in Windows OPTION TWO Show Only Specified Control Panel Items in Windows
To Show Only Specified Control Panel Items for Only Current User in Registry Editor

Note   Note
This option will only affect this single user account that you are currently signed in to while performing this option.

1. Press the Win+R keys to open Run, type regedit into Run, and click/tap on OK to open Registry Editor.

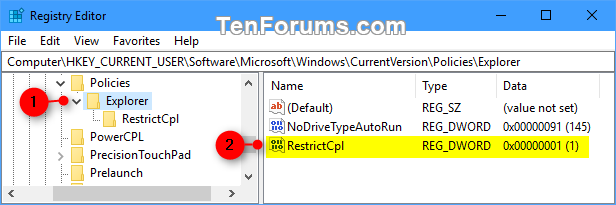

2. Navigate to the key below in the left pane of Registry Editor. (see screenshot below)

HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Policies\Explorer

Name:  Show_only_specified_Control_Panel_items_regedit-1.png
Views: 307
Size:  23.1 KB

3. In the right pane of the Explorer key, double click/tap on the RestrictCpl DWORD to modify it. (see screenshot above)
Note   Note
If you do not have a RestrictCpl DWORD, then right click or press and hold on an empty area in the right pane of the Explorer key, click/tap on New, click/tap on DWORD (32-bit) Value, type RestrictCpl for the name, and press Enter.

4. Type 1, and click/tap on OK. (see screenshot below)
Tip   Tip
0 - Turn off showing only the Control Panel items specified in steps 6 and 7 below.

1 - Turn on showing only the Control Panel items specified in steps 6 and 7 below.
Name:  Show_only_specified_Control_Panel_items_regedit-2.png
Views: 308
Size:  6.9 KB

5. Navigate to the key below in the left pane of Registry Editor. (see screenshot below)

HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Policies\Explorer\RestrictCpl

Note   Note
If you do not have a RestrictCpl key, then right click or press and hold on the Explorer key, click/tap on New, click/tap on Key, type RestrictCpl for the name, and press Enter.
Name:  Show_only_specified_Control_Panel_items_regedit-3.png
Views: 313
Size:  25.2 KB

6. In the right pane of the RestrictCpl key, right click or press and hold on an empty area, click/tap on New, click/tap on String Value, type a number (ex: "1") for the name, and press Enter. (see screenshot below step 5)
Note   Note
You would substitute number for the string value's (REG_SZ) name with an actual number in numerical order for the Control Panel items you want to show.

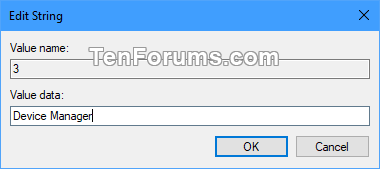

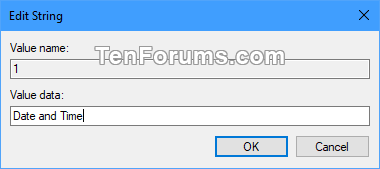

7. Type in the name of a Control Panel item you want to show, and click/tap on OK. (see screenshots below)
Note   Note
You would enter the same name as its icon in the Control Panel (icons view).
Name:  Show_only_specified_Control_Panel_items_regedit-4.png
Views: 308
Size:  5.3 KB Name:  Show_only_specified_Control_Panel_items_regedit-5.png
Views: 301
Size:  5.5 KB
Name:  Show_only_specified_Control_Panel_items_regedit-6.png
Views: 302
Size:  5.4 KB Name:  Show_only_specified_Control_Panel_items_regedit-7.png
Views: 308
Size:  5.5 KB

8. Repeat steps 6 and 7 above for any other Control Panel items you want to show.

9. When finished, you can close Registry Editor if you like.

10. If the Control Panel is currently open, then close and reopen it to apply.






Show Only Specified Control Panel Items in Windows OPTION THREE Show Only Specified Control Panel Items in Windows
To Undo Show Only Specified Control Panel Items using a REG file

Note   Note
The .reg files below will delete the RestrictCpl DWORD value and registry key below.

HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Policies\Explorer

RestrictCpl DWORD

HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Policies\Explorer\RestrictCpl

1. Click/tap on the Download button below to download the file below.

Undo_Show_only_speciied_Control_Panel_items.reg

download

2. When prompted, click/tap on Run, Yes (UAC), Yes, and OK to approve the merge.

3. If the Control Panel is currently open, then close and reopen it to apply.

4. You could now delete the downloaded .reg file if you like.


That's it,
Shawn
