How to Pair Windows 10 Mobile Phone with Windows 10 PC using Bluetooth

information   Information
Bluetooth is a short range wireless technology which enables wireless data transmission between two Bluetooth–enabled devices located nearby each other.

If one Bluetooth–enabled (turned on) device is in discovery mode and discovers another Bluetooth–enabled device nearby, it can query for its services and choose to establish a Bluetooth link, or a 'pairing relationship', with the other Bluetooth–enabled device. Establishing a Bluetooth link with another Bluetooth–enabled device is also known as pairing.

Wireless devices with Bluetooth radios must be paired with each other before they can communicate.

Once the two devices have been paired, they will automatically connect to each other when they are within range and have Bluetooth turned on.

This tutorial will show you how to pair your Windows 10 Mobile phone with your Windows 10 PC using Bluetooth.



Here's How:

1. On your Windows 10 PC that has Bluetooth, open Settings, and click/tap on the Devices icon.

A) Click/tap on Bluetooth & other devices on the left side, and turn on Bluetooth on the right side. (see screenshot below)
Note   Note
Your Windows 10 PC (ex: "BRINK-W10LAPTOP") will now be discoverable.

Name:  Pair_Bluetooth_on_w10_PC-1.jpg
Views: 538
Size:  70.9 KB

2. On your Windows 10 Mobile phone that has Bluetooth, open Settings, and tap on Devices. (see screenshot below)

Name:  W10_Mobile_Bluetooth-1.jpg
Views: 528
Size:  41.3 KB

A) Tap on Bluetooth & other devices. (see screenshot below)

Name:  W10_Mobile_Bluetooth-2.jpg
Views: 524
Size:  21.3 KB

B) Turn on Bluetooth. (see screenshot below)
Note   Note
Your Windows 10 Mobile phone (ex: "SBrink-Phone") will now be discoverable.

Name:  W10_Mobile_Bluetooth-3.jpg
Views: 535
Size:  38.0 KB

3. On your Windows 10 PC, click/tap on Add Bluetooth or other device. (see screenshot below)

Name:  Pair_Bluetooth_on_w10_PC-2.jpg
Views: 522
Size:  66.9 KB

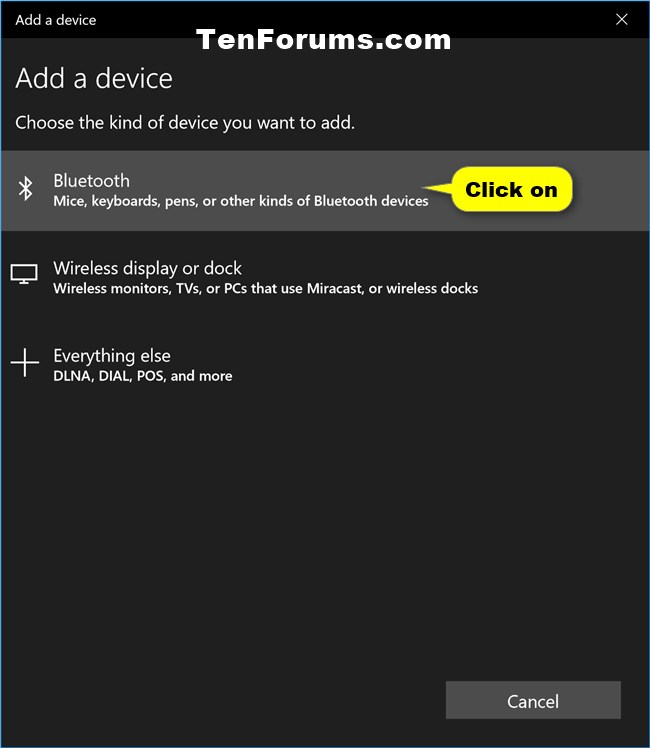

4. On your Windows 10 PC, click/tap on the Bluetooth option. (see screenshot below)

Name:  Pair_Bluetooth_on_w10_PC-3.jpg
Views: 536
Size:  49.9 KB

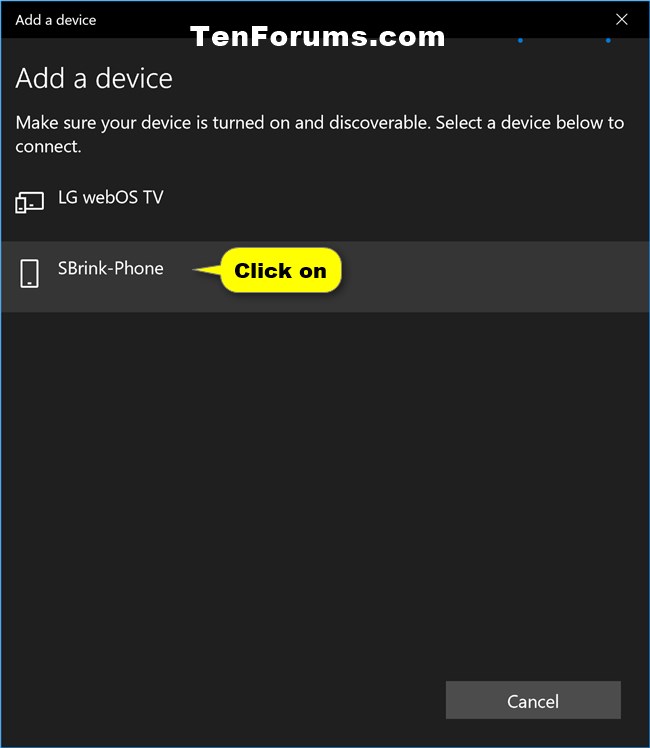

5. On your Windows 10 PC, click/tap on your Windows 10 Mobile phone (ex: "SBrink-Phone") when discovered and listed. (see screenshot below)

Name:  Pair_Bluetooth_on_w10_PC-4.jpg
Views: 521
Size:  41.5 KB

6. On your Windows 10 Mobile phone, tap on Add Bluetooth or other device. (see screenshot below)

Name:  Pair_Bluetooth_on_W10_Mobile_phone-1.jpg
Views: 520
Size:  37.7 KB

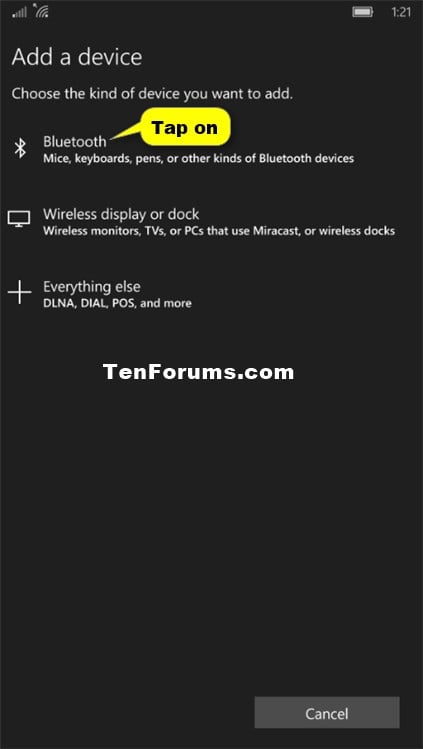

7. On your Windows 10 Mobile phone, tap on the Bluetooth option. (see screenshot below)

Name:  Pair_Bluetooth_on_W10_Mobile_phone-2.jpg
Views: 529
Size:  29.6 KB

8. On your Windows 10 Mobile phone, tap on your Windows 10 PC (ex: "(ex: "BRINK-W10LAPTOP") when discovered and listed. (see screenshot below)

Name:  Pair_Bluetooth_on_W10_Mobile_phone-3.jpg
Views: 520
Size:  23.2 KB

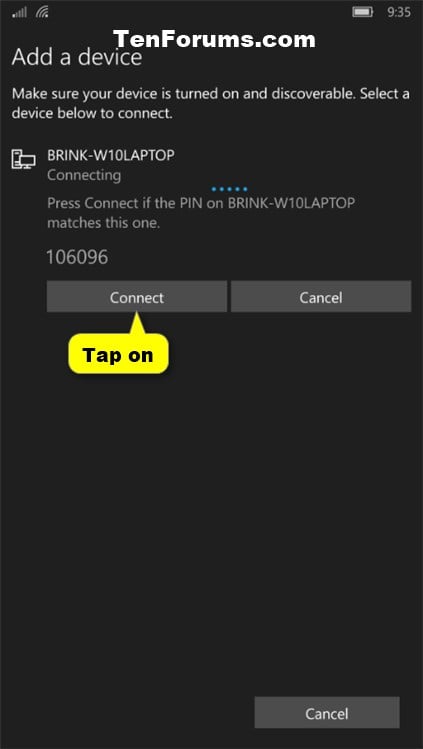

9. On your Windows 10 Mobile phone, tap on Connect if the PIN number (ex: "106096") matches on your Windows 10 PC below. (see screenshot below)

Name:  Pair_Bluetooth_on_W10_Mobile_phone-4.jpg
Views: 525
Size:  30.1 KB

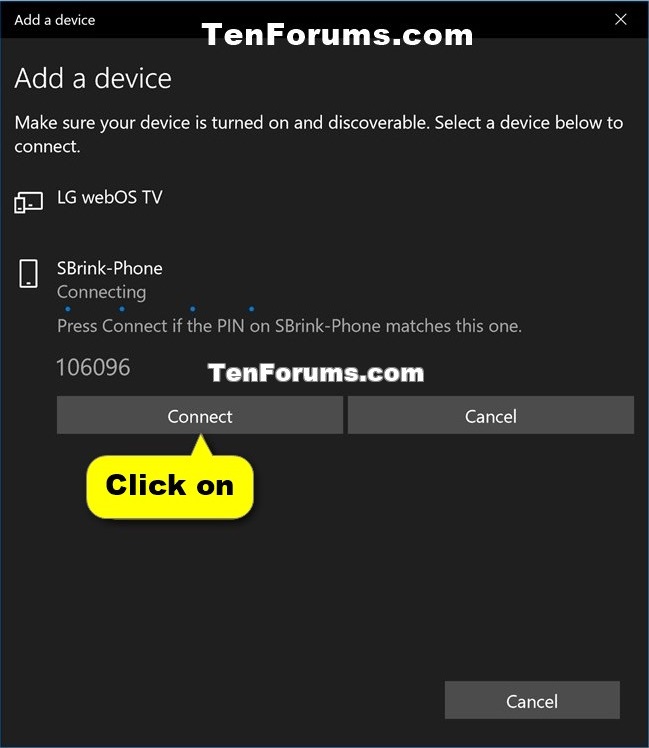

10. On your Windows 10 PC, click/tap on Connect if the PIN number (ex: "106096") matches on your Windows 10 Mobile phone above. (see screenshot below)

Name:  Pair_Bluetooth_on_w10_PC-5.jpg
Views: 529
Size:  65.5 KB

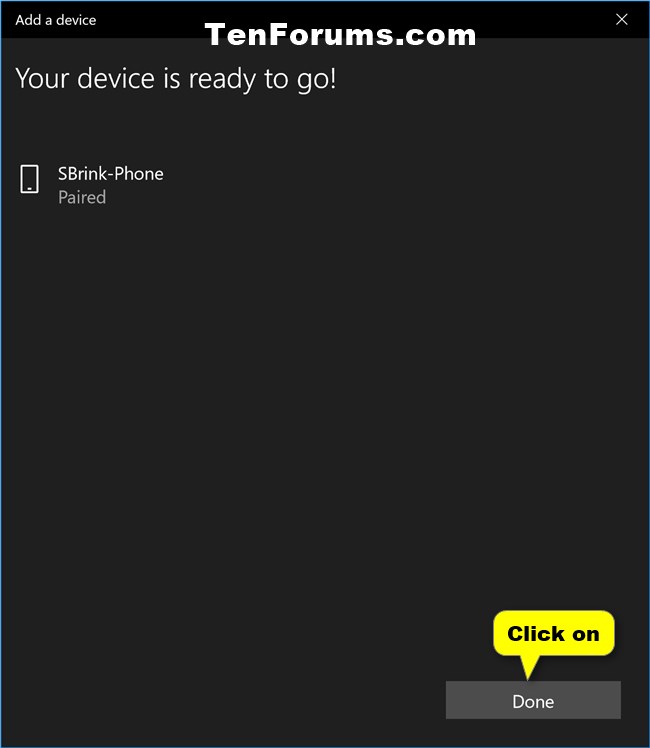

11. Click/tap on Done on both your now paired Windows 10 PC and Windows 10 Mobile phone. (see screenshots below)

Name:  Pair_Bluetooth_on_W10_Mobile_phone-5.jpg
Views: 521
Size:  19.3 KB Name:  Pair_Bluetooth_on_w10_PC-6.jpg
Views: 523
Size:  32.7 KB

12. Your Windows 10 PC and Windows 10 Mobile phone will now automatically show as paired on each other when within range and have Bluetooth turned on. (see screenshots below)

Name:  Pair_Bluetooth_on_W10_Mobile_phone-6.jpg
Views: 520
Size:  36.0 KB Name:  Pair_Bluetooth_on_w10_PC-7.jpg
Views: 531
Size:  61.2 KB



That's it,
Shawn
