How to Manage Virtual Memory Pagefile in Windows 10

information   Information
Paging is a memory management scheme by which a PC stores and retrieves data from secondary storage for use in main memory. In this scheme, the operating system retrieves data from secondary storage in same-size blocks called pages. Paging is an important part of virtual memory implementations in modern operating systems, using secondary storage to let programs exceed the size of available physical memory.

For simplicity, main memory is called "RAM" (abbreviated from "random-access memory") and secondary storage is called "disk" (a shorthand for "hard disk drive"), but the concepts do not depend on whether these terms apply literally to a specific computer system.

Virtual memory is a memory management technique that is implemented using both hardware and software. It maps memory addresses used by a program, called virtual addresses, into physical addresses in computer memory. Main storage as seen by a process or task appears as a contiguous address space or collection of contiguous segments. Windows manages virtual address spaces and the assignment of real memory to virtual memory. Address translation hardware in the CPU, often referred to as a memory management unit or MMU, automatically translates virtual addresses to physical addresses. Software within Windows may extend these capabilities to provide a virtual address space that can exceed the capacity of real memory and thus reference more memory than is physically present in the computer.

The primary benefits of virtual memory include freeing applications from having to manage a shared memory space, increased security due to memory isolation, and being able to conceptually use more memory than might be physically available, using the technique of paging.

Basically, a paging file is an area on the hard disk that Windows uses as if it were RAM when you run out of available RAM.

References:

By default, Windows automatically manages the pagefile settings for you, but there may be times you may need to manually manage your pagefile. For example:
  • If the C: drive that Windows is installed on is small in size, you may wish to remove the pagefile from that drive, and add a paging file to another drive with more space instead.
  • If you use a lot of memory, then you may wish to add a pagefile to another drive to have available if needed.
  • If you don't use a lot of memory and your pagefile is large in size, you may wish to use a smaller custom size.
  • If you are getting a BSOD PAGE_FAULT_IN_NONPAGED_AREA or KERNEL_DATA_INPAGE_ERROR or Low Memory type error, you may need to use a larger custom size for the pagefile.

This tutorial will show you how to manage the virtual memory paging file for each drive on your Windows 10 PC.

You must be signed in as an administrator to be able to make changes to the pagefile.

EXAMPLE: pagefile.sys on Windows C: drive
Name:  pagefile.sys.jpg
Views: 12555
Size:  70.4 KB



Here's How:

1. Open the Control Panel (icons view), and click/tap on the System icon.

2. Click/tap on the Advanced system settings link on the left side in System, and close the System window. (see screenshot below)

Name:  Virtual_memory_page_file-1.jpg
Views: 12769
Size:  72.2 KB

3. In the Advanced tab, click/tap on the Settings button in the Performance section. (see screenshot below)

Name:  Virtual_memory_page_file-2.jpg
Views: 12589
Size:  46.9 KB

4. In the Advanced tab, click/tap on the Change button in the Virtual memory section. (see screenshot below)

Name:  Virtual_memory_page_file-3.jpg
Views: 12663
Size:  45.2 KB

5. Do step 6 (custom size), step 7 (remove), step 8 (system managed), or step 9 (all system managed) for how you want to manage the paging file on your drive(s).


 6. To Set a Custom Size for Paging File Size on a Drive

A) Uncheck the Automatically manage paging file size for all drives box. (see screenshot below step 6F)

B) Select a drive (ex: C: ) you want to either set a custom size or add a paging file. (see screenshot below step 6F)

C) Select (dot) Custom size. (see screenshot below step 6F)

D) Enter the Initial size (minimal) you want in MB (1024 MB = 1 GB) for the paging file on the selected drive. (see screenshot below step 6F)

E) Enter the Maximum size you want in MB (1024 MB = 1 GB) for the paging file on the selected drive. (see screenshot below step 6F)

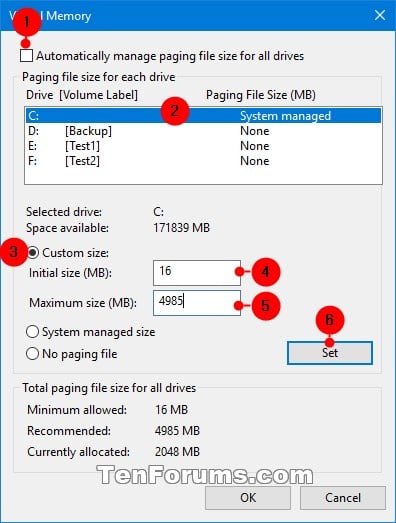

F) Click/tap on the Set button. (see screenshot below)

Name:  Custom_paging_file_for_drive-1.jpg
Views: 12854
Size:  54.7 KB

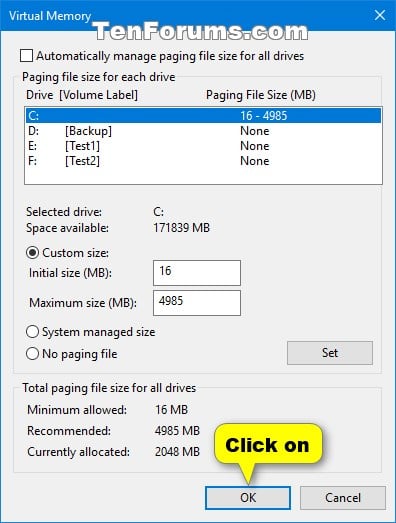

G) Click/tap on OK. (see screenshot below)

Name:  Custom_paging_file_for_drive-2.jpg
Views: 12561
Size:  52.8 KB

H) Click/tap on OK. (see screenshot below)

Name:  Virtual_memory_page_file-4.jpg
Views: 12501
Size:  18.2 KB

I) Click/tap on OK. (see screenshot below step 4)

J) Click/tap on OK. (see screenshot below step 3)

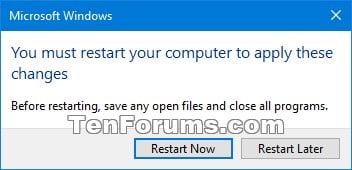

K) Click/tap on Restart Now to restart the computer to apply your changes. (see screenshot below)

Name:  Virtual_memory_page_file-5.jpg
Views: 12492
Size:  19.8 KB


 7. To Remove (disable) Paging File on a Drive

A) Uncheck the Automatically manage paging file size for all drives box. (see screenshot below step 7D)

B) Select a drive (ex: C: ) you want to remove a paging file from. (see screenshot below step 7D)

C) Select (dot) No paging file. (see screenshot below step 7D)

D) Click/tap on the Set button. (see screenshot below)

Name:  Remove_paging_file_for_drive-1.jpg
Views: 12517
Size:  51.3 KB

E) Click/tap on Yes to confirm. (see screenshot below)

Name:  Remove_paging_file_for_drive-2.jpg
Views: 12495
Size:  25.0 KB

F) Click/tap on OK. (see screenshot below)

Name:  Disable_paging_file_for_drive-3.jpg
Views: 12553
Size:  51.2 KB

G) Click/tap on OK. (see screenshot below)

Name:  Virtual_memory_page_file-4.jpg
Views: 12501
Size:  18.2 KB

H) Click/tap on OK. (see screenshot below step 4)

I) Click/tap on OK. (see screenshot below step 3)

J) Click/tap on Restart Now to restart the computer to apply your changes. (see screenshot below)

Name:  Virtual_memory_page_file-5.jpg
Views: 12492
Size:  19.8 KB


 8. To Set Size of Paging File on a Drive to be System Managed

A) Uncheck the Automatically manage paging file size for all drives box. (see screenshot below step 8D)

B) Select a drive (ex: C: ) you want to have its paging file size system managed. (see screenshot below step 8D)

C) Select (dot) System managed size. (see screenshot below step 8D)

D) Click/tap on the Set button. (see screenshot below)

Name:  System_Managed_paging_file_for_drive-1.jpg
Views: 12490
Size:  51.5 KB

E) Click/tap on OK. (see screenshot below)

Name:  System_Managed_paging_file_for_drive-2.jpg
Views: 12529
Size:  51.5 KB

F) Click/tap on OK. (see screenshot below step 4)

G) Click/tap on OK. (see screenshot below step 3)


 9. To Set Size of Paging File on All Drives to be System Managed

A) Check the Automatically manage paging file size for all drives box, and click/tap on OK. (see screenshot below)

Name:  System_Managed_paging_file_for_all_drives.jpg
Views: 12615
Size:  45.9 KB

B) Click/tap on OK. (see screenshot below step 4)

C) Click/tap on OK. (see screenshot below step 3)


That's it,
Shawn
