How to Manage Windows Backup Disk Space in Windows 10

information   Information
The Backup and Restore (Windows 7) feature (aka: Windows Backup) was originally included in Windows 7. It was deprecated in Windows 8 and removed in in Windows 8.1, but has been included in Windows 10.

While you can use Backup and Restore (Windows 7) to restore any Windows 7 backups on your Windows 10 PC, you can also use it to back up and restore files on your Windows 10 PC.

Windows Backup will backup all files in the libraries, folders, and drives you choose or let Windows choose. You will have a choice to include a system image in the backup. You can also choose to have these items be backed up on a regular schedule.

After you have set up Windows Backup, you can manage how disk space is used by Windows Backup as needed. You can free up disk space by deleting previously created data file backups and system images.

This tutorial will show you how to manage how disk space is used by Windows Backup for data file backups and system images on your Windows 10 PC.

You must be signed in as an administrator to be able to manage Windows Backup disk space.

Note   Note

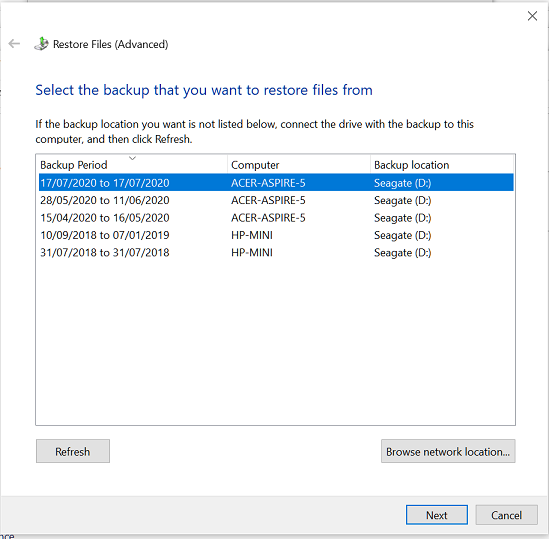

Data file backups are created in sets also known as backup periods.

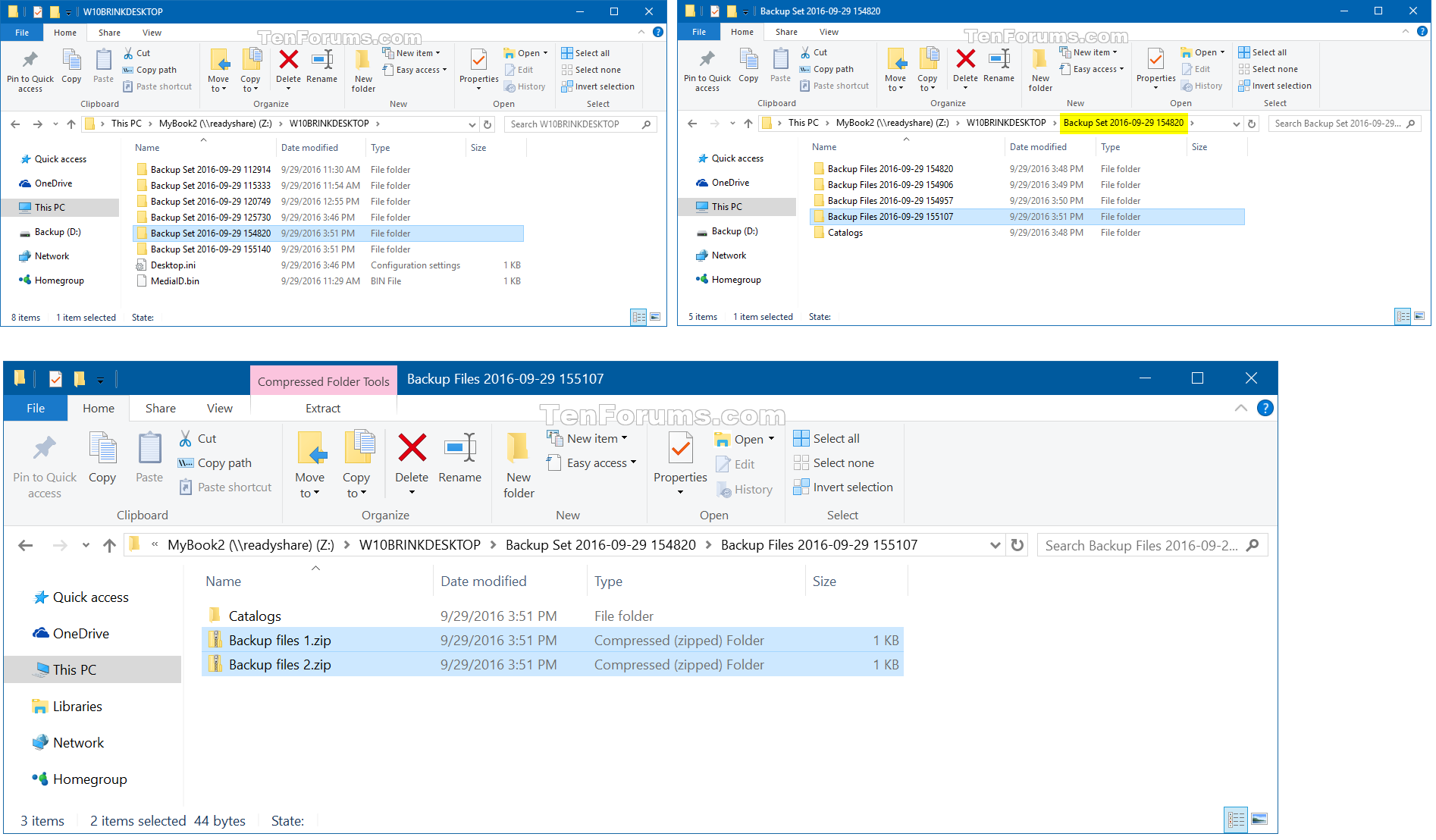

When a backup is created the first time after you set up Windows Backup, Windows will create a full backup of all files in the folders you selected into the drive:\computer name\Backup Set YYYY-MM-DD HHMMSS\Backup Files YYYY-MM-DD HHMMSS folder location. The Backup Files YYYY-MM-DD HHMMSS folder contains Backup files #.zip folders that are your actual backed up files for that date and time period.

When you create a differential backup, it will create a new full backup saved into a new Backup Set YYYY-MM-DD HHMMSS folder.

When you create an incremental backup, it will create a backup all of the files that have changed since the last backup, and saved in a new Backup Files YYYY-MM-DD HHMMSS folder in the current Backup Set YYYY-MM-DD HHMMSS folder.
Click image for larger version.

Name:	Backup_Set.png
Views:	143
Size:	185.1 KB
ID:	118241



System images are saved in this format:

drive letter:\WindowsImageBackup\computer name\Backup YYYY-MM-DD HHMMSS

EXAMPLE: If your computer name is Brink-W10PC, your backup location is on hard drive (network or local) E: and you backed up on January 23rd 2017 at 5:01:54 PM (it will use 24 hour time), then your system image would be located in the folder below.

E:\WindowsImageBackup\Brink-W10PC\Backup 2017-01-23 190154
Click image for larger version.

Name:	System_Image_location.png
Views:	94
Size:	140.8 KB
ID:	118244



Here's How:

1. Open Settings, click/tap on the Update & security icon, click/tap on Backup on the left side, and click/tap on the Go to Backup and Restore (Windows 7) link under Looking for and older backup on the right side. (see screenshot below)
Note   Note
You can also open Backup and Restore (Windows 7) by opening the Control Panel (icons view), and click/tap on the Backup and Restore (Windows 7) icon.


Click image for larger version.

Name:	Windows_Backup-Settings.png
Views:	91
Size:	50.1 KB
ID:	118226

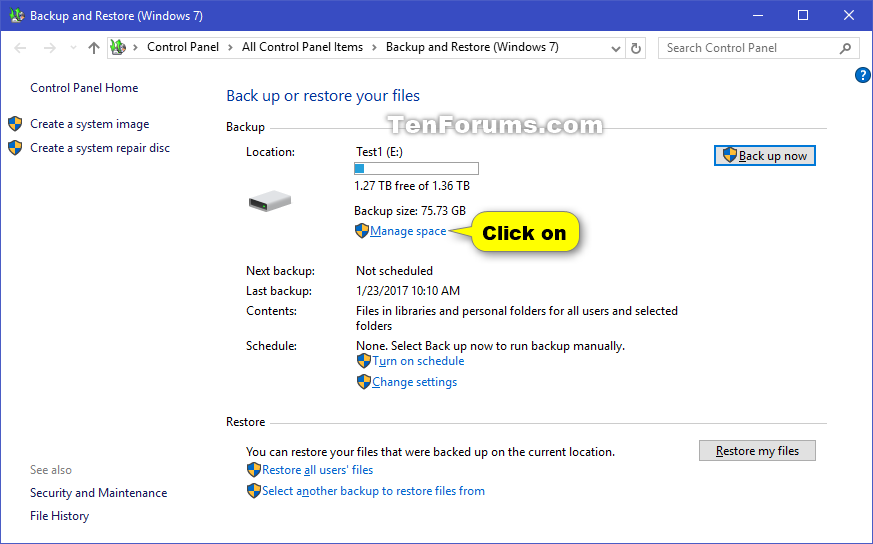

2. Click/tap on the Manage space link. (see screenshot below)

Click image for larger version.

Name:	Windows_Backup-manage_space-1.png
Views:	86
Size:	39.5 KB
ID:	118227

3. Do step 4 (data file backup) and/or step 5 (system image) below for what you want to manage space for. When finished, go to step 6 below.


 4. To Manage Space of Data File Backups

A) Click/tap on the View backups button. (see screenshot below)
Note   Note
If the View backups button is grayed out, then it means that you do not have any date file backups available.


Name:  Windows_Backup-manage_space-2.png
Views: 2642
Size:  30.5 KB

B) Select a backup period you want to delete, and click/tap on the Delete button. (see screenshot below)

Name:  Windows_Backup-manage_space-2b.png
Views: 2512
Size:  28.7 KB

C) Click/tap on Delete to confirm. (see screenshots below)
Note   Note
If you delete the only data file backup for this computer, then you will also have a Delete and run backup now option.


Click image for larger version.

Name:	Windows_Backup-manage_space-2c.png
Views:	48
Size:	23.0 KB
ID:	118245

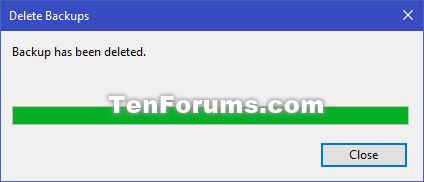

D) Click/tap on Close, and go to step 3 above. (see screenshot below)

Name:  Windows_Backup-manage_space-2d.png
Views: 2508
Size:  9.4 KB


 5. To Manage Space of System Images

A) Click/tap on the Change settings button. (see screenshot below)
Note   Note
If the Change settings button is grayed out, then it means that you do not have any system images available.


Name:  Windows_Backup-manage_space-3.png
Views: 2510
Size:  30.1 KB

B) Select (dot) what you want for how Windows retains older system images, and click/tap on OK. (see screenshots below)

Click image for larger version.

Name:	Windows_Backup-manage_space-3b.png
Views:	69
Size:	46.4 KB
ID:	118252
Note   Note
If you turned off the schedule for automatic backups, then you will see the left screenshot above.

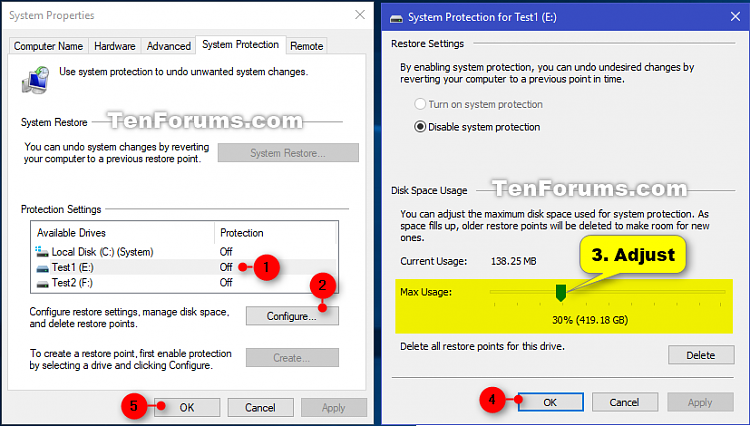

If you turned on the schedule for automatic backups that include a system image, then you will see the right screenshot above. You can change the maximum space used by Windows for storing system images on a disk by adjusting the Max Usage slider for the disk (ex: "E" ) in the System Protection settings like below.
Click image for larger version.

Name:	Max_usage_for_system_images.png
Views:	65
Size:	74.6 KB
ID:	118253

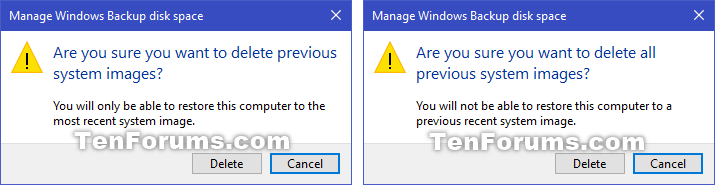

C) Click/tap on Delete to confirm, and go to step 3 above. (see screenshots below)

Name:  Windows_Backup-manage_space-3c.png
Views: 2439
Size:  18.8 KB


6. When finished, click/tap on Close. (see screenshots below)

Click image for larger version.

Name:	Windows_Backup-manage_space-4.png
Views:	55
Size:	42.8 KB
ID:	118248

7. You can now close Backup and Restore (Windows 7) if you like.


That's it,
Shawn
