How to Connect to Device Portal for Windows 10 PC

information   Information
The Windows Device Portal lets you configure and manage your device remotely over a network or USB connection. It also provides advanced diagnostic tools to help you troubleshoot and view the real time performance of your Windows device.

The Device Portal is a web server on your device that you can connect to from a web browser on your PC. If your device has a web browser, you can also connect locally with the browser on your device.

Windows Device Portal is available on each device family, but features and setup vary based on the device's requirements.

Starting in Windows 10 version 1607, additional developer features are available for desktop. These features are available only when Developer Mode is enabled.

Device Portal lets you view diagnostic information and interact with your desktop over HTTP from your browser. You can use Device Portal to do the following:
  • See and manipulate a list of running processes
  • Install, delete, launch, and terminate apps
  • Change Wi-Fi profiles, view signal strength, and see ipconfig
  • View live graphs of CPU, memory, I/O, network, and GPU usage
  • Collect process dumps
  • Collect ETW traces
  • Manipulate the isolated storage of sideloaded apps

Device Portal on desktop provides the standard set of pages.
  • Apps manager
  • Xbox Live
  • File Explorer
  • Running processes
  • Performance
  • Debug
  • Event Tracing for Windows (ETW) logging
  • Performance tracing
  • Device manager
  • Networking
  • Crash data
  • Features
  • 3D View
  • Simulation
  • Scratch

For information about Device Portal, see:



This tutorial will show you how to connect to Device Portal to configure and manage your Windows 10 PC remotely over a local network or USB connection.



Here's How:

1. If you haven't already, you will need to turn on Device Portal on the Windows 10 PC you want to connect to. (see screenshot below)

Click image for larger version.

Name:	Turn_on_Device_Portal.jpg
Views:	58
Size:	185.1 KB
ID:	113869

2. Enter the URL link to Device Portal from Settings in the address bar of your web browser (ex: Internet Explorer), and press Enter. (see screenshot below)
Note   Note
You can choose from two ways to connect to Device Portal: local host and over the local network (including VPN).

Local Network (ex: Wi-Fi) = Use this address to connect over a local network.

Localhost = Use this address to view Device Portal locally.


Name:  Connecting_using.png
Views: 417
Size:  37.0 KB

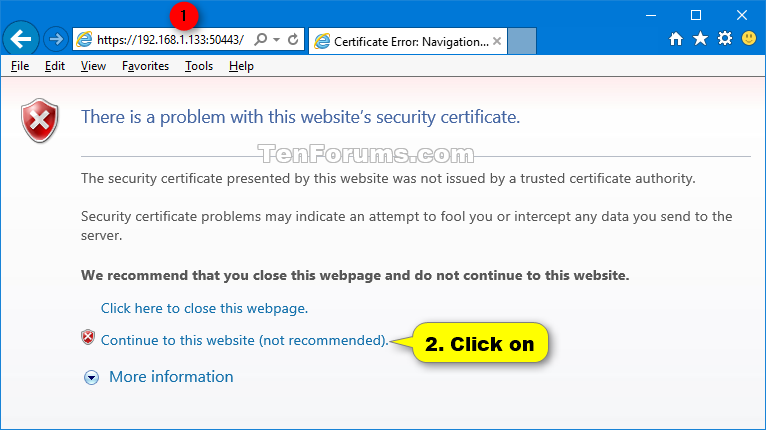

3. Click/tap on the Continue to this website link. (see screenshot below)

Click image for larger version.

Name:	Connect_to_Device_Portal-1.png
Views:	34
Size:	41.3 KB
ID:	113871

4. If you turned on authentication for Device Portal on the PC, then enter the user name and password you created, and click/tap on OK. (see screenshot below)
Note   Note
If you like, you can check the Remember my credentials to make it easier to connect to Device Portal for the PC next time.


Name:  Connect_to_Device_Portal-2.png
Views: 430
Size:  12.2 KB

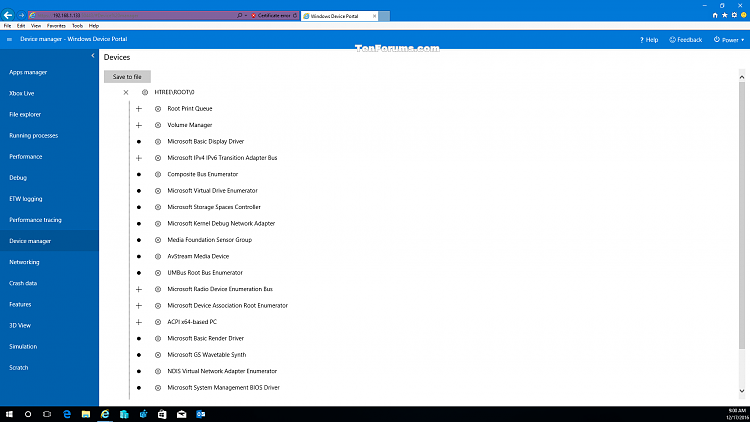

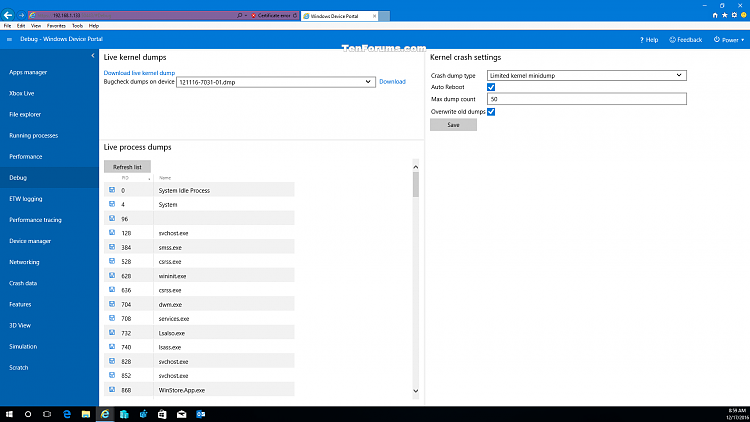

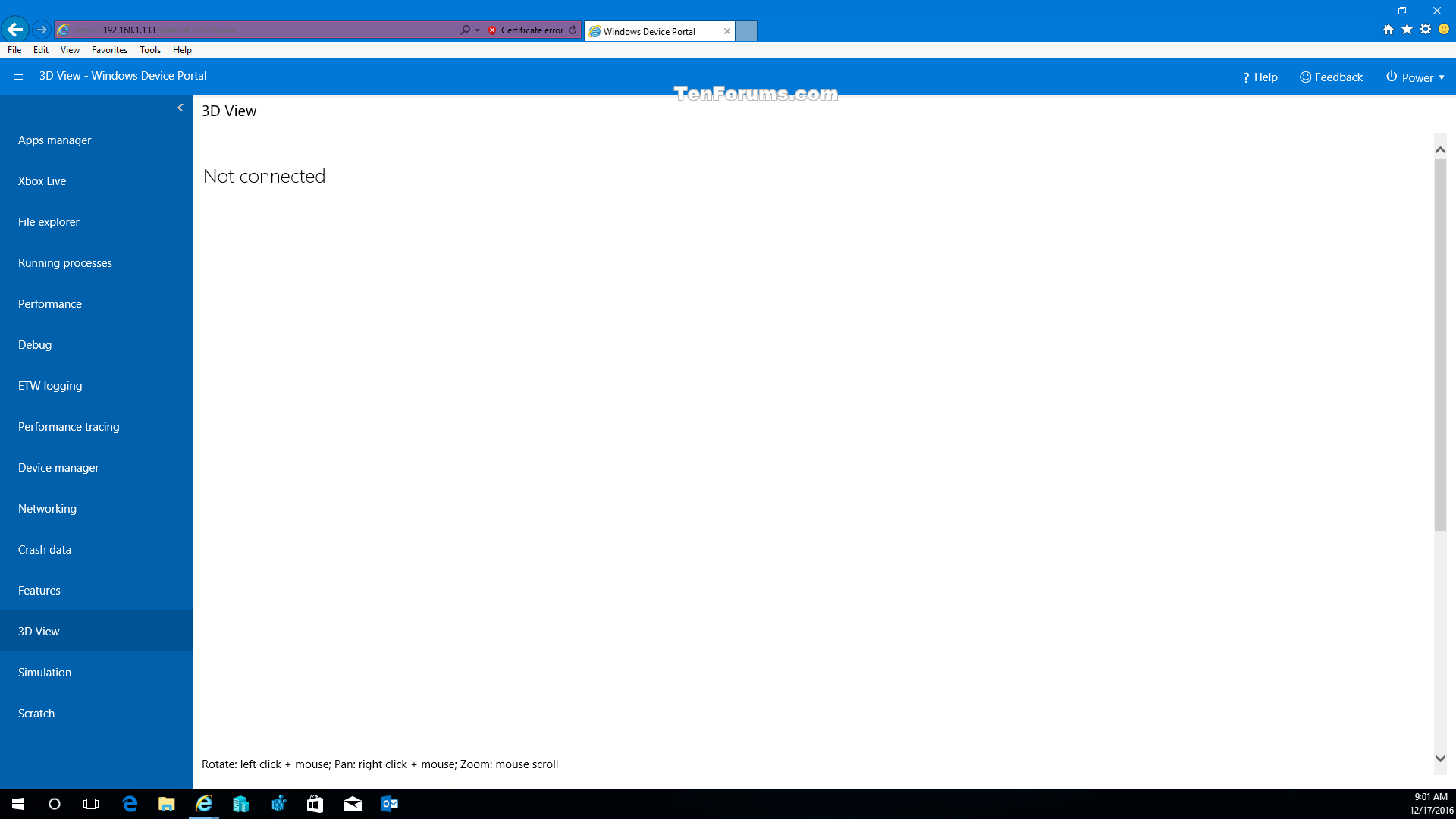

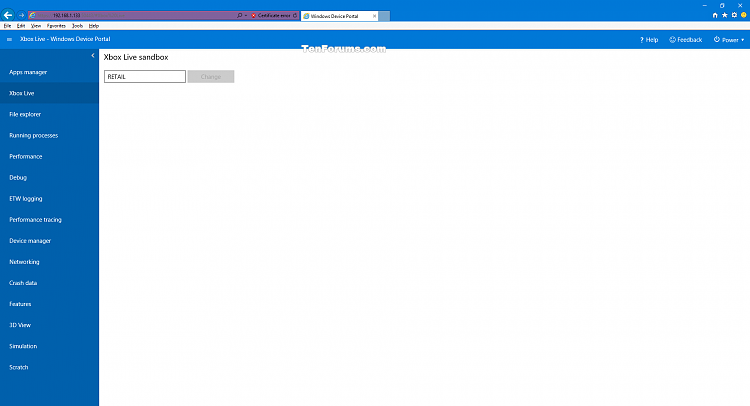

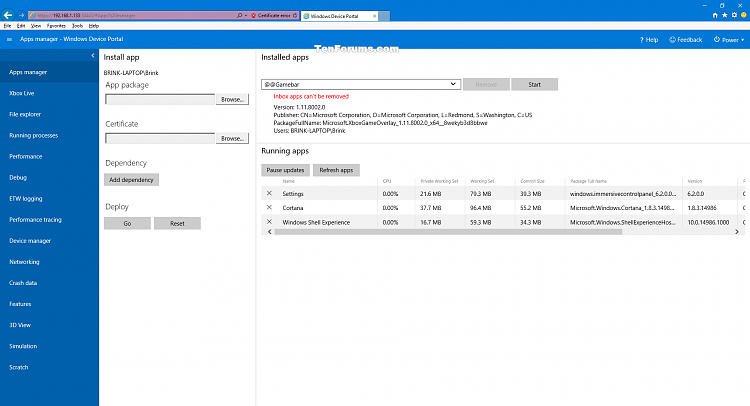

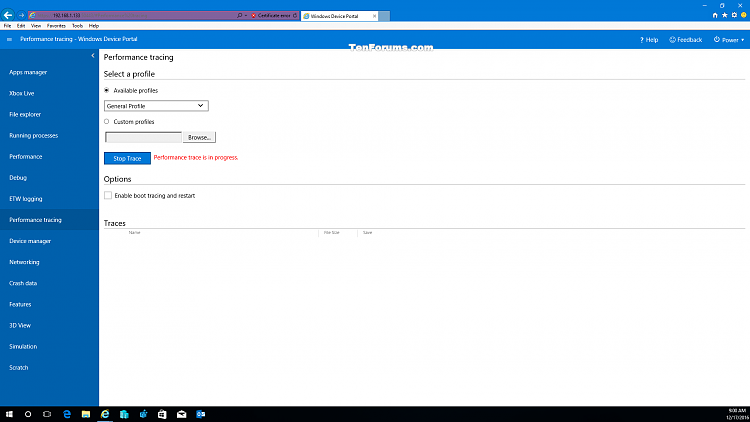

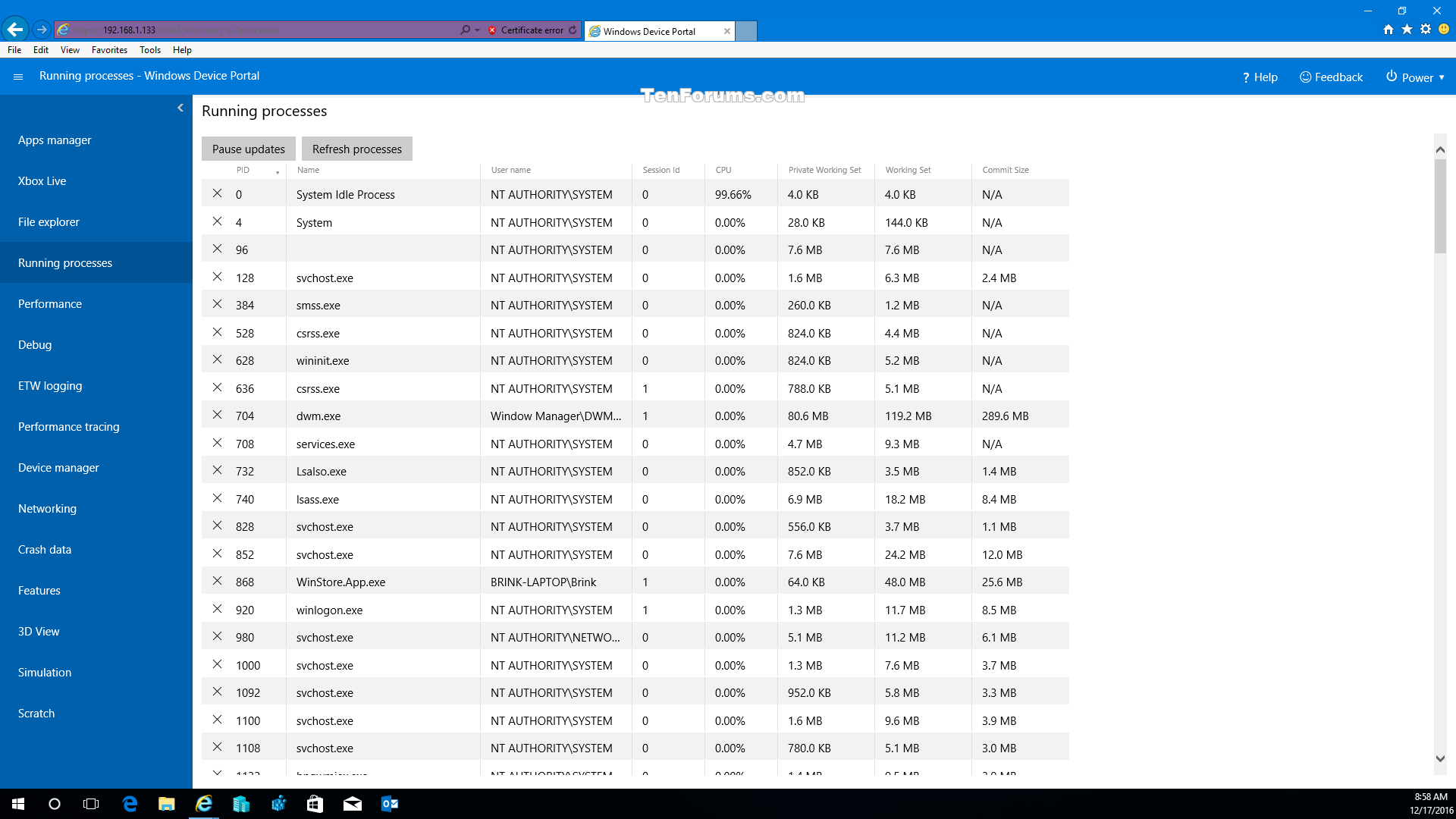

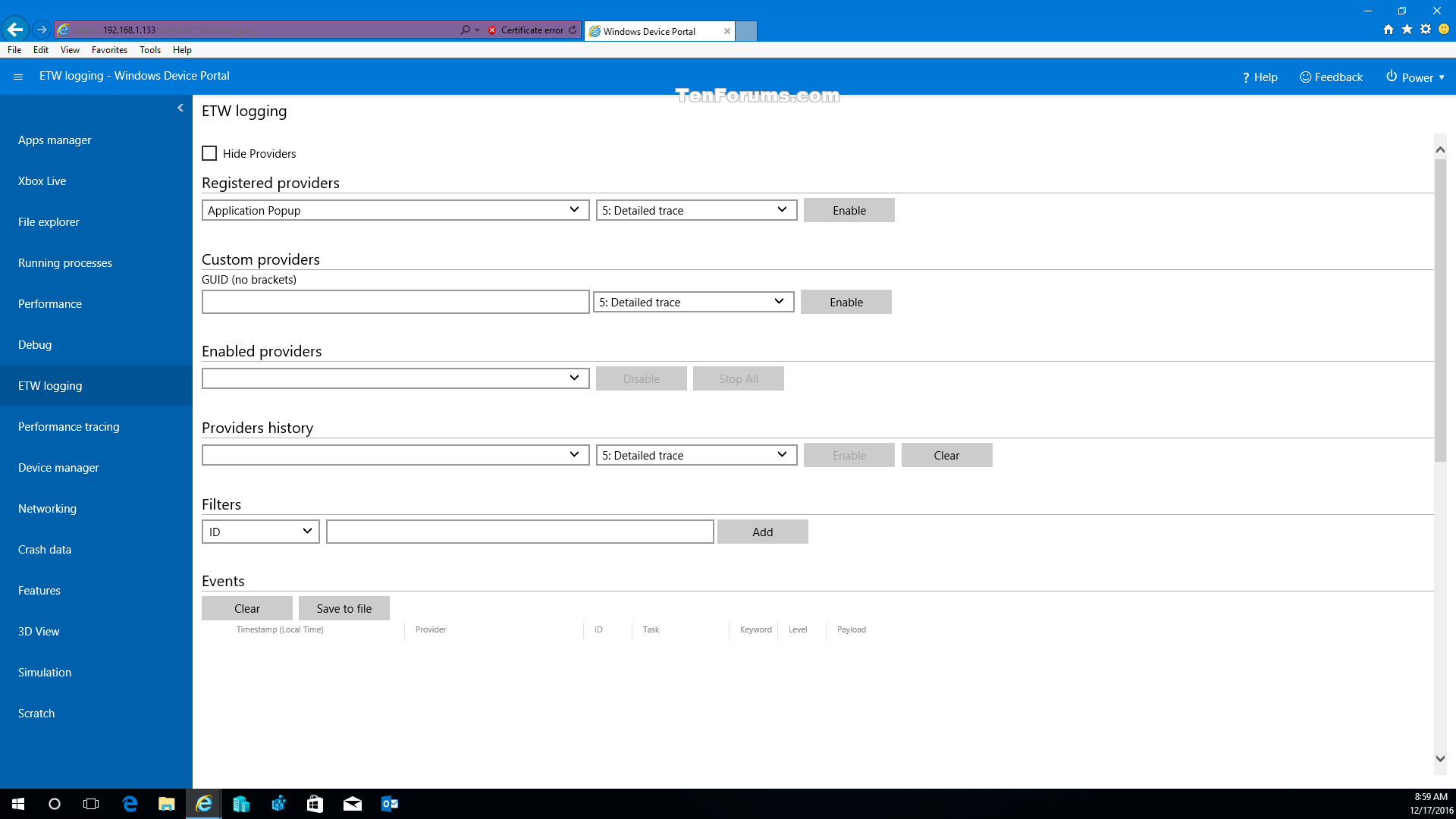

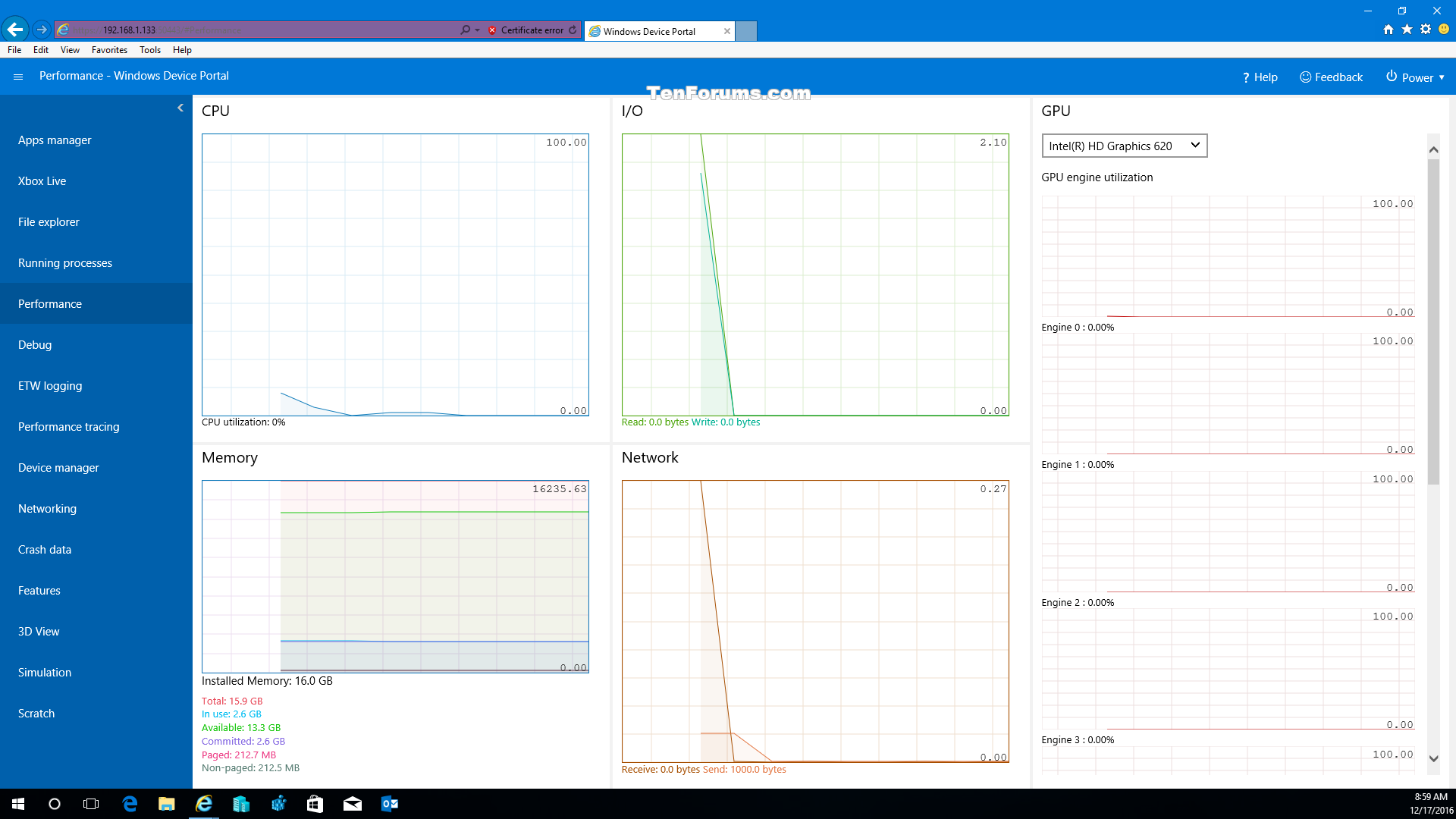

5. You will now be connected to Device Portal for the PC. (see screenshots below)

Click image for larger version.

Name:	Device_Portal-1.png
Views:	44
Size:	78.6 KB
ID:	113873
Click image for larger version.

Name:	Device_Portal-2.png
Views:	43
Size:	38.3 KB
ID:	113874
Click image for larger version.

Name:	Device_Portal-3.png
Views:	44
Size:	67.0 KB
ID:	113875
Click image for larger version.

Name:	Device_Portal-4.png
Views:	44
Size:	138.6 KB
ID:	113876
Click image for larger version.

Name:	Device_Portal-5.png
Views:	41
Size:	134.0 KB
ID:	113877
Click image for larger version.

Name:	Device_Portal-6.png
Views:	45
Size:	87.6 KB
ID:	113878
Click image for larger version.

Name:	Device_Portal-7.png
Views:	50
Size:	77.4 KB
ID:	113879
Click image for larger version.

Name:	Device_Portal-8.png
Views:	32
Size:	65.9 KB
ID:	113880
Click image for larger version.

Name:	Device_Portal-9.png
Views:	37
Size:	89.6 KB
ID:	113881
Click image for larger version.

Name:	Device_Portal-10.png
Views:	66
Size:	101.5 KB
ID:	113882
Click image for larger version.

Name:	Device_Portal-11.png
Views:	60
Size:	59.4 KB
ID:	113883
Click image for larger version.

Name:	Device_Portal-12.png
Views:	35
Size:	54.5 KB
ID:	113884
Click image for larger version.

Name:	Device_Portal-13.png
Views:	43
Size:	60.9 KB
ID:	113885


That's it,
Shawn
