    How to Turn On or Off Device Portal for Desktop on Windows 10 PC

    information   Information
    The Windows Device Portal lets you configure and manage your device remotely over a network or USB connection. It also provides advanced diagnostic tools to help you troubleshoot and view the real time performance of your Windows device.

    The Device Portal is a web server on your device that you can connect to from a web browser on your PC. If your device has a web browser, you can also connect locally with the browser on your device.

    Windows Device Portal is available on each device family, but features and setup vary based on the device's requirements.

    Starting in Windows 10 version 1607, additional developer features are available for desktop. These features are available only when developer mode is turned on.

    Device Portal lets you view diagnostic information and interact with your desktop over HTTP from your browser. You can use Device Portal to do the following:
    • See and manipulate a list of running processes
    • Install, delete, launch, and terminate apps
    • Change Wi-Fi profiles, view signal strength, and see ipconfig
    • View live graphs of CPU, memory, I/O, network, and GPU usage
    • Collect process dumps
    • Collect ETW traces
    • Manipulate the isolated storage of sideloaded apps

    Device Portal on desktop provides the standard set of pages.
    • Apps manager
    • Xbox Live
    • File Explorer
    • Running processes
    • Performance
    • Debug
    • Event Tracing for Windows (ETW) logging
    • Performance tracing
    • Device manager
    • Networking
    • Crash data
    • Features
    • 3D View
    • Simulation
    • Scratch

    For information about Device Portal, see:



    This tutorial will show you how to turn on or off Device Portal for desktop on your Windows 10 PC.

    You must be signed in as an administrator to be able to turn on or off Device Portal.


    CONTENTS:
    • Option One: To Turn On Windows Device Portal for Desktop
    • Option Two: To Turn Off Windows Device Portal for Desktop


    EXAMPLE: Windows Device Portal






    Turn On or Off Device Portal for Desktop on Windows 10 PC OPTION ONE Turn On or Off Device Portal for Desktop on Windows 10 PC
    To Turn On Windows Device Portal for Desktop

    1. Open Settings, and click/tap on the Update & security icon.

    2. Click/tap on For developers on the left side, and turn on (select) Developer mode under Use developer features on the right. (see screenshot below)

    Click image for larger version.

Name:	Developer_mode.jpg
Views:	128
Size:	107.0 KB
ID:	113769

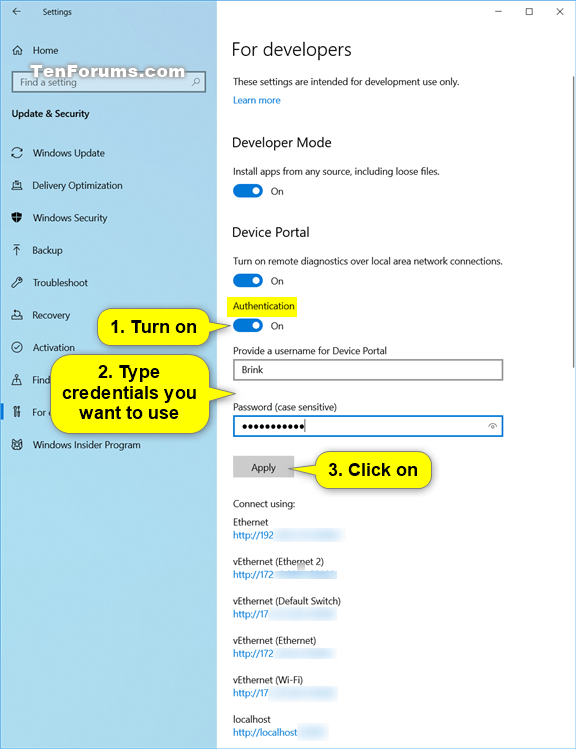

    3. Turn on Turn on remote diagnostics over local area network connections under Enable Device Portal on the right. (see screenshot below)

    Click image for larger version.

Name:	Turn_on_Device_Portal.jpg
Views:	110
Size:	185.1 KB
ID:	113770

    4. Turn on Authentication under Enable Device Portal on the right. (see screenshot below step 3)
    Note   Note
    HTTPS is required for authentication and secure communication.

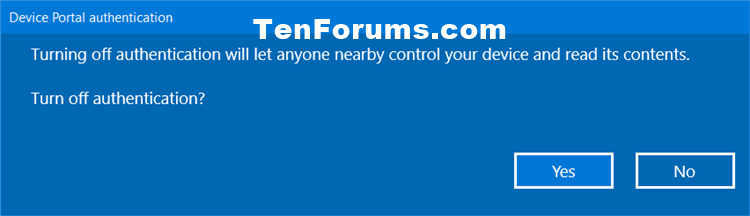

    If you are using Device Portal in a protected environment, like a test lab, where you trust everyone on your local network, have no personal information on the device, and have unique requirements, you can turn off Authentication. This enables unencrypted communication, and allows anyone with the IP address of your computer to control it.



    5. Create a username and password for Device Portal, and click/tap on Apply. (see screenshot below step 3)
    warning   Warning
    For security purposes, do not use your Microsoft account or other Windows credentials.

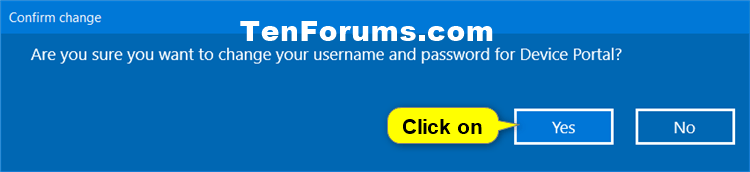

    6. If prompted, click/tap on Yes to confirm changing your username and password for Device Portal. (see screenshot below)

    Click image for larger version.

Name:	Device_Portal_confirm_password_change.png
Views:	112
Size:	18.5 KB
ID:	113771

    7. You will now see URL links (ex: Wi-Fi and localhost) to connect to Device Portal with under the Connect using section on the right side of Settings. (see screenshot below and below step 3)
    Note   Note
    Take note of the port number (ex: "50443") applied to the end of the URL: this port number is randomly generated when Device Portal is enabled, but should remain consistent between reboots of the desktop.

    You can choose from two ways to connect to Device Portal: local host and over the local network (including VPN).

    Local Network (ex: Wi-Fi) = Use this address to connect over a local network.

    Localhost = Use this address to view Device Portal locally.


    Name:  Connecting_using.png
Views: 1222
Size:  37.0 KB

    8. When finished, you can close Settings if you like.





    Turn On or Off Device Portal for Desktop on Windows 10 PC OPTION TWO Turn On or Off Device Portal for Desktop on Windows 10 PC
    To Turn Off Windows Device Portal for Desktop

    1. Open Settings, and click/tap on the Update & security icon.

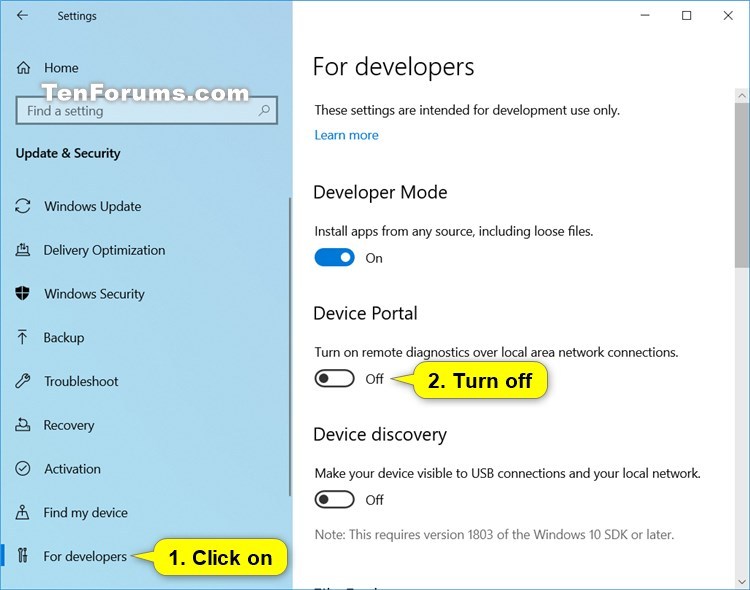

    2. Click/tap on For developers on the left side, and turn off Turn on remote diagnostics over local area network connections under Enable Device Portal on the right. (see screenshot below)

    3. When finished, you can close Settings if you like.

    Click image for larger version.

Name:	Turn_off_Device_Portal.jpg
Views:	103
Size:	107.7 KB
ID:	113772



    That's it,
    Shawn


  1.    11 Nov 2017 #1
    Join Date : Aug 2015
    Posts : 155
    Windows 10 Enterprise x64 1709

    Thanks, but do you have any idea how to Disable Device Portal and Disable Device Discovery via Registry Editor?
      My ComputerSystem Spec
  2.    11 Nov 2017 #2
    Join Date : Oct 2013
    Posts : 26,495
    64-bit Windows 10 Pro build 17063
    Thread Starter

    I haven't found a way to do so easily with Registry Editor considering the authentication.
      My ComputersSystem Spec
  3.    26 Nov 2017 #3
    Join Date : Aug 2015
    Posts : 155
    Windows 10 Enterprise x64 1709

    After you Enable Device Portal you can use below settings for Authorization:
    Just how to Enable/Disable Device Portal in Registry?!

    Code:
    [HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\WebManagement\Service]
    "HttpPort"=dword:0000c3a0
    "HttpsPort"=dword:0000c50b
    "RequireDevUnlock"=dword:00000001
    ;Authorization
    "UseDefaultAuthorizer"=dword:00000001
    ;0 to use your own port
    "UseDynamicPorts"=dword:00000001
      My ComputerSystem Spec
  4.    26 Nov 2017 #4
    Join Date : Oct 2013
    Posts : 26,495
    64-bit Windows 10 Pro build 17063
    Thread Starter

    I don't see a simple on/off registry option for this setting.
