    Set Network Location to Private, Public, or Domain in Windows 10

    Set Network Location to Private, Public, or Domain in Windows 10

    How to Set Network Location to Private, Public, or Domain in Windows 10
    Published by Category: Network & Sharing
    16 Aug 2021
    Designer Media Ltd

    How to Set Network Location to Private, Public, or Domain in Windows 10


    A network location identifies the type of network that a PC is connected to with a network adapter.

    By default, the first time you connect to a new network (wired or wireless), you will be prompted "Do you want to allow your PC to be discoverable by other PCs and devices on this network?" by the Network Location wizard. Turning on this setting prepares your PC for sharing files and devices on a network. Based on the network location you choose, Windows will automatically assign a network discovery state to the network and automatically sets the appropriate Windows Firewall and security settings for the type of network that you connected to. You can change the network location anytime.

    Public network = By default, the public network location type is assigned to any new networks when they are first connected. A public network is considered to be shared with the world, with no protection between the local computer and any other computer. Therefore, the Windows Firewall rules associated with the public profile are the most restrictive. This blocks the following apps and services from working: PlayTo, file sharing, network discovery, and automatic setup of network printers, TVs, and other devices.

    Private network = A private network location type can be for home or small office networks, or when you know and trust the people and devices on the network. This setting allows your PC to connect to a homegroup and devices on the network, such as printers.

    Domain network = The domain network location type is detected when the local computer is a member of an Active Directory domain, and the local computer can authenticate to a domain controller for that domain through one of its network connections.

    This tutorial will show you how to set the network on your PC to be connected to a domain, public, or private type of location for all users in Windows 10.

    You must be signed in as an administrator to be able to change the network location of a network adapter.



    Contents

    • Option One: To Change a Network Location in Settings
    • Option Two: To Change a Network Location in Registry Editor
    • Option Three: To Change a Network Location Local Security Policy
    • Option Four: To Change a Network Location in PowerShell
    • Option Five: To Change Network Location of Current Network Connection in PowerShell
    • Option Six: To Change Network Location of Current Network Connection using a VBS file



    EXAMPLE: Network Location of adapter in "Network and Sharing Center"

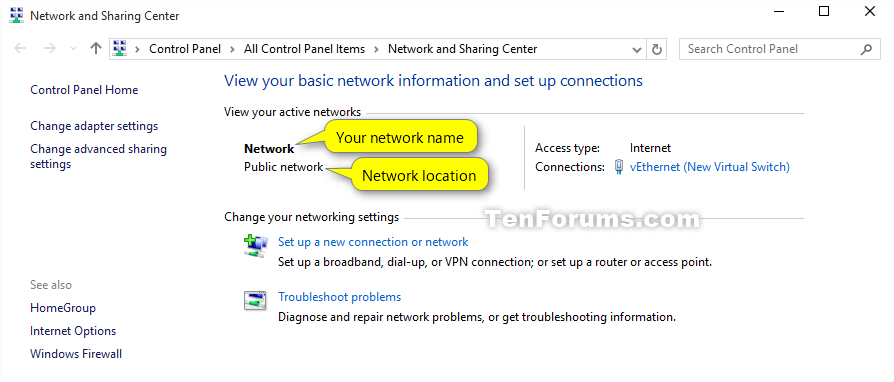

    Set Network Location to Private, Public, or Domain in Windows 10-public_network.png

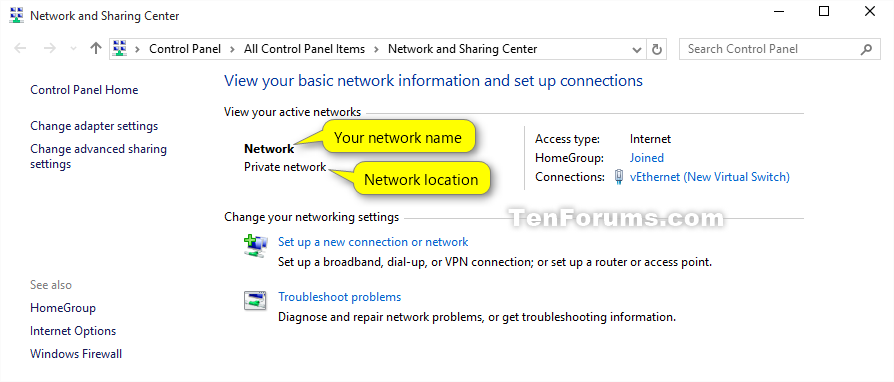

    Set Network Location to Private, Public, or Domain in Windows 10-private_network.png
    Set Network Location to Private, Public, or Domain in Windows 10-domain_network.png






    OPTION ONE

    To Change a Network Location in Settings


    1 Do step 2 or step 3 below for how you would like to open Network settings.

    2 Click/tap on your network system icon in the taskbar notification area, click/tap on the Network & Internet settings link, and go to step 4 below. (see screenshot below)

    Set Network Location to Private, Public, or Domain in Windows 10-network_settings_taskbar.jpg

    3 Open Settings, click/tap on the Network & Internet icon, and go to step 4 below.

    4 Do step 5 (Ethernet) or step 6 (Wi-Fi) below for you currently connected network.


     5. To Change Network Location of Ethernet Network

    A) Click/tap on Ethernet on the left side, click/tap on the Ethernet connection (ex: Brink-Router2) on the right side you are currently connected to, and go to step 7 below. (see screenshot below)

    Set Network Location to Private, Public, or Domain in Windows 10-network_location_ethernet_settings-1.png


     6. To Change Network Location of Wi-Fi Network

    A) Click/tap on Wi-Fi on the left side, click/tap on the wireless network name (ex: Brink-Router2) you are currently connected to, and go to step 7 below. (see screenshot below)

    Set Network Location to Private, Public, or Domain in Windows 10-network_location_wi-fi_settings-1.png

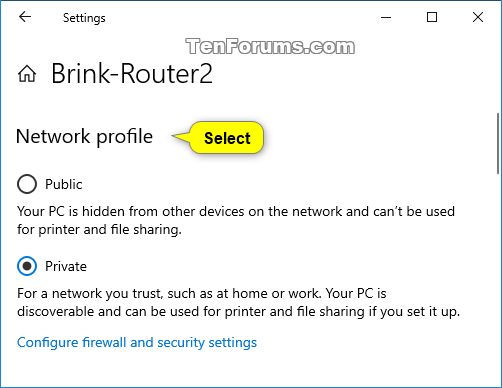

    7 Select (dot) Private or Public for the network location you want for this network connection. (see screenshots below)

    These settings will not be available if your PC currently is set to have a Domain network location.


    Set Network Location to Private, Public, or Domain in Windows 10-network_location_settings-2.png Set Network Location to Private, Public, or Domain in Windows 10-network_location_settings-3.png

    8 When finished, you can close Settings if you like.






    OPTION TWO

    To Change a Network Location in Registry Editor


    1 Type regedit in the search box (Win+S) on Start or taskbar, and press Enter to open Registry Editor.

    2 If prompted by UAC, click/tap on Yes.

    3 In Registry Editor, navigate to the location below. (see screenshot below)

    HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\NetworkList\Profiles

    Set Network Location to Private, Public, or Domain in Windows 10-network_location_registry-1.png

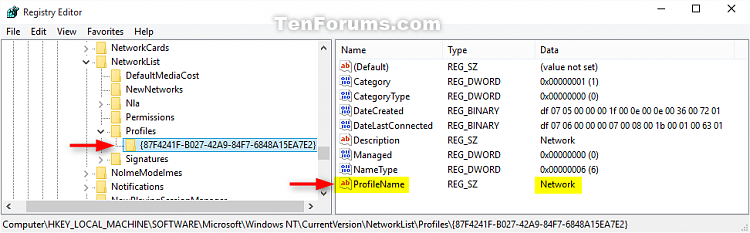

    4 Double click/tap on the Profiles key in the left pane to expand it. Click/tap on each long GUID number subkey, and look at its ProfileName string value in the right pane to see if it has the current network name (ex: Network) until found. (see screenshot below)

    Set Network Location to Private, Public, or Domain in Windows 10-network_location_registry-2.png

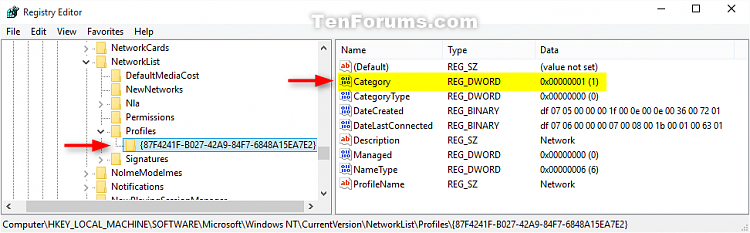

    5 When you find the correct ProfileName for your network name, double click/tap on the Category DWORD value in the same right pane to modify it. (see screenshot below)

    Set Network Location to Private, Public, or Domain in Windows 10-network_location_registry-3.png

    6 Type in a new data value number for the network location you want, and click/tap on OK. (see screenshot below)

    Network Location Data Value
    Public 0 (zero)
    Private 1
    Domain 2

    Set Network Location to Private, Public, or Domain in Windows 10-network_location_registry-4.png

    7 When finished, you can now close Registry Editor if you like.

    8 Sometimes you may need to sign out and in of your user account to apply the new network location.






    OPTION THREE

    To Change a Network Location Local Security Policy


    This option will override Option One, Option Two, Option Four, Option Five, and Option Six.


    1 Open the Local Security Policy (secpol.msc).

    2 In the left pane, click/tap on Network List Manager Policies. (see screenshot below)

    Set Network Location to Private, Public, or Domain in Windows 10-network_location_local_security_policy-1.png

    3 In the right pane of Network List Manager Policies, double click/tap on your network name (ex: Network). (see screenshot above)

    You can click/tap on All Networks if you wanted to apply this to all networks on your PC instead of a single network.


    4 Do step 5 (Not configured), step 6 (Private), or step 7 (Public) below for what you would like to do.


     5. To Allow Network Location to be changed by OPTION ONE and OPTION TWO

    This is the default setting.


    A) Click/tap on the Network Location tab. (see screenshot below)

    The Network Location tab will not be available if your PC currently is set to have a Domain network location.


    B) Under Location type, select (dot) Not configured.

    C) Under User permissions, select (dot) Not configured.

    D) Click/tap on OK, and go to step 8 below.

    Set Network Location to Private, Public, or Domain in Windows 10-network_location_local_security_policy-4.png


     6. To Change to a Private Network Location

    A) Click/tap on the Network Location tab. (see screenshot below)

    The Network Location tab will not be available if your PC currently is set to have a Domain network location.


    B) Under Location type, select (dot) Private.

    C) Under User permissions, select (dot) User cannot change location.

    D) Click/tap on OK, and go to step 8 below.

    Set Network Location to Private, Public, or Domain in Windows 10-network_location_local_security_policy-3.png


     7. To Change to a Public Network Location

    A) Click/tap on the Network Location tab. (see screenshot below)

    The Network Location tab will not be available if your PC currently is set to have a Domain network location.



    B) Under Location type, select (dot) Public.

    C) Under User permissions, select (dot) User cannot change location.

    D) Click/tap on OK, and go to step 8 below.

    Set Network Location to Private, Public, or Domain in Windows 10-network_location_local_security_policy-4.png

    8 You can now close Local Security Policy if you like.






    OPTION FOUR

    To Change a Network Location in PowerShell


    Thank you to our member sm156 for pointing out this option.


    1 Open an elevated Windows PowerShell.

    2 Do step 3 (see current location), step 4 (Private), step 5 (Public), step 6 (Domain) below for what you would like to do.

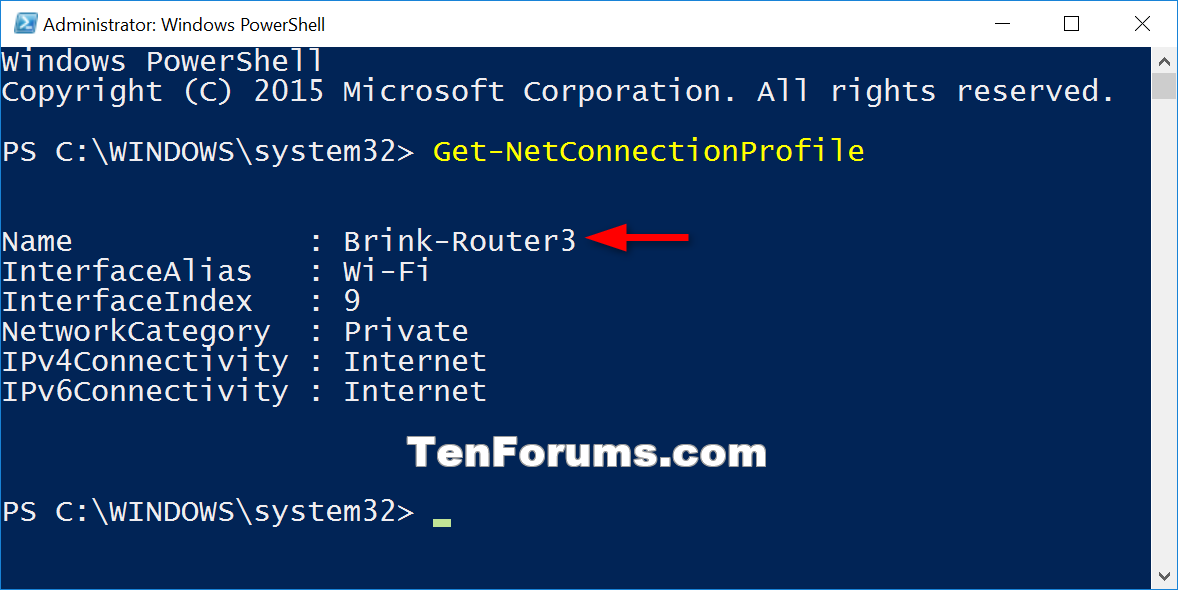

     3. To See your Current Network Location

    A) Copy and paste the command below into the elevated PowerShell, and press Enter. (see screenshot below)
    B) Make note of the name of your network. For example: Brink-Router3

    C) Go to step 4 (Private), step 5 (Public), or step 6 (Domain) below for what you would like to set your network location as.

    Set Network Location to Private, Public, or Domain in Windows 10-network_location_powershell-1.png

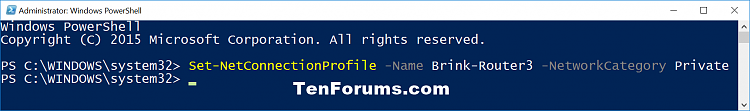

     4. To Set Network Location to Private

    A) Type the command below into the elevated PowerShell, press Enter, and go to step 7 below. (see screenshot below)

    Set-NetConnectionProfile -Name "Brink-Router3" -NetworkCategory Private

    Substitute Brink-Router3 in the command above with your network name from step 3 above instead.

    Set Network Location to Private, Public, or Domain in Windows 10-network_location_powershell-3.png

     5. To Set Network Location to Public

    A) Type the command below into the elevated PowerShell, press Enter, and go to step 7 below. (see screenshot below)

    Set-NetConnectionProfile -Name "Brink-Router3" -NetworkCategory Public

    Substitute Brink-Router3 in the command above with your network name from step 3 above instead.

    Set Network Location to Private, Public, or Domain in Windows 10-network_location_powershell-2.png

     6. To Set Network Location to Domain

    This requires your PC to be joined to a domain.


    A) Type the command below into the elevated PowerShell, press Enter, and go to step 7 below.

    Set-NetConnectionProfile -Name "Brink-Router3" -NetworkCategory DomainAuthenticated

    Substitute Brink-Router3 in the command above with your network name from step 3 above instead.



    7 When finished, you can now close PowerShell if you like.






    OPTION FIVE

    To Change Network Location of Current Network Connection in PowerShell


    1 Open an elevated Windows PowerShell.

    2 Do step 3 (Private), step 4 (Public), or step 5 (Domain) below for what you would like to set the network location of your current network connection.


     3. To Set Network Location of Current Network Connection to Private

    A) Type the command below into the elevated PowerShell, press Enter, and go to step 6 below. (see screenshot below)

    $net = get-netconnectionprofile;Set-NetConnectionProfile -Name $net.Name -NetworkCategory Private

    Set Network Location to Private, Public, or Domain in Windows 10-private.png


     4. To Set Network Location of Current Network Connection to Public

    A) Type the command below into the elevated PowerShell, press Enter, and go to step 6 below. (see screenshot below)

    $net = get-netconnectionprofile;Set-NetConnectionProfile -Name $net.Name -NetworkCategory Public

    Set Network Location to Private, Public, or Domain in Windows 10-public.png


     5. To Set Network Location of Current Network Connection to Domain

    This requires your PC to be joined to a domain.


    A) Type the command below into the elevated PowerShell, press Enter, and go to step 6 below.

    $net = get-netconnectionprofile;Set-NetConnectionProfile -Name $net.Name -NetworkCategory DomainAuthenticated

    6 When finished, you can now close PowerShell if you like.






    OPTION SIX

    To Change Network Location of Current Network Connection using a VBS file


    1 Do step 2 (Private), step 3 (Public), or step 4 (Domain) below for what you would like to set the network location of your current network connection.


     2. To Set Network Location of Current Network Connection to Private

    A) Click/tap on the Download button below to download the file below, and go to step 5 below.

    Set_Current_Network_Location_to_Private.vbs

    Download


     3. To Set Network Location of Current Network Connection to Public

    A) Click/tap on the Download button below to download the file below, and go to step 5 below.

    Set_Current_Network_Location_to_Public.vbs

    Download


     4. To Set Network Location of Current Network Connection to Domain

    This requires your PC to be joined to a domain.


    A) Click/tap on the Download button below to download the file below, and go to step 5 below.

    Set_Current_Network_Location_to_Domain.vbs

    Download

    5 Save the .vbs file to your desktop.

    6 Run the .vbs file.

    7 Unblock the .vbs file. (see screenshot below)

    Set Network Location to Private, Public, or Domain in Windows 10-unblock.png

    8 Click/tap on Yes or OK when prompted by UAC.

    9 The network location of your current network connect will now be changed.


    That's it,
    Shawn Brink


    Related Tutorials



  1. Windows 11 Tutorials



  2. Digital Life
    Posts : 828
    Microsoft Windows 10 Pro 64-bit
       New #1

    Hi Brink great job I have one more way of changing the network location so if you ever get the time to add an option 4 here it is, Feel free to delete this post if you do.

    Option 4 To Change Network Location in Settings in Powershell

    open Powershell as an administrator

    Set Network Location to Private, Public, or Domain in Windows 10-open-powershell-admin.png

    Enter this command
    Code:
    Get-NetConnectionProfile
    Set Network Location to Private, Public, or Domain in Windows 10-command-get-netconnectionprofile.png

    Find the interface you would like to change, In my case it is Ethernet-2.
    Note: Originally my interface was called " Ethernet 2 " Powershell would not accept the following commands with a space so I renamed the interface to " Ethernet-2 " .

    To change the interface type or copy paste the following command

    Code:
    Set-NetConnectionProfile -InterfaceAlias Ethernet-2 -NetworkCategory Private
    Or to set it to Public

    Code:
    Set-NetConnectionProfile -InterfaceAlias Ethernet-2 -NetworkCategory Public
    Set Network Location to Private, Public, or Domain in Windows 10-command-set-netconnectionprofile-interfacealias-ethernet-2-networkcategory-private.png

    Note you can also change the interface by using other names
    Code:
    Name             : XXXXX
InterfaceAlias   : Wi-Fi
InterfaceIndex   : 8
NetworkCategory  : Public
IPv4Connectivity : Internet
IPv6Connectivity : NoTraffic
Name             : Unidentified
InterfaceAlias   : Ethernet 2
InterfaceIndex   : 14
NetworkCategory  : Public
IPv4Connectivity : NoTraffic
IPv6Connectivity : NoTraffic

Set-NetConnectionProfile -InterfaceIndex 14 -NetworkCategory Private
Set-NetConnectionProfile -IPv4Connectivity NoTraffic -NetworkCategory Private
 and so on.
    No matter what I do the changes are not persistent after a reboot no matter what method I have tried in your tutorial I think it has something to do with " Network location Awareness " I think I will have to make a automated task in task scheduler to make it persistant.

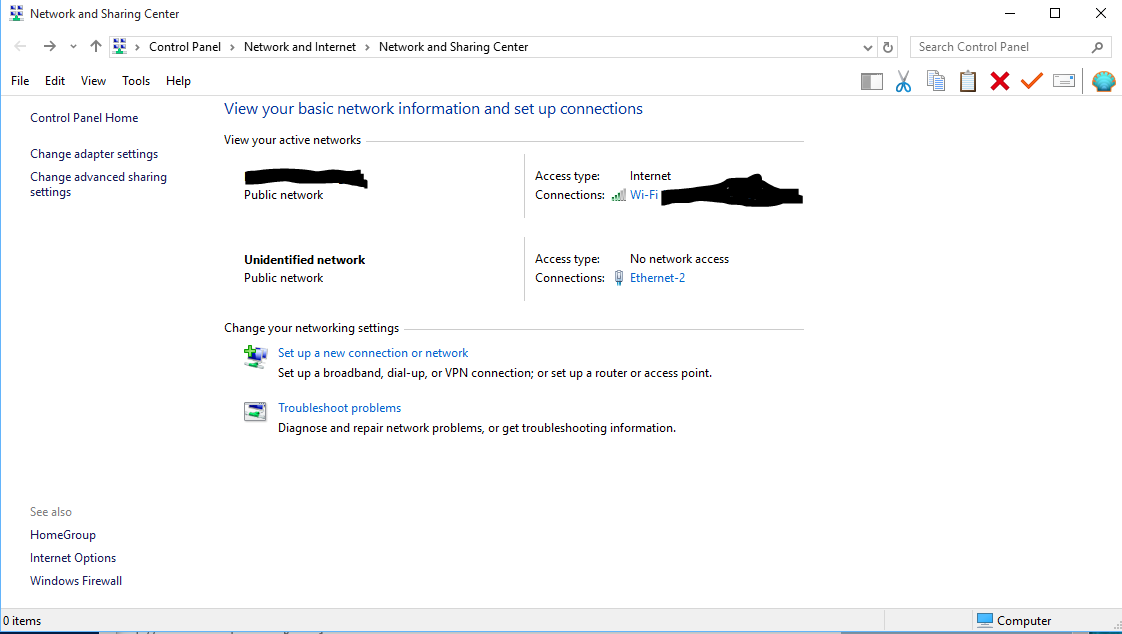

    Before and after picks of Network and sharing center
    Set Network Location to Private, Public, or Domain in Windows 10-network-sharing-center-way-.png

    Set Network Location to Private, Public, or Domain in Windows 10-network-sharing-center-way-i-want-.png
      My Computer
    Quote Quote

  4. Brink
    Posts : 70,915
    64-bit Windows 11 Pro for Workstations
    Thread Starter
       New #2

    Thank you sml156. I added this as OPTION FOUR. :)

    I'm not sure why your setting is not persistent. It's stays set for me after a restart.

    Do you have network discovery turned on?
      My Computers
    Quote Quote

  5. Digital Life
    Posts : 828
    Microsoft Windows 10 Pro 64-bit
       New #3

    Thanks one thing about Option 4 in my case anyway was that PowerShell would return an error when my network card name had a space in it, Originally it was called "Ethernet 2" and the only way it would change state was to rename it "Ethernet-2"

    Something weird is going on with this Win 10 home edition I didn't notice until today that whenever I turn on Network discovery and press save then close Network sharing center and then reopen it my settings have changed back to turn off network sharing. I did want to try to figure it out but I'm tired of searching and the home edition does not have gpedit or secpol which is aggravating even when I don't have a problem and I do have a key for Windows ten Pro but I have been procrastinating and not installed it yet but I think I will do that this weekend.

    I have an unusual setup for internet in my garage , I use a USB Wifi to get a signal from my house that is about 50 feet and two brick walls away. Right now the ports look like Hubbard's cupboards because I disconnected a couple of computers


    This is what it looked like while I was trying to figure out the problem before giving up


    Set Network Location to Private, Public, or Domain in Windows 10-my-network-diagram.png
      My Computer
    Quote Quote

  6. Charlieo
    Posts : 9
    Windows 10 Enterprise x64
       New #4

    Hi Brink,

    You were always a huge help on the Seven site.... so I am hoping you can be "Yoda" here too

    I have a domain at home with desktops running W10 Enterprise. Clean installs. The Network location on each shows the domain (with the domain name). When the computers were set up, it took a couple of hours, but each machine was able to browse the network and see every other computer regardless of OS (7, 10, 2008r2 or 2012r2). The DC runs 2012r2.

    This week I started upgrading to the, November, Threshold 2 update (build 10586). I used DVD's and just upgraded the OS on each machine, leaving all files in place (never did get the update offered through WU). Worked almost 100% perfectly (leaving each machine attached to the domain, etc.) However, on each machine that I updated, browsing the network is now limited to seeing ONLY the two W7 machines left on the LAN. I have tried the suggestions in this article, but my locations already show the domain, so I didn't need to change location.... There are no group policies...

    Do you have any idea what the update might have changed or defaulted on these desktops? I am not sure how to get started fixing this. Whatever did change, probably was something that didn't work in previous builds or didn't exist, I guess. I also find it odd that they still see the W7 Pro X64 desktops.

    Any advice would be appreciated.

    Thanks.

    Charlie
      My Computer
    Quote Quote

  7. Brink
    Posts : 70,915
    64-bit Windows 11 Pro for Workstations
    Thread Starter
       New #5

    Hello Charlie, and welcome to Ten Forums. :)

    I wish I could help, but I have no experience with domains for this. Please go ahead and create a new thread in the Network and Sharing forum area to see if someone may be able to help soon.
      My Computers
    Quote Quote

  8. Charlieo
    Posts : 9
    Windows 10 Enterprise x64
       New #6

    will do
      My Computer
    Quote Quote

  9. rseiler
    Posts : 301
    Windows 10 Enterprise x64 (Insider)
       New #7

    "Find devices and content" in #8 and #9 now reads "Make this PC discoverable" in Win10 TH2. MS just wants to keep you on your toes.
      My Computer
    Quote Quote

  10. Brink
    Posts : 70,915
    64-bit Windows 11 Pro for Workstations
    Thread Starter
       New #8

    Thank you rseiler. MS sure does. The tutorial has been updated now. :)
      My Computers
    Quote Quote

  12. marekfc
    Posts : 2
    Ubuntu
       New #9

    Hi, I can change it when I have Administrator rights. How about changing it by a user? Am I missing something? Build 10240
      My Computer
    Quote Quote



Tutorial Categories

Set Network Location to Private, Public, or Domain in Windows 10 Tutorial Index Network & Sharing Instalation and Upgrade Browsers and Email General Tips Gaming Customization Apps and Features Virtualization BSOD System Security User Accounts Hardware and Drivers Updates and Activation Backup and Restore Performance and Maintenance Mixed Reality Phone


  Related Discussions
Can anyone please give me a rundown on how to set my USB data card connection from public to private ? I know how to do it on Windows 10 Pro, but I can't figure out how to do it on Windows 10 Home Version 1809 (OS Build 17763.437).
Hello All No matter what I do, it just won't stay on Private network, removing forgetting the wifi network and restarting doesn't help, troubleshooter doesn't help, is it time for another darn system fresh start refresh? Previously was...
Hi guys I am running a laptop with windows 10 , so how do I change the network profile from public to private . thanks
My wifi network is public and i cant seem to get to the options to make it private. When I go to network/internet wifi i don't get the option to manage known networks. I can get to manage known networks another way but on the wifi network i want to...
I have extensively viewed the net for a solution, and have tried (as far as I know) every suggestion to make the change without success. Your comments/suggestions would be welcomed Thanks in advance
Our Sites
Site Links
About Us
Windows 10 Forums is an independent web site and has not been authorized, sponsored, or otherwise approved by Microsoft Corporation. "Windows 10" and related materials are trademarks of Microsoft Corp.

 © Designer Media Ltd
All times are GMT -5. The time now is 23:13.
Find Us




Windows 10 Forums
