    How to Boot to UEFI Firmware Settings from inside Windows 10

    information   Information
    UEFI (Unified Extensible Firmware Interface) is a standard firmware interface for PCs, designed to replace BIOS (basic input/output system). This standard was created by over 140 technology companies as part of the UEFI consortium, including Microsoft. It's designed to improve software interoperability and address limitations of BIOS.

    This tutorial will show you how to boot directly to your motherboard's UEFI firmware settings from inside Windows 10.
    Note   Note
    This only applies if your PC's motherboard has a UEFI firmware chip instead of a BIOS chipset.

    This only applies if Windows 10 was installed using UEFI, and not legacy BIOS (CSM).

    See: How to Check if Windows 10 is using UEFI or Legacy BIOS

    CONTENTS:
    • Option One: Boot to UEFI Firmware Settings from Settings
    • Option Two: Boot to UEFI Firmware Settings from Command Prompt

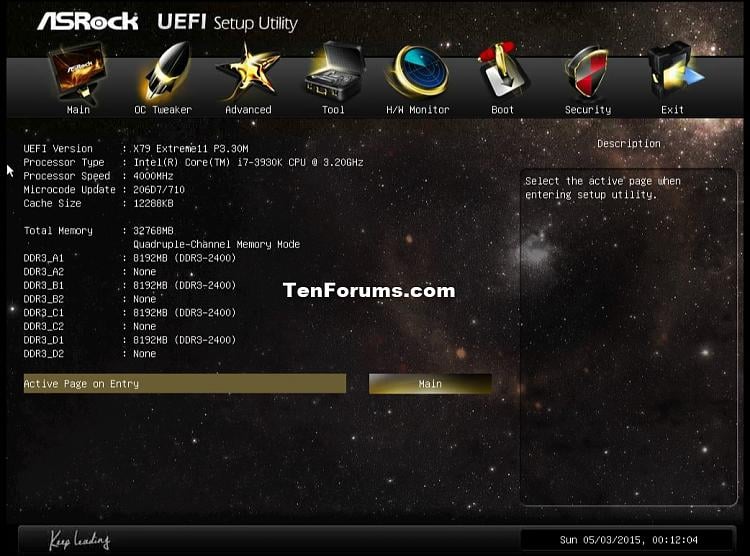

    EXAMPLE: UEFI Firmware Settings for ASRock X79 Extreme11
    Click image for larger version.

Name:	ASRock_UEFI.jpg
Views:	10131
Size:	198.1 KB
ID:	18316






    Boot to UEFI Firmware Settings from inside Windows 10 OPTION ONE Boot to UEFI Firmware Settings from inside Windows 10
    Boot to UEFI Firmware Settings from Settings

    1. Open Settings, and click/tap on the Update & security icon.

    2. Click/tap on Recovery on the left side, and click/tap on Restart now under Advanced startup. (see screenshot below)

    Name:  Settings.jpg
Views: 43562
Size:  78.7 KB

    3. After the PC restarts, click/tap on Troubleshoot. (see screenshot below)

    Click image for larger version.

Name:	UEFI-1.jpg
Views:	4317
Size:	55.7 KB
ID:	18318

    4. Click/tap on Advanced options. (see screenshot below)

    Click image for larger version.

Name:	UEFI-2.jpg
Views:	9737
Size:	48.1 KB
ID:	18322

    5. Click/tap on UEFI Firmware Settings. (see screenshot below)

    Click image for larger version.

Name:	UEFI-3.jpg
Views:	15263
Size:	147.1 KB
ID:	18320

    6. Click/tap on Restart to boot into your UEFI firmware settings. (see screenshot below)

    Click image for larger version.

Name:	UEFI-4.jpg
Views:	4701
Size:	31.8 KB
ID:	18321






    Boot to UEFI Firmware Settings from inside Windows 10 OPTION TWO Boot to UEFI Firmware Settings from inside Windows 10
    Boot to UEFI Firmware Settings from Command Prompt

    1. Open an elevated command prompt.

    2. Type the command below you want to use into the elevated command prompt, and press Enter. (see screenshot below)

    (with message)
    shutdown /r /fw

    OR

    (instant without message)
    shutdown /r /fw /t 0

    Name:  shutdown_fw-1.png
Views: 5738
Size:  9.7 KB

    3. If you used the first command, you will now get a You're about to be signed out message before the PC automatically restarts and boots directly to your BIOS or UEFI firmware settings. (see screenshot below)

    Name:  shutdown_fw-2.png
Views: 5728
Size:  6.9 KB



    That's it,
    Shawn


  1.    15 Jan 2016 #1
    Join Date : Jan 2016
    Posts : 11
    Windows 10

    Hi, if I don't see UEFI firmware settings under Advanced options on my comp, then I guess my MOBO doesn't have it?
      My ComputerSystem Spec
  2.    15 Jan 2016 #2
    Join Date : Oct 2013
    Posts : 24,511
    64-bit Windows 10 Pro build 17017
    Thread Starter

    Hey Case1, and welcome to Ten Forums.

    Your MSI 870-G45 specs below doesn't show that it supports UEFI.

    http://www.msi.com/product/motherboa...#hero-overview
      My ComputersSystem Spec
  3.    15 Jan 2016 #3
    Join Date : Jan 2016
    Posts : 11
    Windows 10

    Ty Brink!
      My ComputerSystem Spec
  4.    15 Jan 2016 #4
    Join Date : Oct 2013
    Posts : 24,511
    64-bit Windows 10 Pro build 17017
    Thread Starter

      My ComputersSystem Spec
  5.    01 May 2016 #5
    Join Date : May 2016
    Posts : 2
    Windows 10

    Hi Shawn

    I have asus gl552jx machineand it is configured for uefi boot, but I am still not able to access the UEFI BIOS utility tool. When I do the above steps, I land on the normal BIOS configuration where I have only 1 boot option for windows.
      My ComputerSystem Spec
  6.    01 May 2016 #6
    Join Date : Oct 2013
    Posts : 24,511
    64-bit Windows 10 Pro build 17017
    Thread Starter

    Hello vedz91, and welcome to Ten Forums.

    See if tapping the F2 key during post will open your BIOS settings.

    ASUS N551J E-MANUAL Pdf Download.
      My ComputersSystem Spec
  7.    01 May 2016 #7
    Join Date : May 2016
    Posts : 2
    Windows 10

    Quote Originally Posted by Brink View Post
    Hello vedz91, and welcome to Ten Forums.

    See if tapping the F2 key during post will open your BIOS settings.

    ASUS N551J E-MANUAL Pdf Download.
    Thanks, Brinks.

    It opens the same old Windows BIOS, nothing like the ASROCK UEFI BIOS utility...
      My ComputerSystem Spec
  8.    01 May 2016 #8
    Join Date : Oct 2013
    Posts : 24,511
    64-bit Windows 10 Pro build 17017
    Thread Starter

    Double check using the tutorial below to see if you using BIOS or UEFI.

    BIOS Mode - See if Windows Boot in UEFI or Legacy Mode
      My ComputersSystem Spec
  9.    11 Jun 2016 #9
    Join Date : Jun 2016
    Posts : 1
    windows 10 home

    i hav asus h170 m plus mobo it has uefi but firmware settings not shown in win 10 i could not proceed with uefi why my mobo supports uefi but
    Last edited by raja; 12 Jun 2016 at 00:19.
      My ComputerSystem Spec
