How to Create a Hyper-V Virtual Machine Connection shortcut in Windows 10

information   Information
The Windows 10 Pro, Enterprise, and Education editions include the Hyper-V virtualization technology. Hyper-V enables running virtualized computer systems on top of a physical host. These virtualized systems can be used and managed just as if they were physical computer systems, however they exist in virtualized and isolated environment. Special software called a hypervisor manages access between the virtual systems and the physical hardware resources. Virtualization enables quick deployment of computer systems, a way to quickly restore systems to a previously known good state, and the ability to migrate systems between physical hosts.

You can use Virtual Machine Connection to connect to a Hyper-V virtual machine (guest) on a host server (ex: your PC). The hosts and virtual machines that are available in Hyper-V Manager are the same ones available in Virtual Machine Connection.

This tutorial will show you how to create or download a Hyper-V Virtual Machine Connection shortcut in Windows 10.

You must be signed in as an administrator to be able to use this shortcut.


CONTENTS:
  • Option One: To Download a Hyper-V Virtual Machine Connection Shortcut
  • Option Two: To Manually Create a Hyper-V Virtual Machine Connection Shortcut

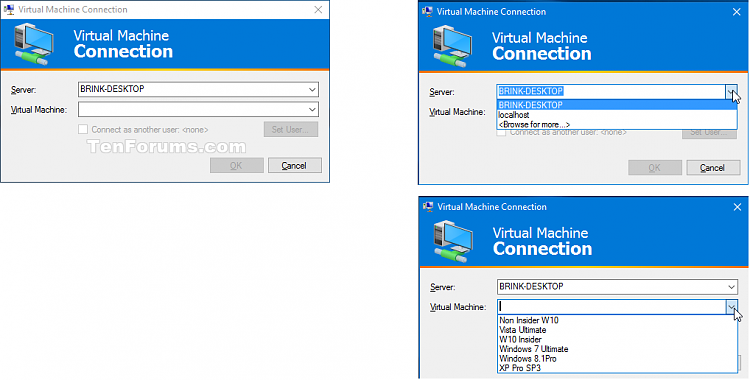

EXAMPLE: Hyper-V Virtual Machine Connection
Click image for larger version.

Name:	Hyper-V_VM_Connection.png
Views:	123
Size:	47.3 KB
ID:	93076






Create Hyper-V Virtual Machine Connection shortcut in Windows 10 OPTION ONE Create Hyper-V Virtual Machine Connection shortcut in Windows 10
To Download a Hyper-V Virtual Machine Connection Shortcut

1. Click/tap on the Download button below to download the .zip file below.

Hyper-V_VM_Connection_shortcut.zip

download

2. Save the .zip file to your desktop.

3. Unblock the .zip file..

4. Open the .zip file, and extract (drag and drop) the shortcut to your desktop.

5. Go to step 4 in OPTION TWO below.






Create Hyper-V Virtual Machine Connection shortcut in Windows 10 OPTION TWO Create Hyper-V Virtual Machine Connection shortcut in Windows 10
To Manually Create a Hyper-V Virtual Machine Connection Shortcut

1. Right click or press and hold on an empty area on your desktop, and click/tap on New and Shortcut.

2. Type vmconnect into the location area, and click/tap on Next. (see screenshot below)

Name:  Hyper-V_VM_Connection_shortcut-1.png
Views: 802
Size:  14.6 KB

3. Type Hyper-V VM Connection for the name, and click/tap on the Finish button. (see screenshot below)
Note   Note
You could name this shortcut anything you would like though.


Name:  Hyper-V_VM_Connection_shortcut-2.png
Views: 798
Size:  12.5 KB

4. Right click or press and hold on the new Hyper-V VM Connection shortcut, and click/tap on Properties.

5. Click/tap on the Shortcut tab, then click/tap on the Advanced button. (see screenshot below)

Name:  Hyper-V_VM_Connection_shortcut-3.png
Views: 775
Size:  21.0 KB

6. Check the Run as administrator box, and click/tap on OK. (see screenshot below)

Name:  Hyper-V_VM_Connection_shortcut-4.png
Views: 783
Size:  13.6 KB

7. Click/tap on OK. (see screenshot below step 5)

8. You can Pin to taskbar, Pin to Start, add to All apps, add to Quick Launch, assign a keyboard shortcut to, or move this shortcut to where you like for easy use.



That's it,
Shawn
