Change Hyper-V Virtual Machines Default Folder in Windows 10

    Change Hyper-V Virtual Machines Default Folder in Windows 10

    Change Hyper-V Virtual Machines Default Folder in Windows 10

    How to Change Default Folder to Store Hyper-V Virtual Machines
    Published by Category: Virtualization
    14 Mar 2019
    Designer Media Ltd


    How to Change Default Folder to Store Hyper-V Virtual Machines


    Hyper-V enables running virtualized computer systems on top of a physical host. These virtualized systems (aka: guests) can be used and managed just as if they were physical computer systems, however they exist in a virtualized and isolated environment.

    A virtual machine in Hyper-V consists of a few files that account for its virtual hardware configuration and the virtual storage (VHD and VHDX files). By default:
    • The virtual machine configuration files are stored in "C:\ProgramData\Microsoft\Windows\Hyper-V".
    • The virtual hard drives are stored in "C:\Users\Public\Documents\Hyper-V\Virtual Hard Disks".

    When you create a virtual machine in Hyper-V Manager, you are able to select to use these default locations or specify a folder location on a per virtual machine basis.

    If you like, you could change these global default locations within your hosts to make it easier to use your locations by default instead when creating new virtual machines.

    This tutorial will show you how to specify the default folder to store virtual machine configuration files when importing or creating a new Hyper-V virtual machine in Windows 10.

    You must be signed in as an administrator to be able to change the default folder for Hyper-V virtual machine configuration files.


     CONTENTS:

    • Option One: To Change Default Hyper-V Virtual Machines Folder using Hyper-V Manager
    • Option Two: To Change Default Hyper-V Virtual Machines Folder using PowerShell


    EXAMPLE: Hyper-V Virtual Machines folder
    Click image for larger version.

Name:	Virtual_Machines.png
Views:	574
Size:	46.5 KB
ID:	91122





    Change Hyper-V Virtual Machines Default Folder in Windows 10 OPTION ONE Change Hyper-V Virtual Machines Default Folder in Windows 10
    To Change Default Hyper-V Virtual Machines Folder using Hyper-V Manager

    1. Open Hyper-V Manager.

    2. Select the Hyper-V host (ex: "BRINK-DESKTOP") in the left pane you want to change the default folder to store Hyper-V virtual machines for, and click/tap on Hyper-V Settings in the right Actions pane. (see screenshot below)

    Click image for larger version.

Name:	Hyper-V_Settings.png
Views:	1030
Size:	67.3 KB
ID:	91119

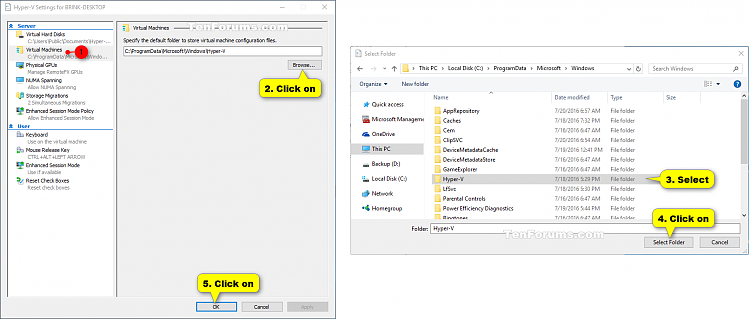

    3. Click/tap on Virtual Machines in the left pane, click/tap on the Browse button on the right, navigate to and select the folder you want to use, click/tap on Select Folder, and click/tap on OK. (see screenshots below)

    Click image for larger version.

Name:	Hyper-V_Virtual_machines.png
Views:	887
Size:	117.2 KB
ID:	91123

    4. When finished, you can close Hyper-V Manager if you like.






    Change Hyper-V Virtual Machines Default Folder in Windows 10 OPTION TWO Change Hyper-V Virtual Machines Default Folder in Windows 10
    To Change Default Hyper-V Virtual Machines Folder using PowerShell

    For more details about the Set-VMHost command used in this option, see: Set-VMHost

    1. Open an elevated PowerShell.

    2. Type the command you want to use below into the elevated PowerShell, and press Enter. (see screenshot below)

    (Current Hyper-V host)
    Set-VMHost -VirtualMachinePath 'Full path of folder'

    OR

    (Specific Hyper-V host)
    Set-VMHost -ComputerName 'Hyper-V host name' -VirtualMachinePath 'Full path of folder'

    Note   Note
    Substitute Full path of folder in the commands above with the actual full path of the folder you want to store Hyper-V virtual machine configuration files in.

    Substitute Hyper-V host name in the second command above with the actual host name (ex: "BRINK-DESKTOP') you want to change the default virtual machines folder for.

    For example:

    Set-VMHost -VirtualMachinePath 'D:\Virtual Machines'

    OR

    Set-VMHost -ComputerName 'BRINK-DESKTOP' -VirtualMachinePath 'D:\Virtual Machines'


    Click image for larger version.

Name:	Hyper-V_Virtual_Machines_PowerShell-1.png
Views:	260
Size:	14.8 KB
ID:	91120
    Click image for larger version.

Name:	Hyper-V_Virtual_Machines_PowerShell-2.png
Views:	406
Size:	19.2 KB
ID:	91121


    3. When finished, you can close PowerShell.


    That's it,
    Shawn


  1.    #1

    They've changed things on us in the 1903 Update - when starting, under the Hyper-V settings you can change location of the config and vhd locations
      My ComputerSystem Spec

  2. Brink's Avatar
    Posts : 41,326
    64-bit Windows 10 Pro build 18963
    Thread Starter
       #2

    Fast Turtle said: View Post
    They've changed things on us in the 1903 Update - when starting, under the Hyper-V settings you can change location of the config and vhd locations
    Hello Fast Turtle, and welcome to Ten Forums.

    I still see the same as Option One in the tutorial for this in 1903. Is this what you meant?
      My ComputersSystem Spec

  3.    #3

    Under the Action menu - Select the Hyper-V Settings and you can change the default locations where the local machine server places both the VHD and Config files for all new VM's. Version I'm using is 10.0.18362.1 so they may have added things
      My ComputerSystem Spec

  4. Brink's Avatar
    Posts : 41,326
    64-bit Windows 10 Pro build 18963
    Thread Starter
       #4

    That looks to be the same as Option One in the tutorial here and below.

    Change Hyper-V Virtual Hard Disks Folder in Windows 10
      My ComputersSystem Spec
