    Configure Windows 10 to Create Minidump on BSOD

    Configure Windows 10 to Create Minidump on BSOD

    How to Configure Windows 10 to Create Dump Files on BSOD

    Published by BoozadCategory: BSOD
    23 Apr 2015 Last Updated: 31 Mar 2017 at 23:12

    Published by


    Boozad's Avatar
    Better Call Saul

    Location: Wolves, England
    Posts: 1,634

    Show Printable Version


    How to Configure Windows 10 to Create Dump Files on BSOD

    information   Information
    A blue screen (aka: BSOD) error (also called a stop error) can occur if a problem causes your PC to shut down or restart unexpectedly. When you experience this type of error, you wont be able to see things like the Start menu or the taskbar on the screen when your PC is turned on. Instead you might see a blue screen with a message that your PC ran into a problem and needs to restart.

    In the event of your PC encountering a BSOD (Blue Screen of Death) a Dump File will be required for debugging purposes by a BSOD analyst. By default Windows 10 is set to write Automatic memory dumps, this tutorial will show you how to configure Windows 10 to write Minidumps (Small memory dumps), Kernel memory dumps, Complete memory dumps, Automatic memory dumps and Active memory dumps.

    For more information about crash dump files, please see: Understanding Crash Dump Files - Ask the Performance Team - Site Home - TechNet Blogs

    You must be logged in as an administrator to be able to perform any of the steps in this tutorial.

    Note   Note
    Automatic memory dump
    An Automatic Memory Dump contains the same information as a Kernel memory dump. The difference between the two is in the way that Windows sets the size of the system paging file. If the system paging file size is set to System managed size, and the kernel-mode crash dump is set to Automatic Memory Dump, then Windows can set the size of the paging file to less than the size of RAM. In this case Windows sets the size of the paging file large enough to ensure that a kernel memory dump can be captured most of the time.

    Complete memory dump

    A complete memory dump records all the contents of physical memory (RAM) at the time of the crash. A complete memory dump may contain data from processes that were running when the memory dump was collected. If a second crash occurs and another complete memory dump (or kernel memory dump) file is created, the previous contents of the C:\Windows\MEMORY.DMP file are overwritten.
    By default, the complete memory dump option is not available in Startup and Recovery on computers that have 2 gigabytes (GB) or more of RAM installed. You can still set Windows to create a Complete memory dump using the REG file in step 4 of Option Two if you wish.

    The complete memory dump will require that there is a page file set to at least the size of physical memory installed plus 1MB (for the header).

    Active memory dump
    An active memory dump is smaller than a Complete memory dump, however it still contains active memory in both kernel and user mode. You can now obtain kernel information as well as user information without having to dump the complete memory.

    Kernel memory dump
    A kernel dump contains only the kernel-mode read / write pages present in physical memory at the time of the crash. Since this is a kernel-mode only dump, there are no pages belonging to user-mode processes. However, it is unlikely that the user-mode process pages would be required since a system crash (bugcheck) is usually caused by kernel-mode code. The list of running processes, state of the current thread and list of loaded drivers are stored in nonpaged memory that saves in a kernel memory dump. The size of a kernel memory dump will vary based on the amount of kernel-mode memory allocated by Windows and the drivers that are present on the system.

    If a second crash occurs and another kernel memory dump (or complete memory dump) file is created, the previous contents of the C:\Windows\MEMORY.DMP file are overwritten.

    Small memory dump
    A small memory dump (Minidump) is a C:\Windows\Minidump dump file that contains the stop code, parameters, list of loaded device drivers, information about the current process and thread, and the kernel stack for the thread that caused the crash.




    Configure Windows 10 to Create Minidump on BSOD INTRODUCTION Configure Windows 10 to Create Minidump on BSOD
     List of Contents

    Option One: Configure Dump File Settings in Start-up and Recovery
    Option Two: Configure Dump File Settings with a REG file download
    Option Three: Configure Dump File Settings in Elevated Command Prompt




    Configure Windows 10 to Create Minidump on BSOD OPTION ONE Configure Windows 10 to Create Minidump on BSOD
     Configure Dump File Settings in Start-up and Recovery

    1: Open Control Panel

    2: Click/tap on System and Security

    Click image for larger version.

Name:	Control Panel.PNG
Views:	1343
Size:	116.5 KB
ID:	17484

    3: Click/tap on System

    Click image for larger version.

Name:	System & Security.PNG
Views:	3661
Size:	110.0 KB
ID:	17485

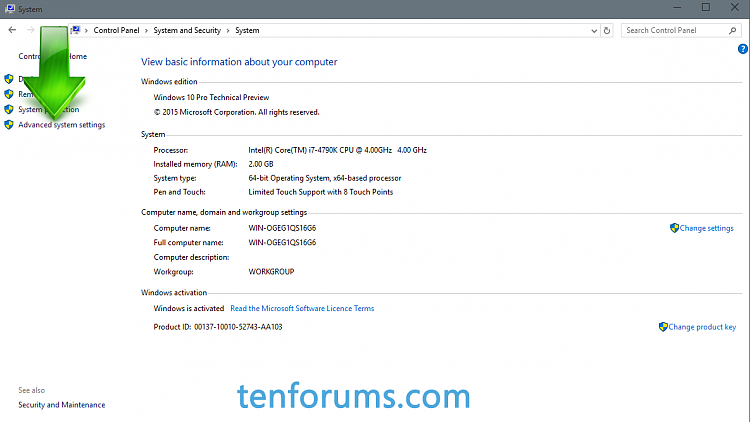

    4: Click/tap on Advanced System Settings, the System Properties window will open.

    Click image for larger version.

Name:	System.png
Views:	2034
Size:	69.4 KB
ID:	17486

    5: In the Start-up and Recovery section click/tap on Settings...

    Name:  Advanced System Settings.PNG
Views: 117703
Size:  33.6 KB

    6: In the System failure section ensure both Write an event to the system log and Automatically restart options are checked. In the Write debugging information section click on the dropdown box and select either of the options below then click/tap OK:



    Configure Windows 10 to Create Minidump on BSOD No Dump Files Configure Windows 10 to Create Minidump on BSOD
    Have Windows NOT Create a Dump File on BSOD

    Name:  none.PNG
Views: 117402
Size:  22.8 KB



    Configure Windows 10 to Create Minidump on BSOD Small Memory Dumps Configure Windows 10 to Create Minidump on BSOD

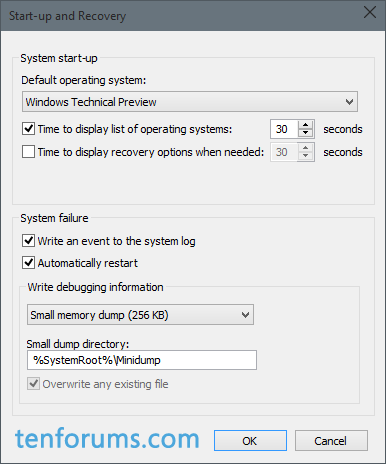

    Have Windows Create a Small Memory Dump (Minidump) on BSOD

    Name:  Small  Memory Dump Save Location.PNG
Views: 117504
Size:  24.2 KB




    Configure Windows 10 to Create Minidump on BSOD Kernel Memory Dumps Configure Windows 10 to Create Minidump on BSOD
    Have Windows Create a Kernel Memory Dump on BSOD

    Name:  Kernal Dump Save Location.PNG
Views: 117435
Size:  23.0 KB




    Configure Windows 10 to Create Minidump on BSOD Complete Memory Dumps Configure Windows 10 to Create Minidump on BSOD
    Have Windows Create a Complete Memory Dump on BSOD

    Name:  Complete Memory Dump Save Location.PNG
Views: 128331
Size:  23.1 KB




    Configure Windows 10 to Create Minidump on BSOD Automatic Memory Dumps Configure Windows 10 to Create Minidump on BSOD

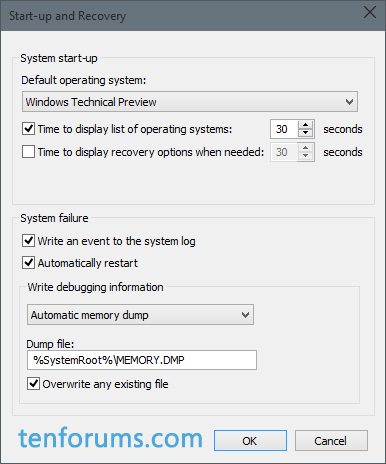

    Have Windows Create an Automatic Memory Dump on BSOD

    Name:  Automatic Memory Dump Save Location.PNG
Views: 117142
Size:  23.1 KB




    Configure Windows 10 to Create Minidump on BSOD Active Memory Dumps Configure Windows 10 to Create Minidump on BSOD
    Have Windows Create an Active Memory Dump on BSOD

    Name:  Active Memory Dump Save Location.PNG
Views: 117209
Size:  23.2 KB
    Note   Note
    Ensure the Small dump directory: for Small memory dumps (Dump file: for all other dump types) save location box underneath the dropdown box reads the following for each selected dump:

    Dump Type Save Location
    (none) %SystemRoot%\MEMORY.DMP (Greyed out)
    Small memory dump (256kb) %SystemRoot%\Minidump
    Kernel memory dump %SystemRoot%\MEMORY.DMP
    Complete memory dump %SystemRoot%\MEMORY.DMP
    Automatic memory dump %SystemRoot%\MEMORY.DMP
    Active memory dump %SystemRoot%\MEMORY.DMP

    7: You can now close Control Panel.



    Configure Windows 10 to Create Minidump on BSOD OPTION TWO Configure Windows 10 to Create Minidump on BSOD
     Configure Dump File Settings with a REG file download

    1: Download the relevant .reg file from the list below for which Memory Dump you want Windows to create:



    Configure Windows 10 to Create Minidump on BSOD No Memory Dumps Configure Windows 10 to Create Minidump on BSOD
    Have Windows NOT Create a Memory Dump on BSOD

    Click the download button below to download Create_NO_dump_file_on_BSOD.reg

    download
    Go to Step 2



    Configure Windows 10 to Create Minidump on BSOD Small Memory Dumps (Minidumps) Configure Windows 10 to Create Minidump on BSOD
    Have Windows Create a Small Memory Dump (Minidump) on BSOD

    Click the download button below to download Create_Minidump_on_BSOD.reg

    download
    Go to Step 2



    Configure Windows 10 to Create Minidump on BSOD Kernel Memory Dumps Configure Windows 10 to Create Minidump on BSOD
    Have Windows Create a Kernel Memory Dump on BSOD

    Click the download button below to download Create_Kernel_memory_dump_on_BSOD.reg

    download
    Go to Step 2



    Configure Windows 10 to Create Minidump on BSOD Complete Memory Dumps Configure Windows 10 to Create Minidump on BSOD
    Have Windows Create a Complete Memory Dump on BSOD

    Click the download button below to download Create_Complete_memory_dump_on_BSOD.reg

    download
    Go to Step 2



    Configure Windows 10 to Create Minidump on BSOD Automatic Memory Dumps Configure Windows 10 to Create Minidump on BSOD
    Have Windows Create an Automatic Memory Dump on BSOD

    Click the download button below to download Automatic_memory_dump.reg

    download
    Go to Step 2



    Configure Windows 10 to Create Minidump on BSOD Active Memory Dumps Configure Windows 10 to Create Minidump on BSOD
    Have Windows Create an Active Memory Dump on BSOD

    Click the download button below to download Active_memory_dump.reg

    download
    Go to Step 2

    2: Save the .reg file to your desktop or other convenient location

    3: Double click on the downloaded .reg file to merge it.

    4: When prompted, click on Run, Yes, Yes, and OK to approve merging the .reg file.

    5: Restart the computer to apply.

    6: You can now delete the downloaded .reg file if you wish.




    Configure Windows 10 to Create Minidump on BSOD OPTION THREE Configure Windows 10 to Create Minidump on BSOD
     Configure Dump File Settings in Elevated Command Prompt

    1: Open an Elevated Command Prompt

    2:
    Enter the relevant command from the list below to set the type of dump file you wish to set



    Configure Windows 10 to Create Minidump on BSOD No Memory Dumps Configure Windows 10 to Create Minidump on BSOD
    Have Window NOT Create a Dump File

    A) Copy and paste the command below into the elevated command prompt, and press Enter. (see screenshot below the command list)

    wmic RECOVEROS set DebugInfoType = 0

    B)
    Go to Step 3



    Configure Windows 10 to Create Minidump on BSOD Small Memory Dumps Configure Windows 10 to Create Minidump on BSOD
    Have Windows Create a Small Memory Dump (Minidump) on BSOD

    A) Copy and paste the command below into the elevated command prompt, and press Enter. (see screenshot below the command list)

    wmic RECOVEROS set DebugInfoType = 3

    B)
    Go to Step 3



    Configure Windows 10 to Create Minidump on BSOD Kernel Memory Dumps Configure Windows 10 to Create Minidump on BSOD
    Have Windows Create a Kernel Memory Dump on BSOD

    NOTE: This is the default setting

    A) Copy and paste the command below into the elevated command prompt, and press Enter. (see screenshot below the command list)

    wmic RECOVEROS set DebugInfoType = 2

    B)
    Go to Step 3



    Configure Windows 10 to Create Minidump on BSOD Complete Memory Dumps Configure Windows 10 to Create Minidump on BSOD
    Have Windows Create a Complete Memory Dump on BSOD

    WARNING:
    Ensure you read the important information regarding page file requirements in order for this type of dump to be created.

    A) Copy and paste the command below into the elevated command prompt, and press Enter. (see screenshot below the command list)

    wmic RECOVEROS set DebugInfoType = 1

    B)
    Go to Step 3



    Configure Windows 10 to Create Minidump on BSOD Automatic Memory Dumps Configure Windows 10 to Create Minidump on BSOD
    Have Windows Create an Automatic Memory Dump on BSOD

    A) Copy and paste the command below into the elevated command prompt, and press Enter. (see screenshot below the command list)

    wmic RECOVEROS set DebugInfoType = 7

    B)
    Go to Step 3



    Configure Windows 10 to Create Minidump on BSOD Active Memory Dumps Configure Windows 10 to Create Minidump on BSOD
    Have Windows Create an Active Memory Dump on BSOD

    A) Copy and paste the command below into the elevated command prompt, and press Enter. (see screenshot below the command list)

    wmic RECOVEROS set DebugInfoType = 1

    B)
    Go to Step 3

    Click image for larger version.

Name:	C Prompt 2.JPG
Views:	621
Size:	85.8 KB
ID:	17655

    3: Close the Elevated Command Prompt

    4: Restart the computer to apply the settings

     View the Current Memory Dump Type Setting


    To view the current Memory Dump type setting

    A) Open an Elevated Command Prompt

    B) Copy and paste the command below into the elevated command prompt, and press Enter

    wmic RECOVEROS get DebugInfoType

    Note   Note

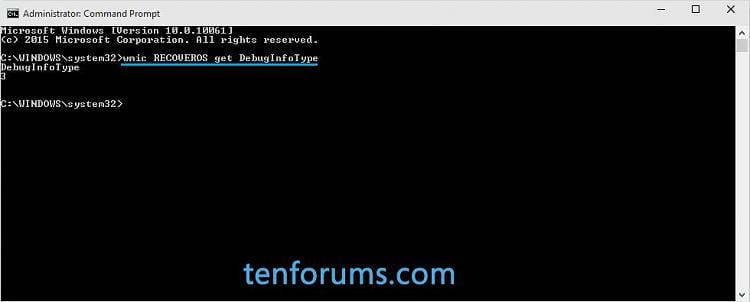

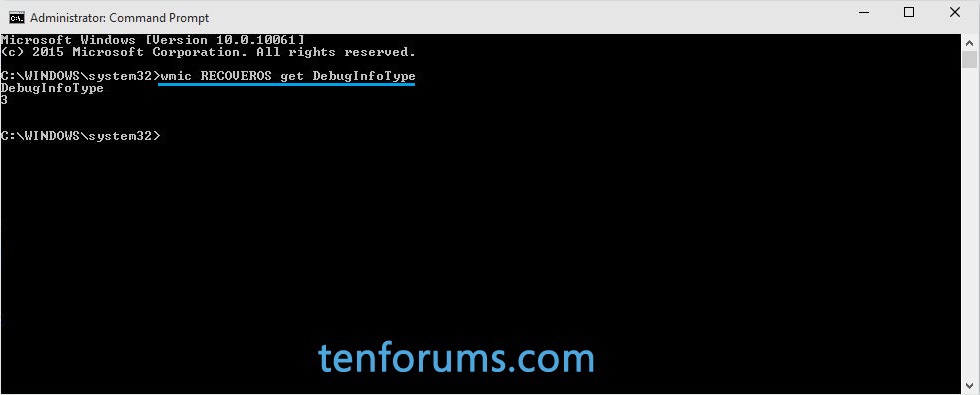

    The example below shows the system set to 3 for a Small Memory Dump (minidump)

    Click image for larger version.

Name:	C Prompt 1.JPG
Views:	671
Size:	66.3 KB
ID:	17654


    That's it,
    Gav.

    Massive thanks to Brink for the huge amount of help in making this tutorial as complete as it is.


  1.    19 Aug 2016 #1
    Join Date : Aug 2016
    Posts : 1
    Windows 10

    The Create_Complete_memory_dump_on_BSOD.reg download link opens a picture and does not download a reg file. The kernel reg file download works fine.
      My ComputerSystem Spec
  2.    19 Aug 2016 #2
    Join Date : Oct 2013
    Posts : 24,239
    64-bit Windows 10 Pro build 17017

    Hello @jaylweb, and welcome to Ten Forums.

    Sorry about that. The download has now been fixed.
      My ComputersSystem Spec
  3.    08 Sep 2016 #3
    Join Date : Jul 2015
    Posts : 47
    WINDOWS 10 home 64 BIT

    Hi Brink
    I deleted my temp files yesterday using windows disk cleanup and my dump files have gone does this mean I forgot to un-tick the box before I clicked OK and I wiped them out? I have had a couple of BSOD in the last month caused by my anti virus security and the tech team wants my dump files ...hence finding out they are gone also in the pic will these settings be OK for system failure : overwrite any existing file....and.....disable automatic deletion of memory dumps when disk space is low is it OK to leave un-ticked ?

    thanks in advance

    Name:  Ashampoo_Snap_2016.09.08_16h43m15s_002_.png
Views: 29049
Size:  117.8 KB
      My ComputerSystem Spec
  4.    08 Sep 2016 #4
    Join Date : Oct 2013
    Posts : 24,239
    64-bit Windows 10 Pro build 17017

    Hey Brian,

    Nar, it was just deleted by Disk Cleanup.

    Those settings are fine. It allow you to keep multiple dump files until you disk space runs low to then delete the oldest dump file as needed to for a new one.
      My ComputersSystem Spec
  5.    08 Sep 2016 #5
    Join Date : Jul 2015
    Posts : 47
    WINDOWS 10 home 64 BIT

    sweet thanks very much Brink
      My ComputerSystem Spec
  6.    06 Nov 2016 #6
    Join Date : Jul 2015
    Posts : 107
    Windows 10 Pro x64

    Hi Guys...

    When you specify that a dump file should be created as a result of a BSOD and your page file is not on your Boot drive you will get a message stating you need to create a page file on it. I vaguely recall finding a way to put your only page file on D for example and still have Windows take a dump (lol). In fact, I also recall that whatever I found at the time actually worked. I suspect it is a Registry entry or Group Policy thing. Any help to get this working will be appreciated.
      My ComputerSystem Spec
  7.    24 Dec 2016 #7
    Join Date : Jan 2014
    Central West NSW Australia
    Posts : 786
    7 and 10 on various machines

    Now I have probably asked already but am now getting more involved with 10 I can see the configuring stuff but am wondering how the results are posted in the 10 forum like they are in 7??
      My ComputerSystem Spec
  8.    24 Dec 2016 #8
    Join Date : Jun 2015
    Posts : 12,651
    Windows 10 Pro

    The results are posted exactly as in 7
      My ComputersSystem Spec
  9.    24 Dec 2016 #9
    Join Date : Jan 2014
    Central West NSW Australia
    Posts : 786
    7 and 10 on various machines

    Thanks mate
      My ComputerSystem Spec
