Windows 10: Remove Floppy Disk Drive in Windows Hyper-V Virtual Machine

    Remove Floppy Disk Drive in Windows Hyper-V Virtual Machine

    Remove Floppy Disk Drive in Windows Hyper-V Virtual Machine

    How to Remove Floppy Disk Drive in Windows Hyper-V Virtual Machine
    Published by Category: Virtualization
    13 Mar 2017
    Designer Media Ltd

    Published by


    Brink's Avatar
    Administrator

    Posts: 23,671

    Show Printable Version


    How to Remove Floppy Disk Drive in Windows Hyper-V Virtual Machine

    information   Information
    Hyper-V enables running virtualized computer systems on top of a physical host. These virtualized systems (aka: guests) can be used and managed just as if they were physical computer systems, however they exist in a virtualized and isolated environment.

    When you create a Windows virtual machine (VM) in Hyper-V, a floppy disk drive is created in the VM by default.

    This tutorial will show you how to add or remove the default floppy disk drive in a Windows virtual machine created in Hyper-V.

    You will need to be signed in as an administrator in the virtual machine to be able to add or remove the floppy disk drive.

    Note   Note
    Hyper-V is only available in the Window 8 Pro, Windows 8 Enterprise, Windows 10 Pro, Windows 10 Enterprise, and Windows 10 Education editions.

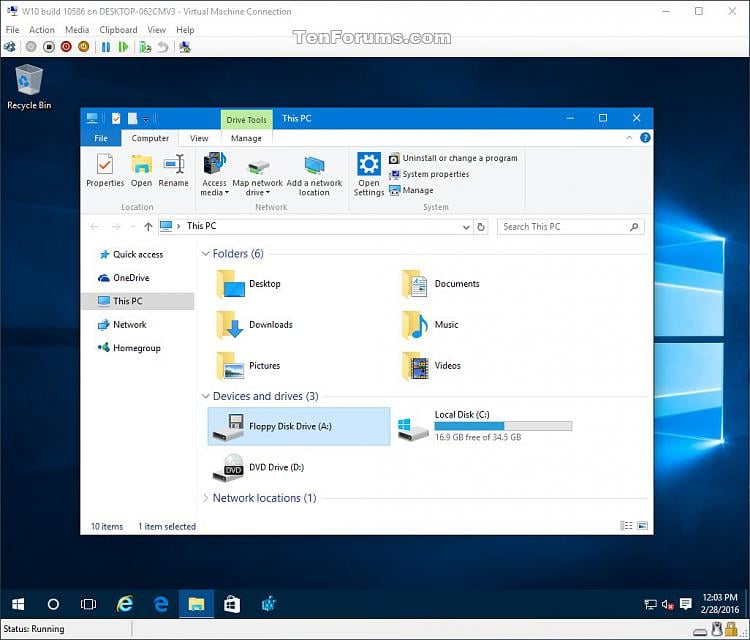

    EXAMPLE: Before and after Floppy Disk Drive removed from Hyper-V virtual machine of Windows
    Click image for larger version.

Name:	Hyper-V_Floppy_Disk_Drive.jpg
Views:	741
Size:	126.7 KB
ID:	66901
    Click image for larger version.

Name:	Hyper-V_remove_Floppy_Disk_Drive.jpg
Views:	375
Size:	121.3 KB
ID:	66902


    Here's How:

    1. Open the Windows virtual machine in Windows 8 or Windows 10 Hyper-V.

    2. In the virtual machine, press the Win+R keys, type regedit, and press Enter to open Registry Editor.

    3. Browse to the key location below in Registry Editor. (see screenshot below)

    HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\flpydisk

    Click image for larger version.

Name:	Hyper-V_Floppy_Disk_Drive_registry-1.jpg
Views:	429
Size:	130.8 KB
ID:	66903

    4. Do step 5 (add) or step 6 (remove) below for what you would like to do.


     5. To Add Floppy Disk Drive to a Windows Virtual Machine in Hyper-V

    NOTE: This is the default setting.

    A) In the left pane of the flpydisk key, double click/tap on the Start DWORD to modify it. (see screenshot below)

    B) Type 3, click/tap on OK, and go to step 7.

    Click image for larger version.

Name:	Hyper-V_Floppy_Disk_Drive_registry-3.jpg
Views:	423
Size:	139.1 KB
ID:	66905


     6. To Remove Floppy Disk Drive to a Windows Virtual Machine in Hyper-V

    A) In the left pane of the flpydisk key, double click/tap on the Start DWORD to modify it. (see screenshot below)

    B) Type 4, click/tap on OK, and go to step 7.

    Click image for larger version.

Name:	Hyper-V_Floppy_Disk_Drive_registry-2.jpg
Views:	251
Size:	139.3 KB
ID:	66904


    7. Close Registry Editor, and restart the virtual machine to apply.


    That's it,
    Shawn



  1. Posts : 3,361
    W10 Pro x64/W7 Ultimate x64 dual boot main - W10 Pro Insider Preview/W7 Pro x64 - remote pc
       28 Feb 2016 #1

    That's different from the usual 0 to 1 : 1 to 0 binary on/off switch there. Have to check this out later once I get Hyper-V enabled on the second desktop since I had to run VM ware on the main 10 install again. Had to get two 10 VM Workstation VMs updated!
      My ComputerSystem Spec


  2. Posts : 23,671
    64-bit Windows 10 Pro build 16362
    Thread Starter
       28 Feb 2016 #2

    Yeah, it's basically just enabling or disabling the flpydsk service in the VM.

    https://www.tenforums.com/tutorials/4...a.html#option5
      My ComputersSystem Spec


  3. Posts : 3,361
    W10 Pro x64/W7 Ultimate x64 dual boot main - W10 Pro Insider Preview/W7 Pro x64 - remote pc
       29 Feb 2016 #3

    The odd part is simply seeing the number "4" used rather then the usual "0 /1" on/off switch you generally would see in order to disable most services. Actually what I end up doing to never have any worry is simply right click on the floppy item in the Device Manager there to select the uninstall option.

    Since you would hardly even see bootable floppy images unless trying to set up a Legacy version(3.0, 3.1, 3.11, 95, 98) where a floppy boot was common place 95 being the first to see optical media there the item at this time is generally totally useless for most and a good idea to either see disabled or removed in order to get it out of the way!

    For anyone that might want to try running a Legacy VM it's always good to have the option where you can re-enable the floppy once disabled rather then being totally removed to get it out there when not in use! I was able to get a 98SE VM running several years back without any floppy image to work with but that was on VBox at the time however and not really upto speed with what you can see with the Hyper-V feature.
      My ComputerSystem Spec
