    How View Network Data Usage Details in Windows 10


    This tutorial will show you how to view the Wi-Fi and Ethernet network data usage details of apps from the last 30 days on your Windows 10 PC.

    Microsoft is making some changes to the Data Usage settings page under Settings > Network & Internet — you’ll notice some differences in Windows 10 build 17035.

    Starting with Windows 10 build 17643, if your device has a SIM (cellular), Microsoft updated Data Usage Settings to let you know how much data you are using while roaming. The roaming usage info will appear once you start using roaming data

    Starting with Windows 10 build 18956, network data usage has now been combined to show on the network status page.

     CONTENTS:

    • Option One: View Network Data Usage Overview in Settings
    • Option Two: View Network Data Usage Details per App in Settings






    OPTION ONE

    View Network Data Usage Overview in Settings


    1. Open Settings, and click/tap on the Network & Internet icon.

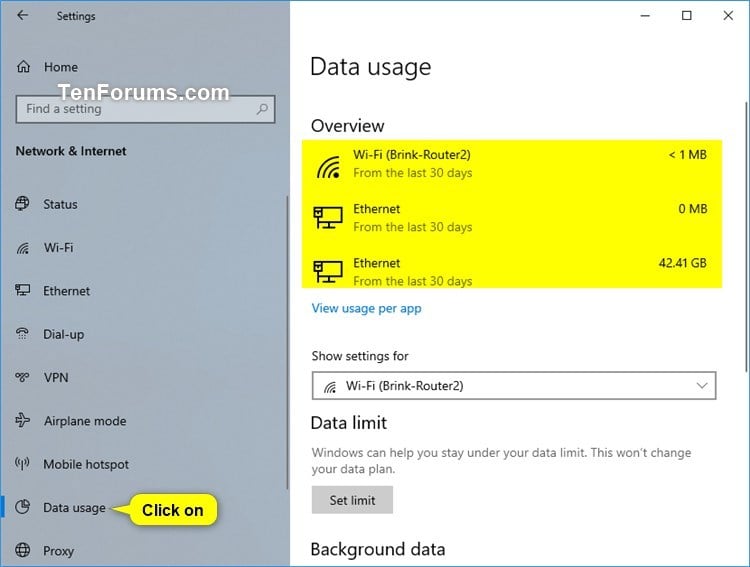

    2. Click/tap on Data usage on the left side. You will now see a general overview of the Wi-Fi and Ethernet network data usage from the last 30 days on your PC on the right side. (see screenshots below)

    Starting with Windows 10 build 18956, you will need to click/tap on the Status icon on the left side instead.

    View Network Data Usage Details in Windows 10-data_usage_overview.jpg View Network Data Usage Details in Windows 10-network_status_18956.jpg






    OPTION TWO

    View Network Data Usage Details per App in Settings


    1. Open Settings, and click/tap on the Network & Internet icon.

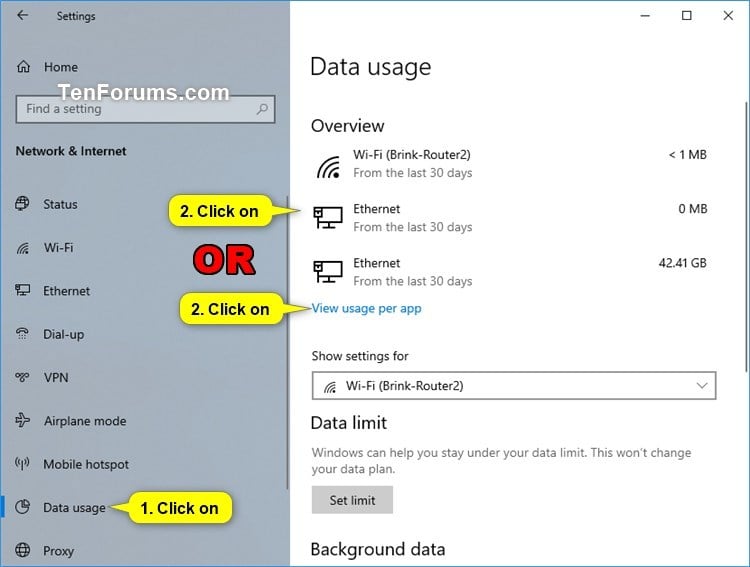

    2. Click/tap on Data usage on the left side, and either click/tap on a specific network or View usage per app link on the right side. (see screenshots below)

    Starting with Windows 10 build 18956, you will need to click/tap on the Status icon on the left side instead, and click/tap on the Data usage button of the network you want on the right side.

    View Network Data Usage Details in Windows 10-view_data_usage_details_per_app-1.jpg View Network Data Usage Details in Windows 10-network_status_18956.jpg

    3. You will now see the data usage per app from the last 30 days for the selected network. (see screenshots below)

    View Network Data Usage Details in Windows 10-view_data_usage_details_per_app-2.png View Network Data Usage Details in Windows 10-view_data_usage_details_per_app-3.png
    View Network Data Usage Details in Windows 10-data_usage_18956.png

    4. When finished, you can close Settings if you like.


    That's it,
    Shawn



  1. Brink's Avatar
    Posts : 48,805
    64-bit Windows 10 Pro for Workstations build 19635
       #1

    Tutorial has been updated and restored. :)
      My Computers


  2. Posts : 1
    64-bit
       #2

    What about


    Brink said:
    Tutorial has been updated and restored. :)

    Needs an update about how to reset Data usage on windows 10 please and thank you
      My Computer


  3. Posts : 5
    10
       #3

    Agree, how to reset?
      My Computer

  4. Brink's Avatar
    Posts : 48,805
    64-bit Windows 10 Pro for Workstations build 19635
    Thread Starter
       #4

    I haven't found a way to do so yet.
      My Computers


  5. Posts : 1
    windows 10 pro
       #5

    Brink said:
    I haven't found a way to do so yet.
    After some digging i've found that data related to data consumption are stored in
    C:\Windows\System32\sru\Srudb.dat

    I have resetted the data in the following way

    - rename sru folder (try few times because Windows is registering data in it...)
    - once renamed cut/paste srudb.dat in a backup folder (if you want to restore it in future..)
    - open notepad and save empty document with name srudb.dat in the folder
    - restore folder name to C:\Windows\System32\sru\

    I' have'nt found no problem doing it but if you do it do it at your own risk.

    Hope to have been helpfull
      My Computer

  6. Brink's Avatar
    Posts : 48,805
    64-bit Windows 10 Pro for Workstations build 19635
    Thread Starter
       #6

    Hello Fla78, and welcome to Ten Forums. :)

    Thank you for the pointer. After playing with it for a bit. I found it easier to boot into Safe Mode (without networking) to be able to easily delete the contents of the sru folder. Afterwards, boot back into normal mode, and data usage is reset.

    I'll write up a new tutorial for this today sometime, and will post back with a link to it when ready.
      My Computers


  7. Brink's Avatar
    Posts : 48,805
    64-bit Windows 10 Pro for Workstations build 19635
    Thread Starter
       #7
      My Computers


  8. Posts : 1
    Windows 10
       #8

    So I had the same issue with my Surface3 that I just bought this weekend. My AT&T cellular connection downloaded my entire dropbox on my first charge which was needless to say a shock.
    Build 10565 (and probably earlier - Im in the fast ring) gives you the ability to limit and reset your data usage. It's under settings>network>cellular or >data usage. For instance, I set a maximum of 250 MB for the next five days. I haven't found a way to disable so either for any particular applications like a iPhone can but I'm sure something can be developed at some point.

    Definately seems like a vast improvement from the vanilla windows 10 installed when I first bought it (?build 10240 or something)
      My Computer

  9. Brink's Avatar
    Posts : 48,805
    64-bit Windows 10 Pro for Workstations build 19635
    Thread Starter
       #9

    Tutorial updated.
