  1. ICIT2LOL's Avatar
    Posts : 6,377
    1010 Pro on all on various machines version 2004
       #560

    Shawn if I am using option one do I have to format the USB stick before I make the installation drive?
      My Computer

  2. Brink's Avatar
    Posts : 56,333
    64-bit Windows 10 Pro for Workstations build 21359
    Thread Starter
       #561

    ICIT2LOL said:
    Shawn if I am using option one do I have to format the USB stick before I make the installation drive?
    Hello John,

    No need. It will format the USB for you.
      My Computers

  3. ICIT2LOL's Avatar
    Posts : 6,377
    1010 Pro on all on various machines version 2004
       #562

    Thanks Shawn always the greatest help
      My Computer

  4. Brink's Avatar
    Posts : 56,333
    64-bit Windows 10 Pro for Workstations build 21359
    Thread Starter
       #563

    ICIT2LOL said:
    Thanks Shawn always the greatest help
      My Computers

  5. Bree's Avatar
    Posts : 18,696
    10 Home x64 (20H2) (10 Pro on 2nd pc)
       #564

    Try3 said:
    - I created a Home-only Ver1909 installation USB.
    Thanks for the clear description of the steps to do this. I've just tried this for the 20H2 ISO.

    Were you aware that if you repeat the dism /ExportImage with a different index, but the same output file you can add a second edition?

    Here's a slimmed down 20H2 install.esd I've just made, just containing Home and Pro.

    Create Bootable USB Flash Drive to Install Windows 10-image.png
      My Computers


  6. Posts : 1,874
    Windows 10 Pro 2004 20H1
       #565

    NTLite will also do the heavy lifting for you.

    1. Download -

    Download NTLite

    2. Run NTLite and click on the Add icon.

    3. Select Image file.

    4. Navigate to the location and select the file (install.esd or install.wim).

    NTLite will display the list of Windows versions contained in the file.

    Create Bootable USB Flash Drive to Install Windows 10-ntlite.jpg

    5. Right-click on the appropriate version, and select Export. You have the option of .ESD (compressed) or .WIM format.

    6. Select the location to save the new exported image file.
      My Computer

  7. Try3's Avatar
    Posts : 7,451
    Windows 10 Home x64 Version 20H2 Build 19042.928
       #566

    Bree said:
    Thanks for the clear description of the steps to do this. I've just tried this for the 20H2 ISO.
    Were you aware that if you repeat the dism /ExportImage with a different index, but the same output file you can add a second edition?
    Here's a slimmed down 20H2 install.esd I've just made, just containing Home and Pro.
    Bree,

    Thanks. I've added that to my post.
    - In the only example I have worked through, a x64 multi-Edition 4.29GB install.wim reduced to a x64 Home-Only 3.73GB file.
    - So there certainly seems to be enough room for, say, a x64 Home & Pro install.wim or possibly a x64 & x86 Home install.wim
    - I was going to try it out for a 20H2 ISO but my first download attempt resulted in an invalid file because of an interruption and I have not tried again because I then saw the discussion about the changed behaviour of Repair installs within 20H2 [inability to preserve programs & data]. I'll keep my fingers crossed that this issue is resolved by 11th May 2021 [Ver 1909 end of support].

    Happy Agincourt Day,
    Denis
      My Computer

  8. Matthew Wai's Avatar
    Posts : 5,085
    Windows 10 Home 20H2
       #567

    Create_a_bootable_Windows_USB_device.bat

    @Brink, I have put option 4 into the above batch script. Users only have to take two steps: (1) select an ISO file and (2) select a USB device as shown below. Would you consider adding it into this tutorial?

    Step 1: select an ISO file in the dialog box.
    Create Bootable USB Flash Drive to Install Windows 10-1.-select-iso.jpg

    Step 2: key in only the Disk number of the USB device, for example 3
    Create Bootable USB Flash Drive to Install Windows 10-2.-select-usb.jpg

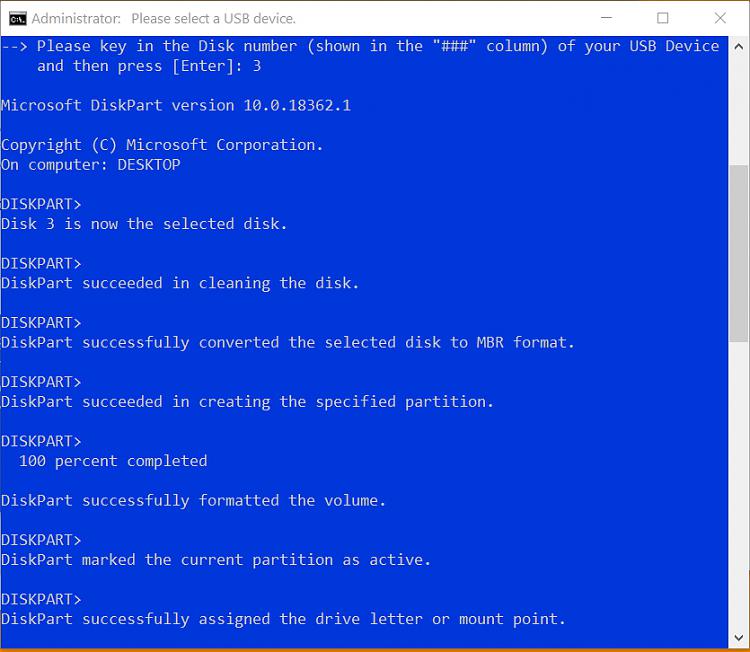

    The script will automatically choose between FS=FAT32 and FS=exFAT as per the size of "install.wim" or "install.esd".
    Create Bootable USB Flash Drive to Install Windows 10-3.-clean-format.jpg

    The copying will start as soon as DiskPart has completed the operations.
    Create Bootable USB Flash Drive to Install Windows 10-4.-copying.jpg

    When the copying has finished, it will display the following:
    Create Bootable USB Flash Drive to Install Windows 10-5.-finished.jpg
      My Computer

  9. Try3's Avatar
    Posts : 7,451
    Windows 10 Home x64 Version 20H2 Build 19042.928
       #568

    That script needs to start with a warning that, if the install.wim exceeds 4GB, it should only be used for those computers that have been demonstrated to be capable of being booted by an exFAT/NTFS disk.

    Denis
    Last edited by Try3; 19 Nov 2020 at 09:16.
      My Computer

  10. Matthew Wai's Avatar
    Posts : 5,085
    Windows 10 Home 20H2
       #569

    @Brink
    Have you noticed my post #585 above?
      My Computer
