    Create Shortcut of Hyper-V Virtual Machine in Windows

    Create Shortcut of Hyper-V Virtual Machine in Windows

    How to Create Shortcut of Hyper-V Virtual Machine in Windows 8 and 10

    Published by KariCategory: Customization
    09 Oct 2014 Last Updated: 06 Mar 2017 at 20:24

    Published by


    Kari's Avatar
    Finnish but not finished


    Location: A Finnish expat in Germany
    Posts: 12,689

    Show Printable Version


    How to Create Shortcut of Hyper-V Virtual Machine in Windows 8 and 10


    Note   Note
    There's nothing wrong in running the Hyper-V Manager and launch your virtual machines from there. However, creating a shortcut for each vm you have you can start them fast simply by double clicking a shortcut on Desktop.

    If you want you can even set a vm to start every time you sign in to Windows. This tutorial will show you step by step how to do this.


    Video from Ten Forums Videos thread:






    Create Shortcut of Hyper-V Virtual Machine in Windows Step One Create Shortcut of Hyper-V Virtual Machine in Windows
    Create the Shortcut

    1.1) Right click Desktop, select New > Shortcut:

    Name:  2014-10-09_21h15_45.png
Views: 23061
Size:  43.4 KB

    1.2) Click Browse, find and select the standalone Virtual Machine Connection executable vmconnect.exe in folder C:\Windows\System32\, click OK:

    Name:  2014-10-09_21h18_24.png
Views: 23198
Size:  59.4 KB

    1.3) Add parameters to shortcut target path, in this case localhost (your Hyper-V host) followed by the name of the vm in quotes. In this example I create a shortcut for a Linux vm I have named as Cent OS 7 so I have to add localhost "Cent OS 7". Click Next:

    Name:  2014-10-09_21h20_58.png
Views: 23144
Size:  28.2 KB

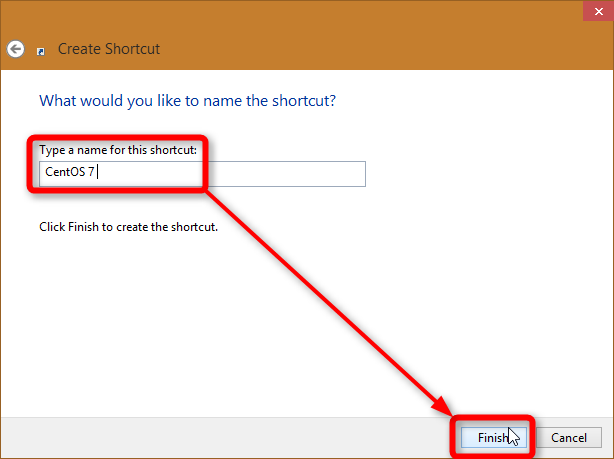

    1.4) Name the shortcut as you wish, click Finish:

    Name:  2014-10-09_21h22_34.png
Views: 22896
Size:  24.7 KB



    Create Shortcut of Hyper-V Virtual Machine in Windows Step Two Create Shortcut of Hyper-V Virtual Machine in Windows
    Elevate the Shortcut

    2.1) The standalone Virtual Machine Connection must be run elevated, with built-in administrator rights. To do this right click your new shortcut and select Properties:

    Name:  2014-10-09_21h24_39.png
Views: 22908
Size:  82.9 KB

    2.2) Select Shortcut tab, click Advanced:

    Name:  2014-10-09_22h23_10.png
Views: 22945
Size:  33.9 KB

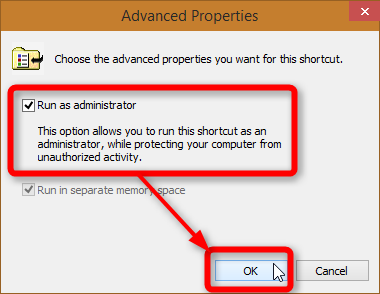

    2.3) Select Run as administrator, click OK, save Shortcut Properties by clicking OK:

    Name:  2014-10-09_21h26_11.png
Views: 22893
Size:  18.6 KB

    2.4) Repeating this procedure for each of your virtual machines you can launch any of them simply by double clicking respective shortcut:

    Name:  2014-10-09_21h28_11.png
Views: 22807
Size:  56.5 KB

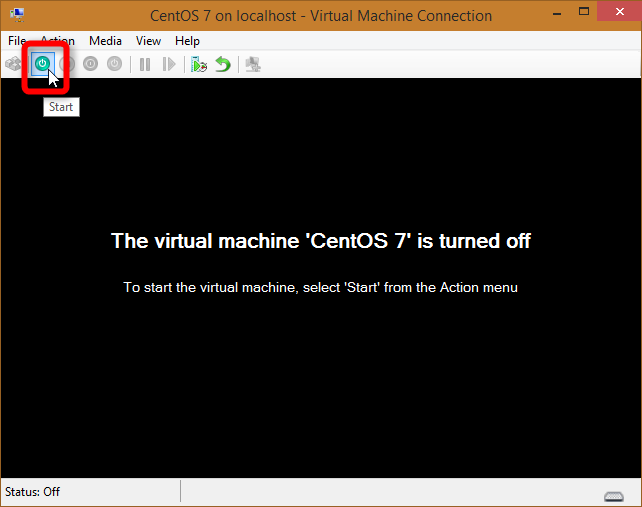

    2.5) When you have launched the vm, start (boot) it from the Start button:

    Name:  2014-10-09_21h27_27.png
Views: 22877
Size:  18.4 KB

    Tip   Tip
    For advanced users:

    Because the shortcut is run with elevated admin rights, you get the UAC prompt every time you launch a vm from its shortcut:

    Name:  2014-10-09_22h35_02.png
Views: 22791
Size:  24.9 KB

    To bypass UAC, see this tutorial on our sister site for creating an elevated task shortcut which runs the vm without UAC prompt: How to Create an Elevated Program Shortcut without a UAC Prompt in Windows.


    Kari


  1.    09 Oct 2014 #1
    Join Date : Apr 2014
    Space coast of Florida
    Posts : 5,252
    Windows 10 Pro X64 15063.483

    Worked perfectly Kari, thanks.

    Now, how do I get it to Start the VM if it's off? I know with OracleVB when I double clicked the shortcut, the VM launched and started if it was not already in a running state.
      My ComputersSystem Spec
  2.    09 Oct 2014 #2
    Join Date : Oct 2013
    A Finnish expat in Germany
    Posts : 12,689
    Windows 10 Pro
    Thread Starter

    Quote Originally Posted by Ztruker View Post
    Now, how do I get it to Start the VM if it's off? I know with OracleVB when I double clicked the shortcut, the VM launched and started if it was not already in a running state.

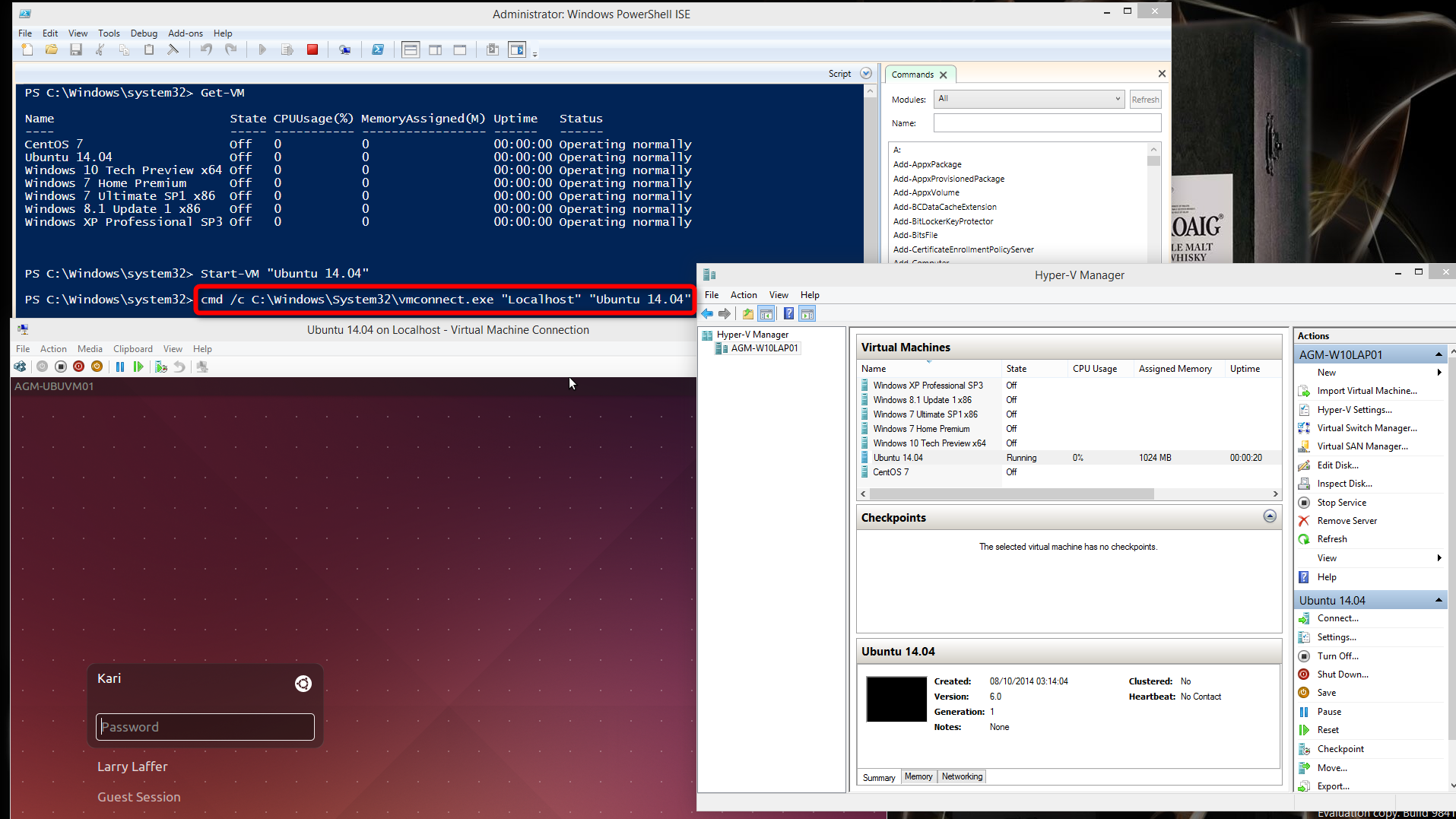

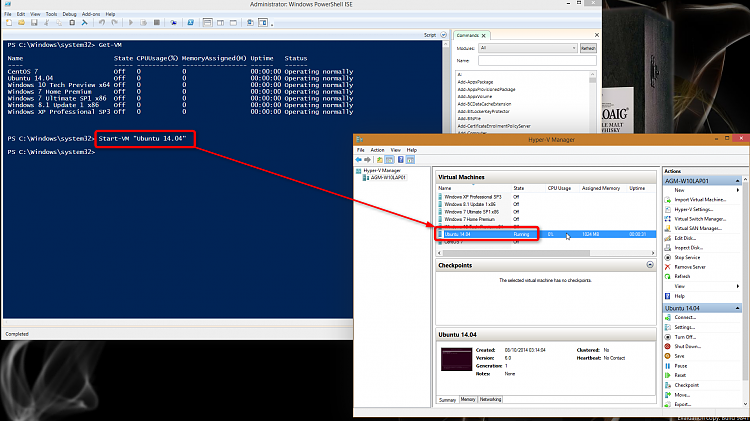

    We need to use PowerShell for that.

    I have a short list of four more Hyper-V tutorials I will try to get ready before, as it looks now, I need to take a short break from the forums starting next week. This is one of the four, let's talk about this process shortly now.

    PowerShell and its "pimped" big brother PowerShell ISE are powerful native tools included in Windows. To put it very simple, PowerShell is an evolved Command Prompt. Instead of commands it uses so called Cmdlets, below a list of all Hyper-V related Cmdlets:

    Code:
    CommandType     Name                                               Version    Source
    -----------     ----                                               -------    ------
    Cmdlet          Add-VMAssignableDevice                             1.1        Hyper-V
    Cmdlet          Add-VMDvdDrive                                     1.1        Hyper-V
    Cmdlet          Add-VMFibreChannelHba                              1.1        Hyper-V
    Cmdlet          Add-VMHardDiskDrive                                1.1        Hyper-V
    Cmdlet          Add-VMMigrationNetwork                             1.1        Hyper-V
    Cmdlet          Add-VMNetworkAdapter                               1.1        Hyper-V
    Cmdlet          Add-VMNetworkAdapterAcl                            1.1        Hyper-V
    Cmdlet          Add-VMNetworkAdapterExtendedAcl                    1.1        Hyper-V
    Cmdlet          Add-VmNetworkAdapterRoutingDomainMapping           1.1        Hyper-V
    Cmdlet          Add-VMRemoteFx3dVideoAdapter                       1.1        Hyper-V
    Cmdlet          Add-VMScsiController                               1.1        Hyper-V
    Cmdlet          Add-VMStoragePath                                  1.1        Hyper-V
    Cmdlet          Add-VMSwitch                                       1.1        Hyper-V
    Cmdlet          Add-VMSwitchExtensionPortFeature                   1.1        Hyper-V
    Cmdlet          Add-VMSwitchExtensionSwitchFeature                 1.1        Hyper-V
    Cmdlet          Checkpoint-VM                                      1.1        Hyper-V
    Cmdlet          Compare-VM                                         1.1        Hyper-V
    Cmdlet          Complete-VMFailover                                1.1        Hyper-V
    Cmdlet          Connect-VMNetworkAdapter                           1.1        Hyper-V
    Cmdlet          Connect-VMSan                                      1.1        Hyper-V
    Cmdlet          Convert-VHD                                        1.1        Hyper-V
    Cmdlet          Copy-VMFile                                        1.1        Hyper-V
    Cmdlet          Debug-VM                                           1.1        Hyper-V
    Cmdlet          Disable-VMEventing                                 1.1        Hyper-V
    Cmdlet          Disable-VMIntegrationService                       1.1        Hyper-V
    Cmdlet          Disable-VMMigration                                1.1        Hyper-V
    Cmdlet          Disable-VMRemoteFXPhysicalVideoAdapter             1.1        Hyper-V
    Cmdlet          Disable-VMResourceMetering                         1.1        Hyper-V
    Cmdlet          Disable-VMSwitchExtension                          1.1        Hyper-V
    Cmdlet          Disconnect-VMNetworkAdapter                        1.1        Hyper-V
    Cmdlet          Disconnect-VMSan                                   1.1        Hyper-V
    Cmdlet          Dismount-VHD                                       1.1        Hyper-V
    Cmdlet          Dismount-VMHostAssignableDevice                    1.1        Hyper-V
    Cmdlet          Enable-VMEventing                                  1.1        Hyper-V
    Cmdlet          Enable-VMIntegrationService                        1.1        Hyper-V
    Cmdlet          Enable-VMMigration                                 1.1        Hyper-V
    Cmdlet          Enable-VMRemoteFXPhysicalVideoAdapter              1.1        Hyper-V
    Cmdlet          Enable-VMReplication                               1.1        Hyper-V
    Cmdlet          Enable-VMResourceMetering                          1.1        Hyper-V
    Cmdlet          Enable-VMSwitchExtension                           1.1        Hyper-V
    Cmdlet          Export-VM                                          1.1        Hyper-V
    Cmdlet          Export-VMSnapshot                                  1.1        Hyper-V
    Cmdlet          Get-VHD                                            1.1        Hyper-V
    Cmdlet          Get-VM                                             1.1        Hyper-V
    Cmdlet          Get-VMAssignableDevice                             1.1        Hyper-V
    Cmdlet          Get-VMBios                                         1.1        Hyper-V
    Cmdlet          Get-VMComPort                                      1.1        Hyper-V
    Cmdlet          Get-VMConnectAccess                                1.1        Hyper-V
    Cmdlet          Get-VMDvdDrive                                     1.1        Hyper-V
    Cmdlet          Get-VMFibreChannelHba                              1.1        Hyper-V
    Cmdlet          Get-VMFirmware                                     1.1        Hyper-V
    Cmdlet          Get-VMFloppyDiskDrive                              1.1        Hyper-V
    Cmdlet          Get-VMHardDiskDrive                                1.1        Hyper-V
    Cmdlet          Get-VMHost                                         1.1        Hyper-V
    Cmdlet          Get-VMHostNumaNode                                 1.1        Hyper-V
    Cmdlet          Get-VMHostNumaNodeStatus                           1.1        Hyper-V
    Cmdlet          Get-VMIdeController                                1.1        Hyper-V
    Cmdlet          Get-VMIntegrationService                           1.1        Hyper-V
    Cmdlet          Get-VMMemory                                       1.1        Hyper-V
    Cmdlet          Get-VMMigrationNetwork                             1.1        Hyper-V
    Cmdlet          Get-VMNetworkAdapter                               1.1        Hyper-V
    Cmdlet          Get-VMNetworkAdapterAcl                            1.1        Hyper-V
    Cmdlet          Get-VMNetworkAdapterExtendedAcl                    1.1        Hyper-V
    Cmdlet          Get-VMNetworkAdapterFailoverConfiguration          1.1        Hyper-V
    Cmdlet          Get-VmNetworkAdapterIsolation                      1.1        Hyper-V
    Cmdlet          Get-VMNetworkAdapterRoutingDomainMapping           1.1        Hyper-V
    Cmdlet          Get-VMNetworkAdapterVlan                           1.1        Hyper-V
    Cmdlet          Get-VMProcessor                                    1.1        Hyper-V
    Cmdlet          Get-VMRemoteFx3dVideoAdapter                       1.1        Hyper-V
    Cmdlet          Get-VMRemoteFXPhysicalVideoAdapter                 1.1        Hyper-V
    Cmdlet          Get-VMReplication                                  1.1        Hyper-V
    Cmdlet          Get-VMReplicationAuthorizationEntry                1.1        Hyper-V
    Cmdlet          Get-VMReplicationServer                            1.1        Hyper-V
    Cmdlet          Get-VMResourcePool                                 1.1        Hyper-V
    Cmdlet          Get-VMSan                                          1.1        Hyper-V
    Cmdlet          Get-VMScsiController                               1.1        Hyper-V
    Cmdlet          Get-VMSnapshot                                     1.1        Hyper-V
    Cmdlet          Get-VMStoragePath                                  1.1        Hyper-V
    Cmdlet          Get-VMSwitch                                       1.1        Hyper-V
    Cmdlet          Get-VMSwitchExtension                              1.1        Hyper-V
    Cmdlet          Get-VMSwitchExtensionPortData                      1.1        Hyper-V
    Cmdlet          Get-VMSwitchExtensionPortFeature                   1.1        Hyper-V
    Cmdlet          Get-VMSwitchExtensionSwitchData                    1.1        Hyper-V
    Cmdlet          Get-VMSwitchExtensionSwitchFeature                 1.1        Hyper-V
    Cmdlet          Get-VMSystemSwitchExtension                        1.1        Hyper-V
    Cmdlet          Get-VMSystemSwitchExtensionPortFeature             1.1        Hyper-V
    Cmdlet          Get-VMSystemSwitchExtensionSwitchFeature           1.1        Hyper-V
    Cmdlet          Get-VMVideo                                        1.1        Hyper-V
    Cmdlet          Grant-VMConnectAccess                              1.1        Hyper-V
    Cmdlet          Import-VM                                          1.1        Hyper-V
    Cmdlet          Import-VMInitialReplication                        1.1        Hyper-V
    Cmdlet          Measure-VM                                         1.1        Hyper-V
    Cmdlet          Measure-VMReplication                              1.1        Hyper-V
    Cmdlet          Measure-VMResourcePool                             1.1        Hyper-V
    Cmdlet          Merge-VHD                                          1.1        Hyper-V
    Cmdlet          Mount-VHD                                          1.1        Hyper-V
    Cmdlet          Mount-VMHostAssignableDevice                       1.1        Hyper-V
    Cmdlet          Move-VM                                            1.1        Hyper-V
    Cmdlet          Move-VMStorage                                     1.1        Hyper-V
    Cmdlet          New-VFD                                            1.1        Hyper-V
    Cmdlet          New-VHD                                            1.1        Hyper-V
    Cmdlet          New-VM                                             1.1        Hyper-V
    Cmdlet          New-VMReplicationAuthorizationEntry                1.1        Hyper-V
    Cmdlet          New-VMResourcePool                                 1.1        Hyper-V
    Cmdlet          New-VMSan                                          1.1        Hyper-V
    Cmdlet          New-VMSwitch                                       1.1        Hyper-V
    Cmdlet          Optimize-VHD                                       1.1        Hyper-V
    Cmdlet          Remove-VM                                          1.1        Hyper-V
    Cmdlet          Remove-VMAssignableDevice                          1.1        Hyper-V
    Cmdlet          Remove-VMDvdDrive                                  1.1        Hyper-V
    Cmdlet          Remove-VMFibreChannelHba                           1.1        Hyper-V
    Cmdlet          Remove-VMHardDiskDrive                             1.1        Hyper-V
    Cmdlet          Remove-VMMigrationNetwork                          1.1        Hyper-V
    Cmdlet          Remove-VMNetworkAdapter                            1.1        Hyper-V
    Cmdlet          Remove-VMNetworkAdapterAcl                         1.1        Hyper-V
    Cmdlet          Remove-VMNetworkAdapterExtendedAcl                 1.1        Hyper-V
    Cmdlet          Remove-VMNetworkAdapterRoutingDomainMapping        1.1        Hyper-V
    Cmdlet          Remove-VMRemoteFx3dVideoAdapter                    1.1        Hyper-V
    Cmdlet          Remove-VMReplication                               1.1        Hyper-V
    Cmdlet          Remove-VMReplicationAuthorizationEntry             1.1        Hyper-V
    Cmdlet          Remove-VMResourcePool                              1.1        Hyper-V
    Cmdlet          Remove-VMSan                                       1.1        Hyper-V
    Cmdlet          Remove-VMSavedState                                1.1        Hyper-V
    Cmdlet          Remove-VMScsiController                            1.1        Hyper-V
    Cmdlet          Remove-VMSnapshot                                  1.1        Hyper-V
    Cmdlet          Remove-VMStoragePath                               1.1        Hyper-V
    Cmdlet          Remove-VMSwitch                                    1.1        Hyper-V
    Cmdlet          Remove-VMSwitchExtensionPortFeature                1.1        Hyper-V
    Cmdlet          Remove-VMSwitchExtensionSwitchFeature              1.1        Hyper-V
    Cmdlet          Rename-VM                                          1.1        Hyper-V
    Cmdlet          Rename-VMNetworkAdapter                            1.1        Hyper-V
    Cmdlet          Rename-VMResourcePool                              1.1        Hyper-V
    Cmdlet          Rename-VMSan                                       1.1        Hyper-V
    Cmdlet          Rename-VMSnapshot                                  1.1        Hyper-V
    Cmdlet          Rename-VMSwitch                                    1.1        Hyper-V
    Cmdlet          Repair-VM                                          1.1        Hyper-V
    Cmdlet          Reset-VMReplicationStatistics                      1.1        Hyper-V
    Cmdlet          Reset-VMResourceMetering                           1.1        Hyper-V
    Cmdlet          Resize-VHD                                         1.1        Hyper-V
    Cmdlet          Restart-VM                                         1.1        Hyper-V
    Cmdlet          Restore-VMSnapshot                                 1.1        Hyper-V
    Cmdlet          Resume-VM                                          1.1        Hyper-V
    Cmdlet          Resume-VMReplication                               1.1        Hyper-V
    Cmdlet          Revoke-VMConnectAccess                             1.1        Hyper-V
    Cmdlet          Save-VM                                            1.1        Hyper-V
    Cmdlet          Set-VHD                                            1.1        Hyper-V
    Cmdlet          Set-VM                                             1.1        Hyper-V
    Cmdlet          Set-VMBios                                         1.1        Hyper-V
    Cmdlet          Set-VMComPort                                      1.1        Hyper-V
    Cmdlet          Set-VMDvdDrive                                     1.1        Hyper-V
    Cmdlet          Set-VMFibreChannelHba                              1.1        Hyper-V
    Cmdlet          Set-VMFirmware                                     1.1        Hyper-V
    Cmdlet          Set-VMFloppyDiskDrive                              1.1        Hyper-V
    Cmdlet          Set-VMHardDiskDrive                                1.1        Hyper-V
    Cmdlet          Set-VMHost                                         1.1        Hyper-V
    Cmdlet          Set-VMMemory                                       1.1        Hyper-V
    Cmdlet          Set-VMMigrationNetwork                             1.1        Hyper-V
    Cmdlet          Set-VMNetworkAdapter                               1.1        Hyper-V
    Cmdlet          Set-VMNetworkAdapterFailoverConfiguration          1.1        Hyper-V
    Cmdlet          Set-VmNetworkAdapterIsolation                      1.1        Hyper-V
    Cmdlet          Set-VmNetworkAdapterRoutingDomainMapping           1.1        Hyper-V
    Cmdlet          Set-VMNetworkAdapterVlan                           1.1        Hyper-V
    Cmdlet          Set-VMProcessor                                    1.1        Hyper-V
    Cmdlet          Set-VMRemoteFx3dVideoAdapter                       1.1        Hyper-V
    Cmdlet          Set-VMReplication                                  1.1        Hyper-V
    Cmdlet          Set-VMReplicationAuthorizationEntry                1.1        Hyper-V
    Cmdlet          Set-VMReplicationServer                            1.1        Hyper-V
    Cmdlet          Set-VMResourcePool                                 1.1        Hyper-V
    Cmdlet          Set-VMSan                                          1.1        Hyper-V
    Cmdlet          Set-VMSwitch                                       1.1        Hyper-V
    Cmdlet          Set-VMSwitchExtensionPortFeature                   1.1        Hyper-V
    Cmdlet          Set-VMSwitchExtensionSwitchFeature                 1.1        Hyper-V
    Cmdlet          Set-VMVideo                                        1.1        Hyper-V
    Cmdlet          Start-VM                                           1.1        Hyper-V
    Cmdlet          Start-VMFailover                                   1.1        Hyper-V
    Cmdlet          Start-VMInitialReplication                         1.1        Hyper-V
    Cmdlet          Stop-VM                                            1.1        Hyper-V
    Cmdlet          Stop-VMFailover                                    1.1        Hyper-V
    Cmdlet          Stop-VMInitialReplication                          1.1        Hyper-V
    Cmdlet          Stop-VMReplication                                 1.1        Hyper-V
    Cmdlet          Suspend-VM                                         1.1        Hyper-V
    Cmdlet          Suspend-VMReplication                              1.1        Hyper-V
    Cmdlet          Test-VHD                                           1.1        Hyper-V
    Cmdlet          Test-VMNetworkAdapter                              1.1        Hyper-V
    Cmdlet          Test-VMReplicationConnection                       1.1        Hyper-V
    Cmdlet          Update-VMConfigurationVersion                      1.1        Hyper-V
    To list all our Hyper-V virtual machines in PowerShell we give a Cmdlet Get-VM. Although using PowerShell we do not need the Hyper-V Manager I have it opened here to show that when we start now, all virtual machines really are off as can also be seen from the Get-VM output in PowerShell:

    Click image for larger version.

Name:	2014-10-10_03h36_50.png
Views:	1124
Size:	379.5 KB
ID:	6690

    To start a Hyper-V vm we need Cmdlet Start-VM "VM_Name". Here I started my "Ubuntu 14.04" vm:

    Click image for larger version.

Name:	2014-10-10_03h38_21.png
Views:	747
Size:	411.4 KB
ID:	6691

    As Hyper-V Manager now shows, the vm is started.

    One Cmdlet PowerShell does not have is a Cmdlet to connect to vm, open the vm window. For this we need to call a Command line command (the same we used in shortcuts), in this case command:
    Code:
    C:\Windows\System32\vmconnect.exe "Localhost" "Ubuntu 14.04"
    To call Command line from PowerShell we need to use the Cmdlet cmd, then the /c switch to tell system we want to send parameters to Command line and as parameter give the preferred Command line command. Complicated!

    So, the final PowerShell call for Command line's help is:
    Code:
    cmd /c C:\Windows\System32\vmconnect.exe "Localhost" "Ubuntu 14.04"
    This Cmdlet calls Command line to run the command we gave after the /c switch, which in our case now finally opens the vm, in other words connects to vm we have already started:

    Click image for larger version.

Name:	2014-10-10_03h54_53.png
Views:	876
Size:	847.0 KB
ID:	6692

    I need to make all above to a short and simple PowerShell script which can be launched from a shortcut; it is a completely different ballgame than this tutorial and may take a day or three before I have it done .

    Kari
    Last edited by Kari; 09 Oct 2014 at 21:26.
      My ComputerSystem Spec
  3.    05 Dec 2015 #3
    Join Date : Feb 2015
    Bamberg Germany
    Posts : 17,039
    Win10 Pro, Win10 Pro N, Win10 Home, Win10 Pro Insider Fast Ring, Windows 8.1 Pro, Ubuntu

    Another easy to follow tutorial @Kari

    I not only successfully created my Ubuntu 15.10 shortcut, I was able to customize it for the OS it was for(in this case Wily Werewolf).
    I went to Bing Images found me a small JPG image,
    opened it in Paint,
    and reduced the size, in this case to 256x149.

    I then "saved as" PNG(to convert to ICO in next step, a must)
    Then I went to ConvertICO.com - Convert PNG to ICO and ICO to PNG and converted it to ICO.

    Then I saved it on my system where it will never be moved, in my case a Theming Stuff library I have created long ago.

    Then I just went into the shortcuts properties, and changed the icon.

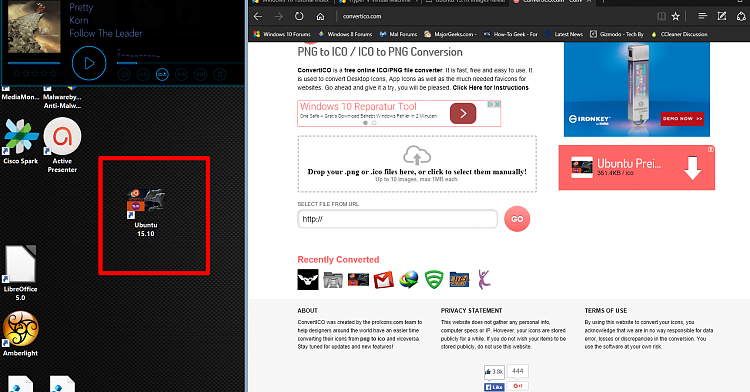

    And the results marked in the red square:
    Click image for larger version.

Name:	Image 001.png
Views:	392
Size:	548.9 KB
ID:	52013

    The PNG version:
    Name:  Ubuntu Preicon.png
Views: 17515
Size:  93.0 KB

    Additional Info: You can pin it to Start too....
      My ComputersSystem Spec
  4.    05 Dec 2015 #4
    Join Date : Feb 2015
    Bamberg Germany
    Posts : 17,039
    Win10 Pro, Win10 Pro N, Win10 Home, Win10 Pro Insider Fast Ring, Windows 8.1 Pro, Ubuntu

    Here's a Windows 10 icon I created(the zipped file)
    Win10.ICO.zip

    What it looks like
    Name:  Win10PNG.png
Views: 17560
Size:  74.9 KB
      My ComputersSystem Spec
  5.    05 Dec 2015 #5
    Join Date : Oct 2013
    A Finnish expat in Germany
    Posts : 12,689
    Windows 10 Pro
    Thread Starter

    Nice work Cliff
      My ComputerSystem Spec
  6.    05 Dec 2015 #6
    Join Date : Feb 2015
    Bamberg Germany
    Posts : 17,039
    Win10 Pro, Win10 Pro N, Win10 Home, Win10 Pro Insider Fast Ring, Windows 8.1 Pro, Ubuntu

    Quote Originally Posted by Kari View Post
    Nice work Cliff
    Thank's Kari. I made the Win10 one for you. My way of thanking you for the great tutorials and helping me get started.
      My ComputersSystem Spec
  7.    05 Dec 2015 #7
    Join Date : Feb 2015
    Bamberg Germany
    Posts : 17,039
    Win10 Pro, Win10 Pro N, Win10 Home, Win10 Pro Insider Fast Ring, Windows 8.1 Pro, Ubuntu

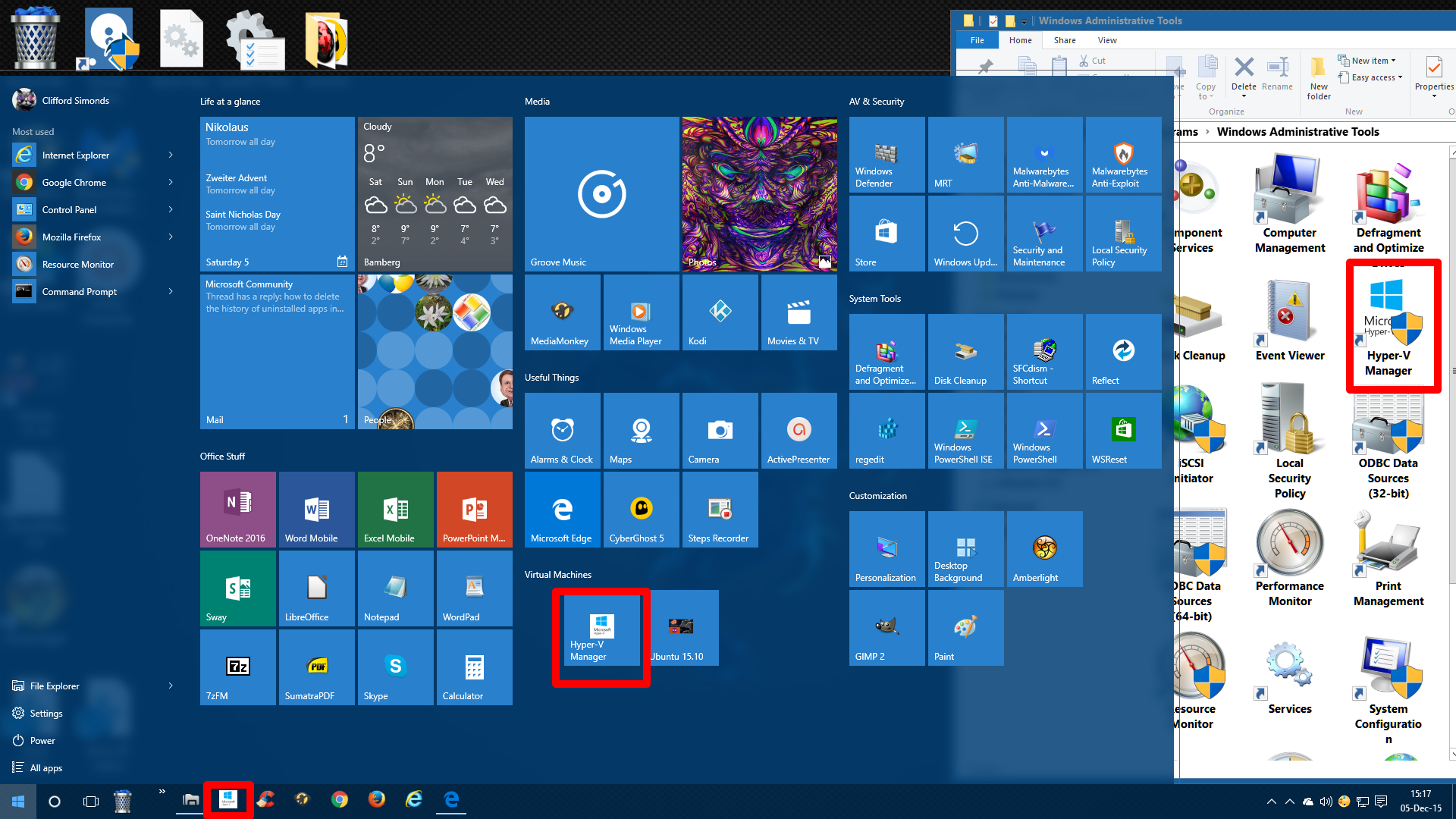

    Hyper-V custom icon:
    Hyper-V.ico.zip

    How it looks( as PNG image)

    Name:  hyperv.png
Views: 32058
Size:  11.0 KB

    Applied in Admin tools, Start Menu, and taskbar:

    EDIT to original post:
    Create a shortcut to desktop using the right-click-menu first.
    (changing the hard link icon causes SFC & DISM to see this as an unrepairable error, even though it has absolutely NO EFFECT on the system. I just hate unresolved errors)

    Then you can change THAT shortcuts icon and pin it to the taskbar if you like.

    I tried pinning the new icon to the start menu(like in the screenshot below from original post), but only the original icon from Control Panel\All Control Panel Items\Administrative Tools pops up there(which is also in C:\ProgramData\Microsoft\Windows\Start Menu\Programs\Administrative Tools).


    Click image for larger version.

Name:	Image 002.png
Views:	986
Size:	753.3 KB
ID:	52031
    Last edited by Cliff S; 06 Dec 2015 at 06:12. Reason: Correction to method
      My ComputersSystem Spec
  8.    22 Jan 2016 #8
    Join Date : Feb 2015
    Bamberg Germany
    Posts : 17,039
    Win10 Pro, Win10 Pro N, Win10 Home, Win10 Pro Insider Fast Ring, Windows 8.1 Pro, Ubuntu

    Finally add my custom icon for Insider preview(yup it took a while for me to get around to it)
    Click image for larger version.

Name:	Image 001.jpg
Views:	447
Size:	431.2 KB
ID:	60112
    Note: I only made my icons extra extra extra large to make it easier for you all to see them, for this post.
      My ComputersSystem Spec
  9.    22 Jan 2016 #9
    Join Date : Oct 2013
    A Finnish expat in Germany
    Posts : 12,689
    Windows 10 Pro
    Thread Starter

    Nice Cliff
      My ComputerSystem Spec


Page 1 of 3 123 LastLast


Similar Threads
Tutorial Category
Virtualization Hyper-V - Create and Use VHD of Windows 10 with Disk2VHD
How to Create VHD of Windows 10 Installation and Use in Hyper-V The tutorial has been updated today (20-MAR-2017). Please post all your questions about this process in this thread. Please notice: some screenshots are from pre-release builds of...
Tutorials
Virtualization Create and Use Hyper-V Checkpoints in Windows 10
How to Create and Use Hyper-V Checkpoints in Windows 10 Checkpoint is a powerful Hyper-V feature to easily undo all changes on a virtual machine. You can play with virtual machines testing apps, changing settings, editing registry and so on as...
Tutorials
Customization Create This PC Shortcut in Windows 10
How to Create a This PC Shortcut in Windows 10 My Computer was changed to This PC in Windows 8.1 and Windows RT 8.1. You would open File Explorer to view This PC. In Windows 10, File Explorer now opens to Quick access by default instead of...
Tutorials
Best Virtual machine software to try W10 TP on Windows 8.1
Can anyone recommend the least heavy (change in system prefs) and size, virtual machine software to test W10 TP on a Windows 8.1 Pro x86 desktop. I have tried VMWare Workstation in the past but find it is no longer free, I would like to have a quick...
Virtualization
Our Sites
Site Links
About Us
Windows 10 Forums is an independent web site and has not been authorized, sponsored, or otherwise approved by Microsoft Corporation. "Windows 10" and related materials are trademarks of Microsoft Corp.

Designer Media Ltd
All times are GMT -5. The time now is 21:42.
Find Us
Twitter Facebook Google+ Ten Forums iOS App Ten Forums Android App



Windows 10 Forums
