    How to Install CentOS Linux on Hyper-V Virtual Machine in Windows 10


    Note   Note
    A working and quite nice alternative for dual booting is to install various operating systems on a virtual machine. CentOS is officially supported by Microsoft as a guest OS for Hyper-V and is nicely integrated when installed. Since CentOS version 6.4 the Linux Integration Services (LIS) for Hyper-V have been included in CentOS, making the use of it on a virtual machine much easier.

    About LIS:

    Microsoft said:
    Hyper-V supports both emulated (“legacy”) and Hyper-V-specific (“synthetic”) devices for Linux virtual machines. When a Linux virtual machine is running with emulated devices, no additional software is required to be installed. However, emulated devices do not provide high performance and cannot leverage the rich virtual machine management infrastructure that the Hyper-V technology offers. To make full use of all benefits that Hyper-V provides, it is best to use Hyper-V specific devices for Linux. The collection of drivers that are required to run Hyper-V-specific devices is known as Linux Integration Services (LIS).
    Linux Integration Services v35.pdf

    Although there are more suitable Linux distos for beginners, CentOS is easy enough to install and use with very basic knowledge of Linux. The native integration components and services make it an ideal guest for Hyper-V.

    CentOS on Wikipedia: CentOS - Wikipedia, the free encyclopedia


    Before starting you need to download the CentOS 7 ISO image: Download CentOS (version 7 is the latest at the moment this tutorial is written).

    Contents:





    Hyper-V VM - Install CentOS Linux in Windows 10 Part One Hyper-V VM - Install CentOS Linux in Windows 10
    Create a new virtual machine

    1.1) If you have not set up Hyper-V do it now as told in Hyper-V tutorial Part One through Part Three
    1.2) Create a new virtual machine as told in Hyper-V tutorial Part Four with following settings (steps here referring to respective steps in Hyper-V tutorial):

    • Step 4.5 > If you have less than 4 GB RAM on your host, assign the vm 1 GB (1024 MB) and unselect Use Dynamic Memory. When Dynamic Memory is enabled CentOS uses quite a lot of RAM and can slow down your host system. I recommend enabling Dynamic Memory only if you have more than 4 GB of RAM
    • Step 4.6 > Select Not Connected
    • Step 4.7 > If you will only use your CentOS for some simple testing, surfing and so on, an 8 to 10 GB virtual hard disk is enough, I recommend 20 to 30 GB
    • Step 4.8 > Use the CentOS ISO file you downloaded
    • Come back to this tutorial after Step 4.9




    Hyper-V VM - Install CentOS Linux in Windows 10 Part Two Hyper-V VM - Install CentOS Linux in Windows 10
    Configure temporary network access

    2.1) To be sure CentOS has network connection during the installation we use a virtual legacy network adapter. Right click your new CentOS vm in Hyper-V Manager and select Settings
    2.2) Remove the network adapter:

    Click image for larger version.

Name:	2014-10-07_15h39_21.png
Views:	1812
Size:	76.3 KB
ID:	6367

    2.3) Still in vm settings, select Add Hardware on left pane, select Legacy Network Adapter and click Add:

    Click image for larger version.

Name:	2014-10-07_20h00_49.png
Views:	457
Size:	61.8 KB
ID:	6368

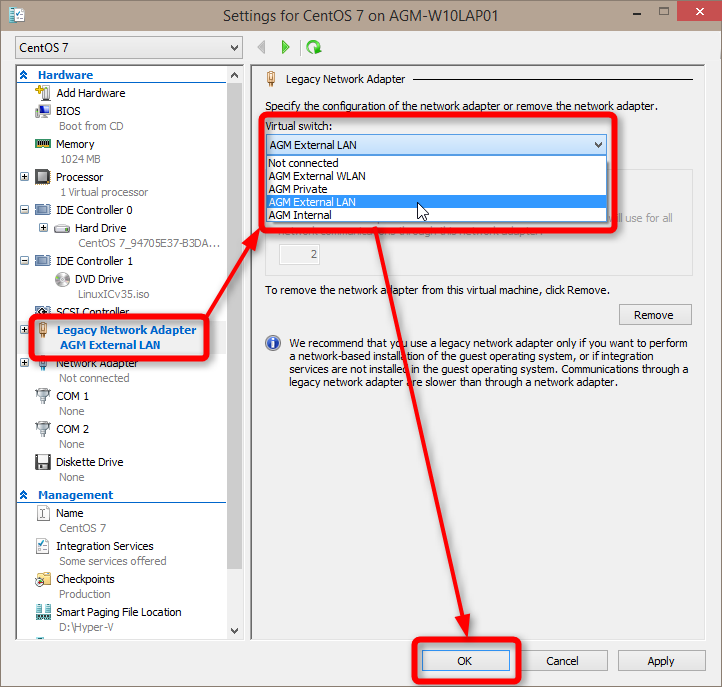

    2.4) Select an existing external switch, click OK to save changed settings:

    Click image for larger version.

Name:	2014-10-07_20h05_42.png
Views:	375
Size:	81.7 KB
ID:	6369




    Hyper-V VM - Install CentOS Linux in Windows 10 Part Three Hyper-V VM - Install CentOS Linux in Windows 10
    Configure CentOS

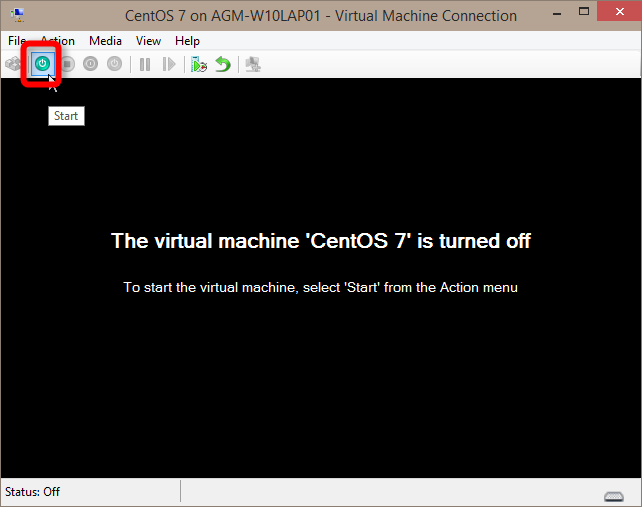

    3.1) Double click your CentOS vm in Hyper-V Manager to open the Virtual Machine Connection window, click Start button to boot the vm. Alternative method to start a vm, see the Hyper-V tutorial Part Four Step 4.10

    Name:  2014-10-07_20h13_21.png
Views: 15492
Size:  18.8 KB

    3.2) Press I (letter i) followed by Enter to start setup:

    Name:  2014-10-07_16h17_57.png
Views: 15501
Size:  18.6 KB

    3.2) First message you will get is an error message: Fast TSC calibration failed. No worries this is totally OK; as CentOS has not had any chance to connect to time servers to calibrate time, this message will be shown. CentOS setup continues after a short while

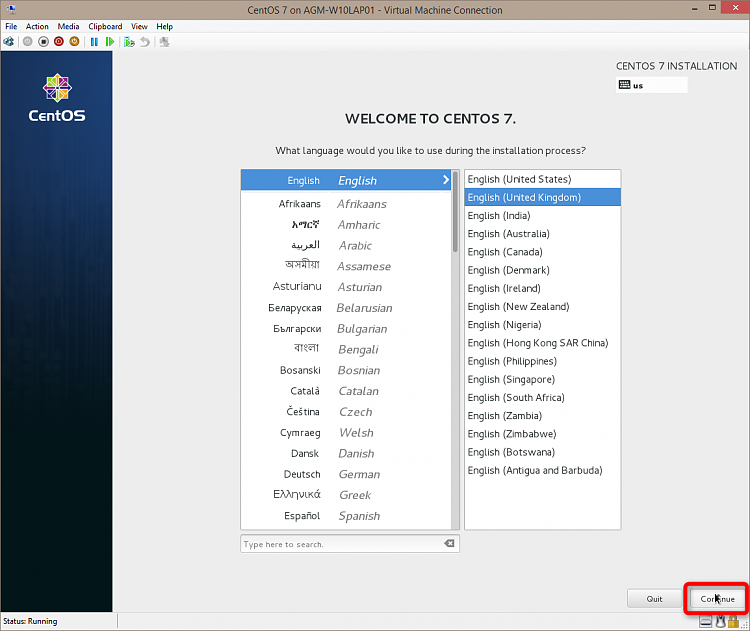

    3.3) Select the installation language you want CentOS to use:

    Click image for larger version.

Name:	2014-10-07_15h42_18.png
Views:	510
Size:	207.7 KB
ID:	6371

    3.4) Installation Summary screen will be shown. We need to do something for those five items marked in below screenshot, starting with Network & Hostname (#1). Click it to enter Network and Hostname settings:

    Click image for larger version.

Name:	2014-10-07_16h08_59.png
Views:	412
Size:	201.5 KB
ID:	6372

    3.5) Switch connection ON (#1), name your Host (#2), wait until you see that it's connected (green highlight in screenshot), click Done:

    Click image for larger version.

Name:	2014-10-07_16h29_02.png
Views:	373
Size:	186.4 KB
ID:	6375

    Note   Note
    The Hostname can only contain characters a to z, A to Z, 0 to 9, hyphens (-) and periods (.). Parts between two periods must contain something (two periods in a row not allowed) and cannot start or end with a hyphen.

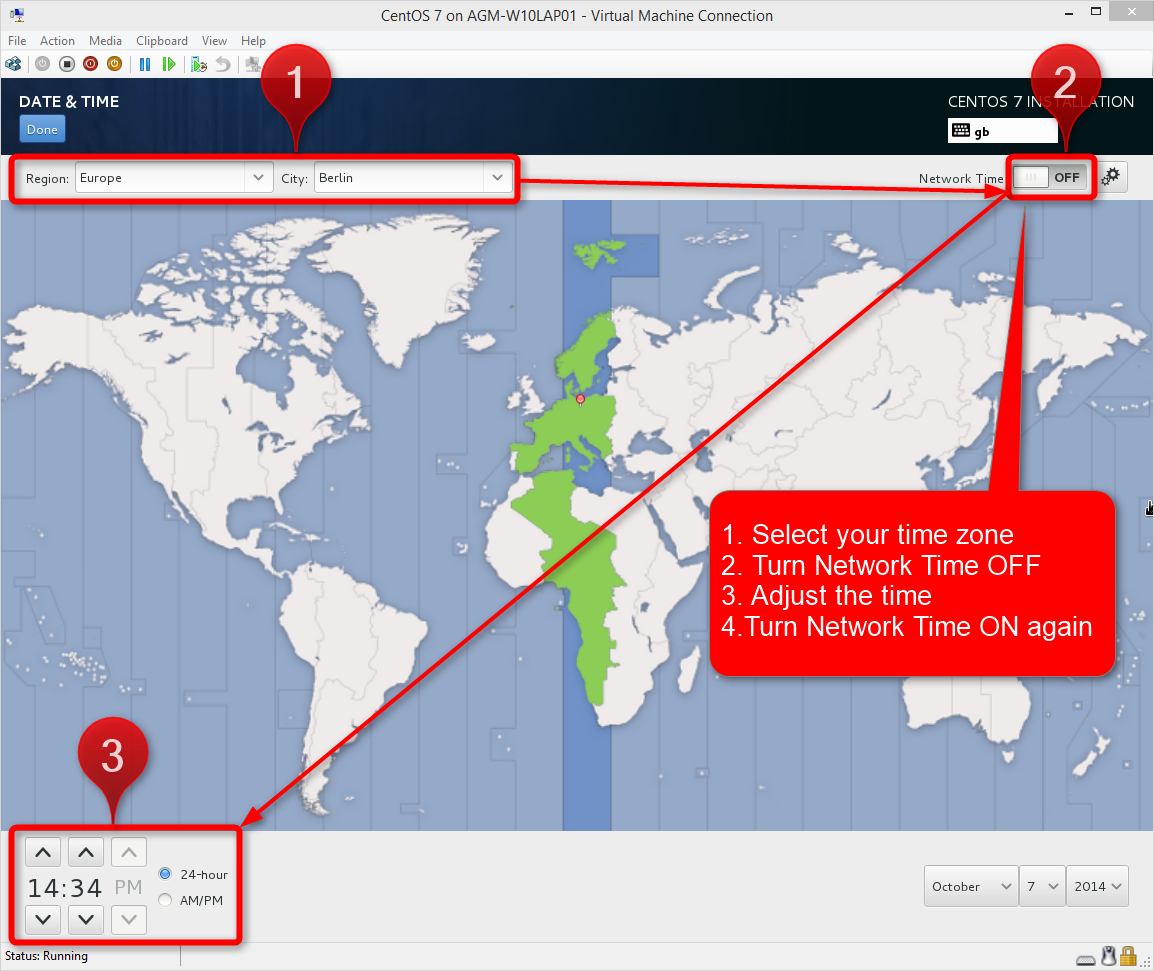

    3.6) Back on Installation Summary page click Date & Time to select your region, set timezone and time format as shown in screenshot below, click Done (top left) when done:

    Click image for larger version.

Name:	2014-10-07_16h34_35.png
Views:	437
Size:	556.7 KB
ID:	6385

    3.7) If you use another input language (keyboard layout) than the default for the language you are installing, click Keyboard on Installation Summary page. Select your input language as shown in screenshot (don't panic, I'll explain all those arrows and numbers ):

    Click image for larger version.

Name:	2014-10-07_15h44_29.png
Views:	341
Size:	240.5 KB
ID:	6386

    1. Click the + button to open language list
    2. Select your desired input language
    3. Click Add
    4. Move your preferred input language to top of the list with arrow buttons
    5. Click Done

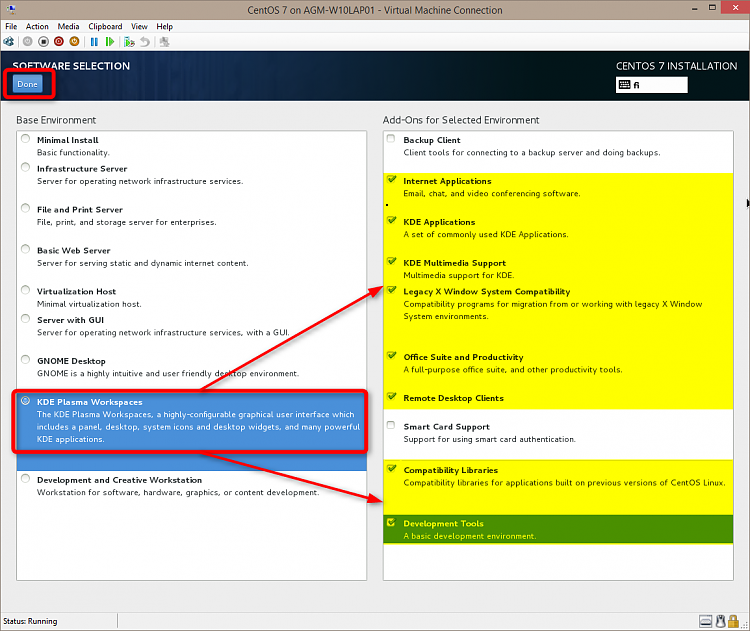

    3.8) Back on Installation Summary page, select Software Selection. You can of course select any setup you want to, screenshot shows my recommnedation. Click Done when you have selected your packages:

    Click image for larger version.

Name:	2014-10-07_15h57_14.png
Views:	545
Size:	172.2 KB
ID:	6387

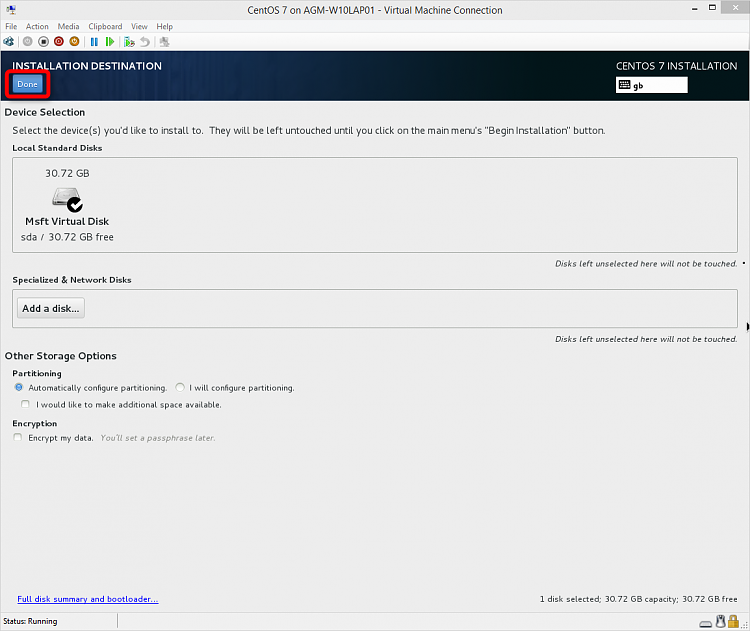

    3.9) Once again back on Installation Summary. Click Installation Destination, accept default partitioning settings by clicking Done:

    Click image for larger version.

Name:	2014-10-07_16h32_40.png
Views:	319
Size:	109.1 KB
ID:	6388



    Hyper-V VM - Install CentOS Linux in Windows 10 Part Four Hyper-V VM - Install CentOS Linux in Windows 10
    Install CentOS, create users

    4.1) Start installation by clicking Begin Installation:

    Click image for larger version.

Name:	2014-10-07_21h35_15.png
Views:	625
Size:	209.4 KB
ID:	6389

    4.2) While CentOS installs we can set the root password and create a user account. Root in world of Linux is a rough equivalent of built-in administrator in Windows, the almighty user allowed to do whatever. The root password and at least one user account must be created for installation to complete.

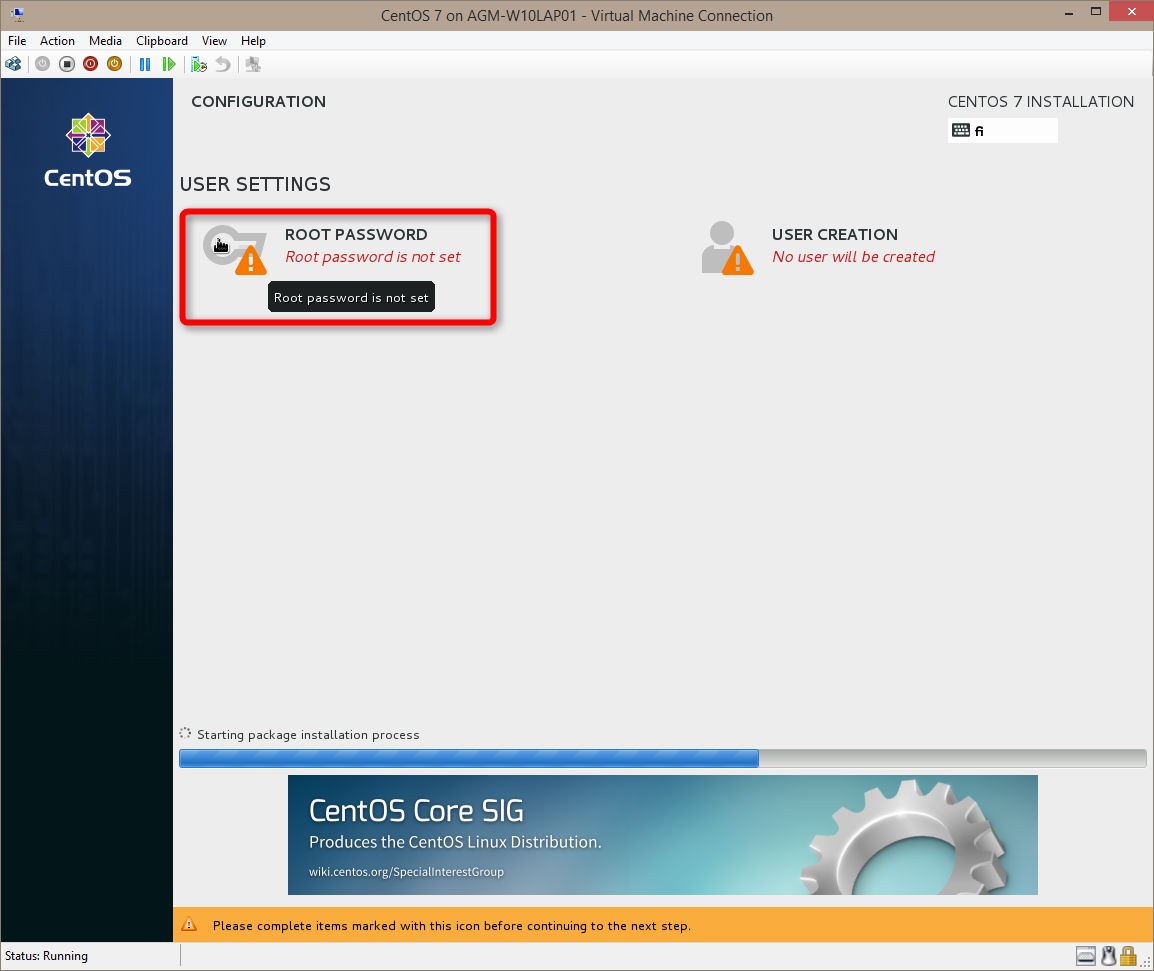

    4.3) Click Root Password:

    Click image for larger version.

Name:	2014-10-07_16h42_25.png
Views:	379
Size:	263.0 KB
ID:	6390

    4.4) Set the root password, click Done when ready:

    Click image for larger version.

Name:	2014-10-07_16h43_48.png
Views:	267
Size:	52.2 KB
ID:	6391

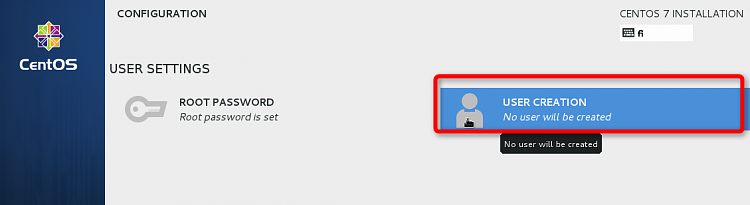

    4.5) Next your personal user account. Click User Creation:

    Click image for larger version.

Name:	2014-10-07_16h44_53.png
Views:	256
Size:	72.9 KB
ID:	6392

    4.6) Enter your preferred credentials, do not forget to make your account administrator (highlighted), click Done when ready:

    Click image for larger version.

Name:	2014-10-07_21h59_31.png
Views:	301
Size:	75.8 KB
ID:	6393

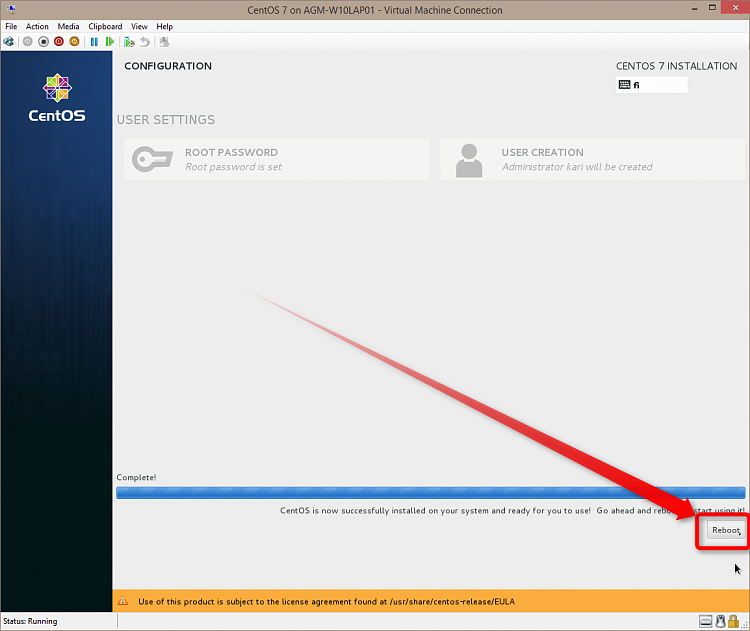

    4.7) Now just wait installation to complete. It can take some time, installing now to get screenshots for this tutorial it took over half an hour on quite a powerful host computer, mostly because all the packages I selected to install (Part Three Step 3.8). When installation is done click Reboot:

    Click image for larger version.

Name:	2014-10-07_17h35_50.png
Views:	306
Size:	185.3 KB
ID:	6396

    4.8) After the reboot you have to accept the EULA. Click License Information:

    Name:  2014-10-07_17h39_16.png
Views: 14968
Size:  13.6 KB

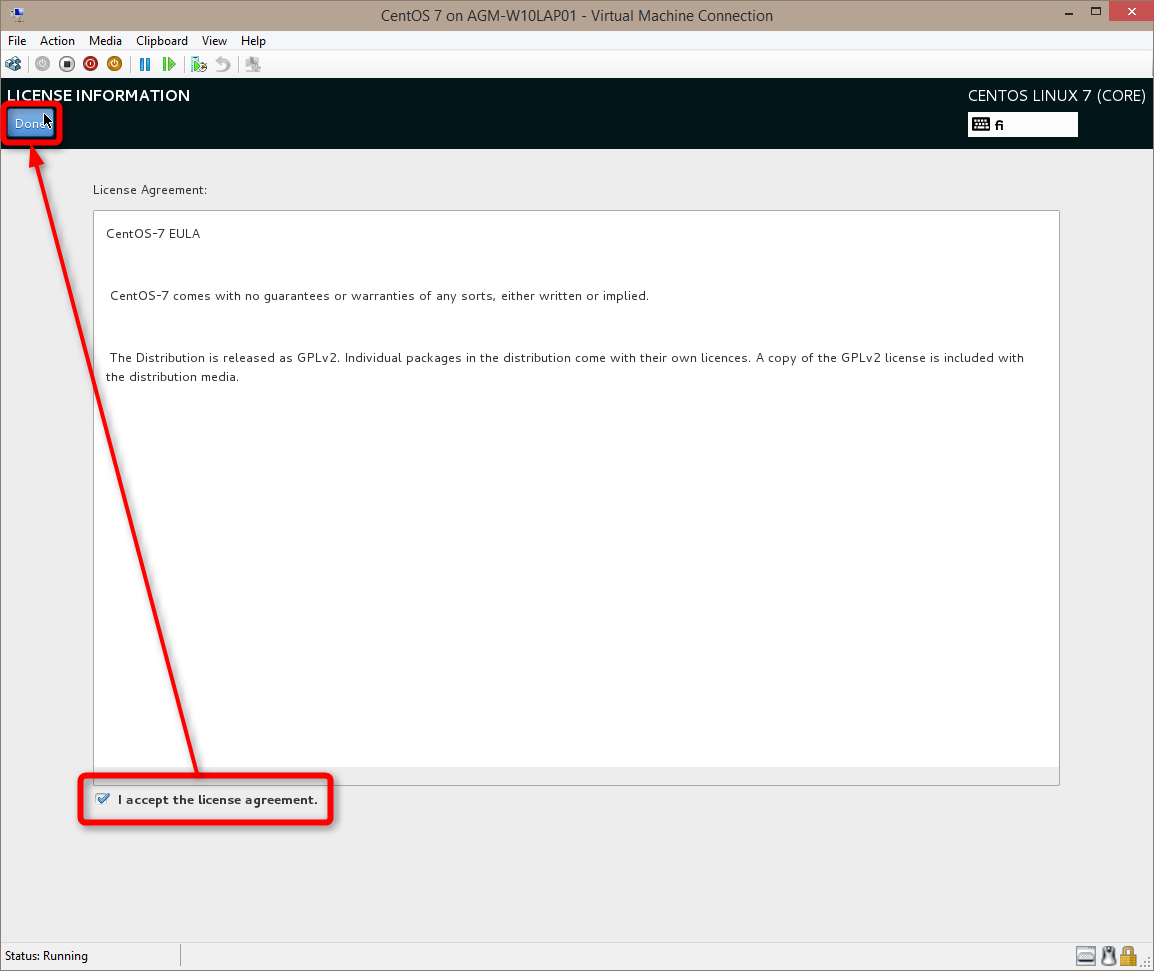

    4.9) Accept the EULA, click Done:

    Click image for larger version.

Name:	2014-10-07_17h40_00.png
Views:	307
Size:	76.9 KB
ID:	6398

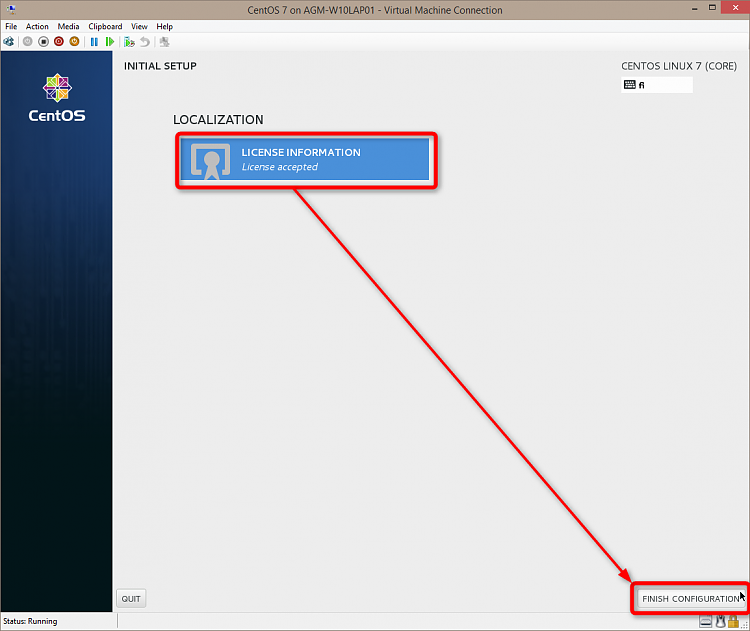

    4.10) Click Finish Configuration:

    Click image for larger version.

Name:	2014-10-07_17h41_48.png
Views:	323
Size:	166.9 KB
ID:	6399

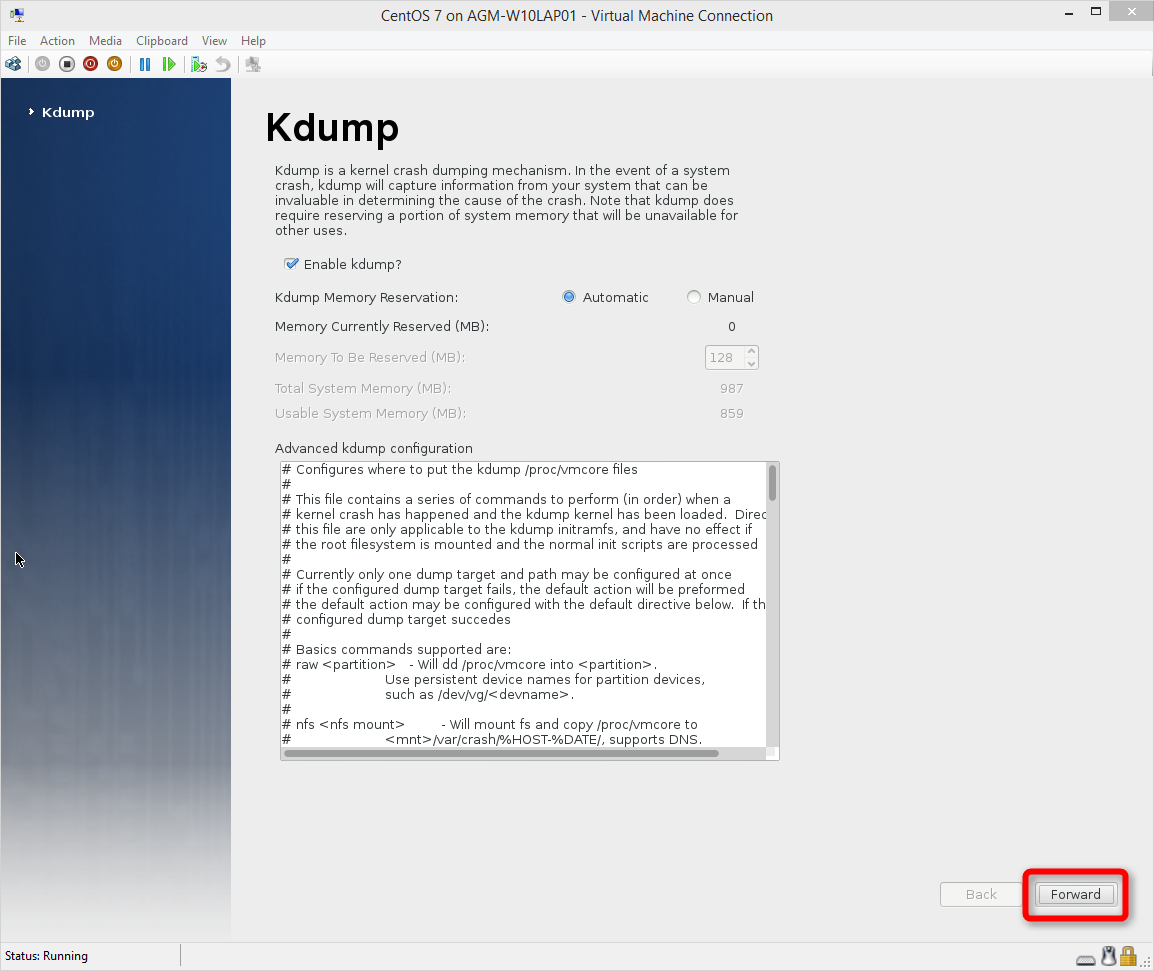

    4.11) Kdump is a program to collect information in case of crash. It can help in analyzing crashes but requires some of system memory. I recommend enabling Kdump but the decision is yours. Click Forward when you made your selection:

    Click image for larger version.

Name:	2014-10-07_17h43_06.png
Views:	306
Size:	239.1 KB
ID:	6400

    4.12) When finally on desktop you don't have network connectivity. To fix this we need first to shutdown the vm:

    Click image for larger version.

Name:	2014-10-07_23h13_48.png
Views:	457
Size:	553.6 KB
ID:	6401

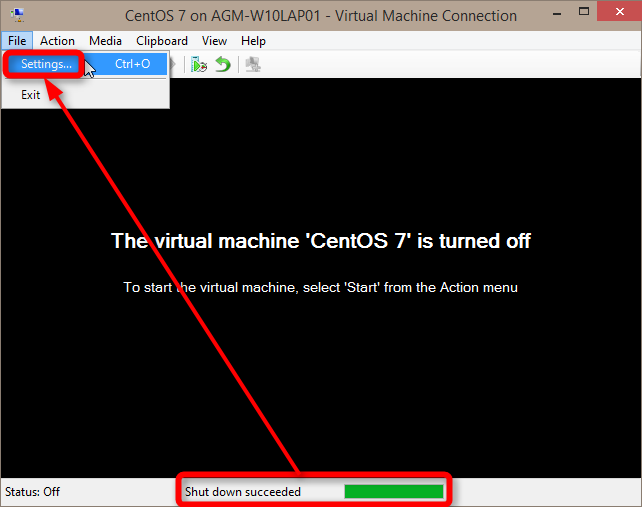

    4.13) Wait until the shutdown progress indicator is all green and shutdown succeeded, then open vm settings from File > Settings:

    Name:  2014-10-07_23h25_15.png
Views: 14918
Size:  26.7 KB



    Hyper-V VM - Install CentOS Linux in Windows 10 Part Five Hyper-V VM - Install CentOS Linux in Windows 10
    Configure network access

    5.1) In vm settings, select the Legacy Network Adapter we set up in Part Two and click Remove:

    Click image for larger version.

Name:	2014-10-07_23h42_16.png
Views:	335
Size:	63.6 KB
ID:	6405

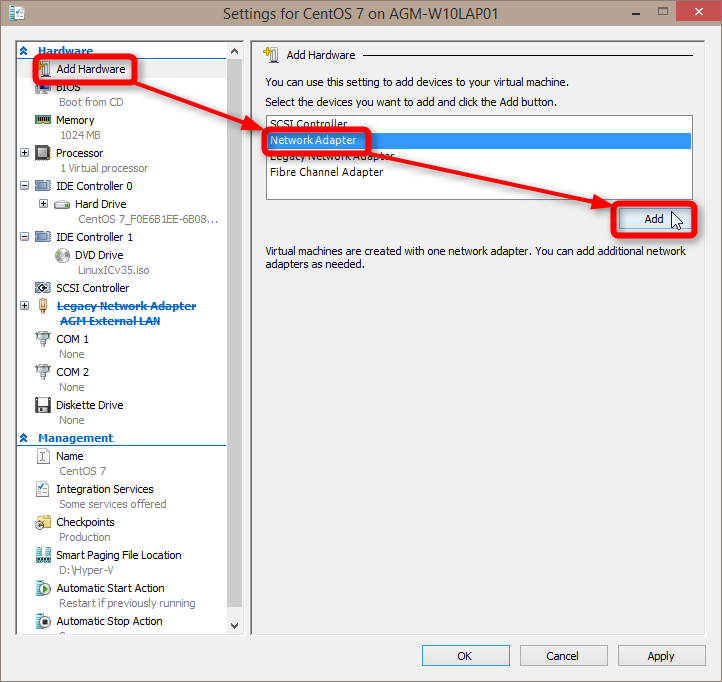

    5.2) Select Add Hardware > Network Adapter (not the Legacy adapter we used earlier!), click Add:

    Click image for larger version.

Name:	2014-10-07_23h43_04.png
Views:	601
Size:	62.1 KB
ID:	6406

    5.3) Select the Network Adapter you just added, connect it to an existing external switch (see Hyper-V tutorial Part Three), click OK to save the settings:

    Click image for larger version.

Name:	2014-10-07_23h44_07.png
Views:	384
Size:	90.3 KB
ID:	6407




    Hyper-V VM - Install CentOS Linux in Windows 10 Part Six Hyper-V VM - Install CentOS Linux in Windows 10
    Enjoy!


    Boot the vm, enjoy your newly installed CentOS Linux .

    Click image for larger version.

Name:	2014-10-07_23h36_14.png
Views:	330
Size:	371.5 KB
ID:	6404


    If you have any questions do not hesitate to post them in this thread.

    Kari



  1. Joined : Nov 2013
    Posts : 804
    10 Pro Preview x64
       2014-10-23 #1

    Nice tutorial. Note that if you want to change the screen resolution use this (changing the resolution to what you want).

    Code:
    grubby --update-kernel=ALL --args="video=hyperv_fb:1440x900"
    It is maintained when kernel is updated too and also works in CentOS 7 minimal (version with no GUI).
      My System SpecsSystem Spec


  2. Joined : Feb 2015
    Bamberg Germany
    Posts : 12,964
    Microsoft Windows 10 Pro 64-bit 14393 Multiprocessor Free
       2015-12-24 #2

    @Kari I have it up and running
    Click image for larger version.

Name:	Image 004.png
Views:	452
Size:	618.3 KB
ID:	55150
    The installation is a tiny bit more involved than Ubuntu or Windows, but, your tutorial brought me through unscathed
    I'm letting it update first now, then I will sync Firefox to get my add-ons and settings set for that, then I'll explore the OS a bit. I chose the Gnome desktop as I like it better personally. I like how I can also choose which packages for a desktop to install or not install, to keep space reduced to just what I need(for example I won't need office stuff)
    Only problem I have is I cannot find a way for Restricted Extras(they're codecs as in Ubuntu Restricted Extras, as flash won't play and some other codecs, be they web or music & video).
      My System SpecsSystem Spec


  3. Joined : Oct 2013
    A Finnish ex-pat in Germany
    Posts : 9,636
    Windows 10 Pro
       2015-12-24 #3

    Cliff, I thought that CentOS vm supports the enhanced mode because it also supports the generation 2 (UEFI) mode, but apparently I was wrong. It looks that the only way to get audio is to connect to your CentOS vm remotely.
      My System SpecsSystem Spec


  4. Joined : Feb 2015
    Bamberg Germany
    Posts : 12,964
    Microsoft Windows 10 Pro 64-bit 14393 Multiprocessor Free
       2015-12-24 #4

    ´Codecs are a problem too (for surfing) Debian OSs have "Restricted Extras" I can download through their package manager or using Synaptic and I can install them as needed. They are the codecs like Mp3 flashplayer and so on, CentOS is RedHat based and I have no experience with it... yet, Looks like a learning curve ahead for me, good for the brain matter
      My System SpecsSystem Spec


  5. Joined : Feb 2015
    Bamberg Germany
    Posts : 12,964
    Microsoft Windows 10 Pro 64-bit 14393 Multiprocessor Free
       2015-12-24 #5

    Hey Kari, something interesting I just found:
    at least some failures from the guest OS are given in Event Viewer!
    Click image for larger version.

Name:	Image 001.png
Views:	203
Size:	88.2 KB
ID:	55171
      My System SpecsSystem Spec


  6. Joined : Oct 2013
    A Finnish ex-pat in Germany
    Posts : 9,636
    Windows 10 Pro
       2015-12-24 #6

    Yeah, CentOS and Red Hat are quite well integrated in Windows Hyper-V.
      My System SpecsSystem Spec


  7. Joined : Feb 2016
    Posts : 1
    Centos 7
       2016-02-16 #7

    I am getting below attached error Centos 7 on Hyper-v windows 8.1 pro


    Kari said: View Post
    Yeah, CentOS and Red Hat are quite well integrated in Windows Hyper-V.
    I am getting below error after cross grub menu:

    tsc: tsc Fast tsc calibration failed
    PCI:Fatal No config space access function found
    No controller found

    How can I fıx them ?

    Regards
    Sibel
