  1. Kari's Avatar
    Posts : 17,434
    Windows 10 Pro
    Thread Starter
       #50

    drburdi said:
    Did I miss something to prevent me from seeing the host?
    Run the XP Network Wizard (Explorer > My Network Places > Set up a home or small office network). When it asks the workgroup name, give the name of your network.

    When done, on your XP vm, right click the network adapter and add TCP/IP version 6 protocol as shown in below screenshots:

    Step 1:
    Hyper-V virtualization - Setup and Use in Windows 10-2015-08-30_19h10_57.png

    Step 2:
    Hyper-V virtualization - Setup and Use in Windows 10-2015-08-30_19h51_27.png

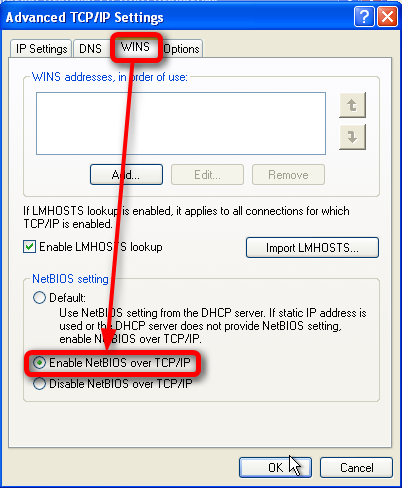

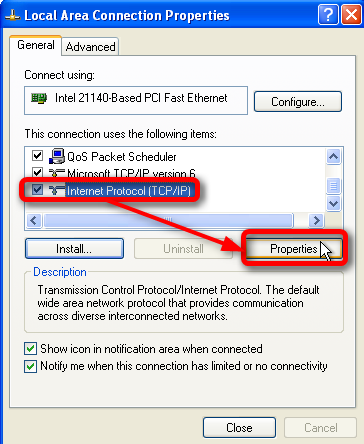

    Enable NetBIOS over TCP/IP:

    Step 1:
    Hyper-V virtualization - Setup and Use in Windows 10-2015-08-30_19h52_35.png

    Step 2:
    Hyper-V virtualization - Setup and Use in Windows 10-2015-08-30_19h53_46.png

    Step 3:
    Hyper-V virtualization - Setup and Use in Windows 10-2015-08-30_19h54_42.png

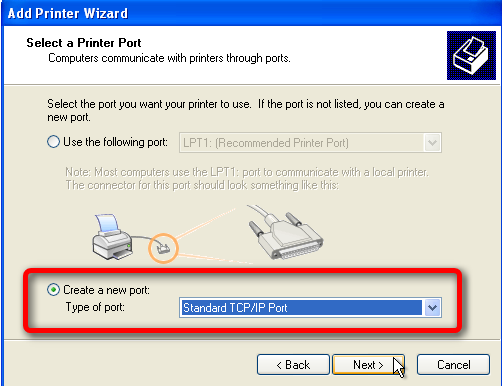

    Add a network printer in XP vm using the local printer option, not the network printer! Weird but works, just add a new local TCP/IP port and add the printer. When finished, follow the next wizard's instructions to install correct printer drivers if you hadn't already installed them:
    Hyper-V virtualization - Setup and Use in Windows 10-2015-08-30_17h59_31.png
    Hyper-V virtualization - Setup and Use in Windows 10-2015-08-30_18h00_44.png
    Hyper-V virtualization - Setup and Use in Windows 10-2015-08-30_18h01_32.png
    Hyper-V virtualization - Setup and Use in Windows 10-2015-08-30_18h02_20.png

    Follow the on-screen instructions to complete the printer installation.

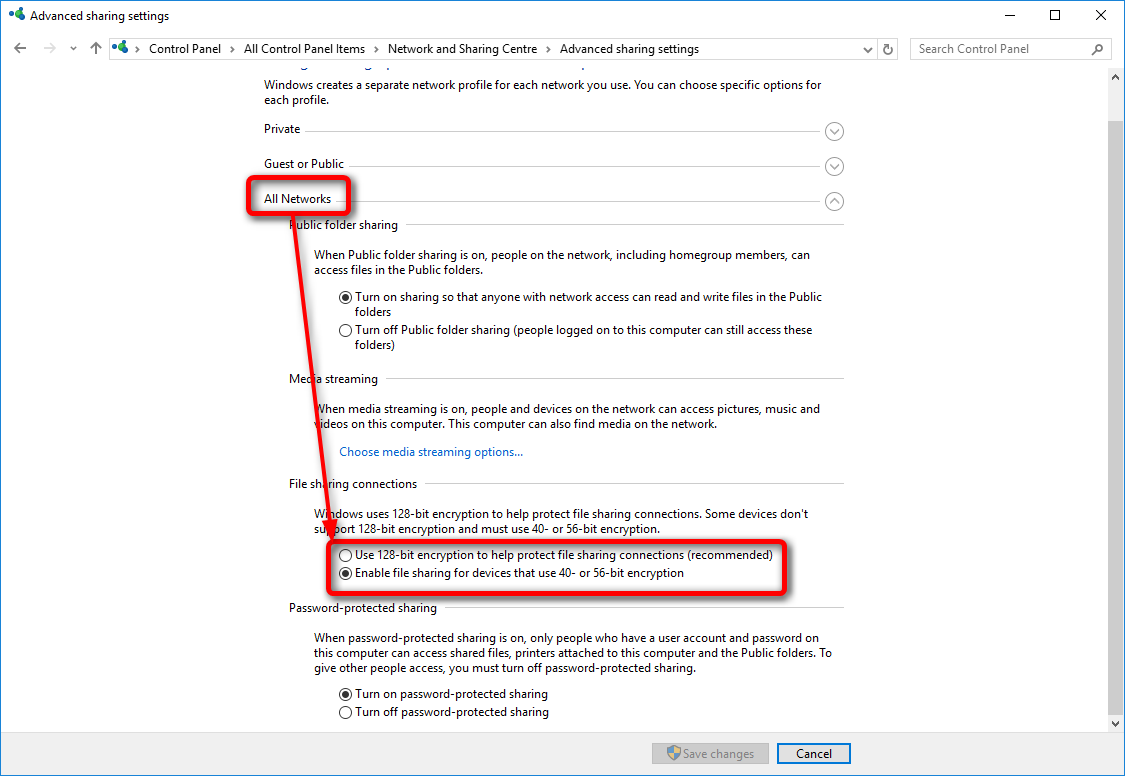

    In Windows 10, disable the 128 bit encryption:
    Hyper-V virtualization - Setup and Use in Windows 10-2015-08-30_19h59_08.png

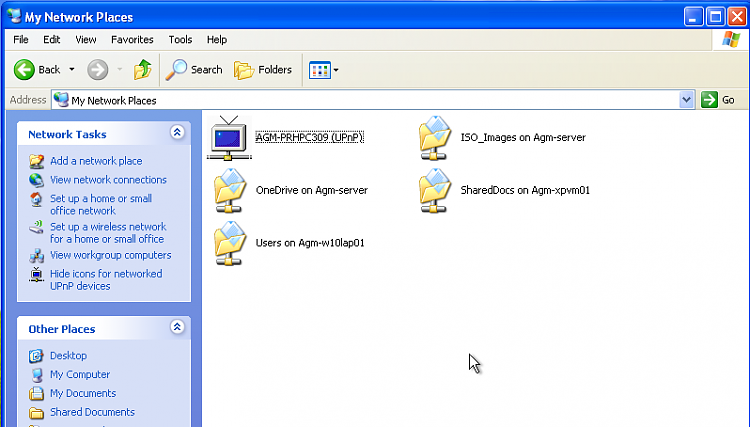

    Now all the network shares can be seen and added in XP, and XP is visible to the network:

    Hyper-V virtualization - Setup and Use in Windows 10-2015-08-30_19h55_53.png

    If you just want to access the host resources instead of full network access, use the XP vm over Remote Desktop Connection instead of Virtual Machine Connection. This way you can access all host resources without limitations. Here connection over RDP, all host (Windows 10) drives shown in XP vm Explorer:

    Hyper-V virtualization - Setup and Use in Windows 10-2015-08-30_19h58_08.png

    RDC tutorial: RDC - Connect Remotely to your Windows 10 PC - Windows 10 Forums


    Night Hawk said:
    For the XP Mode to go on and work I will need to find a new switch since neither the one created for 7 or use of the Legacy type network adapter sees it connect. Of course XP would first look for the dial up type connection.
    Whatever I try, however I set up an XP virtual machine, I cannot make it fail to connect. It always connects. My XP virtual machines always connect and always see the network and can be seen. Simply use the legacy NIC which is connected to a working external switch.

    Kari
      My Computer


  2. Posts : 3
    Win10
       #51

    Night Hawk said:
    That's why Pro is Pro and Home is Home the same way the 7 Ultimate featured the BitLocker drive encryption tool the Home Premium edition didn't see and the retail tag was higher on the Pro and Ultiimate editions for seeing other features lacking in Home Premium and Starter editions while HP offered a bit more then Starter!

    Since you have the Home edition there Marcin2m you may want to look over the other guides for VM Player and Virtual Box. I was just reading over one article that compared VBox 5.11 up against the VM Workstation 11 and just heard that Workstation 12 was now out. So you do have some other options available.
    Well, I was not expected that is so easy...with VirtualBox (5.03). It's working so far perfectly.. faster than VM.
    :)
      My Computer

  3. Night Hawk's Avatar
    Posts : 3,365
    W10 Pro x64/W7 Ultimate x64 dual boot main - W10 Pro Insider Preview/W7 Pro x64 - remote pc
       #52

    Marcin2m said:
    Well, I was not expected that is so easy...with VirtualBox (5.03). It's working so far perfectly.. faster than VM.
    :)
    That's great news! I'm glad to hear that went well for you there. VBox is known for keeping things plain and simple while the other options tend to offer more features and can get into slightly more complicated set ups at times. But those are also intended for use by the more tech savy users like program developers, architects, and other professionals that will have the need to invest quite a bit more at times in virtualization.

    I'll be giving that one a try out soon on the laptop that was upgraded for someone so they can see a VM at work! :)
      My Computer

  4. MrRandomMan's Avatar
    Posts : 44
    Windows 10 Pro 64 bit & Ubuntu 16.04
       #53

    I can't do it. It says virtualization is disabled in the firmware? How to fix?
      My Computer

  5. Kari's Avatar
    Posts : 17,434
    Windows 10 Pro
    Thread Starter
       #54

    MrRandomMan said:
    I can't do it. It says virtualization is disabled in the firmware? How to fix?
    You have to enable it in your BIOS or UEFI settings. As different BIOS / UEFI systems have different settings it is impossible to tell how to do it in your case. See this article for some more information: How to Enable Intel VT-x in Your Computers BIOS or UEFI Firmware
      My Computer


  6. Posts : 33
    Windows 10 Pro
       #55

    Kari said:
    Run the XP Network Wizard (Explorer > My Network Places > Set up a home or small office network).
    Now all the network shares can be seen and added in XP, and XP is visible to the network:
    Whatever I try, however I set up an XP virtual machine, I cannot make it fail to connect. It always connects. My XP virtual machines always connect and always see the network and can be seen. Simply use the legacy NIC which is connected to a working external switch.

    Kari
    I redid the steps and unfortunately I still can not print from my Sony Laptop, from VirtualXpPro, or from a VirtualXpPro dos window.
    All have access to the internet through the Win10 host and can read each other's files. The printer that VirtualXpPro sees is the host shared printer. Sony sees is it from VirtualXpPro, which I had it shared and now think that is wrong to do. Tried to re-install it as a networked printer but getting stopped by the request for a password. When given it says that credentials will be over-ridden but when answered it says that it can not done. Will try to go the local route tomorrow.

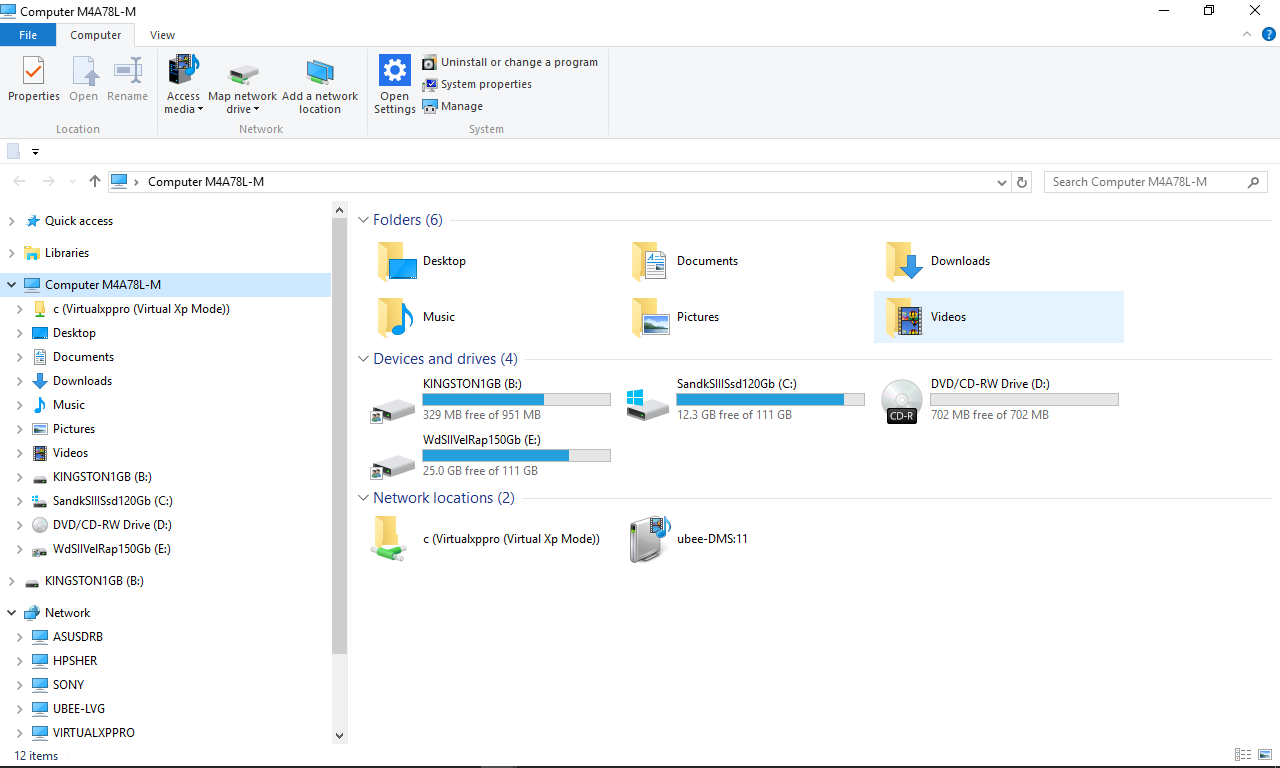

    I have attached a few more snapshots to show by host printer port and devices, and My Computer. Hopefully you can see what is wrong with my setup. I really do want to get this working since I have a few other computers that I will upgrade to Win10 and need the Hyper-V working.
    Hyper-V virtualization - Setup and Use in Windows 10-mycomputer.pngHyper-V virtualization - Setup and Use in Windows 10-win10devices.pngHyper-V virtualization - Setup and Use in Windows 10-win10printerport.png
      My Computer

  7. Kari's Avatar
    Posts : 17,434
    Windows 10 Pro
    Thread Starter
       #56

    Did you install the correct printer drivers in XP, on your virtual machine? If XP vm has the correct drivers installed and it sees the printer on host, it should print.
      My Computer


  8. Posts : 33
    Windows 10 Pro
       #57

    Kari said:
    Did you install the correct printer drivers in XP, on your virtual machine? If XP vm has the correct drivers installed and it sees the printer on host, it should print.
    Yes. I checked Sony and VirtualXpPro and both have "Intel Windows 2000 or XP" box checked.
      My Computer

  9. Kari's Avatar
    Posts : 17,434
    Windows 10 Pro
    Thread Starter
       #58

    drburdi said:
    Yes. I checked Sony and VirtualXpPro and both have "Intel Windows 2000 or XP" box checked.
    I don't get that? Do you have the HP LaserJet P1006 printer drivers installed on the Windows XP virtual machine? The virtual machine cannot use the drivers installed on host.

    You need to install the drivers in XP, on your virtual machine.
      My Computer


  10. Posts : 33
    Windows 10 Pro
       #59

    Kari said:
    I don't get that? Do you have the HP LaserJet P1006 printer drivers installed on the Windows XP virtual machine? The virtual machine cannot use the drivers installed on host.

    You need to install the drivers in XP, on your virtual machine.
    I don't get it either. Noticed on Sony which is running Xp-Pro that my host printer is visible in File Explorer along with my host files. However in XP Sony AND Virtual, Device Manager has no printer listed. Any ideas why it is not shown but is shown on the host ?
      My Computer
