Install and Configure WinDBG for BSOD Analysis

Page 8 of 11 FirstFirst ... 678910 ... LastLast
  1. Ztruker's Avatar
    Posts : 13,511
    Windows 10 Pro X64 20H4 19042.746
       #70

    You need to be connected to the internet and setup your Symbol File Path in windbg:
    Mine is set to:
    Code:
    SRV*D:\Symbols*https://msdl.microsoft.com/download/symbols
    so downloaded symbols are stored in D:\Symbols the first time they are downloaded, but you need the connection to the symbol server.
      My Computers


  2. Posts : 7
    Win 10
       #71

    Ive reinstalled windbg, set it up as per the instructions but its still giving me:

    Unable to open image file: C:\Symbols\ntoskrnl.exe\521EA0355e5000\ntoskrnl.exe
    The system cannot find the path specified.

    many times, then when its finished it says:

    *************************************************************************
    *** ***
    *** ***
    *** Either you specified an unqualified symbol, or your debugger ***
    *** doesn't have full symbol information. Unqualified symbol ***
    *** resolution is turned off by default. Please either specify a ***
    *** fully qualified symbol module!symbolname, or enable resolution ***
    *** of unqualified symbols by typing ".symopt- 100". Note that ***
    *** enabling unqualified symbol resolution with network symbol ***
    *** server shares in the symbol path may cause the debugger to ***
    *** appear to hang for long periods of time when an incorrect ***
    *** symbol name is typed or the network symbol server is down. ***
    *** ***
    *** For some commands to work properly, your symbol path ***
    *** must point to .pdb files that have full type information. ***
    *** ***
    *** Certain .pdb files (such as the public OS symbols) do not ***
    *** contain the required information. Contact the group that ***
    *** provided you with these symbols if you need this command to ***
    *** work. ***
    *** ***
    *** Type referenced: nt!_KPRCB ***
    *** ***
    *************************************************************************
    Probably caused by : ntoskrnl.wrong.symbols.exe ( nt_wrong_symbols!521EA0355E5000 )

    Followup: MachineOwner

    HELP!!
      My Computer

  3. Ztruker's Avatar
    Posts : 13,511
    Windows 10 Pro X64 20H4 19042.746
       #72

    Zip up the dump you are working with and upload here so I can try it.

    Actually, why don't you run the Beta log collector and upload the zip file it produces. That may yield some additional info to help. Is the dump you are trying to look at in C:\Windows\Minidump? If so it will be included in the dump. If not zip and upload it separ4ately.
      My Computers


  4. Posts : 7
    Win 10
       #73

    Its about 400mb and its not mine so I wouldn't feel comfortable uploading it. It was on an SD card, I booted into a different partition (win 7) and checked eventvwr which reported one of the drives had NTFS issues and needed to be scanned. I'd had this error in win 10 on all drives before I flashed the BIOS. With it still reporting the issue I've decided to bin the motherboard and start again. I would like to getiwindbg running properly though for future problem solving.
      My Computer

  5. essenbe's Avatar
    Posts : 12,508
    Windows 10 Pro 1903
       #74

    Try running WinDBG as Administrator to set the Symbol path. ZTruker has his set to create the Symbols folder to D:/Symbols.
      My Computers


  6. Posts : 38,357
    windows 10 professional version 1607 build 14393.969 64 bit
       #75

    Windbg can be run with a database on the computer or using the live Microsoft database.
    The later method is slower but more up to date.

    See if you can download and install Windbg 1.0.1812.12001
      My Computer

  7. Caledon Ken's Avatar
    Posts : 24,187
    Windows 10 Pro x64 Version 2004
       #76

    I've been having a problem looking at any dump so I reloaded the most recent developer kit. Followed the instructions carefully but still I'm not getting the full expected output listed in Golden tutorial when you run the test dump.

    The box with the initial bugcheck is missing.

    Microsoft (R) Windows Debugger Version 10.0.18362.1 AMD64
    Copyright (c) Microsoft Corporation. All rights reserved.
    Loading Dump File [C:\Users\Maximus\Downloads\test\050114-17253-01.dmp]
    Mini Kernel Dump File: Only registers and stack trace are available
    ************* Path validation summary **************
    Response Time (ms) Location
    Deferred SRV*C:\SymCache*http://msdl.microsoft.com/download/symbols
    Symbol
    search path is: SRV*C:\SymCache*http://msdl.microsoft.com/download/symbols
    Executable
    search path is: Windows 7 Kernel Version 7601 (Service Pack 1) MP (4 procs) Free x64
    Product: WinNt, suite: TerminalServer SingleUserTS Personal
    Built by: 7601.18247.amd64fre.win7sp1_gdr.130828-1532
    Machine Name:Kernel base = 0xfffff800`02a53000 PsLoadedModuleList = 0xfffff800`02c966d0
    Debug session time: Thu May 1 22:07:27.580 2014 (UTC - 4:00)\
    System Uptime: 0 days 0:04:04.718
    Loading Kernel Symbols
    .................................................................................................... ...........................................................
    Loading User Symbols
    Loading unloaded module list
    .....
    For analysis of this file, run !analyze -v


    When I run against a dump in forum I get this


    ************* Symbol Loading Error Summary **************
    Module name Error
    ntoskrnl The system cannot find the file specified

    You can troubleshoot most symbol related issues by turning on symbol loading diagnostics (!sym noisy) and repeating the command that caused symbols to be loaded.
    You should also verify that your symbol search path (.sympath) is correct.
    For analysis of this file, run !analyze -v





    This is what I was getting before the reload. I checked tutorial again but I can't see the trees for the forest.

    Thanks
      My Computer

  8. Caledon Ken's Avatar
    Posts : 24,187
    Windows 10 Pro x64 Version 2004
       #77

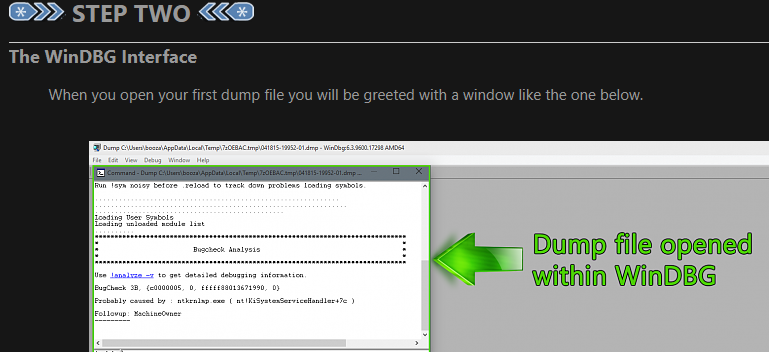

    Open another dump and results were better but still did not get what I will call the quick analysis box. Copied from tutorial so people will understand what I'm referencing.

    Install and Configure WinDBG for BSOD Analysis-image.png
      My Computer


  9. Posts : 38,357
    windows 10 professional version 1607 build 14393.969 64 bit
       #78

    There are two main options for symbols:
    a) store on the computer
    b) use the live Microsoft database

    Windbg preview is not in the tutorial.

    See if you can download and install: Windbg preview
    https://docs.microsoft.com/en-us/win...download-tools
      My Computer

  10. Ztruker's Avatar
    Posts : 13,511
    Windows 10 Pro X64 20H4 19042.746
       #79

    If the dump came from a zip file, look at it in the zip file, don't extract it first. For some strange reason, this works.

    Double click on the zip file or right click on it, slide down to 7-zip then select Open archive.
    Navigate like you would if in File Explorer, to Crash Dumps folder.
    Double click on any dump. it should launch in windbg like it normally does, only symbol resolution works.

    If you have a dump and symbol files won't resolve, zip it then look at the dump in the zip file, Works correctly now and symbol file resolution works as it should.
      My Computers
