    How to use MDT to deploy Windows 10
    Published by Category: Installation & Upgrade
    12 Jun 2019
    Designer Media Ltd


    information   Information
    Microsoft Deployment Toolkit (MDT) is a powerful tool to manage Windows deployment. Although intended for corporate use, it can also make administrating a small home network easy. If you have few computers to take care off, or if you are an enthusiastic virtual machine user, MDT for sure is for you.

    According to Microsoft, “Microsoft Deployment Toolkit provides a unified collection of tools, processes, and guidance for automating desktop and server deployments“.

    In this tutorial, I will show how to set up MDT and use its Lite-Touch Installation (LTI) feature in workgroup or domain environments to deploy, repair, update and upgrade Windows 10. For advanced users, it might occasionally look like something for beginners only, my intention being to make instructions as clear and easy to follow as possible. However, I think that there might be a tip or two also for you advanced geeks.

    I will use following terms about different computers:

    MDT Workbench The PC on which the MDT is installed
    Reference The PC used to capture a custom image
    Target The PC on which Windows will be deployed

    All computers can be either physical devices or virtual machines, and they must be connected to network. Notice that reference device is only needed if you want to capture and deploy a custom image. if you will only deploy basic Windows directly from a Microsoft Windows image without customizations, reference device will not be needed




    Microsoft Deployment Toolkit - Easy and Fast Windows Deployment Contents Microsoft Deployment Toolkit - Easy and Fast Windows Deployment
     Use links below to go to any Part, back button of your browser to return to this list.


    Part One: Install and setup MDT
    Part Two: Create a Deployment Share
    Part Three: Import operating system
    Part Four: Create a Task Sequence
    Part Five: Deploy Windows to target device
    Part Six: Customize Deployment
    Part Seven: Add applications
    Part Eight: Add drivers
    Part Nine: Capture custom image
    Part Ten: Upgrade target device

    Note   Note
    Parts One through Five show the basic deployment of standard Windows 10, without any customizations. Rest of the tutorial, starting from Part Six is optional, showing how to customize deployment image, add software and drivers, and so on.




    Microsoft Deployment Toolkit - Easy and Fast Windows Deployment Part One Microsoft Deployment Toolkit - Easy and Fast Windows Deployment
     Install and setup MDT

    1.1) The Windows Assessment and Deployment Kit (ADK) and Windows PE add-on for the ADK must be installed before you can use MDT. Download and install both, installing ADK first:
    Click image for larger version.

Name:	image.png
Views:	86
Size:	490.4 KB
ID:	228449

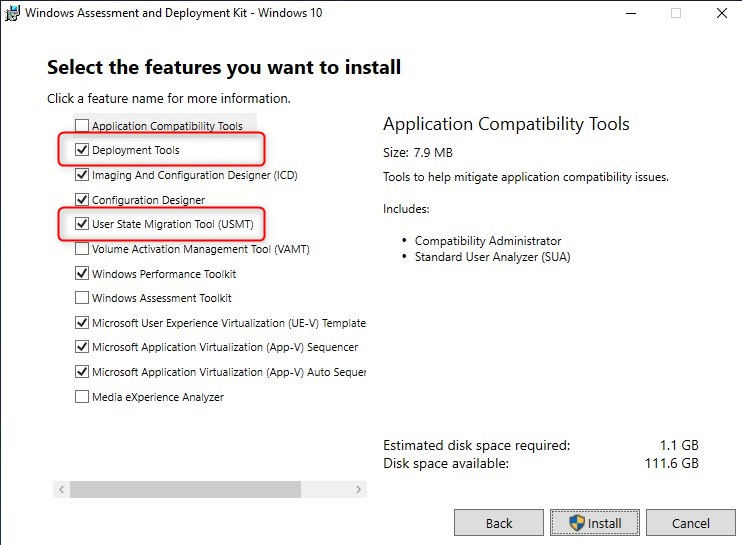

    1.2) I recommend that you accept all defaults when installing ADK, although for MDT, we only need Deployment Tools and User State Migration Tool:
    Name:  image.png
Views: 1925
Size:  257.1 KB

    Windows PE addon does not let to choose what to install, you must accept all 5+ GB of it.

    1.3) Download and install MDT:
    Click image for larger version.

Name:	image.png
Views:	56
Size:	280.0 KB
ID:	228451

    1.4) Run MDT Deployment Workbench, you can find it in Start > M > Microsoft Deployment Toolkit.



    Microsoft Deployment Toolkit - Easy and Fast Windows Deployment Part Two Microsoft Deployment Toolkit - Easy and Fast Windows Deployment
     Create a Deployment Share

    Note   Note
    A Deployment Share is a folder on MDT Workbench machine, containing everything needed to deploy Windows (imported operating systems, scripts, boot images for target devices).

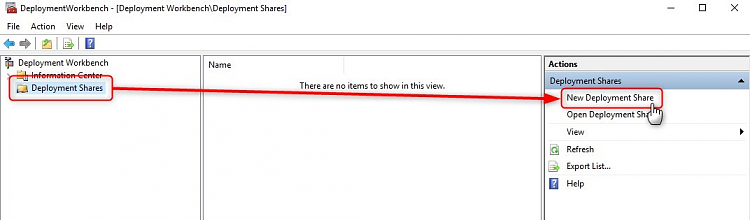

    2.1) Select Deployment Shares > New Deployment Share:
    Click image for larger version.

Name:	image.png
Views:	42
Size:	142.7 KB
ID:	228453

    2.2) Select the location and name for the deployment share folder:
    Name:  image.png
Views: 1958
Size:  101.5 KB

    2.3) Name the share. A share name is the name the shared folder can be found on network:
    Name:  image.png
Views: 1959
Size:  113.1 KB

    2.4) A Deployment Share will be created:
    Name:  image.png
Views: 1959
Size:  188.5 KB



    Microsoft Deployment Toolkit - Easy and Fast Windows Deployment Part Three Microsoft Deployment Toolkit - Easy and Fast Windows Deployment
     Import operating system

    3.1) To import an operating system for deployment, mount a Windows ISO file (right click, select Mount). In Deployment Workbench, select your new Deployment Share in navigation pane, expand it and select Operating Systems. In Action pane, select New Folder. Name the folder as you wish. As I will import UK English Windows 10 x64 version 1809 ISO, I name the folder as Version 1809 x64 EN-GB:
    Click image for larger version.

Name:	Create Folder.jpg
Views:	89
Size:	122.8 KB
ID:	228420

    3.2) MDT requires Windows image in a WIM file. An ISO created with Windows Media Creation Tool contains Windows image in install.esd file instead of install.wim, and therefore it cannot be used with MDT.

    3.3) To download a WIM-based ISO, open Windows Media Creation Tool page in browser, press F12 to open developer tools, select Emulation tab, and change user agent string to Apple Safari. Wait the page to refresh. You can now download a WIM-based ISO:
    Click image for larger version.

Name:	User Agent.jpg
Views:	86
Size:	176.7 KB
ID:	228445

    3.3) Still in Operating Systems, select the new folder you created. In Action pane, select Import Operating System.

    3.4) Select your source. Operating systems can be imported from a mounted ISO, DVD, USB flash drive or a folder containing Windows install files. To do this, select Full set of source files and click Next, in following page browse and select the source (mounted ISO, DVD, USB flash drive or a folder).

    OS can also be imported from a WIM file, in which case select Custom image file, click Next and select your install.wim (or custom WIM) file:
    Click image for larger version.

Name:	Import OS.jpg
Views:	115
Size:	138.0 KB
ID:	228563

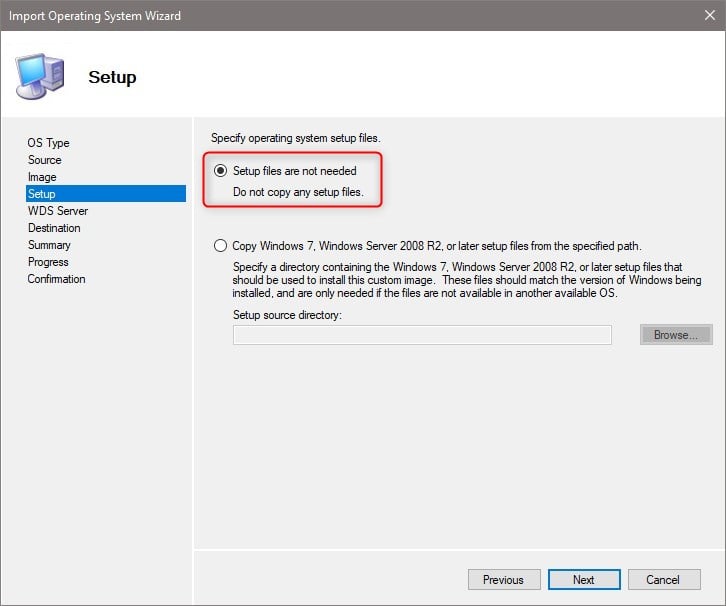

    If importing OS from a WIM file, in next page select Setup files are not required (install.wim already contains everything required to setup and install Windows):
    Name:  No setup files.jpg
Views: 1956
Size:  55.4 KB

    3.5) When importing an OS from a complete ISO, MDT defaults the directory name to the first edition found in that ISO. In this case, because I imported a full consumer ISO which contains all editions except Enterprise, its first edition (INDEX:1) is Windows 10 Home. You can accept this default directory name, or change it to whatever you’d prefer:
    Name:  Directory name.jpg
Views: 1959
Size:  38.3 KB

    In my case now, I changed directory name to Version 1809 x64 EN-GB.

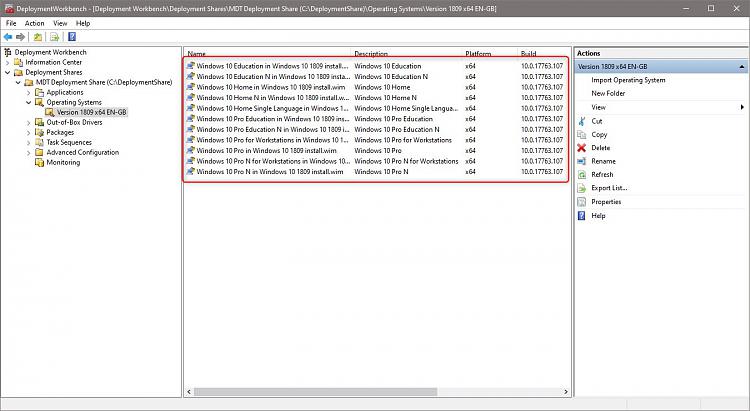

    When importing an OS from a WIM file, the default directory name is INSTALL.WIM. Again, you can accept the default name or change it. When imported, the operating systems found in ISO or WIM file are listed in MDT:
    Click image for larger version.

Name:	Operating systems.jpg
Views:	49
Size:	157.8 KB
ID:	228432



    Microsoft Deployment Toolkit - Easy and Fast Windows Deployment Part Four Microsoft Deployment Toolkit - Easy and Fast Windows Deployment
     Create a Task Sequence

    Note   Note
    To deploy Windows from an imported operating system, we need to create a Task Sequence. A Task Sequence contains all required information to deploy (install) Windows on target machine.

    For each unique deployment scenario, we will need a unique Task Sequence. Deploying W10 PRO edition, x64 bit architecture in UK English needs its own Task Sequence, and deploying W10 Education edition from the same imported operating system in MDT, we’ll need to create another unique Task Sequence for that.

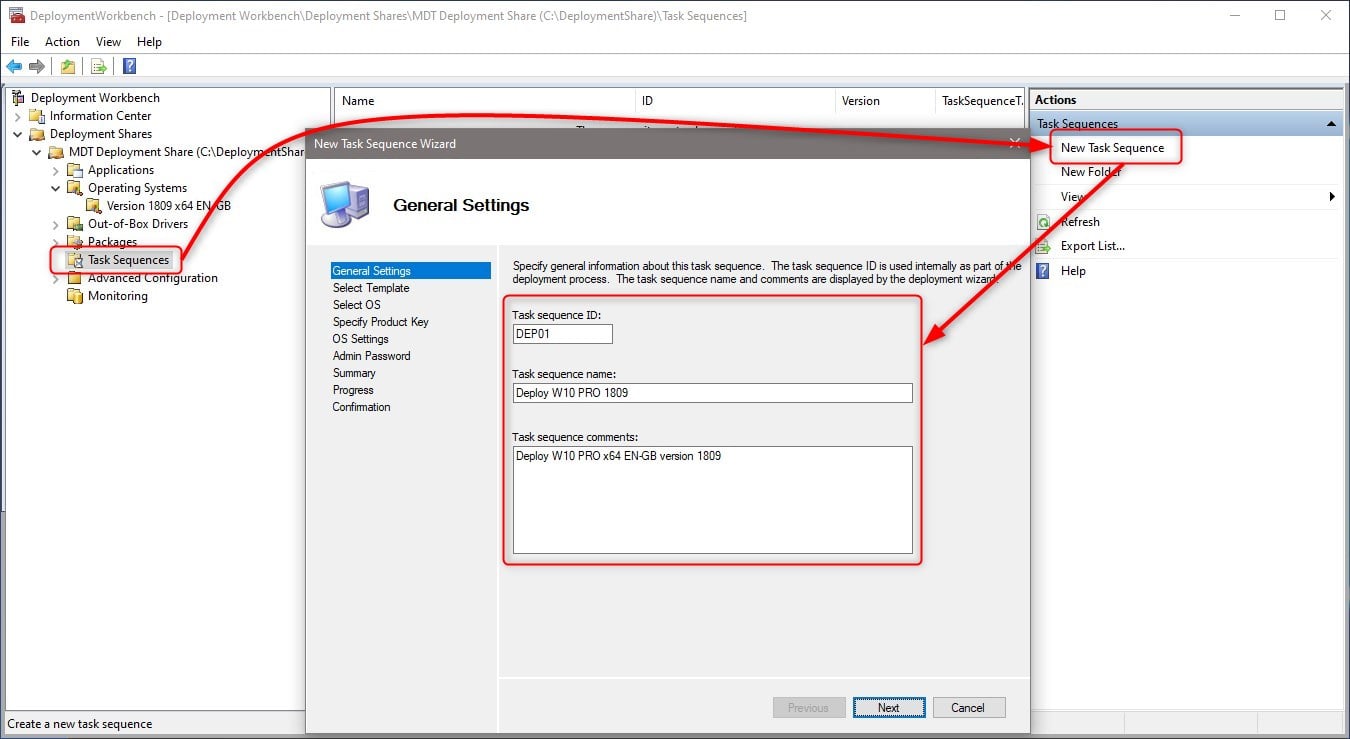

    4.1) Expand your deployment share, select Task Sequences, select New Task Sequence. Give it a unique ID (required), name (required) and description (optional), click Next:
    Click image for larger version.

Name:	New Task Sequence.jpg
Views:	87
Size:	136.5 KB
ID:	228429

    4.2) Select Standard Client Task Sequence and click Next:
    Name:  Standard Task.jpg
Views: 1958
Size:  43.8 KB

    4.3) Select OS (Windows edition) to deploy with this Task Sequence and click Next:
    Name:  Select OS.jpg
Views: 1965
Size:  71.0 KB

    4.4) Select Do not specify a product key, and click Next. Alternatively, on enterprise networks, you can enter your MAK key here instead:
    Name:  Product key.jpg
Views: 1970
Size:  72.3 KB

    For private use, you could enter a product key here, but it is unnecessary. You can always activate Windows later, or Windows will be automatically activated if deploying to a target device with existing digital license for that edition.

    4.5) Enter name, organization and IE home page (optional). The name and organization will be shown on the target computer as the owner of that device:
    Name:  OS Settings TF.jpg
Views: 1971
Size:  52.8 KB

    4.6) Now an important decision to make: built-in administrator account password for the target device. Personally, I would never leave that account without a password, but the decision is yours. Set the password, or select Do not specify an Administrator password at this time:
    Name:  Admin Password.jpg
Views: 1954
Size:  51.1 KB

    4.7) On Summary page, check that everything is as you'd prefer and click Next:
    Name:  Task Summary.jpg
Views: 1975
Size:  58.2 KB

    4.8) Your Task Sequence will be created:
    Name:  Task Sequence created.jpg
Views: 1964
Size:  46.1 KB

    4.9) The Deployment Share needs to be updated after creating the first Task Sequence. Select the share on left pane, select Update Deployment Share on Actions pane, accept default selection Optimize the boot image updating process, and click Next:
    Click image for larger version.

Name:	Update Share.jpg
Views:	87
Size:	141.1 KB
ID:	228444

    4.10)
    The deployment share will be updated, and all necessary scripts and ISO files to use for deployment will be created. You will find Lite-Touch Installation ISO files needed to boot target devices in %DeploymentShare%\Boot folder on your MDT Workbench machine:
    Click image for larger version.

Name:	MDT boot files.jpg
Views:	43
Size:	73.7 KB
ID:	228427

    4.11) Depending on your target device’s bit architecture, create a bootable USB flash drive from either LiteTouchPEx_64.iso orLiteTouchPE_x86.iso. If the target devices are virtual machines, no USB media is required.

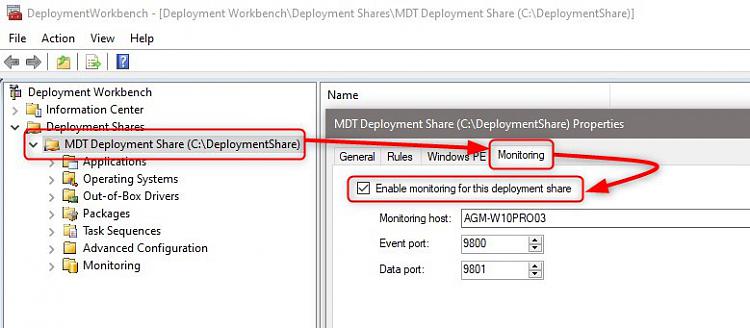

    4.12) To monitor deployment status (optional), right click the Deployment Share on left pane, select Properties, and enable monitoring:
    Click image for larger version.

Name:	Enable monitoring.jpg
Views:	43
Size:	58.0 KB
ID:	228422



    Microsoft Deployment Toolkit - Easy and Fast Windows Deployment Part Five Microsoft Deployment Toolkit - Easy and Fast Windows Deployment
     Deploy Windows to target device

    5.1) By default, an MDT Deployment Share is shared to user group administrators. You should have access to it from target machines using any local admin account on MDT Workbench machine. However, depending on local networking and sharing settings, you might only be able to use the built-in administrator account to access Deployment Share folder, if you have not given permissions (full control) for everyone or a specific local admin account.
    Name:  Share permissions.jpg
Views: 1939
Size:  29.4 KB

    I strongly recommend that you will set a password for built-in administrator account on MDT Workbench device, and that you enable it if it is currently disabled. Using that account in deployment will bypass all possible sharing issues.

    5.2) Boot the target device from LiteTouchPEx_64 or LiteTouchPE_x86 USB install media, or if target device is a virtual machine, from LiteTouchPEx_64.iso orLiteTouchPE_x86.iso file (steps 4.10 & 4.11).

    Select keyboard layout and run the Deployment Wizard:
    Click image for larger version.

Name:	Run Deployment Wizard.jpg
Views:	67
Size:	70.6 KB
ID:	228436

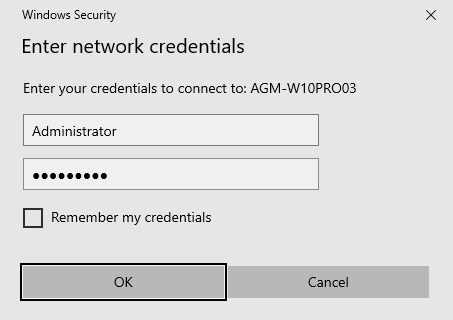

    5.3) Enter credentials for MDT Workbench to access your Deployment Share:
    Name:  Enter Credentials.jpg
Views: 1940
Size:  30.7 KB
    Note   Note
    If target device is joining a local workgroup instead of domain, enter MDT Workbench computer name as domain. In this example I have MDT installed on computer AGM-W10PRO03. As target computer joins a workgroup instead of domain, I use that computer name as domain.

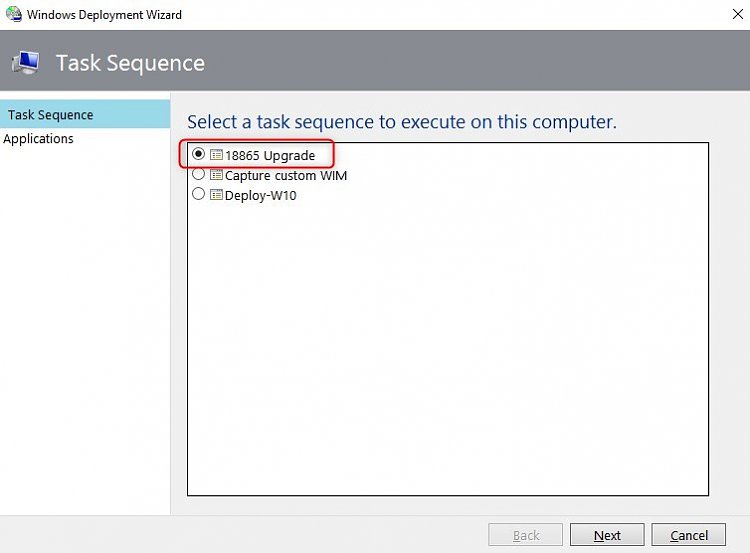

    5.4) All Task Sequences on share will be listed. Select the Task Sequence you want to use for deployment on this target machine. As we only have one Task Sequence at this point, select it and click Next:
    Click image for larger version.

Name:	Select Task Sequence.jpg
Views:	36
Size:	46.0 KB
ID:	228438

    5.5) Name the target device, or accept default name. Select if this is a workgroup computer or belongs to a domain:
    Click image for larger version.

Name:	PC name.jpg
Views:	37
Size:	54.8 KB
ID:	228434

    5.6) As this is a clean install on a device without any previous operating system, there is no data to be moved. If deploying to a device which already contains an existing Windows 7 or later installation, you can select to move existing user accounts, user data and settings to a temporary folder on MDT Workbench machine. User data and settings will then be restored to target device during the final phase of deployment. Software will not be moved over to new installation, and must be re-installed:
    Click image for larger version.

Name:	User Data.jpg
Views:	47
Size:	73.5 KB
ID:	228446

    Notice that if you select to move user data to new installation, all moved user accounts are by default disabled after deployment is done, and must be manually enabled before accounts can be used:
    Name:  Account disabled.jpg
Views: 1943
Size:  27.2 KB

    5.7) In Locale and time page, select keyboard layout and time zone for target device:
    Click image for larger version.

Name:	Locale.jpg
Views:	42
Size:	64.9 KB
ID:	228426

    5.8) Select Do not capture image of this computer to do a normal deployment (clean install):
    Click image for larger version.

Name:	No capture.jpg
Views:	39
Size:	84.0 KB
ID:	228430

    5.9) Select if BitLocker should be enabled on target device:
    Click image for larger version.

Name:	Bitlocker.jpg
Views:	47
Size:	72.9 KB
ID:	228419

    5.10) Finally, start the deployment:
    Click image for larger version.

Name:	Begin deployment.jpg
Views:	37
Size:	41.1 KB
ID:	228418

    5.11) You can follow the progress on target device:
    Name:  Deployment begins TF.jpg
Views: 1957
Size:  32.8 KB

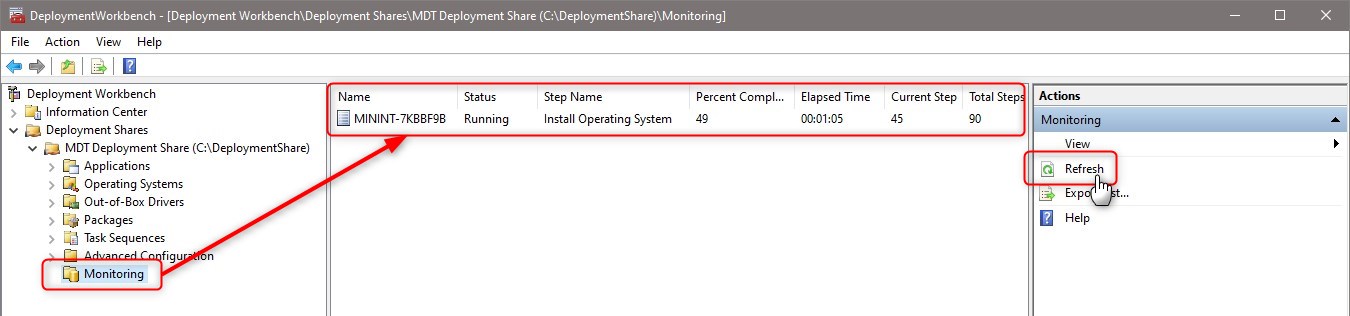

    If you enabled Monitoring in step 4.12, you can also monitor the progress in Deployment Workbench. Notice that monitoring in Deployment Workbench does not auto refresh. To refresh, click Refresh in Action pane:
    Click image for larger version.

Name:	Monitor Deployment.jpg
Views:	49
Size:	74.4 KB
ID:	228428

    5.12) Deployment completely bypasses OOBE. When ready, target device boots to desktop using built-in admin credentials. Do not touch anything, do not start anything until Deployment Wizard tells deployment has been finished:
    Name:  Success.jpg
Views: 1946
Size:  32.5 KB

    5.13) At this point, only existing user account on target device is the built-in admin account. To start using the computer, create at least one local admin account, sign out from built-in admin, sign in to local admin and disable built-in admin.



    Microsoft Deployment Toolkit - Easy and Fast Windows Deployment Part Six Microsoft Deployment Toolkit - Easy and Fast Windows Deployment
     Customize Deployment

    6.1)To customize deployment task and image, we can edit its answer file Unattend.xml. Right click the deployment task sequence, select Properties, select OS Info tab, and click Edit Unattend.xml to open it in Windows System Image Manager (WSIM), part of Windows ADK you installed in steps 1.1 & 1.2:
    Click image for larger version.

Name:	Edit Answer File.jpg
Views:	58
Size:	165.6 KB
ID:	228626

    6.2) When answer file is edited first time, MDT creates a catalog file. Be patient, this can take a while; on this mid-level i7 laptop of mine, it can take up to 15 minutes. If you, like me, do not want to wait, you can stop the catalog creation process:
    Click image for larger version.

Name:	No catalog file.jpg
Views:	45
Size:	71.1 KB
ID:	228628

    Wait process to stop, and repeat step 6.1, and the answer file will now open in WSIM immediately:
    Click image for larger version.

Name:	WSIM.jpg
Views:	42
Size:	120.0 KB
ID:	228631

    6.2) For what can be done with answer file and complete reference, see this support article on Microsoft Docs: Components | Microsoft Docs

    Some quick tips can be found in Step Four of this tutorial: Create media for automated unattended install of Windows 10 | Tutorials
    Note   Note
    MDT generated answer file Unattend.xml is, as so often with Microsoft products and services, made only for American users in USA. All language and region settings are US English. For us users in rest of the world, it might cause deployment to fail when used as it is.

    When editing answer file, be sure to change International-Core settings in Pass 1 WindowsPE, Pass 4 Specialize and Pass 7 OobeSystem:
    Click image for larger version.

Name:	image.png
Views:	21
Size:	1.04 MB
ID:	229426

    In my case now, I changed InputLocale (keyboard layout) to 040b:0000040b (Finnish), OS language and rest of the locales to EN-GB (UK English).

    Change the SetupUILanguage setting in Pass 1 WindowsPE under International-Core, too, to match the language of your install / deployment media:
    Click image for larger version.

Name:	UILanguage.jpg
Views:	20
Size:	42.4 KB
ID:	229427

    See complete list of language and region values: Default Input Profiles (Input Locales) in Windows | Microsoft Docs

    6.3) Here's my modified Unattend.xml used in this sample deployment. Only changes I have made to default answer file is to change locale and user interface language settings from MDT default US English to UK English, changed default keyboard layout to Finnish (040b:0000040b), added myself as owner and TenForums as organization on target device, and make it to join workgroup TenForums:
    Code:
    <?xml version="1.0" encoding="utf-8"?>
    <unattend xmlns="urn:schemas-microsoft-com:unattend">
        <settings pass="windowsPE">
            <component name="Microsoft-Windows-Setup" processorArchitecture="amd64" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="http://schemas.microsoft.com/WMIConfig/2002/State">
                <ImageInstall>
                    <OSImage>
                        <WillShowUI>OnError</WillShowUI>
                        <InstallTo>
                            <DiskID>0</DiskID>
                            <PartitionID>1</PartitionID>
                        </InstallTo>
                        <InstallFrom>
                            <Path>.\Operating Systems\W10 1809 EN-GB\Sources\install.wim</Path>
                            <MetaData>
                                <Key>/IMAGE/INDEX</Key>
                                <Value>1</Value>
                            </MetaData>
                        </InstallFrom>
                    </OSImage>
                </ImageInstall>
                <ComplianceCheck>
                    <DisplayReport>OnError</DisplayReport>
                </ComplianceCheck>
                <UserData>
                    <AcceptEula>true</AcceptEula>
                </UserData>
            </component>
            <component name="Microsoft-Windows-International-Core-WinPE" processorArchitecture="amd64" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="http://schemas.microsoft.com/WMIConfig/2002/State" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
                <SetupUILanguage>
                    <UILanguage>en-GB</UILanguage>
                </SetupUILanguage>
                <InputLocale>040b:00000409b</InputLocale>
                <SystemLocale>en-GB</SystemLocale>
                <UILanguage>en-GB</UILanguage>
                <UserLocale>en-GB</UserLocale>
                <UILanguageFallback>en-GB</UILanguageFallback>
            </component>
        </settings>
        <settings pass="generalize">
            <component name="Microsoft-Windows-Shell-Setup" processorArchitecture="amd64" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="http://schemas.microsoft.com/WMIConfig/2002/State" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
                <DoNotCleanTaskBar>true</DoNotCleanTaskBar>
            </component>
        </settings>
        <settings pass="specialize">
            <component name="Microsoft-Windows-UnattendedJoin" processorArchitecture="amd64" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="http://schemas.microsoft.com/WMIConfig/2002/State">
                <Identification>
                    <Credentials>
                        <Username></Username>
                        <Domain></Domain>
                        <Password></Password>
                    </Credentials>
                    <JoinDomain></JoinDomain>
                    <JoinWorkgroup>TenForums</JoinWorkgroup>
                    <MachineObjectOU></MachineObjectOU>
                </Identification>
            </component>
            <component name="Microsoft-Windows-Shell-Setup" processorArchitecture="amd64" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="http://schemas.microsoft.com/WMIConfig/2002/State">
                <ComputerName></ComputerName>
                <ProductKey></ProductKey>
                <RegisteredOrganization>TenForums</RegisteredOrganization>
                <RegisteredOwner>Kari</RegisteredOwner>
                <DoNotCleanTaskBar>true</DoNotCleanTaskBar>
                <TimeZone>W. Europe Standard Time</TimeZone>
            </component>
            <component name="Microsoft-Windows-Deployment" processorArchitecture="amd64" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="http://schemas.microsoft.com/WMIConfig/2002/State" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
                <RunSynchronous>
                    <RunSynchronousCommand wcm:action="add">
                        <Description>EnableAdmin</Description>
                        <Order>1</Order>
                        <Path>cmd /c net user Administrator /active:yes</Path>
                    </RunSynchronousCommand>
                    <RunSynchronousCommand wcm:action="add">
                        <Description>UnfilterAdministratorToken</Description>
                        <Order>2</Order>
                        <Path>cmd /c reg add HKLM\SOFTWARE\Microsoft\Windows\CurrentVersion\Policies\System /v FilterAdministratorToken /t REG_DWORD /d 0 /f</Path>
                    </RunSynchronousCommand>
                    <RunSynchronousCommand wcm:action="add">
                        <Description>disable user account page</Description>
                        <Order>3</Order>
                        <Path>reg add HKLM\Software\Microsoft\Windows\CurrentVersion\Setup\OOBE /v UnattendCreatedUser /t REG_DWORD /d 1 /f</Path>
                    </RunSynchronousCommand>
                    <RunSynchronousCommand wcm:action="add">
                        <Description>disable async RunOnce</Description>
                        <Order>4</Order>
                        <Path>reg add HKLM\Software\Microsoft\Windows\CurrentVersion\Explorer /v AsyncRunOnce /t REG_DWORD /d 0 /f</Path>
                    </RunSynchronousCommand>
                </RunSynchronous>
            </component>
            <component name="Microsoft-Windows-International-Core" processorArchitecture="amd64" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="http://schemas.microsoft.com/WMIConfig/2002/State" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
                <InputLocale>040b:0000040b</InputLocale>
                <SystemLocale>en-GB</SystemLocale>
                <UILanguage>en-GB</UILanguage>
                <UserLocale>en-GB</UserLocale>
                <UILanguageFallback>en-GB</UILanguageFallback>
            </component>
            <component name="Microsoft-Windows-SystemRestore-Main" processorArchitecture="amd64" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="http://schemas.microsoft.com/WMIConfig/2002/State" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
                <DisableSR>1</DisableSR>
            </component>
        </settings>
        <settings pass="oobeSystem">
            <component name="Microsoft-Windows-Shell-Setup" processorArchitecture="amd64" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="http://schemas.microsoft.com/WMIConfig/2002/State">
                <UserAccounts>
                    <AdministratorPassword>
                        <Value>VABpAHQAeQBzAG8AZgB0ADEAQQBkAG0AaQBuAGkAcwB0AHIAYQB0AG8AcgBQAGEAcwBzAHcAbwByAGQA</Value>
                        <PlainText>false</PlainText>
                    </AdministratorPassword>
                </UserAccounts>
                <AutoLogon>
                    <Enabled>true</Enabled>
                    <Username>Administrator</Username>
                    <Domain>.</Domain>
                    <Password>
                        <Value>VABpAHQAeQBzAG8AZgB0ADEAUABhAHMAcwB3AG8AcgBkAA==</Value>
                        <PlainText>false</PlainText>
                    </Password>
                    <LogonCount>999</LogonCount>
                </AutoLogon>
                <FirstLogonCommands>
                    <SynchronousCommand wcm:action="add">
                        <CommandLine>wscript.exe %SystemDrive%\LTIBootstrap.vbs</CommandLine>
                        <Description>Lite Touch new OS</Description>
                        <Order>1</Order>
                    </SynchronousCommand>
                </FirstLogonCommands>
                <OOBE>
                    <HideEULAPage>true</HideEULAPage>
                    <ProtectYourPC>1</ProtectYourPC>
                    <HideLocalAccountScreen>true</HideLocalAccountScreen>
                    <HideOnlineAccountScreens>true</HideOnlineAccountScreens>
                    <HideWirelessSetupInOOBE>true</HideWirelessSetupInOOBE>
                </OOBE>
                <RegisteredOrganization>TenForums</RegisteredOrganization>
                <RegisteredOwner>Kari</RegisteredOwner>
                <TimeZone>W. Europe Standard Time</TimeZone>
            </component>
            <component name="Microsoft-Windows-International-Core" processorArchitecture="amd64" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="http://schemas.microsoft.com/WMIConfig/2002/State" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
                <InputLocale>040b:0000040b</InputLocale>
                <SystemLocale>en-GB</SystemLocale>
                <UILanguage>en-GB</UILanguage>
                <UserLocale>en-GB</UserLocale>
                <UILanguageFallback>en-GB</UILanguageFallback>
            </component>
        </settings>
        <settings pass="offlineServicing">
            <component name="Microsoft-Windows-PnpCustomizationsNonWinPE" processorArchitecture="amd64" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="http://schemas.microsoft.com/WMIConfig/2002/State" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
                <DriverPaths>
                    <PathAndCredentials wcm:keyValue="1" wcm:action="add">
                        <Path>\Drivers</Path>
                    </PathAndCredentials>
                </DriverPaths>
            </component>
        </settings>
        <cpi:offlineImage cpi:source="catalog://agm-w10pro03/deploymentshare$/operating systems/w10 1809 en-gb/sources/install_windows 10 pro.clg" xmlns:cpi="urn:schemas-microsoft-com:cpi" />
    </unattend>

    This answer file will completely automate OOBE.

    6.4) To automate Deployment Wizard, steps 5.4 through 5.10 in this tutorial, we need to edit CustomSettings.ini file located in %DeploymentShare%\Control folder. Right click your Deployment Share on left pane and select Properties, then select Rules tab to open CustomSettings.ini:
    Click image for larger version.

Name:	image.png
Views:	42
Size:	718.0 KB
ID:	229096

    Screenshot shows the default MDT CustomSettings.ini file.

    6.5) CustomSettings.ini can be edited in directly in Properties window. Here's mine used in this sample deployment:
    Click image for larger version.

Name:	image.png
Views:	31
Size:	440.1 KB
ID:	229097

    Full Properties refence: Toolkit reference - Microsoft Deployment Toolkit | Microsoft Docs

    This sample CustomeSettings.ini will tell system to install OS, skip all possible Deployment Wizard prompts without asking user interaction, selects the Task Sequence to be run, and tells which applications should be silently installed on target machine, which are then told in following lines. The five lines Applications001 to Applications005 tell system which applications I chose to install silently in background on target machine (Chrome, Firefox, Opera, VLC Player and Office 365). See Part Seven for how to add applications to deployment.

    You can use this sample CustomSettings.ini, editing it to match your needs (organization, Task Sequence name, apps to install etc.):
    Code:
    [Settings]
    Priority=Default
    Properties=MyCustomProperty

    [Default]
    OSInstall=Y
    _SMSTSORGNAME=TenForums
    SkipAdminPassword=YES
    SkipCapture=YES
    SkipApplications=YES
    Applications001={a6a564c5-4c2c-41e8-9f68-c13d9b63ecd8}
    Applications002={38b1a9d8-c8b6-405b-b40d-27794c9c3a99}
    Applications003={9ba3ae8a-856b-4f39-9a69-95f307309d3a}
    Applications004={32ce5ae2-ffa7-4770-a6ff-4b8c6958dee8}
    Applications005={afde4f64-9e61-4c2f-958f-b553ff90f2d2}
    SkipBDDWelcome=YES
    SkipTaskSequence=YES
    TaskSequenceID=DEMO
    SkipBitLocker=YES
    SkipComputerBackup=YES
    SkipComputerName=YES
    SkipDeploymentType=YES
    SkipDomainMembership=YES
    SkipUserData=YES
    SkipLocaleSelection=YES
    SkipProductKey=YES
    SkipSummary=YES
    SkipTimeZone=YES
    EventService=http://AGM-W10PRO03:9800
    warning   Warning
    When SkipTaskSequence=YES is used, MDT LiteTouch installation runs the task told in TaskSequenceID=ID.

    If that task sequence is for instance for clean installing Windows 10, but you actually wanted to upgrade existing Windows 8.1 installation on target device to Windows 10, you must edit CustomSettings.ini and change the TaskSequenceID to your upgrade task sequence ID.

    If you forget this, your Windows 8.1 will be wiped clean, and Windows 10 clean installed instead.

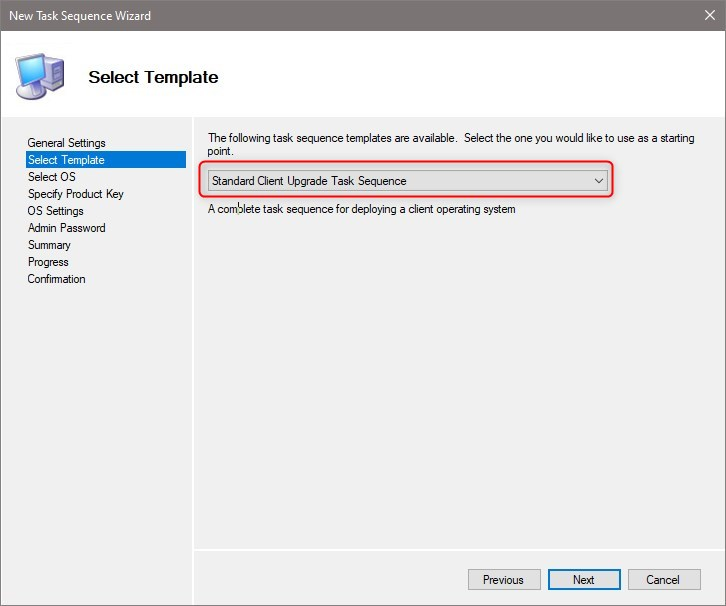

    See Part 10 for creating an upgrade task sequence.

    6.6) The CustomSettings.ini file shown in previous step 6.6 completely bypasses all steps in Deployment Wizard, requiring no user interaction, and adds some applications to be silently installed (see Part Seven). However, you still need to select the keyboard layout and run Deployment Wizard manually on target machine (step 5.2), and enter network credentials to access Deployment share on MDT Workbench machine (step5.3).

    To automate those two steps, in Properties window and its Rules tab for your deployment share, select Edit Bootstrap.ini:
    Click image for larger version.

Name:	image.png
Views:	31
Size:	440.1 KB
ID:	229097

    6.7) Bootstrap.ini opens in Notepad. Here first the default Bootstrap.ini, then my modified one:
    Name:  image.png
Views: 1932
Size:  71.6 KB

    Name:  image.png
Views: 1934
Size:  126.1 KB

    6.8) Change / add properties as follows:
    DeployRoot
    Deployment Share on MDT Workbench machine, given as \\PC_Name\ShareName
    UserDomain
    MDT Workbench PC name, in domain environment domain
    UserID
    Admin account to access share on MDT Workbench from target device. Account must have permission to access the share
    UserPassword
    The password for above admin account

    6.9) When Bootstrap.ini has been modified, you must regenerate the LTI boot files which you created in steps 4.9 & 4.10:
    Click image for larger version.

Name:	image.png
Views:	43
Size:	582.0 KB
ID:	229104

    Here's MDT deployment in action, a time lapse video of sample deployment to a target device (Hyper-V virtual machine) using the exact Unattend.xml, CustomeSettings.ini and Bootstrap.ini files shown in this Part Six. Deployment is completely "hands-free", fully automated using these files. Boot the target device from LTI boot ISO or USB, everything else is automated:


    Note   Note
    All three files shown in this part (Unattend.xml, CustomSettings.ini, Bootstrap.ini) can be edited in Notepad or any other text editor. See Part Seven for how to add application installers in CustomSettings.ini to silently and automatically installed on target machine.

    Unattend.xml can be found in your %DeploymentShare%\Control\TaskSequnceID folder. Both INI files can be found in %DeploymentShare%\Control.

    Unattended.xml can in addition be edited in Windows System Image Manager, outside MDT.



    Microsoft Deployment Toolkit - Easy and Fast Windows Deployment Part Seven Microsoft Deployment Toolkit - Easy and Fast Windows Deployment
     Add applications

    7.1) You can add any application installer to MDT deployment task. Download the installer as an EXE file, and save it in a separate folder. For instance, for this sample I downloaded Chrome installer and instead of running it, I saved it in folder %userprofile%\Downloads\Chrome. The installer must be in its own folder, one application installer in one folder!
    Click image for larger version.

Name:	image.png
Views:	39
Size:	198.0 KB
ID:	229115

    7.2) To add application, in this sample Chrome, to deployment, in MDT Deployment Workbench select your deployment share, select Applications, select New application, and select Application with source files:
    Click image for larger version.

Name:	image.png
Views:	37
Size:	581.6 KB
ID:	229116

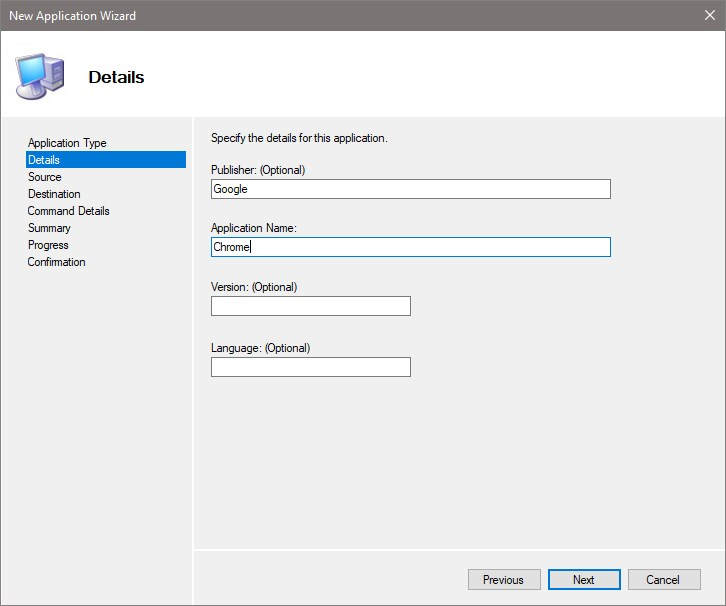

    7.3) Add Publisher (optional), Application name (required), Version (optional) and Language (optional):
    Name:  image.png
Views: 1940
Size:  108.1 KB

    7.4) In Source page of New Application Wizard, browse to and select the folder where you saved the application installer and click Next. Accept defaults in Destination page.

    7.5) In Command Details page, enter the command for silent install. If not using silent install, the deployment would stop to ask user interaction.

    In this example, as I am adding Chrome, the command for silent install is as follows:

    ChromeSetup.exe /silent /install
    Name:  image.png
Views: 1938
Size:  126.4 KB

    7.6) Chrome is now added to deployment. For this example, I also added Firefox, Opera and VLC Player. Silent install command lines for these are as follows:

    Firefox:

    Firefox Setup 66.0.2.exe -ms
    (Firefox installer name contains its version number. Change it according to version you downloaded.)

    Opera:

    OperaSetup.exe /SILENT /allusers=yes /launchopera=no /setdefaultbrowser=no

    VLC Player:

    vlc-3.0.6-win64.exe /L=1033 /S /NCRC
    (Like Firefox, installer name contains version number, change it according to version you downloaded. L switch is language, 1033 is English.)

    Unfortunately, it would be impossible for me to list silent installation commands for every available application, above only a few samples. Bing is your friend in this task, just search for APPNAME Silent Install

    7.7) I also added Microsoft Office to deployment image. I downloaded the Office Deployment Tool (ODT) and created an XLM script with Office Customization Tool (OCT) to download Office from Microsoft cloud (CDN, Content Delivery Network) as told in this tutorial: Custom install or change Microsoft Office with Office Deployment Tool | Tutorials

    I saved both ODT setup file Setup.exe and OCT configuration file Configuration.xml to folder Office:
    Click image for larger version.

Name:	image.png
Views:	33
Size:	186.7 KB
ID:	229120

    The Office configuration file Configuration.xml used in this example:
    Code:
    <Configuration ID="1e03e53a-9a5d-41d4-91eb-1353c6790ff4">
      <Add OfficeClientEdition="32" Channel="Insiders" ForceUpgrade="TRUE">
        <Product ID="O365ProPlusRetail">
          <Language ID="en-us" />
          <Language ID="fi-fi" />
          <Language ID="sv-se" />
          <Language ID="de-de" />
        </Product>
      </Add>
      <Property Name="SharedComputerLicensing" Value="0" />
      <Property Name="PinIconsToTaskbar" Value="FALSE" />
      <Property Name="SCLCacheOverride" Value="0" />
      <Updates Enabled="TRUE" />
      <Display Level="Full" AcceptEULA="TRUE" />
      <Logging Level="Off" />
    </Configuration>

    It downloads and installs Office Pro Plus, latest version, in US English, and adds Office language packs for Finnish, Swedish and German.

    7.8) To add Office as New Application to MDT Deployment Workbench, follow the steps 7.2 through 7.5. The install command to add in step 7.5 is as follows:

    setup.exe /configure Configuration.xml

    Whereas Chrome, Firefox, Opera and VLC Player where added as silent installers in this example deployment, Office will be first downloaded from Microsoft CDN on target device using the configuration file provided. This adds a few minutes to deployment because target device must download almost 4 GB of data, but it is a very easy and convenient way to install Office

    If you have an Office ISO, you can use it as a source when adding new application. Mount the ISO and use it as source. In that case, the install command would be simply setup.exe

    7.9) All applications added:
    Click image for larger version.

Name:	image.png
Views:	36
Size:	185.6 KB
ID:	229122


    7.10) When deployment task is now run on target device, you can choose which applications will be installed:
    Click image for larger version.

Name:	image.png
Views:	42
Size:	156.9 KB
ID:	229124

    7.11) If you want to do an automated deployment as told in Part Six, you can modify the CustomSettings.ini (step 6.6). Add following lines to INI file:

    Code:
    SkipApplications=YES
    Applications001={a6a564c5-4c2c-41e8-9f68-c13d9b63ecd8}
    SkipApplication=YES means that Deployment Wizard when run on target device does not ask which applications to install. In following lines we will then add applications with their GUID, first application being Applications001=GUID, next one Applications002=GUID and so on.

    The application GUID can be found in its properties. Select Applications in your deployment share, right click an application on middle pane, select Properties. The GUID can be seen in General tab:
    Click image for larger version.

Name:	image.png
Views:	42
Size:	502.1 KB
ID:	229126

    In my example case, adding Chrome, Firefox, Opera, VLC and Office to be installed automatically, that section of CustomSettings.ini looks like this:

    Code:
    SkipApplications=YES
    Applications001={a6a564c5-4c2c-41e8-9f68-c13d9b63ecd8}
    Applications002={38b1a9d8-c8b6-405b-b40d-27794c9c3a99}
    Applications003={9ba3ae8a-856b-4f39-9a69-95f307309d3a}
    Applications004={32ce5ae2-ffa7-4770-a6ff-4b8c6958dee8}
    Applications005={afde4f64-9e61-4c2f-958f-b553ff90f2d2}



    Microsoft Deployment Toolkit - Easy and Fast Windows Deployment Part Eight Microsoft Deployment Toolkit - Easy and Fast Windows Deployment
     Add drivers

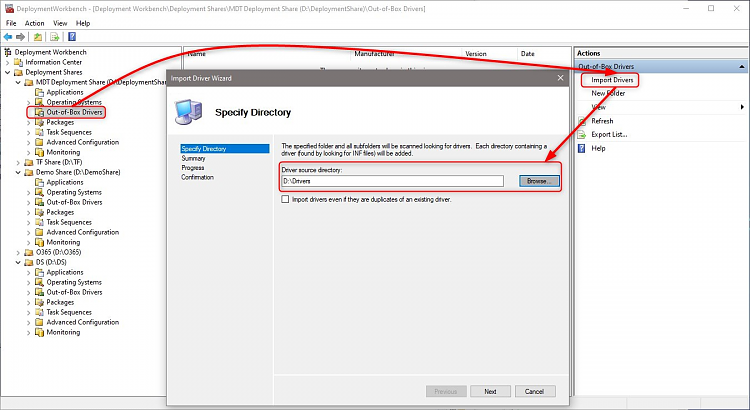

    8.1) To add hardware drivers, select your deployment share, select Out-of-Box Drivers, select Import Drivers, browse to and select the folder containing drivers you'd like to add:
    Click image for larger version.

Name:	image.png
Views:	40
Size:	455.6 KB
ID:	229127

    8.2) As I want to wipe the hard disk on an HP laptop and deploy a new custom image, I first exported its current, working drivers as told in this tutorial: DISM - Add or Remove Drivers on an Offline Image | Tutorials (Part Two).

    I then imported them to my deployment share:
    Click image for larger version.

Name:	image.png
Views:	47
Size:	947.6 KB
ID:	229129

    8.3) When deploying to that laptop with MDT, it will be somewhat faster because instead of Windows Setup searching and downloading drivers, they already exist.

    In my opinion, adding drivers to deployment image is mostly unnecessary. Windows 10 is extremely good in finding and installing correct drivers, and it does really not take too much time. I recommend adding drivers to MDT only if you have a very specific device which needs a specific driver.



    Microsoft Deployment Toolkit - Easy and Fast Windows Deployment Part Nine Microsoft Deployment Toolkit - Easy and Fast Windows Deployment
     Capture custom image

    Note   Note
    In Part 6 we automated the deployment task by editing the CustomSettings.ini file. If left as-is, when we run the MDT script on our target device, it will automatically start a new OS deployment. Instead of capturing a custom image or upgrading target device on the reference machine, its OS would be completely wiped and replaced with a clean install.

    We must edit the CustomSettings.ini every time before Capture task as shown in this Part Nine and Upgrade task shown in Part Ten are run on target devices.

    The following code shows all the edits I made just now to CustomSettings.ini we edited in Part Six. I changed two YES values to NO in two lines (blue highlight). Also, I added a semicolon followed by a space to the beginning of the TaskSequence line (red), and to every Applications00X line to avoid unnecessary reinstall of applications.

    A Semicolon flags its line as a remark or comment, which is then ignored when the task is run:
    Code:
    [Default]
    OSInstall=Y
    _SMSTSORGNAME=TenForums
    SkipAdminPassword=YES
    SkipCapture=NO
    SkipApplications=YES
    ; Applications001={a6a564c5-4c2c-41e8-9f68-c13d9b63ecd8}
    ; Applications002={38b1a9d8-c8b6-405b-b40d-27794c9c3a99}
    ; Applications003={9ba3ae8a-856b-4f39-9a69-95f307309d3a}
    ; Applications004={32ce5ae2-ffa7-4770-a6ff-4b8c6958dee8}
    ; Applications005={afde4f64-9e61-4c2f-958f-b553ff90f2d2}
    SkipBDDWelcome=YES
    SkipTaskSequence=NO
    ; TaskSequenceID=DEP01
    SkipBitLocker=YES
    SkipComputerBackup=YES
    SkipComputerName=YES
    SkipDeploymentType=YES
    SkipDomainMembership=YES
    SkipUserData=YES
    SkipLocaleSelection=YES
    SkipProductKey=YES
    SkipSummary=YES
    SkipTimeZone=YES
    EventService=http://AGM-W10PRO03:9800

    With these changes, automatic deployment is not run, letting me to choose Upgrade or Capture task.
    9.1) In Parts Six & Seven, we customized the deployment image by modifying answer file, INI files and adding software. Personally, I prefer to capture a custom image, and then import the captured custom WIM file to MDT as OS as told in Part Three

    Start by installing Windows 10 on a reference machine. I always use Hyper-V virtual machines as reference machines, temporary virtual machines to build a custom image.

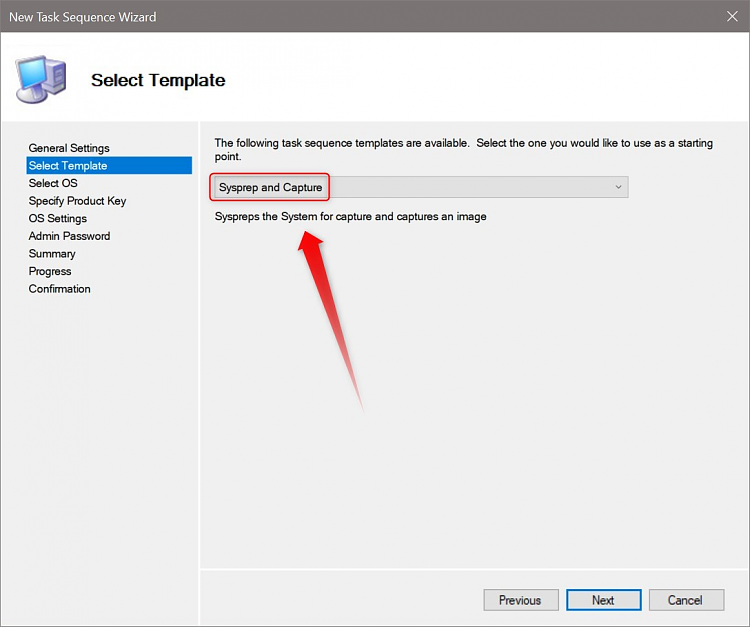

    9.2) While Windows ins installing on reference machine, create a new Task Sequence as in steps 4.1 through 4.8, this time selecting Sysprep and Capture from dropdown list in Select Template page of New Task Sequence Wizard:
    Click image for larger version.

Name:	image.png
Views:	35
Size:	238.4 KB
ID:	229219

    9.3) When reference machine has finished Windows Setup and boots to OOBE showing region and language selection screen, press CTRL + SHIFT + F3 to restart in Audit Mode:

    Name:  image.png
Views: 1937
Size:  190.6 KB

    Windows boots to Audit Mode using default built-in admin credentials.

    9.4) Customize Windows as you'd prefer, install software, change settings. Notice that as reference machine is at this point not activated, personalization settings cannot be changed. Workaround: to change theme and colors, copy an earlier exported Windows Theme file to reference machine and apply theme.

    9.5) When ready, do not sign out / restart / shut down. Still in Audit Mode, signed in as built-in admin, open File Explorer on reference machine, select This PC (#1 in screenshot), select Computer tab (#2), and select Map network drive (#3). Enter the network path to your deployment share (\\server\share, #4), unselect Reconnect at sign-in (#5), select Connect using different credentials (#6), and finally click Finish (#7):
    Click image for larger version.

Name:	image.png
Views:	43
Size:	344.5 KB
ID:	229133

    Tutorial: Map Network Drive in Windows 10 | Tutorials

    9.6) Enter network credentials to access your deployment share on MDT Workbench machine:
    Name:  image.png
Views: 1932
Size:  32.4 KB

    9.7) Open mapped deployment share in File Explorer, browse to Scripts folder and run script LiteTouch.vbs:
    Click image for larger version.

Name:	image.png
Views:	34
Size:	187.7 KB
ID:	229215

    Be sure to run the VBScript file (.vbs), not the Windows Script File (.wsf)! Small but important difference.

    9.8) The script runs Deployment Wizard on reference machine. Sign in to deployment share on MDT Workbench machine as in step 5.3, and when prompted, select your new capture Task Sequence:
    Click image for larger version.

Name:	image.png
Views:	34
Size:	133.9 KB
ID:	229221

    9.9) Click Next and start capture process. Reference machine will run Sysprep:
    Name:  image.png
Views: 1932
Size:  50.4 KB

    9.10) After Sysprep, reference machine restarts to WinPE to capture the WIM image:
    Name:  image.png
Views: 1931
Size:  88.0 KB

    9.11) If capture process has errors or warnings, check details to see if there's reason to be concerned. Warnings are usually not serious, like these two warning I got now, Image will be OK:
    Name:  image.png
Views: 1932
Size:  152.9 KB

    9.12) By default, you'll find captured images in Captures folder in your deployment share. You can now import it as OS to deployment share, selecting Custom Image File as told in step 3.4, and deploy it to other machines.



    Microsoft Deployment Toolkit - Easy and Fast Windows Deployment Part Ten Microsoft Deployment Toolkit - Easy and Fast Windows Deployment
     Upgrade target device

    10.1) I want to upgrade some physical and virtual machines to latest Windows Insider Skip Ahead build, build 18865 when writing this. To do that, I must first mount the build 18865 ISO and import it to deployment share as told in Part Three.

    10.2) Next step is to create a new Upgrade Task Sequence as told in Part Four, this time selecting Standard Client Upgrade Task Sequence in Select Template page, thereafter select the Insider build 18865:
    Name:  image.png
Views: 1934
Size:  137.0 KB

    Name:  image.png
Views: 1933
Size:  131.1 KB

    10.3) On target machine, sign out from your current account and sign in to built-in admin account. Map the deployment share on MDT Workbench machine as told in steps 9.5 and 9.6.

    10.4) Run LiteTouch.vbs script as told in step 9.7, selecting the upgrade task:
    Click image for larger version.

Name:	image.png
Views:	38
Size:	106.7 KB
ID:	229239

    10.5) The upgrade starts:

    Name:  image.png
Views: 1932
Size:  59.4 KB

    Be patient, the progress bar remains still quite long, upgrade can take anything from 15 minutes to over an hour, depending on your hardware.

    That's it!

    Kari

  1. Posts : 247
    Server 2012 R2 w/SCCM and Windows 10 x64 v1803
       #1

    Hi Kari

    Once again another great tutorial! I started stepping through it and had a couple comments so far

    1. re: "To download a WIM-based ISO, open Windows Media Creation Tool page in browser, press F12"
    I happened to use Chrome and couldn't find the Emulation tab. After checking other browsers, looks like it must use IE or MS Edge browser for this step to see an Emulation tab


    2. MDT download and Win 10 v1903 compatibility?

    MS released Win 10 v1903 since you posted. Accordingly, when a user clicks your links they get v1903 versions for Media Creation Tool and ADK. Yet MS hasn't updated the MDT download yet. It still downloads MDT v8456 which only states support for Win 10 v1809. I've seen people ask in MS Technet forums if its also Win 10 v1903 compatible with no official answer (whether a new MDT is coming or MS just need update MDT release notes to include the latest v1903)
      My ComputerSystem Spec

  2. Kari's Avatar
    Posts : 16,054
    Windows 10 Pro
    Thread Starter
       #2

    First, sorry for delayed reply.

    ComputerGeek said: View Post
    1. re: "To download a WIM-based ISO, open Windows Media Creation Tool page in browser, press F12"
    I happened to use Chrome and couldn't find the Emulation tab. After checking other browsers, looks like it must use IE or MS Edge browser for this step to see an Emulation tab
    Full instructions to get WIM-based ISO, see Option Three in this tutorial: Download Windows 10 ISO File


    ComputerGeek said: View Post
    2. MDT download and Win 10 v1903 compatibility?

    MS released Win 10 v1903 since you posted. Accordingly, when a user clicks your links they get v1903 versions for Media Creation Tool and ADK. Yet MS hasn't updated the MDT download yet. It still downloads MDT v8456 which only states support for Win 10 v1809. I've seen people ask in MS Technet forums if its also Win 10 v1903 compatible with no official answer (whether a new MDT is coming or MS just need update MDT release notes to include the latest v1903)
    No problems. MDT works with Windows 7 and later operating systems, all versions.

    Kari
      My ComputerSystem Spec




Tutorial Categories

Microsoft Deployment Toolkit - Easy and Fast Windows Deployment Tutorial Index Network & Sharing Instalation and Upgrade Browsers and Email General Tips Gaming Customization Apps and Features Virtualization BSOD System Security User Accounts Hardware and Drivers Updates and Activation Backup and Restore Performance and Maintenance Mixed Reality Phone


Related Threads
When I check to install WICD in the wizard of "Windows Assessment and Deployment toolkit" there are 4 other options checked. And when I just check to install Windows Configuration Designer(WCD) not WICD, there are no option checkedin the wizard. ...
The UWP can be deployed to the Local Machine; the Simulator and the device Lumia 950. The Hyper-V shows that the emulators are running. But it cannot be deployed to the emulators. Here are the error messages from two different version of...
I am looking for a good and very reliable deployment software....which one will you suggest me? Thanks
Windows 10 Deployment in Installation and Upgrade
I wonder if you can help me with deploying Windows 10, I have a few questions; Can I deploy W10 like I currently do via WDS 2008? What software can I use to create a customized W10 DVD that allows me to alter/disable some of the standard...
Windows 10 Deployment in Installation and Upgrade
Hi guys, I want to migrate windows 7, 8 & 8.1 to windows 10 across 300 PCs through automated process in badges. Please guide me.
Our Sites
Site Links
About Us
Windows 10 Forums is an independent web site and has not been authorized, sponsored, or otherwise approved by Microsoft Corporation. "Windows 10" and related materials are trademarks of Microsoft Corp.

© Designer Media Ltd
All times are GMT -5. The time now is 21:35.
Find Us
