    How to Share Files and Folders Over a Network in Windows 10
    Published by Category: Network & Sharing
    02 Dec 2018
    Designer Media Ltd


    How to Share Files and Folders Over a Network in Windows 10


    File sharing over a network in Windows 10 allows you to share files and folders on your computer with other users over a private or public network in your workgroup or domain.

    You can set the permissions of a shared file or folder to allow groups or users to have a read only, change (modify), or full control access rights.

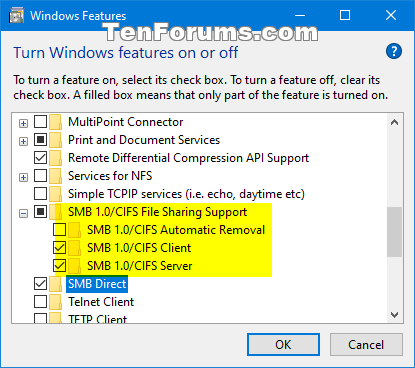

    Starting with Windows 10 version 1803, some features of file sharing over a network have changed, including the removal of HomeGroup. However, even though HomeGroup has been removed, you can still share printers and files by using features that are built into Windows 10.

    This tutorial will show you how to setup and share files and folders over a network in Windows 10.

    You will only be able to share files and folders that are on NTFS and ReFS volumes.

    When you share a folder, all files in the folder will be shared.


     CONTENTS:

    • Option One: Set Up File Sharing on a Windows 10 PC
    • Option Two: Share File or Folder using "Give access to" Context Menu
    • Option Three: Stop Sharing File or Folder using "Give access to" Context Menu
    • Option Four: Share File or Folder using Share tab in File Explorer
    • Option Five: Stop Sharing File or Folder using Share tab in File Explorer
    • Option Six: Share Folder using Sharing Properties
    • Option Seven: Share Folder or Drive using Advanced Sharing
    • Option Eight: Stop Sharing Folder or Drive using Advanced Sharing
    • Option Nine: Stop Sharing Folder or Drive using Shared Folders MMC Snap-in


    EXAMPLE: File sharing over a network in Windows 10
    Name:  Network_file_sharing-1.jpg
Views: 38557
Size:  45.6 KB Name:  Network_file_sharing-2.jpg
Views: 38511
Size:  57.8 KB






    Share Files and Folders Over a Network in Windows 10 OPTION ONE Share Files and Folders Over a Network in Windows 10
    Set Up File Sharing on a Windows 10 PC


    This option needs to be done on each Windows 10 PC you want to be able to share files and folders between before doing any of the other options below.

    1. Make sure each computer on the network has a different computer name.

    2. Make sure Use Sharing Wizard is checked in Folder Options > View tab. (see screenshot below)

    Name:  Use_Sharing_Wizard.png
Views: 36954
Size:  34.8 KB

    3. Make sure the Function Discovery Resource Publication and Function Discovery Provider Host services are started (running) and their startup type is set to automatic. (see screenshots below)

    Name:  Function_Discovery_Resource_Publication.png
Views: 38448
Size:  22.7 KB Name:  Function_Discovery_Provider_Host.png
Views: 38331
Size:  22.2 KB

    4. Turn on network discovery for your private or public network.

    5. Turn on File and Printer Sharing for your private or public network.

    6. Turn on Public folder sharing if you want to share items in the C:\Users\Public folder.

    7. Turn on or off password protected sharing for what you want.

    8. Select the file sharing connections encryption level you want to use.

    When password protected sharing is turned on, only people who have a user account and password on your computer can access shared files, printers attached to your computer, and the Public folders.

    If you want to give access to shared files to other people without requiring them having an account and password on your computer, then turn off password protected sharing.


    Name:  Advanced_Sharing_settings-2.jpg
Views: 38443
Size:  50.4 KB Name:  Advanced_Sharing_settings-3.jpg
Views: 38460
Size:  54.2 KB Name:  Advanced_Sharing_settings-1.jpg
Views: 38472
Size:  71.9 KB






    Share Files and Folders Over a Network in Windows 10 OPTION TWO Share Files and Folders Over a Network in Windows 10
    Share File or Folder using "Give access to" Context Menu

    1. Open File Explorer (Win+E).

    2. Navigate to and select one or more file, folder, and/or library you want to share, right click or press and hold on the selected item(s), click/tap on Give access to, and click/tap on Specific people. (see screenshot below)

    Name:  Give_access_to.jpg
Views: 38499
Size:  56.9 KB

    3. You will now see the people that you are currently sharing this with and their permission level. (see screenshot below)

    The owner will be listed by default.

    Name:  Specific_people-1.png
Views: 38548
Size:  22.1 KB

    4. Select a name of a user account on your PC or everyone you want to share with. (see screenshot below)

    Name:  Specific_people-2.png
Views: 38534
Size:  26.7 KB

    5. Click/tap on Add. (see screenshot below)

    Name:  Specific_people-3.png
Views: 38515
Size:  26.7 KB

    6. Select (check) the permission level you want for this user or everyone. (see screenshot below)

    If you want to stop sharing with a specific user, select the user's name, and click/tap on Remove in their permission level.

    Name:  Specific_people-4.png
Views: 38566
Size:  28.0 KB

    7. When finished adding people to share with, click/tap on the Share button at the bottom. (see screenshot below)

    Name:  Specific_people-5.png
Views: 38542
Size:  26.5 KB

    8. Click/tap on Done. (see screenshot below)

    Name:  Specific_people-6.png
Views: 38537
Size:  27.7 KB






    Share Files and Folders Over a Network in Windows 10 OPTION THREE Share Files and Folders Over a Network in Windows 10
    Stop Sharing File or Folder using "Give access to" Context Menu


    This option will have no effect on people you choose to share with in advanced sharing from Option Eight.

    1. Open File Explorer (Win+E).

    2. Navigate to and select one or more file, folder, and/or library you want to stop sharing with everyone, right click or press and hold on the selected item(s), click/tap on Give access to, and click/tap on Remove access. (see screenshot below)

    Name:  Give_access_to_Remove_access.jpg
Views: 38458
Size:  56.7 KB






    Share Files and Folders Over a Network in Windows 10 OPTION FOUR Share Files and Folders Over a Network in Windows 10
    Share File or Folder using Share tab in File Explorer

    1. Open File Explorer (Win+E).

    2. Navigate to and select one or more file, folder, and/or library you want to share, click/tap on the Share tab, and click/tap on Specific people in the "Share with" section of the ribbon. (see screenshot below)

    Name:  Share_tab.jpg
Views: 38464
Size:  43.8 KB

    3. You will now see the people that you are currently sharing this with and their permission level. (see screenshot below)

    The owner will be listed by default.

    Name:  Specific_people-1.png
Views: 38548
Size:  22.1 KB

    4. Select a name of a user account on your PC or everyone you want to share with. (see screenshot below)

    Name:  Specific_people-2.png
Views: 38534
Size:  26.7 KB

    5. Click/tap on Add. (see screenshot below)

    Name:  Specific_people-3.png
Views: 38515
Size:  26.7 KB

    6. Select (check) the permission level you want for this user or everyone. (see screenshot below)

    If you want to stop sharing with a specific user, select the user's name, and click/tap on Remove in their permission level.

    Name:  Specific_people-4.png
Views: 38566
Size:  28.0 KB

    7. When finished adding people to share with, click/tap on the Share button at the bottom. (see screenshot below)

    Name:  Specific_people-5.png
Views: 38542
Size:  26.5 KB

    8. Click/tap on Done. (see screenshot below)

    Name:  Specific_people-6.png
Views: 38537
Size:  27.7 KB






    Share Files and Folders Over a Network in Windows 10 OPTION FIVE Share Files and Folders Over a Network in Windows 10
    Stop Sharing File or Folder using Share tab in File Explorer


    This option will have no effect on people you choose to share with in advanced sharing from Option Eight.

    1. Open File Explorer (Win+E).

    2. Navigate to and select one or more file, folder, and/or library you want to stop sharing with everyone, click/tap on the Share tab, and click/tap on Remove access in the "Share with" section of the ribbon. (see screenshot below)

    Name:  Share_tab_Remove_access.jpg
Views: 38431
Size:  44.2 KB






    Share Files and Folders Over a Network in Windows 10 OPTION SIX Share Files and Folders Over a Network in Windows 10
    Share Folder using Sharing Properties

    1. Open File Explorer (Win+E).

    2. Navigate to and right click or press and hold on the folder you want to share, and click/tap on Properties. (see screenshot below)

    Name:  Sharing_properties_tab-1.jpg
Views: 38555
Size:  63.7 KB

    3. Click/tap on the Sharing tab, and click/tap on the Share button. (see screenshot below)

    Name:  Sharing_properties_tab-2.png
Views: 38610
Size:  30.0 KB

    4. You will now see the people that you are currently sharing this with and their permission level. (see screenshot below)

    The owner will be listed by default.

    Name:  Specific_people-1.png
Views: 38548
Size:  22.1 KB

    5. Select a name of a user account on your PC or everyone you want to share with. (see screenshot below)

    Name:  Specific_people-2.png
Views: 38534
Size:  26.7 KB

    6. Click/tap on Add. (see screenshot below)

    Name:  Specific_people-3.png
Views: 38515
Size:  26.7 KB

    7. Select (check) the permission level you want for this user or everyone. (see screenshot below)

    If you want to stop sharing with a specific user, select the user's name, and click/tap on Remove in their permission level.

    Name:  Specific_people-4.png
Views: 38566
Size:  28.0 KB

    8. When finished adding people to share with, click/tap on the Share button at the bottom. (see screenshot below)

    Name:  Specific_people-5.png
Views: 38542
Size:  26.5 KB

    9. Click/tap on Done. (see screenshot below)

    Name:  Specific_people-6.png
Views: 38537
Size:  27.7 KB

    10. Click/tap on Close. (see screenshot below)

    Name:  Sharing_properties_tab-3.png
Views: 38479
Size:  28.5 KB






    Share Files and Folders Over a Network in Windows 10 OPTION SEVEN Share Files and Folders Over a Network in Windows 10
    Share Folder or Drive using Advanced Sharing


    You must be signed in as an administrator to be able to do this option.

    1. Open File Explorer (Win+E).

    2. Navigate to and right click or press and hold on the folder or drive you want to share, and click/tap on Properties. (see screenshot below)

    Name:  Sharing_properties_tab-1.jpg
Views: 38555
Size:  63.7 KB

    3. Click/tap on the Sharing tab, and click/tap on the Advanced Sharing button. (see screenshot below)

    Name:  Advanced_Sharing-1.png
Views: 38519
Size:  30.0 KB

    4. Perform the following actions: (see screenshot below)

    A) Check Share this folder.

    B) If you want a different share name, then you can change it.

    C) Limit the number of simultaneous users to the number you want. The default is 20.

    D) Add any comments you want for this share.

    E) Click/tap on the Permissions button.

    Name:  Advanced_Sharing-2.png
Views: 38461
Size:  25.1 KB

    5. Select a group or user, select (check or uncheck) the permissions (allow or deny) you want for this group or user, and click/tap on OK when finished. (see screenshots below)

    Everyone is allowed to read this share by default.

    Name:  Advanced_Sharing-3.png
Views: 38434
Size:  24.6 KB Name:  Advanced_Sharing-4.png
Views: 38473
Size:  16.3 KB

    Note   Note
    If you want to stop sharing with a group or user, select the user or group, and click/tap on the Remove button.

    If you want to add a user or group to share this folder or drive with, click/tap on the Add button, and perform the following steps:

    A) Click/tap on the Advanced button. (see screenshot below)

    Name:  Advanced_Sharing_add-1.png
Views: 38445
Size:  20.0 KB

    B) Click/tap on the Find Now button, select a user or group you want to share with, and click/tap on OK. (see screenshot below)

    Name:  Advanced_Sharing_add-2.png
Views: 38426
Size:  151.6 KB

    C) Click/tap on OK. (see screenshot below)

    Name:  Advanced_Sharing_add-3.png
Views: 38451
Size:  20.3 KB

    6. Click/tap on OK. (see screenshot below)

    Name:  Advanced_Sharing-5.png
Views: 38458
Size:  17.8 KB

    7. Click/tap on Close. (see screenshot below)

    Name:  Advanced_Sharing-6.png
Views: 38465
Size:  26.4 KB






    Share Files and Folders Over a Network in Windows 10 OPTION EIGHT Share Files and Folders Over a Network in Windows 10
    Stop Sharing Folder or Drive using Advanced Sharing


    You must be signed in as an administrator to be able to do this option.

    This option only affects what you shared in Advanced Sharing from Option Seven, and will have no effect on people you choose to share with from Option Two, Option Four, and Option Six.

    1. Open File Explorer (Win+E).

    2. Navigate to and right click or press and hold on the folder or drive you want to stop sharing with everyone, and click/tap on Properties. (see screenshot below)

    Name:  Sharing_properties_tab-1.jpg
Views: 38555
Size:  63.7 KB

    3. Click/tap on the Sharing tab, and click/tap on the Advanced Sharing button. (see screenshot below)

    Name:  Advanced_Sharing-1.png
Views: 38519
Size:  30.0 KB

    4. Uncheck Share this folder, and click/tap on OK. (see screenshot below)

    Name:  Advanced_Sharing_unsharing.png
Views: 38460
Size:  18.6 KB

    5. If prompted, click/tap on Yes to confirm. (see screenshot below)

    Name:  Advanced_Sharing_unsharing-2.png
Views: 38471
Size:  16.4 KB

    6. Click/tap on Close. (see screenshot below)

    Name:  Sharing_properties_tab-3.png
Views: 38479
Size:  28.5 KB






    Share Files and Folders Over a Network in Windows 10 OPTION NINE Share Files and Folders Over a Network in Windows 10
    Stop Sharing Folder or Drive using Shared Folders MMC Snap-in


    You must be signed in as an administrator to be able to do this option.

    This option will have no effect on people you choose to share with from Option Two, Option Four, and Option Six.

    This option is the same as doing Option Eight, and affects what you shared in Advanced Sharing from Option Seven.

    1. Press the Win+R keys to open Run, type either compmgmt.msc (Computer Management) or fsmgmt.msc (Shared Folders) into Run, and click/tap on OK.

    2. Expand open Shared Folders in the left pane, click/tap on Shares, right click on the share name (folder or drive) without $ at the end of the name you want to stop sharing, and click/tap on Stop Sharing. (see screenshots below)

    Name:  compmgmt.msc.jpg
Views: 38364
Size:  65.2 KB Name:  fsmgmt.msc.jpg
Views: 38361
Size:  63.8 KB

    3. Click/tap on Yes to confirm. (see screenshot below)

    Name:  confirm.png
Views: 38429
Size:  10.0 KB

    4. When finished, you can now close Computer Management or Shared Folders if you like.


    That's it,
    Shawn


    Related Tutorials



  1. sml156's Avatar
    Posts : 672
    Microsoft Windows 10 Pro 64-bit
       07 Jun 2018 #1

    Hi Brink great tutorial as usual.

    I could not help but notice in step 1 you say to enable " Function Discovery Resource Publication "

    In most of the posts I have read on Ten Forums they also suggest to enable " Function Discovery Provider Host "

    Are you suggesting that Function Discovery Provider Host is not necessary.



    Click image for larger version.

Name:	providor host.png
Views:	215
Size:	53.1 KB
ID:	191523
      My ComputerSystem Spec

  2. Brink's Avatar
    Posts : 34,374
    64-bit Windows 10 Pro build 18290
    Thread Starter
       07 Jun 2018 #2

    Hey @sml156,

    Correct, that service should be running as well and normally will be. It is worth checking to make sure though.

    The Function Discovery Resource Publication service has been the one so far causing computers to not be visible in Windows 10 v1803.
      My ComputersSystem Spec

  3. magilla's Avatar
    Posts : 2,039
    Windows 10 and windows insider
       30 Jun 2018 #3

    @Brink, I have no problem sharing all my windows 10 computers, files, folders. But I can no longer share my windows 7 computers with my windows 10 computers. I can view the win 7 computers on win 10 computers, but every time I try to open folders or files that I have given permission, I am blocked saying I don’t have permission. This has been since the latest iteration of win 10 that took out HomeGroup. Can you tell me, or point to directive that will give me info on what I need to do?
      My ComputerSystem Spec

  4. Brink's Avatar
    Posts : 34,374
    64-bit Windows 10 Pro build 18290
    Thread Starter
       30 Jun 2018 #4

    Hello Mike,

    I assume that you have already double checked everything in Option One on the W7 computers.

    You might also test having SMB1 enabled on the W7 computers to see if you will have access afterwards.

    Enable or Disable SMB1 File Sharing Protocol in Windows | Windows 10 Tutorials

    Have you already tested with password protected sharing turned off on a W7 computer to see if it may allows access afterwards?
      My ComputersSystem Spec

  5.    30 Jun 2018 #5

    @Brink Hello, I have registered just because of this tutorial and to ask questions. I just don't understand how to make it work.

    I have a combination of 4 Home PCs and Laptops(LAN+WiFi) and I want to have 1 folder on each of them that's shared among the 4 so that we can easily share files. Previous using HomeGroup it was ridiculously simple but now that it's gone I'm at a loss as to how to make it work.

    So I go to the folder and press Share and I can only give Read/Write to Everyone, which I don't want to do I just want to give access to the other 3 PCs so how do I do that? I have tried to go to Advanced Sharing, then Permissions, Add and Locations but that only shows me my own PC in the list and none of the rest.
      My ComputerSystem Spec

  6. Brink's Avatar
    Posts : 34,374
    64-bit Windows 10 Pro build 18290
    Thread Starter
       30 Jun 2018 #6

    Hello UnsharedMan, and welcome to Ten Forums.

    The problem is file sharing will only share a folder on one PC with the others.

    For what you want, it may be better to use a NAS to share files from with all or specific PCs on the network.

    Another option would be to use OneDrive. You could share files/folders from OneDrive online to the PCs.

    Share OneDrive Files and Folders | Windows 10 Tutorials
      My ComputersSystem Spec

  7.    30 Jun 2018 #7

    Brink said: View Post
    Hello UnsharedMan, and welcome to Ten Forums. The problem is file sharing will only share a folder on one PC with the others.
    For what you want, it may be better to use a NAS to share files from with all or specific PCs on the network.
    Thanks.

    Perhaps I should clarify. A NAS would mean 1 place to store and share all files to all computers, that's not what I'm trying to do.

    I want to Share a folder on my PC with other PCs on my network but the only option I can see is giving Read/Write permission to Everyone when what I want to do is share a folder Read/Write access that's in Desktop-A/Shark with Desktop-B/Octopus and not any other computer I connect to the network. How can I add permission to an account from a different PC on the network?

    (Shark and Octopus being made up user accounts on respective PCs)
      My ComputerSystem Spec

  8.    01 Jul 2018 #8

    UnsharedMan said: View Post
    Thanks.

    Perhaps I should clarify. A NAS would mean 1 place to store and share all files to all computers, that's not what I'm trying to do.

    I want to Share a folder on my PC with other PCs on my network but the only option I can see is giving Read/Write permission to Everyone when what I want to do is share a folder Read/Write access that's in Desktop-A/Shark with Desktop-B/Octopus and not any other computer I connect to the network. How can I add permission to an account from a different PC on the network?

    (Shark and Octopus being made up user accounts on respective PCs)
    Give the shared folder on A a password. Give password to user Octopus but nobody else.
      My ComputerSystem Spec

  9.    01 Jul 2018 #9

    cereberus said: View Post
    Give the shared folder on A a password. Give password to user Octopus but nobody else.
    This has given me an idea, is it possible to create a user on each PC just for the purpose of sharing and then saving the login details in such a way that it won't require inputting each time a PC wants access?
      My ComputerSystem Spec



Page 1 of 2 12 LastLast

Tutorial Categories

Share Files and Folders Over a Network in Windows 10 Tutorial Index Network & Sharing Instalation and Upgrade Browsers and Email General Tips Gaming Customization Apps and Features Virtualization BSOD System Security User Accounts Hardware and Drivers Updates and Activation Backup and Restore Performance and Maintenance Mixed Reality Phone


Related Threads
Hi all, After upgrading to 1803 on all my computers, I can't seem to figure out a way to share files selectively between the PCs. We were using HomeGroup to contain the files to specific PCs, thus, requiring a "password." However, we haven't...
Unable to share files over Network in Network and Sharing
Unable to share files over Network I'm wondering if the requirement to log in is what's preventing me sharing on my network - on which 4 other laptops running Windows 10 are all happily communicating with the same sharing permissions as I've set...
I have a Win10 PC on my network with some shared directories, the "server". The share I use most has 23,000 files in 600 folders. When I access that share from a Win 7 PC it opens pretty much instantly, but to open it from my Win 10 PC takes for...
Network & Sharing Share OneDrive Files and Folders in Tutorials
How to Share Your OneDrive Files and Folders You can easily save your files to OneDrive and get to them from any device, like your Windows 10 PC, Windows 10 tablet, or Windows 10 Mobile phone. You can use OneDrive to share photos, Microsoft...
I have 2 laptop with windows 10 pro 64bits on my network how can I make it can send any files to each other ? http://www.nsaneforums.com/uploads/emoticons/default/sad.png P.s I 'm really newbie for this :( Btw,Thanks in advance :)

Tags for this Thread

Our Sites
Site Links
About Us
Windows 10 Forums is an independent web site and has not been authorized, sponsored, or otherwise approved by Microsoft Corporation. "Windows 10" and related materials are trademarks of Microsoft Corp.

Designer Media Ltd
All times are GMT -5. The time now is 11:07.
Find Us
