Win10XPE - Build Your Own Rescue Media [2]

Page 1 of 22 12311 ... LastLast
  1. Kyhi's Avatar
    Posts : 3,710
    Windows 3.1 to Windows 10
       #1

    Win10XPE - Build Your Own Rescue Media [2]


    The Original Topic Win10XPE - Build Your Own Rescue Media was Archived...

    Win10XPE will help you build a lightweight desktop Windows Preinstallation Environment (WinPE) for performing tasks or troubleshooting a Windows OS while it is Offline or for installing a Windows OS. It can be booted via USB drive, CD-ROM, or hard disk.

    Uses of WinXPE:

    •Set up your hard drive and prepare it for installing a Windows OS

    •Troubleshoot problems with the OS

    •Clone or Image a Windows system and later Restore it

    •Make changes to the Windows OS, when needed

    •Perform Recovery operations

    •Recover data from unbootable devices

    •And more…

    Win10XPE is a complete project based on Win10 Recovery Environment with many windows features added. Based on a new Concept, its main objective is to be simple, user-friendly and to be as fast as possible. Use the many XPE plugins available to customize your build to your taste.

    Win10XPE_2021-01-16.7z

    After efforts to try to support 20H2. There is no need to go further
    The result is not really reliable, depending on the components or applications used...

    In Windows 10 version 2009 - 20H2 ISOs, update packages were not added to winre.wim, as it is normally done!
    And so, the Versions between winre.wim and Install.wim do not match and that is the source of incompatibilities and problems.
    In addition to the C:\ drive in the registry instead of X:\ (already fixed)
    TechBench ISOs and Media Creation Tool ISOs are concerned, ISOs created via UUP files look good.

    Except for UUP ISOs, It is preferable to use Windows 10 version 2004 - 20H1 and forget Windows 10 version 2009 - 20H2

    In case the versions do not match, I have added a message to inform and ask to continue construction or not (No by default).

    ********************* These Batch Files Are Not Related To Win10XPE Project *********************

    IMAGE-HEALTH.7z > This Batch Program will run System File Checker and DISM Commands to repair an Online Windows Image and will search for the mounted setup media to use as a repair source

    IMAGE-PREP.7z > This Batch Program will Run Dism Commands and Prepare an Install.wim or Install.esd for Simple Dism Re-Deployment on Host PC..

    RAMDISK_HOST_BOOT_MENU_OPTION.7z > This Batch Program allows you to create a Ramdisk Partition for Bootable Media & Add that Bootable Partition to the Hosts Boot Menu Options (ie. Win10XPE, Windows Setup Media, Etc. ) Just Copy Contents of ISO to New Partition and Run Batch File to Create Boot Menu Entry
    Last edited by Kyhi; 15 Jul 2021 at 11:48.
      My Computer

  2. Kyhi's Avatar
    Posts : 3,710
    Windows 3.1 to Windows 10
    Thread Starter
       #2

    Win10XPE Updated Project Scripts


    Prior Posted Project Updates Merged into My Updated Win10XPE 2021.06.27

    Update: 06.27.2021
    Updated Project Win10XPE_2021-06-27

    Updated: 07.06.21
    Win10XPE\Projects\MyPlugins\Utilities\AOD_MegaCmd_XPE.Script
    Last edited by Kyhi; 15 Jul 2021 at 11:53.
      My Computer

  3. Kyhi's Avatar
    Posts : 3,710
    Windows 3.1 to Windows 10
    Thread Starter
       #3

    Win10XPE Project Start Guide


    1) You will need to allow a Windows Defender "Exception" for Win10XPE (ie. Project-Directory-Folder)
    I would suggest the same exception for any A/V software, in order to allow the Program Exe's to run
    without being blocked by your Host System....

    2) Download 7-ZIP 32-Bit x86 Installer or 7-ZIP 64-Bit x64 Installer to open the Project's File Archive

    3) Download The Win10XPE*.7z Project File(s)

    4) Extract The Archive File(s) To Your Data Drive ( D:\Win10XPE )

    5) Download and Mount Your Official Release Windows 10 Setup Media ISO
    It is recommended you copy the contents of the "Mounted" Setup Media ISO
    To its own Folder on your Data Drive ( D:\Win10_Source_Media ) although it is not required..

    Note:
    We do not actually support - MS Preview Releases - although most do test just fine..

    6) Browse To The Win10XPE Program Folder
    Read The > Win10XPE - How To Quick Start Guide

    7) Launch The Program Using Win10XPE.exe
    Win10XPE - Build Your Own Rescue Media [2]-screenshot00006.jpg

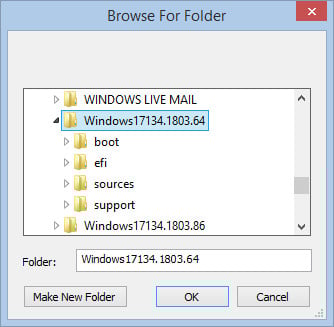

    8) Hit the Gray "Select the Windows 10 Source Folder" Box and point to the source media folder location (you created above) or to the drive letter of the Mounted Setup Media..
    Win10XPE - Build Your Own Rescue Media [2]-screenshot00008.jpg

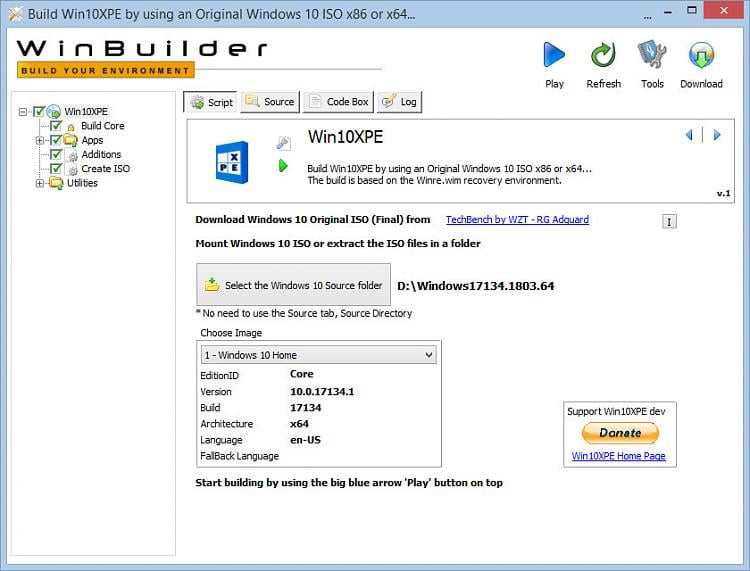

    After it finds the media that main screen will change now listing the Install Wim Information
    You can use the scroll box to select "Pro" or make any other index selection..
    Win10XPE - Build Your Own Rescue Media [2]-screenshot00009.jpg

    9) Then Hit the Big Blue Play Button....
    Win10XPE - Build Your Own Rescue Media [2]-screenshot00010.jpg

    Sit back, watch and relax as the program runs...

    10) It will download several programs and features (Please allow it to do so) these downloads are designed as a First Run Only and they are required for the Project to be able to run and also for the Apps program files to be encoded into project. Win10XPE will open your command prompt to extract files, download files and run program commands (Please allow it to do so)... After The Builder Finishes you will get an OK message..

    11) Browse to the folder location of Win10XPE and you will find your Custom ISO...
    Win10XPE - Build Your Own Rescue Media [2]-screenshot00012.jpg

    12) Mount the ISO as a virtual drive and Copy the Contents of the ISO to a Fat32 Formatted USB Stick...
    You will have to Set the Partition on the USB to Active in order to Boot the USB with a Legacy System..

    13) Boot your system from the USB Media you just created, to see what is possible with WinRE...

    **************************************************************************************************** ********
    So > Now that you have just created and Tested your FIRST PE BUILD with the Default Selections..

    It is time for you to Customize the Media with Your selections and Settings..

    You can change the App selections by checking or unchecking program checkboxes in the left pane..
    When you click the program name in the left pane - the program interface will display in the right pane.
    Each program interface has the ability to select shortcuts and may have other options you can choose from...
    Win10XPE - Build Your Own Rescue Media [2]-screenshot00025.jpg

    After you have made your App Selections and Set the Options on the Apps Interface -
    Hit the Big Blue Play Button to Build Your Customized Version of Win10XPE -
    Browse to the New ISO created -
    Mount the ISO
    Copy the contents of the ISO to a Fat32 Formatted USB Stick -
    Boot from the USB Media and Test your Selected Customization's..

    Enjoy !!
    Last edited by Kyhi; 15 Jul 2021 at 12:01.
      My Computer


  4. Posts : 279
    W10, W7
       #4

    eLPuSHeR said:
    Hello.
    Does anybody know how to update Total Commander plugin? I editted the script but it is still downloading v9.51 instead of v10.0
    Total Commander 10.0 released - 09.06 2021
    Download updated scripts -now better to use Kyhi's revised script see post #8
    Release Notes


    For IrfanView 4.58 already shared somewhere, but try
    Download updated scripts
    Release Notes
    Last edited by APT38; 19 Jul 2021 at 04:59.
      My Computer


  5. Posts : 279
    W10, W7
       #5

    @Sharp12

    re: PEBakery Github download links, I've messaged ied206 about it, but I believe he's on a long sabbatical,
    I could upload the latest and provide a link if you need it

    ****edit Github links now fixed
    Last edited by APT38; 03 Aug 2021 at 04:56.
      My Computer


  6. Posts : 11
    Winodws 10
       #6

    Kyhi said:
    Prior Posted Project Updates Merged into My Updated Win10XPE 2021.06.27

    Update: 06.27.2021
    Updated Project Win10XPE_2021-06-27

    Updated: 07.06.21
    Win10XPE\Projects\MyPlugins\Utilities\AOD_MegaCmd_XPE.Script
    @Kyhi Do you have a change log for this version? I have found those very helpful in each upgrade.
      My Computer



  7. Posts : 279
    W10, W7
       #7

    strongbad75 said:
    @Kyhi Do you have a change log for this version? I have found those very helpful in each upgrade.
    diff in Win10XPE_2021-01-16 and Win10XPE_2021-06-27
    compare shows script updates and file changes to

    PowerShell Core 7.1.3
    Everything 1.4.1.1005
    Acronis TrueImage 2021 bld 39184
    AOMEI Backupper 6.5
    AOMEI Partition Assistant 9.2
    Defraggler _file change 2.22.33.995 (exe file change)
    Macrium Reflect 8.0.5994
    CPU-Z 1.96
    HWinfo 7.04
    WizTree 4.01
    MPC-BE 1.5.8.6302
    VLC Media Player 3.0.16
    AnyDesk 6.3.2
    Google Chrome v91.0.4472.124
    Mozilla Firefox ESR 52.9.0
    NSudo 8.2
    Process Monitor 3.83
    WinNTSetup4 4.6.1.0 / 4.2.5.0
    Mega Optional Application Download 06.27.2021
    Accessibility_addfiles.script
    Config.script
    WoW64_AddFiles.txt
    Win10XPE.ini
      My Computer

  8. Kyhi's Avatar
    Posts : 3,710
    Windows 3.1 to Windows 10
    Thread Starter
       #8

    APT, I changed Total Commander Script to use a ProgramVer textbox - so no longer need to make all those script edits... But currently not an issue for mass update at this time

    Code:
    https://mega.nz/file/COhmlITb#F9frMNV1IeswEwsei0Hc_sOgtaQml1R6M2vuZ62JRQY
    https://mega.nz/file/7CwC0IpY#QXWZyZovItImXUBYXH0rzwRkgJ_93VZMbWnXiBAYX1M
      My Computer


  9. Posts : 11
    Winodws 10
       #9

    APT38 said:
    diff in Win10XPE_2021-01-16 and Win10XPE_2021-06-27
    compare shows script updates and file changes to

    PowerShell Core 7.1.3
    Everything 1.4.1.1005
    Acronis TrueImage 2021 bld 39184
    AOMEI Backupper 6.5
    AOMEI Partition Assistant 9.2
    Defraggler _file change 2.22.33.995 (exe file change)
    Macrium Reflect 8.0.5994
    CPU-Z 1.96
    HWinfo 7.04
    WizTree 4.01
    MPC-BE 1.5.8.6302
    VLC Media Player 3.0.16
    AnyDesk 6.3.2
    Google Chrome v91.0.4472.124
    Mozilla Firefox ESR 52.9.0
    NSudo 8.2
    Process Monitor 3.83
    WinNTSetup4 4.6.1.0 / 4.2.5.0
    Mega Optional Application Download 06.27.2021
    Accessibility_addfiles.script
    Config.script
    WoW64_AddFiles.txt
    Win10XPE.ini
    @Kyhi Thanks APT! I should have done diff myself :) Kyhi: Can you tell us what changed in the program configuration?
      My Computer

  10. Kyhi's Avatar
    Posts : 3,710
    Windows 3.1 to Windows 10
    Thread Starter
       #10

    NotePad Registry
      My Computer
