Page 2 of 2 FirstFirst 12
  1.    28 Oct 2015 #11
    Join Date : Aug 2015
    Penn's Woods
    Posts : 1,288
    Windows 10 Home

    Quote Originally Posted by DDroid View Post
    Okay, here are some screenshots. Somehow the Partition has grown from 4.51GB to 4.88GB and another partition at 450MB was also added. Both Partitions have 100% free space (SEE 2nd Screenshot), does that mean there is nothing in the partitions at all? How weird is that! Yes I have extended the Disk Cleanup to clean the "System Files" or "Run As Administrator" in the start menu. Every time I "Clean" the Windows.old it just won't go away (SEE 3rd Screenshot)...
    The 100% free space is not correct - Disk Management display on space usage is not correct for GPT set up disks like yours. A tool like the free MiniTool Partition Wizard would give you a correct report on that.

    I still believe that 4.5 GB is likely a factory restore partition and is low hanging fruit for you to recover some valuabe disk real estate.

    How about output from elevated (Admin) command prompt run of "reagentc /info"?
      My ComputerSystem Spec
  2.    28 Oct 2015 #12
    Join Date : Aug 2015
    Maine
    Posts : 40,254
    Windows10Pro 64Bit

    Quote Originally Posted by DDroid View Post
    I have tried taking ownership but it kept saying that the "SYSTEM" is denying me to change owners, I've also read somewhere that if you can't do any of those things it's because the "SYSTEM" is still using Drivers of files from the Windows.old folder(s).
    Ok, sounds like you should really think hard about doing a Clean install then!!! Your computer seems to be having more problems than it should, back up your computer, make a disk image using Macrium Reflect to a 2nd drive, or external drive, and read the tutorial on how to Clean install. Just my opinion.
      My ComputersSystem Spec
  3.    28 Oct 2015 #13
    Join Date : Oct 2015
    Posts : 12
    Windows 10 build 10240
    Thread Starter

    Quote Originally Posted by Word Man View Post
    The 100% free space is not correct - Disk Management display on space usage is not correct for GPT set up disks like yours. A tool like the free MiniTool Partition Wizard would give you a correct report on that.

    I still believe that 4.5 GB is likely a factory restore partition and is low hanging fruit for you to recover some valuabe disk real estate.

    How about output from elevated (Admin) command prompt run of "reagentc /info"?

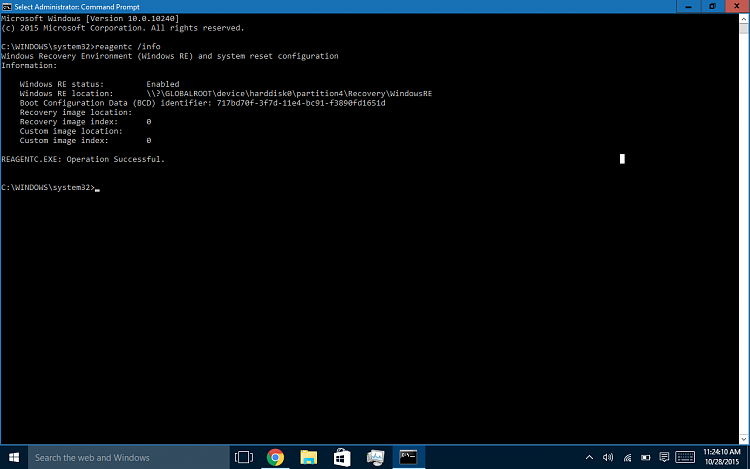

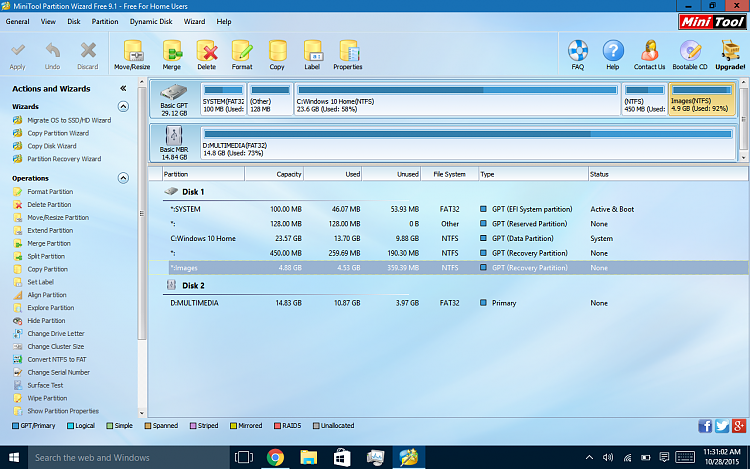

    here is that info about the Windows RE, it says it is on Partition 4 which is the 450MB one, here is the real sizes and used info.
    Click image for larger version.

Name:	Screenshot (214).png
Views:	5
Size:	42.3 KB
ID:	45151Click image for larger version.

Name:	Screenshot (215).png
Views:	7
Size:	480.2 KB
ID:	45160
      My ComputerSystem Spec
  4.    28 Oct 2015 #14
    Join Date : Aug 2015
    Penn's Woods
    Posts : 1,288
    Windows 10 Home

    Quote Originally Posted by DDroid View Post
    here is that info about the Windows RE, it says it is on Partition 4 which is the 450MB one, here is the real sizes and used info...
    OK, then the default Windows RE status indicates no recovery image link or custom image link, i.e., there are not WIndows hooks into that 4.88 GB partition which is even more certainly a factory restore partition.

    You should have a full disk image per OldMike's recommendation before doing anything.

    I would think real hard and, if it were me, I'd be ready to cut the apron strings from that Win8.1 factory restore partition. To do away with it, you could use the MiniTool to delete it (partition 5), then slide partition4 all the way to the right, then expand partition 3 rightwards to recoup that disk space left unallocated by moving partition 4 to the right.

    I would NOT recommend not doing anything to size and position of partitions 1 and 2, however.

    After those are accomplished, you can dig deeper into getting rid of windows.old - if not just redoing a clean install.

    If you DID do a totally clean install of Win10 at this point, you WOULD have the opportunity to blow away ALL partitions and come back with only 3 plus a 16-128MB unallocated but system reserved "partition".

    Sorry for delay in edit, got called away for several minutes.
    Last edited by Word Man; 28 Oct 2015 at 11:15.
      My ComputerSystem Spec
  5.    28 Oct 2015 #15
    Join Date : Sep 2014
    Posts : 91
    64-bit 10240 10 Pro

    Quote Originally Posted by OldMike65 View Post
    He tried Gary, didn't work....read his post.
    It will if he add this:

    Run as Administrator in Windows 10

    or

    Run as administrator - Add to MSI File Context Menu in Windows 10
      My ComputerSystem Spec
  6.    28 Oct 2015 #16
    Join Date : Oct 2015
    Posts : 12
    Windows 10 build 10240
    Thread Starter

    Quote Originally Posted by Word Man View Post
    OK, then the default Windows RE status indicates no recovery image link or custom image link, i.e., there are not WIndows hooks into that 4.88 GB partition which is even more certainly a factory restore partition.

    You should have a full disk image per OldMike's recommendation before doing anything.

    I would think real hard and, if it were me, I'd be ready to cut the apron strings from that Win8.1 factory restore partition. To do away with it, you could use the MiniTool to delete it (partition 5), then slide partition4 all the way to the right, then expand partition 3 rightwards to recoup that disk space left unallocated by moving partition 4 to the right.

    I would NOT recommend not doing anything to size and position of partitions 1 and 2, however.

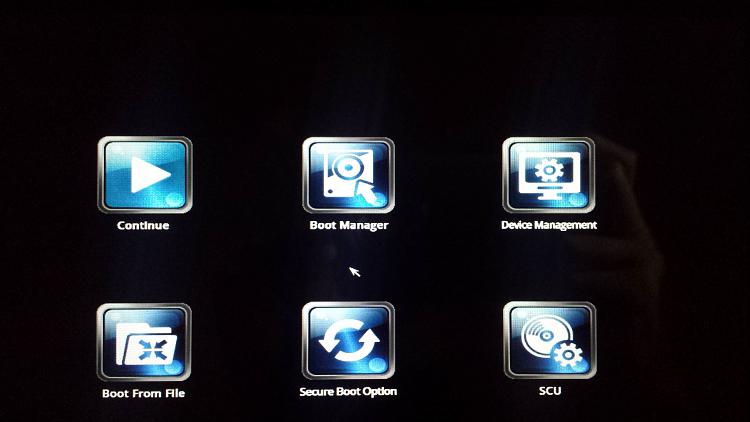

    this comes up when I press the Esc button on boot up, will removing the partition possible remove this too? or is this also on partition 4 as well? will a recovery USB drive substitute for the full Win 10 img, I have a metered connection and worry that my product key will be erased.
    Click image for larger version.

Name:	20151028_115514.jpg
Views:	2
Size:	1.41 MB
ID:	45173
      My ComputerSystem Spec
  7.    28 Oct 2015 #17
    Join Date : Aug 2015
    Penn's Woods
    Posts : 1,288
    Windows 10 Home

    Quote Originally Posted by DDroid View Post
    this comes up when I press the Esc button on boot up, will removing the partition possible remove this too? or is this also on partition 4 as well? will a recovery USB drive substitute for the full Win 10 img, I have a metered connection and worry that my product key will be erased.
    DDroid, sorry but I got called away and made a final edit to my post #14 which you may not have seen. Moving on,

    That definitely looks more like a manufacturer supplied boot menu, not the native WIndows one. If you're ready to cut free of the manufacturer options and regain the 4.5 GB, your most reliable bet will be a clean install of Windows 10.

    You've already gained activation of Win10 through the upgrade and the MS activation servers have record of your machine hardware ID - from this point on you will activate when doing a clean install. There is no "key" to keep track of as in earlier OS versions.

    You can use the Media Creation Tool to make a complete install USB key for Win10 for your particular version. I realize you have a metered connection but this may well be a good investment insofar as having external complete OS recovery media. See Brink's Tutorials here on Creating Win10 Media (Opetion 2 specifically): https://www.tenforums.com/tutorials/9...-download.html and also see the Clean Install tutorial here: https://www.tenforums.com/tutorials/1...n-install.html

    If you were to install (and create bootable WinPE rescue media for) Macrium Reflect Free, you could have an archival full image of your disk as it is now on an external USB hard drive to fall back on in ANY event.
      My ComputerSystem Spec
  8.    28 Oct 2015 #18
    Join Date : Oct 2015
    Posts : 12
    Windows 10 build 10240
    Thread Starter

    Quote Originally Posted by Word Man View Post
    DDroid, sorry but I got called away and made a final edit to my post #14 which you may not have seen. Moving on,

    That definitely looks more like a manufacturer supplied boot menu, not the native WIndows one. If you're ready to cut free of the manufacturer options and regain the 4.5 GB, your most reliable bet will be a clean install of Windows 10.

    You've already gained activation of Win10 through the upgrade and the MS activation servers have record of your machine hardware ID - from this point on you will activate when doing a clean install. There is no "key" to keep track of as in earlier OS versions.

    You can use the Media Creation Tool to make a complete install USB key for Win10 for your particular version. I realize you have a metered connection but this may well be a good investment insofar as having external complete OS recovery media. See Brink's Tutorials here on Creating Win10 Media (Opetion 2 specifically): https://www.tenforums.com/tutorials/9...-download.html and also see the Clean Install tutorial here: https://www.tenforums.com/tutorials/1...n-install.html

    If you were to install (and create bootable WinPE rescue media for) Macrium Reflect Free, you could have an archival full image of your disk as it is now on an external USB hard drive to fall back on in ANY event.

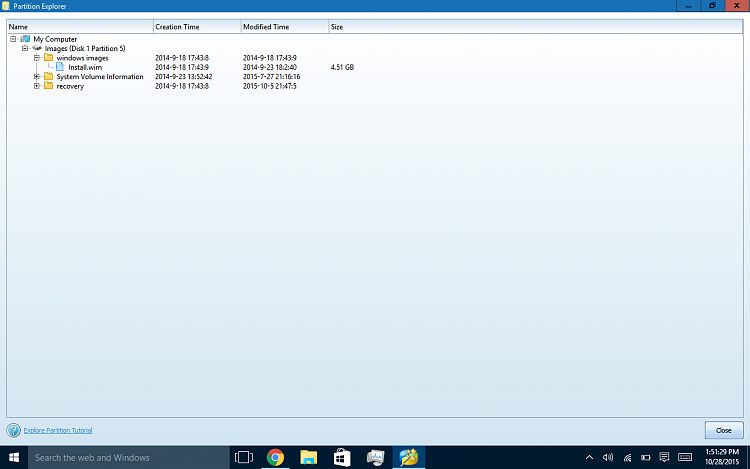

    Not sure if this is of any help to ya, but I was looking under partition 5 and found a .WIM file, not sure what is in the file though.
    Click image for larger version.

Name:	Screenshot (217).png
Views:	3
Size:	41.2 KB
ID:	45180
      My ComputerSystem Spec
