    How To Fix Latency Issues Found With Latencymon Causing Choppy Audio


    A couple days ago I updated some drivers, and ever since then I've had choppy audio through multiple programs and devices. I rolled back the drivers, but that didn't help. I then did a clean install of Windows 10 to no avail. So, after all that, I used Latencymon to narrow it down to a couple driver issues (see report included in this post.) I'm also wondering if my Audient ID14 audio interface is faulty (or if the USB cable needs to be replaced,) because I saw a warning in the Event Viewer related to this device (see screenshot, attached.) I'm further wondering if one of my CPU cores is bad because Latencymon showed it lagging. I also ran Windows Performance Recorder if anyone wants to see that output. Here is the link to that 7zip file in my Dropbox: Dropbox - Windows-Performance-Recorder-1.zip - Simplify your life

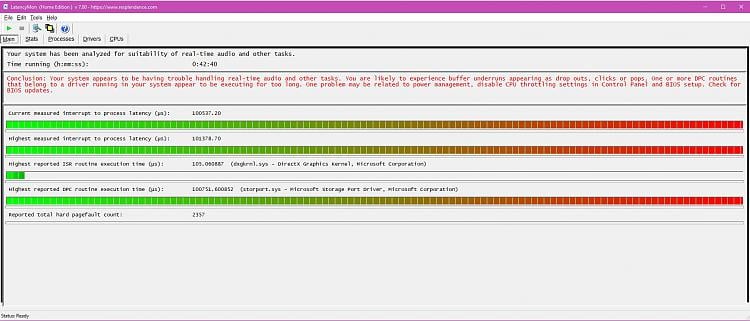

    How To Fix Latency Issues Found With Latencymon Causing Choppy Audio-screenhunter-03.jpg

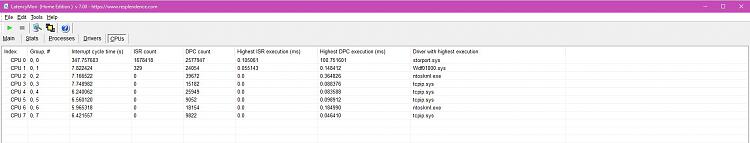

    How To Fix Latency Issues Found With Latencymon Causing Choppy Audio-screenhunter-04.jpg
    How To Fix Latency Issues Found With Latencymon Causing Choppy Audio-screenhunter-06.jpg

    Here is the Latencymon report:

    ____________________________________________________________________________________________________ _____
    CONCLUSION
    ____________________________________________________________________________________________________ _____
    Your system appears to be having trouble handling real-time audio and other tasks. You are likely to experience buffer underruns appearing as drop outs, clicks or pops. One or more DPC routines that belong to a driver running in your system appear to be executing for too long. One problem may be related to power management, disable CPU throttling settings in Control Panel and BIOS setup. Check for BIOS updates.
    LatencyMon has been analyzing your system for 0:42:40 (h:mm:ss) on all processors.


    ____________________________________________________________________________________________________ _____
    SYSTEM INFORMATION
    ____________________________________________________________________________________________________ _____
    Computer name: DESKTOP-P907P89
    OS version: Windows 10, 10.0, version 2009, build: 19042 (x64)
    Hardware: To Be Filled By O.E.M., To Be Filled By O.E.M.
    CPU: GenuineIntel Intel(R) Core(TM) i7-4790K CPU @ 4.00GHz
    Logical processors: 8
    Processor groups: 1
    RAM: 16335 MB total


    ____________________________________________________________________________________________________ _____
    CPU SPEED
    ____________________________________________________________________________________________________ _____
    Reported CPU speed: 3991 MHz

    Note: reported execution times may be calculated based on a fixed reported CPU speed. Disable variable speed settings like Intel Speed Step and AMD Cool N Quiet in the BIOS setup for more accurate results.


    ____________________________________________________________________________________________________ _____
    MEASURED INTERRUPT TO USER PROCESS LATENCIES
    ____________________________________________________________________________________________________ _____
    The interrupt to process latency reflects the measured interval that a usermode process needed to respond to a hardware request from the moment the interrupt service routine started execution. This includes the scheduling and execution of a DPC routine, the signaling of an event and the waking up of a usermode thread from an idle wait state in response to that event.

    Highest measured interrupt to process latency (Ás): 101378.70
    Average measured interrupt to process latency (Ás): 289.470627

    Highest measured interrupt to DPC latency (Ás): 101362.70
    Average measured interrupt to DPC latency (Ás): 286.750512


    ____________________________________________________________________________________________________ _____
    REPORTED ISRs
    ____________________________________________________________________________________________________ _____
    Interrupt service routines are routines installed by the OS and device drivers that execute in response to a hardware interrupt signal.

    Highest ISR routine execution time (Ás): 105.060887
    Driver with highest ISR routine execution time: dxgkrnl.sys - DirectX Graphics Kernel, Microsoft Corporation

    Highest reported total ISR routine time (%): 0.033775
    Driver with highest ISR total time: dxgkrnl.sys - DirectX Graphics Kernel, Microsoft Corporation

    Total time spent in ISRs (%) 0.043309

    ISR count (execution time <250 Ás): 1678747
    ISR count (execution time 250-500 Ás): 0
    ISR count (execution time 500-1000 Ás): 0
    ISR count (execution time 1000-2000 Ás): 0
    ISR count (execution time 2000-4000 Ás): 0
    ISR count (execution time >=4000 Ás): 0


    ____________________________________________________________________________________________________ _____
    REPORTED DPCs
    ____________________________________________________________________________________________________ _____
    DPC routines are part of the interrupt servicing dispatch mechanism and disable the possibility for a process to utilize the CPU while it is interrupted until the DPC has finished execution.

    Highest DPC routine execution time (Ás): 100751.600852
    Driver with highest DPC routine execution time: storport.sys - Microsoft Storage Port Driver, Microsoft Corporation

    Highest reported total DPC routine time (%): 0.744287
    Driver with highest DPC total execution time: storport.sys - Microsoft Storage Port Driver, Microsoft Corporation

    Total time spent in DPCs (%) 0.961341

    DPC count (execution time <250 Ás): 2716739
    DPC count (execution time 250-500 Ás): 0
    DPC count (execution time 500-10000 Ás): 1585
    DPC count (execution time 1000-2000 Ás): 0
    DPC count (execution time 2000-4000 Ás): 0
    DPC count (execution time >=4000 Ás): 1508


    ____________________________________________________________________________________________________ _____
    REPORTED HARD PAGEFAULTS
    ____________________________________________________________________________________________________ _____
    Hard pagefaults are events that get triggered by making use of virtual memory that is not resident in RAM but backed by a memory mapped file on disk. The process of resolving the hard pagefault requires reading in the memory from disk while the process is interrupted and blocked from execution.

    NOTE: some processes were hit by hard pagefaults. If these were programs producing audio, they are likely to interrupt the audio stream resulting in dropouts, clicks and pops. Check the Processes tab to see which programs were hit.

    Process with highest pagefault count: bdservicehost.exe

    Total number of hard pagefaults 2357
    Hard pagefault count of hardest hit process: 416
    Number of processes hit: 35


    ____________________________________________________________________________________________________ _____
    PER CPU DATA
    ____________________________________________________________________________________________________ _____
    CPU 0 Interrupt cycle time (s): 347.757604
    CPU 0 ISR highest execution time (Ás): 105.060887
    CPU 0 ISR total execution time (s): 8.867287
    CPU 0 ISR count: 1678418
    CPU 0 DPC highest execution time (Ás): 100751.600852
    CPU 0 DPC total execution time (s): 196.488003
    CPU 0 DPC count: 2577947
    ____________________________________________________________________________________________________ _____
    CPU 1 Interrupt cycle time (s): 7.822425
    CPU 1 ISR highest execution time (Ás): 55.143322
    CPU 1 ISR total execution time (s): 0.004107
    CPU 1 ISR count: 329
    CPU 1 DPC highest execution time (Ás): 148.412177
    CPU 1 DPC total execution time (s): 0.078137
    CPU 1 DPC count: 24054
    ____________________________________________________________________________________________________ _____
    CPU 2 Interrupt cycle time (s): 7.166522
    CPU 2 ISR highest execution time (Ás): 0.0
    CPU 2 ISR total execution time (s): 0.0
    CPU 2 ISR count: 0
    CPU 2 DPC highest execution time (Ás): 364.826109
    CPU 2 DPC total execution time (s): 0.121912
    CPU 2 DPC count: 39672
    ____________________________________________________________________________________________________ _____
    CPU 3 Interrupt cycle time (s): 7.748983
    CPU 3 ISR highest execution time (Ás): 0.0
    CPU 3 ISR total execution time (s): 0.0
    CPU 3 ISR count: 0
    CPU 3 DPC highest execution time (Ás): 88.375846
    CPU 3 DPC total execution time (s): 0.034896
    CPU 3 DPC count: 15182
    ____________________________________________________________________________________________________ _____
    CPU 4 Interrupt cycle time (s): 6.240062
    CPU 4 ISR highest execution time (Ás): 0.0
    CPU 4 ISR total execution time (s): 0.0
    CPU 4 ISR count: 0
    CPU 4 DPC highest execution time (Ás): 83.588324
    CPU 4 DPC total execution time (s): 0.078986
    CPU 4 DPC count: 25949
    ____________________________________________________________________________________________________ _____
    CPU 5 Interrupt cycle time (s): 6.560120
    CPU 5 ISR highest execution time (Ás): 0.0
    CPU 5 ISR total execution time (s): 0.0
    CPU 5 ISR count: 0
    CPU 5 DPC highest execution time (Ás): 98.911802
    CPU 5 DPC total execution time (s): 0.022977
    CPU 5 DPC count: 9052
    ____________________________________________________________________________________________________ _____
    CPU 6 Interrupt cycle time (s): 5.965318
    CPU 6 ISR highest execution time (Ás): 0.0
    CPU 6 ISR total execution time (s): 0.0
    CPU 6 ISR count: 0
    CPU 6 DPC highest execution time (Ás): 184.990228
    CPU 6 DPC total execution time (s): 0.054690
    CPU 6 DPC count: 18154
    ____________________________________________________________________________________________________ _____
    CPU 7 Interrupt cycle time (s): 6.421558
    CPU 7 ISR highest execution time (Ás): 0.0
    CPU 7 ISR total execution time (s): 0.0
    CPU 7 ISR count: 0
    CPU 7 DPC highest execution time (Ás): 46.410173
    CPU 7 DPC total execution time (s): 0.040310
    CPU 7 DPC count: 9822

    Thanks for taking the time to read this.
    ____________________________________________________________________________________________________ _____
      My Computer


  2. Posts : 2,499
    Win 11 Pro
       #2

    I have a recording studio (using Cakewalk Sonar and Studio One 4.5).

    Latency is tough to track down, so many causes.

    The storport.sys seems to be a big bug. Since your recording interface unit is not responding that could be the reason (or one reason). Disconnect it from the PC, reboot and then run Latency Mon again and see what it shows.
