Show off your PC!

  1. Dude's Avatar
    Posts : 13,703
    Windows 10 Pro X64
       #1971

    Looks great!
      My ComputerSystem Spec

  2. Hemimax's Avatar
    Posts : 1,089
    Windows 10 Pro X64
       #1972

    Pretty cool!
      My ComputersSystem Spec

  3. rvcjew's Avatar
    Posts : 122
    Win 10 Pro x64
       #1973

    Thanks, everyone, not to proud of the back need to seriously rewire all of that when I get a chance. LED controllers ect. take up to much room!
    Malcolm

    Click image for larger version.

Name:	20190818_141930.jpg
Views:	5
Size:	3.72 MB
ID:	243831
      My ComputerSystem Spec

  4. Geneo's Avatar
    Posts : 716
    Windows 10 Pro x64 Retail
       #1974

    rvcjew said: View Post
    Thanks, everyone, not to proud of the back need to seriously rewire all of that when I get a chance. LED controllers ect. take up to much room!
    Malcolm

    Click image for larger version.

Name:	20190818_141930.jpg
Views:	5
Size:	3.72 MB
ID:	243831
    Bound to be a bit of a tangle with that many disk drives! Not much way around it. Looks pretty goos back there, an up to now only you knew
      My ComputerSystem Spec

  5. rvcjew's Avatar
    Posts : 122
    Win 10 Pro x64
       #1975

    Geneo said: View Post
    Bound to be a bit of a tangle with that many disk drives! Not much way around it. Looks pretty goos back there, an up to now only you knew
    Ah hah, good point.
      My ComputerSystem Spec

  6. sygnus21's Avatar
    Posts : 1,968
    Windows 10 Pro x64 (1903)
       #1976

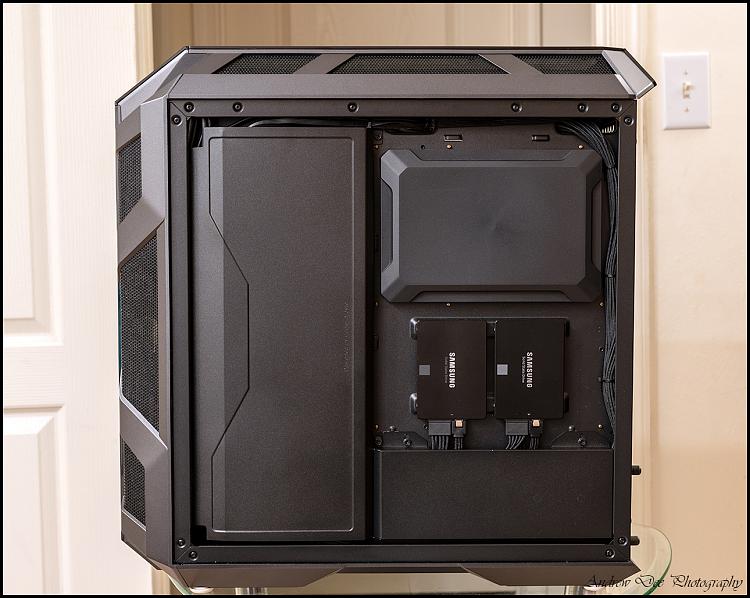

    I don't have 8 HDD drives so less wires = clean look. Anyway the Cooler Master H500M has great cable management capabilities on both front and back...

    Click image for larger version.

Name:	Cable management with panel.jpg
Views:	1
Size:	951.0 KB
ID:	243846

    Click image for larger version.

Name:	Cable management wo panel.jpg
Views:	3
Size:	983.1 KB
ID:	243847

    Click image for larger version.

Name:	R7-Installed2.jpg
Views:	3
Size:	1,007.0 KB
ID:	243850

    I do however have 5 SSD drives - 3 SATA, 2 NVMe
      My ComputersSystem Spec


  7. rvcjew's Avatar
    Posts : 122
    Win 10 Pro x64
       #1977

    sygnus21 said: View Post
    I don't have 8 HDD drives so less wires = clean look. Anyway the Cooler Master H500M has great cable management capabilities on both front and back...

    Click image for larger version.

Name:	Cable management with panel.jpg
Views:	1
Size:	951.0 KB
ID:	243846

    Click image for larger version.

Name:	Cable management wo panel.jpg
Views:	3
Size:	983.1 KB
ID:	243847

    Click image for larger version.

Name:	R7-Installed2.jpg
Views:	3
Size:	1,007.0 KB
ID:	243850

    I do however have 5 SSD drives - 3 SATA, 2 NVMe
    That case looks really interesting to build in with all the ways you need to route cables to be clean but once you got it looks really nice, good job. Reminds of the Haf-X. Most of my mess at the moment is I am using a deepcool rgb controller that lets you control DRGB (my fan rings) with a RGB header (my Taichi only has RGB headers). But I found that my strips work fine but if you try to pick certain ranges of the RGB spectrum it will just cause the DRGB to go nuts and be flashing or all kinds of colors. It only works with non full range colors like red but must be darker red. So now I have their own RF controller back which is small so I will eventually pull out all the deepcool wiring and just run the strips off the header itself and the fan rings will be on their remote which is fine.
    Malcolm
      My ComputerSystem Spec

  8. sygnus21's Avatar
    Posts : 1,968
    Windows 10 Pro x64 (1903)
       #1978

    Yeah, I also had the HAF-X....

    Click image for larger version.

Name:	PC-Front.jpg
Views:	2
Size:	757.9 KB
ID:	243854
    Click image for larger version.

Name:	PC-Back.jpg
Views:	0
Size:	778.5 KB
ID:	243855

    In some ways I still feel the HAF-X is the better case as it has better cooling, as well as the ability to hold an optical drive as well as hot-swappable drives. The H500M though kill it in the "beauty" department... and one of the main reasons I got it.

    I actually tried to get into the "lighting" thing but got frustrated with all the different connection schemes - Cooler Master has this, Corsair has that, etc, etc.... In the end I just have the two front case fans connected to the MB for lighting sync. And just use a Corsair fan with a red LED on the rear. Done. Finish.
      My ComputersSystem Spec

  9. swarfega's Avatar
    Posts : 5,277
    Windows 10 Pro 64-bit
       #1979

    The Coolermaster looks super clean. Seriously thought about getting it for next build but went with the Corsair 680X in the end.
      My ComputersSystem Spec

  10. sygnus21's Avatar
    Posts : 1,968
    Windows 10 Pro x64 (1903)
       #1980

    If I'd had the room, I'd of gotten the Corsair 1000D. Man I love that case, but it's HUGE, plus the expense of adding lighted fans. That said, I honestly came real close to getting one but in the end it came down to the space I didn't have - plus the expense of the fans.

    BTW here's the H500M all light up...
    Click image for larger version.

Name:	CM500M.jpg
Views:	2
Size:	953.7 KB
ID:	243857
      My ComputersSystem Spec
