what about my system doesn't support miracast?


  1. Posts : 450
    Windows 11 Pro version22H2 ( OS Build 22621.2861 )
       #1

    what about my system doesn't support miracast?


    I wanted to put my desktop on my smart TV, I do it all the time with my iPhone and when I tried with my PC I get the following screen. What in my system doesn't support Miracast??
    Attached Thumbnails Attached Thumbnails what about my system doesn't support miracast?-miracast.jpg
      My Computer


  2. Posts : 31,566
    10 Home x64 (22H2) (10 Pro on 2nd pc)
       #2

    Eaglepi said:
    I wanted to put my desktop on my smart TV, I do it all the time with my iPhone and when I tried with my PC I get the following screen. What in my system doesn't support Miracast??

    Your screenshot shows that you cannot project TO your PC, but that's not what you want to do. You'd like to project FROM your PC to the Smart TV.

    Miracast is a Wi-Fi direct connection between two devices, so at a minimum your PC needs Wi-Fi, and your Smart TV needs to support receiving Miracast over Wi-Fi. My Smart TV doesn't support Miracast. I use an HDMI cable to be able to put my PC's desktop on the TV.

    These tutorials give more details on using Miracast.

    Check Miracast Support on Windows 10 PC

    Connect to Wireless Display with Miracast in Windows 10
      My Computers


  3. Posts : 450
    Windows 11 Pro version22H2 ( OS Build 22621.2861 )
    Thread Starter
       #3

    Bree said:
    Your screenshot shows that you cannot project TO your PC, but that's not what you want to do. You'd like to project FROM your PC to the Smart TV.

    Miracast is a Wi-Fi direct connection between two devices, so at a minimum your PC needs Wi-Fi, and your Smart TV needs to support receiving Miracast over Wi-Fi. My Smart TV doesn't support Miracast. I use an HDMI cable to be able to put my PC's desktop on the TV.

    These tutorials give more details on using Miracast.

    Check Miracast Support on Windows 10 PC

    Connect to Wireless Display with Miracast in Windows 10
    I checked to find out if my system supports Miracast from the link you provided and it says

    Miracast: Available, no HDCP

    When I try the next link I get this, It is a bit confusing one thing says it is available but then when I try to access it it says it isn't supported. I'm trying to figure out what in my system makes it not supported??
    Attached Thumbnails Attached Thumbnails what about my system doesn't support miracast?-miracast.png
      My Computer


  4. Posts : 2,182
    Windows 10 Pro 64-bit v22H2
       #4

    Miracast requirements:
    • Graphics driver must support Windows Display Driver Model WDDM 1.3 with Miracast support
    • Wi-Fi driver must support Network Driver Interface Specification (NDIS) 6.30 and Wi-Fi Direct
    • Windows 8.1 or Windows 10

    Do you have latest Nvidia video driver? The latest for the GTX1060 is: Version 531.29 Release date 03/14/2023
    Is your monitor connected with a DVI or HDMI cable?
    Does your monitor support HDCP? If it is not too old it should.

    Open the Nvidia Control Panel and select View HDCP status

    what about my system doesn't support miracast?-cast1.jpg

    To display wirelessly to another display

    1. Select Connect

    what about my system doesn't support miracast?-cast2.jpg

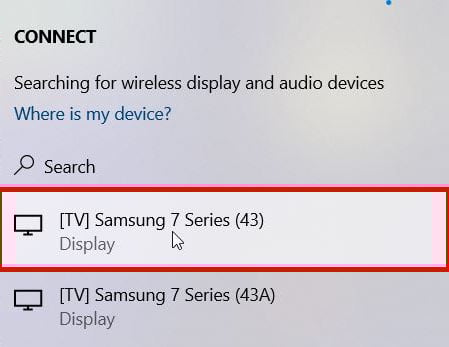

    2. Select display to connect to

    what about my system doesn't support miracast?-cast3.jpg
      My Computers


  5. Posts : 450
    Windows 11 Pro version22H2 ( OS Build 22621.2861 )
    Thread Starter
       #5

    Graphics driver must support Windows Display Driver Model WDDM 1.3 with Miracast support
    Not sure how do I find out?



    Wi-Fi driver must support Network Driver Interface Specification (NDIS) 6.30 and Wi-Fi Direct
    Not sure how would i find out

    Windows 8.1 or Windows 10
    Windows 10 pro

    I just got the notification for latest graphics driver and will install it later.

    as for the other questions,
    Attached Thumbnails Attached Thumbnails what about my system doesn't support miracast?-0527.jpg   what about my system doesn't support miracast?-0528.jpg
      My Computer


  6. Posts : 2,724
    Windows 10
       #6

    You don't have a Wireless Card installed on your PC, so Miracast is not possible.

    Even if you installed a PCI-E Wireless Card compatible with Miracast the MOBO is rather old and may not support it.
      My Computer


  7. Posts : 2,182
    Windows 10 Pro 64-bit v22H2
       #7

    What is the model number for your WiFi adapter? Here are a couple examples that are shown in the Device Manager.

    what about my system doesn't support miracast?-wan-adapter.jpg
      My Computers
