    Synology Guide / Tut. How to get Propper Speeds! in Windows 10 again!


    Hello, i guess i should probably have posted my guide/tut in here?
    if so, please move my guide/tut :) Thx.

    Backstory...
    Okey so my Synology Nas died around 2017/07.. i did everything i could to get it up & running again.
    Nothing worked! So i accepted my dataloss and the loss of my Nas...
    Synology Guide / Tutorial to get Propper Speeds! in Windows 10 again!-events.png

    Well 2 days ago, i just had a feeling that i should give it another chance before i wipe my drives and lose around 4Tb data...
    so okey i did, and by some miracle my Nas just started to work. Magic? no idea, but it's alive again!
    So i logged in via webgui which for me is (10.0.0.7/webman/index.cgi) not that you need to know that but anyhow.

    I logged in to check if any of my files were still there and Woah, everything still here =D !!!
    Lucky me !
    well...
    here is where my problem began >.<

    Like so many others that have Windows10 & Synology Nas, i could not reach my nas through smb which i had been able to do via Windows7 64-Bit ever since i first bought my Nas.
    So i spent hours & hours searching how to do this, i tried everything i could find in tenforums,
    & on synology forums, and everything i could find on the internet,
    well eventually i got it working after many MANY hours of trial and error...

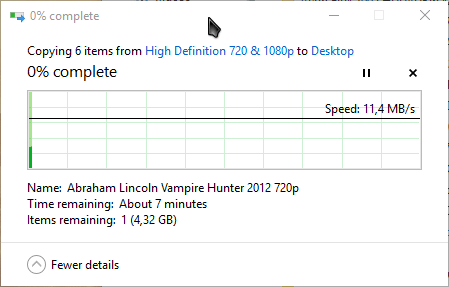

    So when i finally got smb working in win10 with DSM v4.3 i notice the Horrific speeds you get 10MB/sSynology Guide / Tutorial to get Propper Speeds! in Windows 10 again!-blink.gif ... WTF?
    Synology Guide / Tutorial to get Propper Speeds! in Windows 10 again!-2018-10-24_20-15-31.gif

    So apparently win10 & synology can't work well together any more unless,
    you're on the latest DSM from Synology.
    And btw i tried that aswell the 6.x something version of the DSM, it sux, it's laggy & horrible...
    (So i went back to v4.3, tho i kinda regret that now because i should have stayed on v3.x)

    v3.x i had instant login via webgui, No lagg / sluggish behavior, smb worked 100%
    v4.3 takes ~7sec to login & laggy gui at first login, > got smb working but speeds = horrible. (10MB/s)
    v6.x takes 30~60sec to login > very laggy & sluggish gui. > working smb decent speeds. ( 30-45MB/s )


    But anyhow i found a way to play any media you have on the nas directly in vlc without getting any error msg!
    This is the error msg u get if ur on DSM v4.x and tries to stream / direct play movies in vlc.
    Synology Guide / Tutorial to get Propper Speeds! in Windows 10 again!-5qeg2.png


    This is the end result :)
    Synology Guide / Tutorial to get Propper Speeds! in Windows 10 again!-ftp-ftw.png

    No idea why the ftp is saying it's 60Gb instead of 5Tb+ ^^ but it don't matter because it works !
    Synology Guide / Tutorial to get Propper Speeds! in Windows 10 again!-sier.png


    Okey now, how to actually get this working ?

    So first let me show you the speeds i get with ftp on synology.
    As you can see it differs alot from the crap speed i get in smb.




    Okey Let's start.

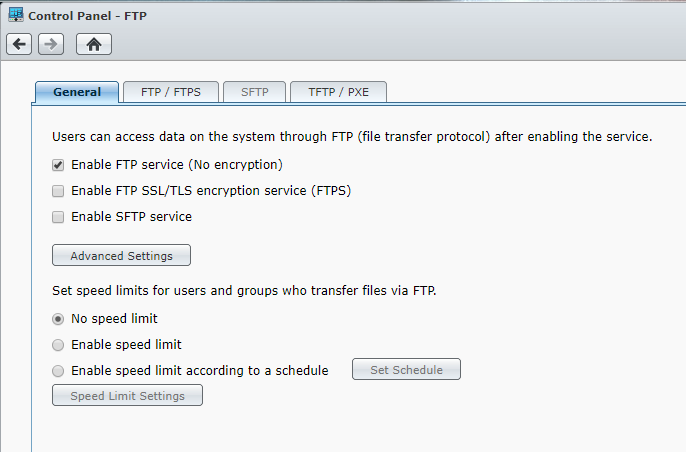

    First head to your synology's webgui and go to.
    Control Panel > FTP >

    Use these settings.
    Synology Guide / Tutorial to get Propper Speeds! in Windows 10 again!-1.png
    Synology Guide / Tutorial to get Propper Speeds! in Windows 10 again!-2.png


    To login to ur Ftp type this in ur browser.
    ftp://yourip

    So for me it's ftp://10.0.0.7
    ( Same username and pw for ftp as it is for webgui )

    Next open up " This PC " type in adressbar

    ftp://yourip/
    Synology Guide / Tutorial to get Propper Speeds! in Windows 10 again!-1qr32.png

    Here you should get a box asking to login, use synology username and password.
    Synology Guide / Tutorial to get Propper Speeds! in Windows 10 again!-14t13.png

    After you should see this
    Synology Guide / Tutorial to get Propper Speeds! in Windows 10 again!-14251.png

    Now right click This Pc and select Map network drive.
    Synology Guide / Tutorial to get Propper Speeds! in Windows 10 again!-14rq3tegds.png

    Then press Connect to a Web site that you can use to store your documents and pictures.
    Synology Guide / Tutorial to get Propper Speeds! in Windows 10 again!-2twgw.png

    Press Next.
    Synology Guide / Tutorial to get Propper Speeds! in Windows 10 again!-netwrk-wisz.png

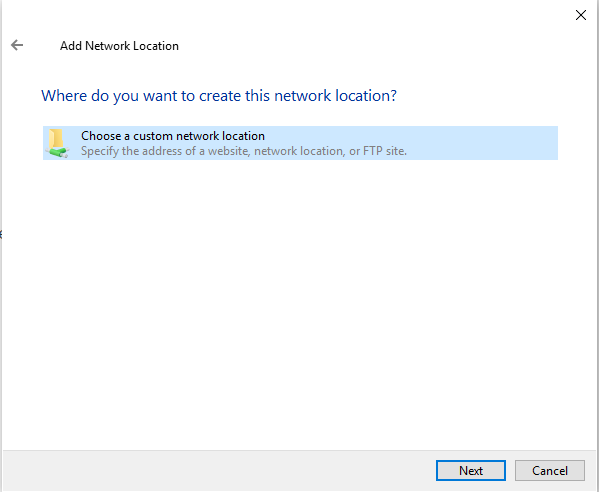

    Press Next.
    Synology Guide / Tutorial to get Propper Speeds! in Windows 10 again!-custom-locs.png

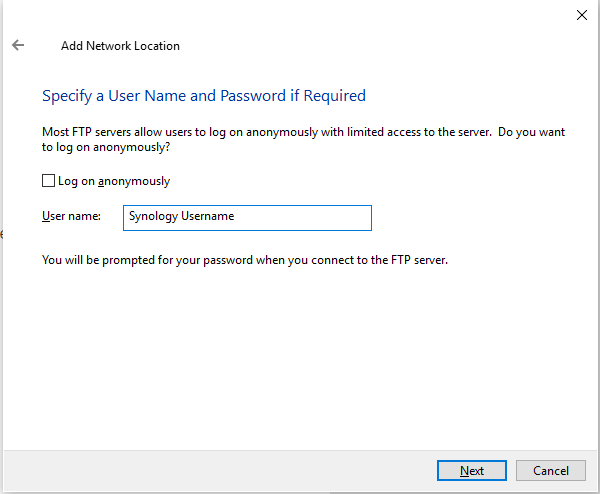

    Use your Synology username here.
    Synology Guide / Tutorial to get Propper Speeds! in Windows 10 again!-3.png

    Pick a name
    Synology Guide / Tutorial to get Propper Speeds! in Windows 10 again!-4.png

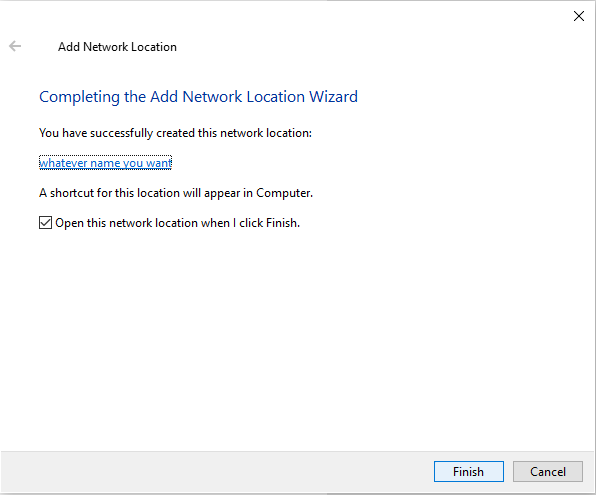

    Press Finish
    Synology Guide / Tutorial to get Propper Speeds! in Windows 10 again!-5.png

    Once done, the folder of ur nas will appear.
    Synology Guide / Tutorial to get Propper Speeds! in Windows 10 again!-6.png

    You now have the ftp mapped to This PC :)
    ( simple preview on how it should work after ur done )

    The icon you get from the ftp is ugly as hell! To change it download CustomizerGod
    The icons name are ID:#73 & ID:#74
    Synology Guide / Tutorial to get Propper Speeds! in Windows 10 again!-reg2.png


    Next up is VLC
    Open up vlc and if you don't have vlc installed download it from here
    VLC > Tools > Preferences > Show Settings > All > @ Topbox there is a searchbox > search for FTP.
    Synology Guide / Tutorial to get Propper Speeds! in Windows 10 again!-vlc.png

    Add your Synology username & password.
    Once you're done, just drag and drop a video into vlc to start playing.



    Demo of how it works once ur done.


    Near the end of my video i demonstrate how huge of a difference it is with the smb vs the ftp.


    So i hope those of you who reads this, finds this helpful,
    if you happen to have issues with ur synology nas.

    Like i mentioned early in my thread, i did a lot of research on how to fix this,
    and if you ask me i shouldn't have had to,
    in my opinion Synology should have fixed the smb issue long time ago.
    If you look at their forums the devs do basically nothing to help out with this,
    instead it's normal users that have to fix everything.
    I'm not sure if it's laziness or if synology devs just don't give a s**t about the issue.

    But i figured out a really solid solution, and felt that i should share it with others that have similar or
    the exact same issue as me.
    I hate slow speeds, and now it's a thing of the past =)

    Just a FYI i don't really watch movies via vlc i use plex,
    but i do want the option to simply stream / direct play from my nas if i feel like it.


    Sorry for the huge thread with lots of images ^^
    This took awhile to make, so i would appreciate, some feedback :)


    If you managed to read all the way down here.
    Thank you :)

    Btw where is my 10Tb hdd that i have in my System spec?
    Here :) Chillin on my server, need another soon ^^

    Synology Guide / Tutorial to get Propper Speeds! in Windows 10 again!-1reg24.png

    ~Fin
    Last edited by xTL; 22 Aug 2019 at 19:48.
      My Computer

  2. storageman's Avatar
    Posts : 1,020
    Windows 10 Pro 20H2 19042.572
       #2

    I wonder why you have such low performance when connected via SMB. I only use SMB with my Synology NAS. My unit is pretty new (<1yr old), so maybe it has to do to older hardware. I stream videos from the my unit all the time. There is no pauses its like playing it from one of my local disks. Now copying files to and from its not a speed demon. I'm going to have to test the thruput on mine.

    Oh I also want to say, your tutorial is excellent

    I just did a test upload and download of a Window ISO to my Nas. Standard Drag&Drop.

    Upload = 55MB/s
    Download = 100MB/s

    A bit more than your test.
    Its got to be the hardware and how its handling your network connection. Have you ever checked the network spec's on your Synology Box ?
    Last edited by storageman; 25 Oct 2018 at 16:01.
      My Computers

  3. xTL's Avatar
    xTL
    Posts : 388
    Windows 10 Pro 64-Bit (1809) 17763.379
    Thread Starter
       #3

    @ storageman

    My Synology Nas is a DS411j from 2011 so hardware specs on it is kinda bad :P
    But the smb speed i had in win7 from my core i7 2600k was around 40~60MB/s
    Reason why it's so bad for me in Win10 is because i don't have smb v3 in the DSM v4.3,
    i think synology implanted it in v5 or v6. Ds411j with v6.x becomes unusable..

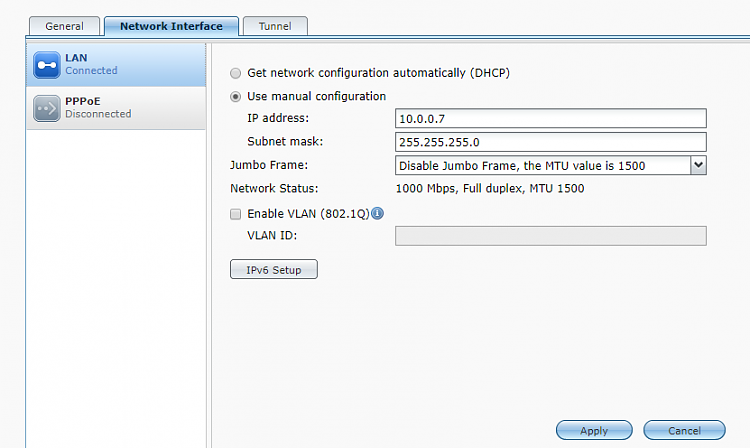

    I have checked the network specs :) it's running at Gb speeds on the network
    Synology Guide / Tutorial to get Propper Speeds! in Windows 10 again!-3twgy532.png


    storageman said:
    Oh I also want to say, your tutorial is excellent
    I appreciate the kind words,
    Thank you so much :)
      My Computer

  4. storageman's Avatar
    Posts : 1,020
    Windows 10 Pro 20H2 19042.572
       #4

    Good that you isolated the problem.

    You can fire up SMB1 in 1803 if you wish. I've had it running up to 1803 when the FCU disabled it. I installed it and it does work under 1803. I no longer have it running. I just map the NAS as a drive.
      My Computers

  5. xTL's Avatar
    xTL
    Posts : 388
    Windows 10 Pro 64-Bit (1809) 17763.379
    Thread Starter
       #5

    storageman said:
    Good that you isolated the problem.

    You can fire up SMB1 in 1803 if you wish. I've had it running up to 1803 when the FCU disabled it. I installed it and it does work under 1803. I no longer have it running. I just map the NAS as a drive.
    Yeah i know, i tried it.
    but it was disabled for a reason so i just leave it alone for now :P
      My Computer


  6. Posts : 772
    Microsoft Windows 10 Pro 64-bit
       #6

    I would try installing a Linux server on it and use something like "My Cloud" or "ownCloud" and then upgrade the Lan to gigabit if it does not have it.


      My Computer

  7. xTL's Avatar
    xTL
    Posts : 388
    Windows 10 Pro 64-Bit (1809) 17763.379
    Thread Starter
       #7

    sml156 said:
    I would try installing a Linux server on it and use something like "My Cloud" or "ownCloud" and then upgrade the Lan to gigabit if it does not have it.
    Via vm ?
    i'm pretty sure that is not supported on ds411j.
    The network card is alrdy set at Gb speeds if you look at #3
