  1.    09 Aug 2016 #11
    Join Date : May 2016
    Lima
    Posts : 146
    windows 10 home
    Thread Starter

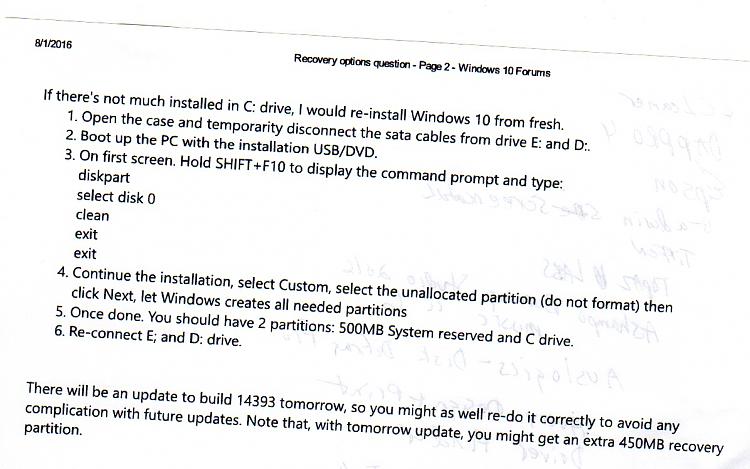

    Ok this is the whole instructions I got, do I still have to do the thing in the BIOS

    Click image for larger version.

Name:	img001.jpg
Views:	1
Size:	319.7 KB
ID:	95229


    Quote Originally Posted by topgundcp View Post
    What you did here is correct. Whether you want to install Windows with GPT or MBR, you should leave the partition unallocated so that Windows installation will create all necessary partitions.

    There are 2 things you need to know if you want to install Windows using GPT partition scheme:
    1. Set your BIOS for UEFI. Some BIOS will have an option such as UEFI or MBR, some will have option as CSM. With CSM disabled, you are using UEFI, with CSM enabled, you are using MBR.
    2. When booting Windows installation, There are 2 options to select from DVD/USB installation disk:
      One prefixed with UEFI-USB and the other is just plain USB. Same as for DVD
      Attachment 95222
    3. Once the installation USB/DVD is booted. Based on what you select from the boot menu, windows will determine what type of installation you want to install. Click Customize, select the unallocated partition, click next to let Windows installation creates all needed partitions (Do not format) and set the Partition type correctly.
      Continue with the installation.
      My ComputerSystem Spec
  2.    09 Aug 2016 #12
    Join Date : Jul 2014
    San Jose, California
    Posts : 2,057
    Ubuntu14.04x64 MintMate17x64 Win10Prox64

    @debgram
    Yes. That was my post few days ago but that was for MBR installation, that means OP must have set the BIOS for MBR. In your case, select the option with UEFI prefix then Windows will install using GPT.
      My ComputerSystem Spec
  3.    09 Aug 2016 #13
    Join Date : Jun 2016
    North Carolina
    Posts : 64
    Multiple systems on multiple computer

    Quote Originally Posted by swarfega View Post
    Generally for modern PCs you want GPT and if you have drives over 2gb you need to use that anyway.

    Main benefits of GPT over MBR are partition size, number of partitions, and resilience.
    2GB drives?? do they still exist?? I have used this size at the times of Win98....
    I am thinking you are talking about 2TB (tera byte).
      My ComputerSystem Spec
  4.    09 Aug 2016 #14
    Join Date : May 2016
    Lima
    Posts : 146
    windows 10 home
    Thread Starter

    Click image for larger version.

Name:	img002.jpg
Views:	2
Size:	848.0 KB
ID:	95237

    where do I find this, set your BIOS for UEFI. I'm looking in my manual and I'm getting lost fast...lol


    Quote Originally Posted by topgundcp View Post
    @debgram
    Yes. That was my post few days ago but that was for MBR installation, that means OP must have set the BIOS for MBR. In your case, select the option with UEFI prefix then Windows will install using GPT.
      My ComputerSystem Spec
  5.    09 Aug 2016 #15
    Join Date : Oct 2013
    Penns Forrest
    Posts : 3,506
    Win_8.1-Pro, Win_10.1607-Pro, Mint_17.3

    Disable CSM

    Boot device: UEFI only (I think)
    I'm not sure what the Optional ROM is on that board

    I'm not sure about Secure Boot - some say disable it for the install and others say that's not necessary.
    My best guess - disable it for the install, enable it afterwards.
      My ComputerSystem Spec
  6.    09 Aug 2016 #16
    Join Date : May 2016
    Lima
    Posts : 146
    windows 10 home
    Thread Starter

    and that's the only thing?



    Quote Originally Posted by Slartybart View Post
    Disable CSM

    Boot device: UEFI only (I think)
    I'm not sure what the Optional ROM is on that board

    I'm not sure about Secure Boot - some say disable it for the install and others say that's not necessary.
    My best guess - disable it for the install, enable it afterwards.
      My ComputerSystem Spec
  7.    10 Aug 2016 #17
    Join Date : Dec 2015
    Posts : 5,416
    Windows10

    Quote Originally Posted by Plankton View Post
    In windows 10 it's already switched to GPT.

    To verify: right click your C drive, select properties, in the new window select the hardware tab, in the list of drives find your HDD, highlight and select properties, in the new window select volumes, click populate, in the new window look for partition style. It should show you: GUID Partition Table (GPT).


    Attachment 95159
    This is just not true. The decision to create a uefi gpt disk or legacy bios mbr disk depends on bios

    Some are legacy bios only older machines.

    Mjority are both usually bios selected.

    Some are uefi only (newer devices)
      My ComputerSystem Spec
  8.    10 Aug 2016 #18
    Join Date : Dec 2015
    Posts : 5,416
    Windows10

    Quote Originally Posted by Slartybart View Post
    Disable CSM

    Boot device: UEFI only (I think)
    I'm not sure what the Optional ROM is on that board

    I'm not sure about Secure Boot - some say disable it for the install and others say that's not necessary.
    My best guess - disable it for the install, enable it afterwards.
    Windows 8/10 does not require secure boot to be disabled - indeed you should leave it enabled really.
      My ComputerSystem Spec
  9.    10 Aug 2016 #19
    Join Date : Oct 2013
    Penns Forrest
    Posts : 3,506
    Win_8.1-Pro, Win_10.1607-Pro, Mint_17.3

    Quote Originally Posted by debgram View Post
    and that's the only thing?
    I think so, but you should wait for other members to confirm.

    While you wait, review the Clean install tutorial in post# 10
      My ComputerSystem Spec
  10.    10 Aug 2016 #20
    Join Date : Oct 2013
    Penns Forrest
    Posts : 3,506
    Win_8.1-Pro, Win_10.1607-Pro, Mint_17.3

    Quote Originally Posted by cereberus View Post
    Windows 8/10 does not require secure boot to be disabled - indeed you should leave it enabled really.
    I don't have a dog in this race, so I'm leaving it up to other members and debgram.

    As I said, some say disable it for the install and others say that's not necessary

    You fall into the latter category

    I'm not saying that you're wrong, I trust the tutorials for best results
    warning   Warning
    Before you get started installing Windows 10, be sure that you temporarily disable Secure Boot and Fast Boot in your UEFI firmware settings until finished. Some motherboards do not support booting from a USB flash drive with these enabled.

    Once installation has finished, you can enable Secure Boot and Fast Boot again if you like.

    I'm bowing out and will watch from the sideline, don't have more to add.

    Best of luck debgram - there are good members posting in your thread that can help you more than I can.

    Bill
    .
      My ComputerSystem Spec
