Windows 10: What is the best way to partition a SSD for dual boot?

  1.    26 Jul 2016 #1

    What is the best way to partition a SSD for dual boot?


    This is my first time here so if I need to elaborate on anything or provide more information I'll be happy to. I'm trying to set up a dual boot environment on my Toshiba Satellite laptop. I've done this one other systems in the past enough to where it had become pretty routine. Trying to accomplish that this time has me at a complete loss of how to proceed.

    This is my current system:
    Windows 10 Home
    Intel Core i3-3217U
    PNY 480Gb SSD (this was swapped in as the original HDD was going bad)

    I went about how I had done in the past and went into Computer Management > Disk Management to partition off a significant amount of free space for the second OS.

    Click image for larger version.

Name:	ComputerManagement.PNG
Views:	1
Size:	25.4 KB
ID:	92255

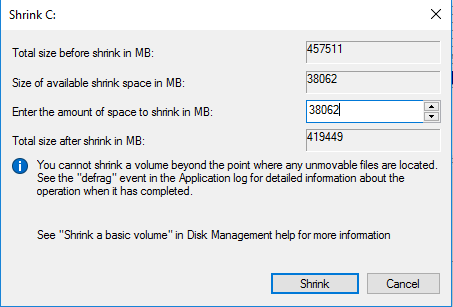

    Click image for larger version.

Name:	ComputerManagement1.PNG
Views:	17
Size:	11.9 KB
ID:	92256

    Seeing only ~38Gb available when the drive has ~267Gb of free space sent me searching the internet to find out where the extra space was going.

    This lead to several sources that suggested where Windows was storing pagefile.sys was the issue that kept the full amount of free space from being available during volume shrinking. Several sources again suggested that turning off virtual memory, removing restore points, and deleting pagefile.sys would free up this space. It turned out not freeing up the space. So I reverted those changes.

    I thought well maybe I could backup the drive and use Windows restoration feature to force it to reformat to the size I'd like (while retaining enough space to fit the data). I backed up and made a system image using "Backup and Restore (Windows 7)". I then used Microsoft's media creation tool to create a bootable USB so that I could enter repair mode and force the drive to be reformatted in the way that I'd like to achieve. After entering the repair mode both my backup and system image were detected but the SSD wasn't. (Several linux installers can't see it and neither does gparted)

    After this I'm really at a loss for how to proceed to get the SSD in the state that I'd like.
      My ComputerSystem Spec

  2.    26 Jul 2016 #2

    johnson pw said: View Post
    After this I'm really at a loss for how to proceed to get the SSD in the state that I'd like.
    Stop trying to use Windows disk management and use MiniTool Partition Wizard instead:
    Best Free Partition Manager for Windows | MiniTool Partition Free
    That will solve your problem.

    Adjusting the boot partition (partition that contains the OS that was booted into) will probably cause MiniTool to ask you to restart the computer to perform the actions. That's fine - it's never failed me. Do forget to click the Apply button though.
      My ComputerSystem Spec

  3.    26 Jul 2016 #3

    NavyLCDR said: View Post
    Stop trying to use Windows disk management and use MiniTool Partition Wizard instead:
    Best Free Partition Manager for Windows | MiniTool Partition Free
    That will solve your problem.

    Adjusting the boot partition (partition that contains the OS that was booted into) will probably cause MiniTool to ask you to restart the computer to perform the actions. That's fine - it's never failed me. Do forget to click the Apply button though.
    +1 for MiniTool Partition Wizard. I just partitioned my SSD so I could install a second Win 10 partition. I might add that NavyLCDR's response to my question was completely on the mark.

    x509
      My ComputerSystem Spec
