Windows 10: How to increase the System Reserved Partition size Solved

Page 2 of 7 FirstFirst 1234 ... LastLast
  1. topgundcp's Avatar
    Posts : 2,025
    Ubuntu14.04x64 MintMate17x64 Win10Prox64
       09 Oct 2015 #11

    @sam9
    if we clean install the Windows 10 then System Reserved Partition is 350 MB
    FYI. Windows 10 MBR style clean install will create 500MB Reseved Partition. Not 350MB
    Windows 10 drive is 500 GB (230 GB full) so how much space I needed for complete Back up
    I know each of us doing things differently but your Windows 10 is 230GB full ??? This is way, way too big to handle. May I suggest that you move all your personal data to another drive/partition and leave Windows 10 by itself so it is much easier to manage and back up and not counting if your Windows 10 crashed/unbootable/infected then you would have a very hard time to recover your personal data.

    All that said. Suggested above to install Macrium Reflect Free is also highly recommended. I am not sure what software you are now using to back up your Windows but with Macrium, you should not have any problem backing up.

    However. If you still want to resize the reserved partition to whatever you want without using third party partition manager such as Minitool, EASUS etc... Believe it or not ? you can do it with Macrium and here's how:
    NOTE: This procedure assumes that you've already created a Macrium backup image to backup Windows 10 using the option from the left pane as shown
    Click image for larger version.

Name:	a.jpg
Views:	36
Size:	22.7 KB
ID:	41823
    and also you've already created a Macrium Rescue disk.

    This procedure is done using my current Windows 10 with the reserved partition of 500MB and C: Drive and I want to increase the size to 1000MB so yours will be different. However, it will be the same for any Windows 10 partition scheme whether it's MBR or UEFI.

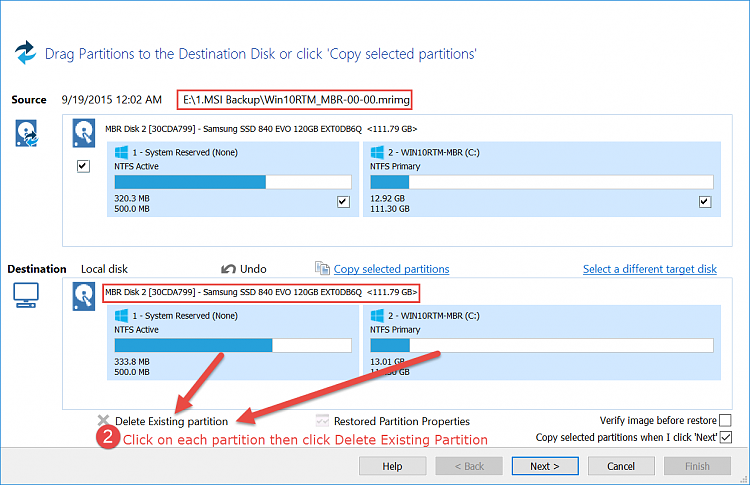

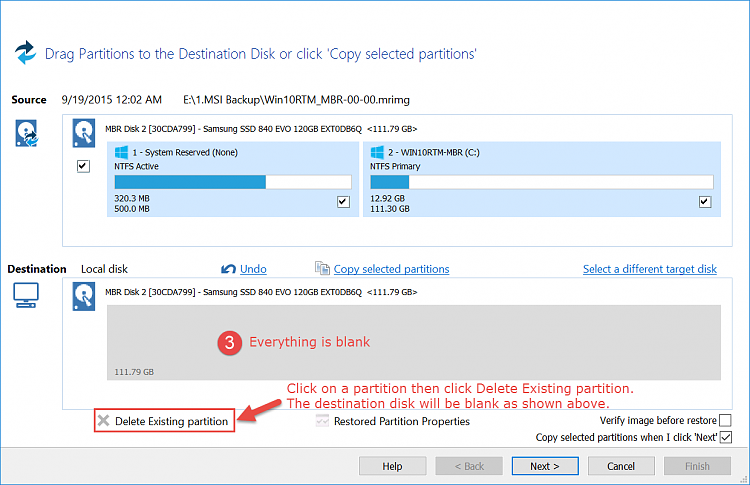

    Just follow the screen shot:
    Click image for larger version.

Name:	1.png
Views:	3
Size:	126.5 KB
ID:	41837

    Click image for larger version.

Name:	2.png
Views:	3
Size:	62.5 KB
ID:	41838

    Click image for larger version.

Name:	3.png
Views:	3
Size:	55.4 KB
ID:	41839

    Click image for larger version.

Name:	4.png
Views:	3
Size:	62.5 KB
ID:	41842

    Click image for larger version.

Name:	5.png
Views:	3
Size:	141.9 KB
ID:	41843

    Click image for larger version.

Name:	6.png
Views:	3
Size:	126.1 KB
ID:	41844

    After all the steps above. Click Next and finish to restore then reboot. The Reserved Partition should be the size that you changed.

    Hope this helps.

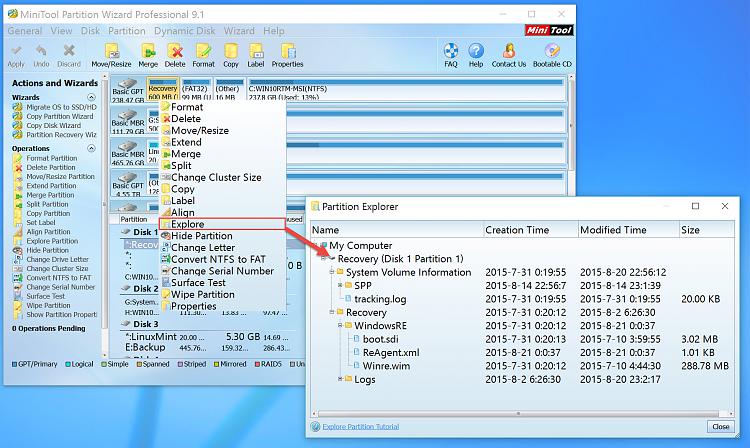

    P.S. If you want to check and see the contents of the Reserved Partition then you can use Mini Tool without assigning a letter for it.
    Open Mini Tool. Right click on the Reserved Partition -> Explore
    For Example:
    NOTE: This screen shot was taken from my UEFI Windows 10 so it is not related to the steps above.
    Click image for larger version.

Name:	b.jpg
Views:	4
Size:	632.9 KB
ID:	41832
      My ComputerSystem Spec

  2.    09 Oct 2015 #12

    Molyy said: View Post
    Since the systems were installed on two different hard disks, you only need to backup the hard drive where Win 10 is on. The disk image will usually be about 10% smaller than the source disk after compression, but this depends on the file types that you have on the hard disk. As to partition manager software, you can try free easeus partition tool if partition wizard didn't work for you.
    Thanks for clearing the doubt.
      My ComputerSystem Spec

  3.    09 Oct 2015 #13

    topgundcp said: View Post
    FYI. Windows 10 MBR style clean install will create 500MB Reseved Partition. Not 350MB

    I know each of us doing things differently but your Windows 10 is 230GB full ??? This is way, way too big to handle. May I suggest that you move all your personal data to another drive/partition and leave Windows 10 by itself so it is much easier to manage and back up and not counting if your Windows 10 crashed/unbootable/infected then you would have a very hard time to recover your personal data.

    All that said. Suggested above to install Macrium Reflect Free is also highly recommended. I am not sure what software you are now using to back up your Windows but with Macrium, you should not have any problem backing up.

    However. If you still want to resize the reserved partition to whatever you want without using third party partition manager such as Minitool, EASUS etc... Believe it or not ? you can do it with Macrium and here's how:
    NOTE: This procedure assumes that you've already created a Macrium backup image to backup Windows 10 using the option from the left pane as shown
    Click image for larger version.

Name:	a.jpg
Views:	36
Size:	22.7 KB
ID:	41823
    and also you've already created a Macrium Rescue disk.

    This procedure is done using my current Windows 10 with the reserved partition of 500MB and C: Drive and I want to increase the size to 1000MB so yours will be different. However, it will be the same for any Windows 10 partition scheme whether it's MBR or UEFI.

    Just follow the screen shot:
    Attachment 41824
    Attachment 41825

    Attachment 41828

    Attachment 41828

    Attachment 41829

    After all the steps above. Click Next and finish to restore then reboot. The Reserved Partition should be the size that you changed.

    Hope this helps.

    P.S. If you want to check and see the contents of the Reserved Partition then you can use Mini Tool without assigning a letter for it.
    Open Mini Tool. Right click on the Reserved Partition -> Explore
    For Example:
    NOTE: This screen shot was taken from my UEFI Windows 10 so it is not related to the steps above.
    Click image for larger version.

Name:	b.jpg
Views:	4
Size:	632.9 KB
ID:	41832
    Thanks for detailed information. I may be wrong about 350 MB System Reserved Partition. I only wanted to increase the System Reserved Partition size because Windows backup was failing and as you all are suggesting to use Macrium for backup then why to go for increasing the System Reserve Partition (but I will give a try as taught by you). Please make one more thing clear that while replying to a post, Do I need to Quote the full message of the member. Secondly why my System Reserved Partition is assigned a Drive letter by default.
      My ComputerSystem Spec

  4.    09 Oct 2015 #14

    topgundcp said: View Post
    FYI. Windows 10 MBR style clean install will create 500MB Reseved Partition. Not 350MB

    I know each of us doing things differently but your Windows 10 is 230GB full ??? This is way, way too big to handle. May I suggest that you move all your personal data to another drive/partition and leave Windows 10 by itself so it is much easier to manage and back up and not counting if your Windows 10 crashed/unbootable/infected then you would have a very hard time to recover your personal data.

    All that said. Suggested above to install Macrium Reflect Free is also highly recommended. I am not sure what software you are now using to back up your Windows but with Macrium, you should not have any problem backing up.

    However. If you still want to resize the reserved partition to whatever you want without using third party partition manager such as Minitool, EASUS etc... Believe it or not ? you can do it with Macrium and here's how:
    NOTE: This procedure assumes that you've already created a Macrium backup image to backup Windows 10 using the option from the left pane as shown
    Click image for larger version.

Name:	a.jpg
Views:	36
Size:	22.7 KB
ID:	41823
    and also you've already created a Macrium Rescue disk.

    This procedure is done using my current Windows 10 with the reserved partition of 500MB and C: Drive and I want to increase the size to 1000MB so yours will be different. However, it will be the same for any Windows 10 partition scheme whether it's MBR or UEFI.
    No offense topguntcp but that method seems way to difficult AND time consuming too!! Using MiniTool I could have done all of what you did in maybe 10 sec's or less. If a user had difficulty using MiniTool to change partitions, using Macrium Reflect to change partitions seems to be MUCH more difficult then MiniTool. I was just trying to give him an EASY way to re-size his partitons. Not make it more harder to do.
      My ComputerSystem Spec

  5.    09 Oct 2015 #15

    sam9 said: View Post
    Thanks for detailed information. I may be wrong about 350 MB System Reserved Partition. I only wanted to increase the System Reserved Partition size because Windows backup was failing and as you all are suggesting to use Macrium for backup then why to go for increasing the System Reserve Partition (but I will give a try as taught by you). Please make one more thing clear that while replying to a post, Do I need to Quote the full message of the member. Secondly why my System Reserved Partition is assigned a Drive letter by default.
    You make a good point about your system reserved partition, needing to be increased or not. I never use windows backup, don't trust it myself, that's why I use Macrium for image backups. You could turn off Windows Backup and just use a program like Macrium Reflect for your backups, and not change any of your partitions. Just a thought.....
      My ComputerSystem Spec

  6. topgundcp's Avatar
    Posts : 2,025
    Ubuntu14.04x64 MintMate17x64 Win10Prox64
       09 Oct 2015 #16

    No offense topguntcp but that method seems way to difficult AND time consuming too!! Using MiniTool I could have done all of what you did in maybe 10 sec's or less. If a user had difficulty using MiniTool to change partitions, using Macrium Reflect to change partitions seems to be MUCH more difficult then MiniTool. I was just trying to give him an EASY way to re-size his partitons. Not make it more harder to do.
    No offense taken. However, if you read the post, OP did not want to use Mini Tool for one thing. 2nd, the procedure I posted is straight forward if you follow the steps, you may be overwhelmed with the screen shots but actually it is very simple and only requires a few clicks. So what is too difficult about it ??? Time consuming about a few clicks ?

    FYI, I also use a Professional portable version of Mini Tool. I just don't want to install anything that I rarely use. If a person has a bad experience about it then I just provide the alternative which they feel comfortable with.

    BTW, did you try what I suggested before making a statement: too difficult and time comsuming ?

    @Sam,
    The reserved partition should not have any letter assigned and hidden. Just open Disk Management and remove the letter.
    Last edited by topgundcp; 09 Oct 2015 at 09:19.
      My ComputerSystem Spec

  7.    09 Oct 2015 #17

    As topgundcp, a data partition is probably a good idea to store your data on, and make the system partition smaller. Then, to me, it seems like it would be the data partition you would want to back up. It easy (maybe time consuming) to restore the OS from install media, especially with Microsoft's new hardware activation scheme, you don't even have to keep track of your Windows product key. But the data is not so easy to restore and much more concern if lost.
      My ComputerSystem Spec

  8.    09 Oct 2015 #18

    OldMike65 said: View Post
    No offense topguntcp but that method seems way to difficult AND time consuming too!! Using MiniTool I could have done all of what you did in maybe 10 sec's or less. If a user had difficulty using MiniTool to change partitions, using Macrium Reflect to change partitions seems to be MUCH more difficult then MiniTool. I was just trying to give him an EASY way to re-size his partitons. Not make it more harder to do.
    I respect your suggestion of Mini Tool. May be I have done something wrong earlier. I will certainly try again because I do not want to blame a software for my mistakes. If everything goes right now then it mean that I may have done something wrong earlier.
      My ComputerSystem Spec

  9.    09 Oct 2015 #19

    topgundcp said: View Post
    No offense taken. However, if you read the post, OP did not want to use Mini Tool for one thing. 2nd, the procedure I posted is straight forward if you follow the steps, you may be overwhelmed with the screen shots but actually it is very simple and only requires a few clicks. So what is too difficult about it ??? Time consuming about a few clicks ?

    FYI, I also use a Professional portable version of Mini Tool. I just don't want to install anything that I rarely use. If a person has a bad experience about it then I just provide the alternative which they feel comfortable with.

    BTW, did you try what I suggested before making a statement: too difficult and time comsuming ?

    @Sam,
    The reserved partition should not have any letter assigned and hidden. Just open Disk Management and remove the letter.
    I will give a try to Macrium to a different PC. Your screenshots are very clear and after practically doing it, I will see whether I can move to next screenshot or get confused at any time. Thanks again to you and OldMike65.
      My ComputerSystem Spec

  10.    10 Oct 2015 #20

    topgundcp said: View Post
    No offense taken. However, if you read the post, OP did not want to use Mini Tool for one thing. 2nd, the procedure I posted is straight forward if you follow the steps, you may be overwhelmed with the screen shots but actually it is very simple and only requires a few clicks. So what is too difficult about it ??? Time consuming about a few clicks ?

    FYI, I also use a Professional portable version of Mini Tool. I just don't want to install anything that I rarely use. If a person has a bad experience about it then I just provide the alternative which they feel comfortable with.

    BTW, did you try what I suggested before making a statement: too difficult and time comsuming ?

    @Sam,
    The reserved partition should not have any letter assigned and hidden. Just open Disk Management and remove the letter.
    I installed Macrium free on my Windows 10 Hard disk. While creating rescue media it is showing Win PE 5.0 i.e for Windows 8 and not showing Win PE 10.0 but on Macrium Site they are showing Win 10.0 PE also and some where mentioning that on Win XP this PE 10.0 is not available but mine is Windows 10.

    Edit: Just to remind that mine is dual booted PC (XP and 10) but both are on different hard disk and I have installed Macrium on Windows 10 hard disk and also trying to create Rescue media from Macrium on Windows 10. I think this should not have any issue with not showing the option of Win 10 PE.
    Last edited by sam9; 10 Oct 2015 at 04:39.
      My ComputerSystem Spec
