  1.    09 Oct 2014 #1
    Join Date : Oct 2014
    Posts : 4
    windows 8.1 Pro

    Windows Technical Preview Installation Problem


    I am trying to install Windows 10 Tech Preview : WindowsTechnicalPreview-x64-EN-US.iso 3.81 GB (4,100,497,408 bytes), have checked sha1 also.
    But I am not able to install even after repeated attempts.
    Below is the system info and my Bios options available in my laptop. Summary: Windows 8.1 x64, Legacy Bios with MBR File System.

    More Details and updates on my adventurous journey on the below problem here on MDL Forum's Thread:

    http://forums.mydigitallife.info/thr...egacy-BIOS-MBR


    Click image for larger version.

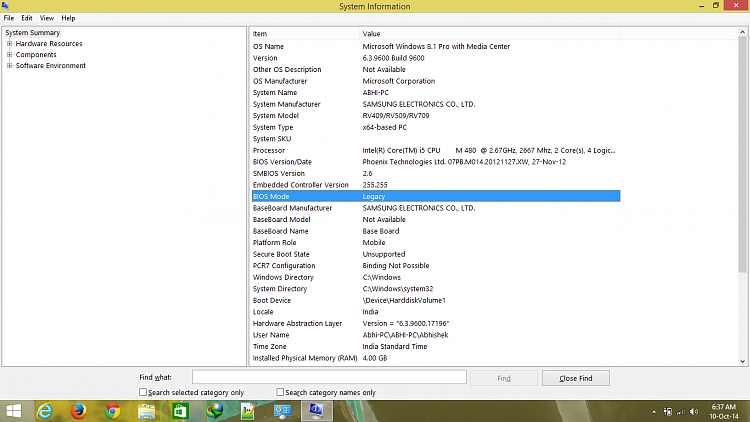

Name:	Windows system config.png
Views:	210
Size:	139.9 KB
ID:	6689Click image for larger version.

Name:	attachment.jpg
Views:	256
Size:	465.0 KB
ID:	7040Click image for larger version.

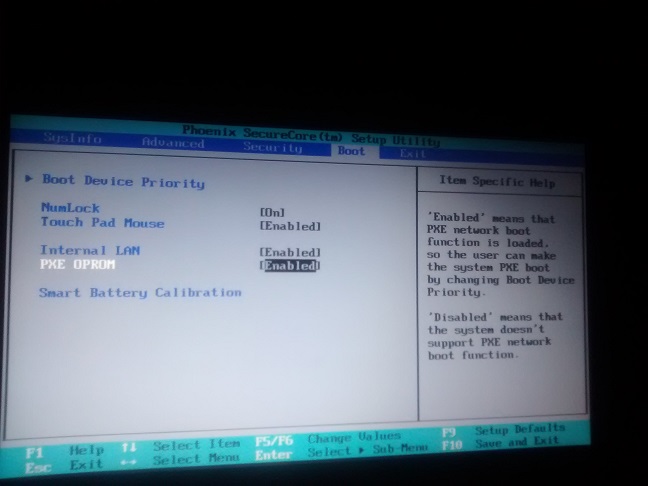

Name:	Bios Setting 2.jpg
Views:	4008
Size:	117.9 KB
ID:	6694

    A. Trying to do clean Install using Flashable USB Drive

    Commands used to prepare the usb flash drive using Diskpart utility:
    list disk, select disk 3, clean, create partition primary, format fs=fat32 quick, active, assign, then simple copy paste contents from mounted iso file
    Note: Current File System is MBR and current OS is Windows 8.1 Pro 64bit

    Trial 1: BIOS Settings: UEFI BOOT SUPPORT Disabled and PXI OPROM Disabled/Enabled tried both
    Stuck At Windows logo without the round cursor while booting as below:

    Trial 2: UEFI BOOT SUPPORT Enabled
    No Windows Logo Appears, Directly It starts with Loading files, Loading Files Completes and then It goes to black empty screen and gets stuck there.
    Click image for larger version.

Name:	IMG_20141009_213741.jpg
Views:	4007
Size:	115.3 KB
ID:	6697Click image for larger version.

Name:	IMG_20141009_214236.jpg
Views:	4024
Size:	89.9 KB
ID:	6696

    Trial 3: I even tried to use Rufus Tool using following setting, but even here No Luck


    B. Trying to upgrade from the existing Windows 8.1 x64 OS
    Also when I try to install simply by clicking setup.exe in the usb flash drive created above, it starts installing asks what to keep like personal files.. And goes till 88% after which it says system will restart in few moments and then it restarts for the first time while restarting it stucks at the windows logo itself and doesn't proceed further, I waited for 10 mins there bit still remains stuck, so did force reboot using power buyton and then laptop starts previous Windows 8.1 and then says could not Install Windows Technical Preview.
    Click image for larger version.

Name:	IMG_20141008_220523.jpg
Views:	4110
Size:	122.6 KB
ID:	6698

    Just to verify if my flash drive has some problem, I created Windows 8.1 Installation Disk using diskpart fat32 file system with the same commands as above
    And guess what when I try to boot using this: It Boots up within 40 seconds when the windows logo appears in following conditions :
    UEFI BOOT SUPPORT Disabled, PXE OPROM Enabled/Disabled
    Last edited by Abhishek Anand; 14 Oct 2014 at 22:35.
      My ComputerSystem Spec
  2.    10 Oct 2014 #2
    Join Date : Oct 2014
    Posts : 4
    windows 8.1 Pro
    Thread Starter

    I'm really hopeful to see some suggestion on this...
      My ComputerSystem Spec
  3.    11 Oct 2014 #3
    Join Date : Sep 2014
    Nashville, TN
    Posts : 3,143
    Windows 10 Pro

    I believe you need the Execute Disable bit enabled... PXE should be off, as this is for booting from a network card.
      My ComputerSystem Spec
  4.    11 Oct 2014 #4
    Join Date : Oct 2014
    Posts : 774
    Windows 7

    Execute Disable bit is necessary for newer operating systems. I first discovered this when trying to install Windows 8.
      My ComputerSystem Spec
  5.    11 Oct 2014 #5
    Join Date : Oct 2014
    Posts : 4
    windows 8.1 Pro
    Thread Starter

    Quote Originally Posted by Mystere View Post
    I believe you need the Execute Disable bit enabled... PXE should be off, as this is for booting from a network card.
    Thank you for replying.

    I tried with these settings got EDB enabled and PXE disabled but I could never get Win10TP boot properly from the usb flash drive.

    I have also tried with an another usb drive that i have, no success evwn there.

    Two fail scenarios which are being repeated are:

    1. When UEFI Boot Support Disabled
    First Screen: WIndows Logo without the animating cursor. And It will stay at this screen. No further action.

    Then I will have to do force shutdown, remove the flash drive from the USB. And then restart the laptop. It will boot properly to the exusting Windows 8.1 pro x64. Everything back to where I started.

    2. When UEFI Boot Support Enabled in Bios Settings
    This time No Windows Logo Appears, the first screen that I get is:
    First Screen: Loading Files... This will continue to the end and then next screen would be
    Next Screen: Simple Black Screen with No action. And It'll stay like this at this screen.

    Then again I have to force shutdown my lappi, remove the pendrive and start the lappi, and everything back to where I was.
    Last edited by Abhishek Anand; 11 Oct 2014 at 23:26.
      My ComputerSystem Spec
  6.    12 Oct 2014 #6

    Please expand the BIOS Boot Device Support so we can see the choices. Are you booting the flash stick as a UEFI device when you try to install in that mode?

    The flash stick remains suspect until it achieves an install on any PC. For installing in UEFI mode then follow Option One for UEFI Bootable USB Flash Drive - Create in Windows.

    Try these same steps for Overcoming Windows 7 Installation Failures - Windows 7 Help Forums
      My ComputerSystem Spec
  7.    14 Oct 2014 #7

    Hi there

    Do you have SECURE BOOT or PROTECTED BOOT option. This needs to be set to OFF or something like enable Legacy Boot

    cheers
    jimbo
      My ComputerSystem Spec
  8.    14 Oct 2014 #8
    Join Date : Jun 2014
    UK
    Posts : 1,076
    W10 pro x64 and W8.1 x86

    I'm probably out of my depth on the BIOS options but will just mention these,

    1/ You have made the ISO file bootable by using a program such as "isotousb" ?


    2/ You say it got stuck when trying an upgrade. I've not done an upgrade but during my x86 install you would think it got stuck part way through. The reason, a buggy and incorrect wifi driver that W10 installs during the install procedure. It takes 90 minutes for me to complete a clean install because of this, and there is no way to stop it or disable it until it booted to the desktop.
      My ComputerSystem Spec
  9.    14 Oct 2014 #9
    Join Date : Dec 2013
    Sydney, Nova Scotia, Canada
    Posts : 10,612
    Windows 10 IoT

    I have two desktop PC's that 10 TP will not install on from a USB thumb drive. They both boot from the thumb drive but freeze at a black screen with a flashing cursor. They have a standard non UEFI BIOS. That same thumb drive installed 10 TP on my laptop that has UEFI, with no issues. I burned a DVD from the same ISO and was able to install 10 TP on my desktop PC. I tried 3 different methods for creating the bootable thumb drive and none of them worked on my desktop PC. Why the DVD worked and the thumb drive didn't, I have no idea.
      My ComputerSystem Spec
  10.    14 Oct 2014 #10
    Join Date : Oct 2014
    Posts : 4
    windows 8.1 Pro
    Thread Starter

    Hello Everyone,

    First thanks a lot for trying to help me out on my problem.

    Update One: Flash Drive is all right I tried to use this on my friend's Dell laptop and it worked like a charm. So no issues with that.

    Update two: This issue, I have also shared on MDL's Forum: A lot of update here on this. Not Solved yet though.

    Windows Technical Preview Installation Problem Legacy BIOS+MBR

    I have went through a lot of trials 20+ times with various different Settings, even tried installing using command prompt/(using dism) way of Installing Windows OS. But, unfortunately no luck even then.

    After all this trials I can conclude for there are three types of fail results two of them depends only on the option what I select for UEFI Boot Support Enabled/Disabled in Bios Settings before trying to boot from the bootable Win10 usb drive:

    Generic Settings that I have tried:

    Filesystem of the Laptop's Disk drive: MBR as well as GPT now(same fail cases in both)

    A. When File System was MBR, Options I tried

    a. For bootable USB Flash Drive creation:
    Using Rufus: MBR partition scheme for Bios or UEFI Computers and NTFS/Fat32
    MBR partition scheme for UEFI Computers and Fat32

    Other Bios Settings:
    EDB: Enabled (Its a mandatory requirement I believe)
    AHCI: Auto Mode,
    (When disbaled there was some boot problem, so I kept it on Auto.Besides on its description it says, Its Enabled for Win Vista,7,8 and Auto disabled for Win XP)
    PXE OPROM: Enabled/Disabled (tried for both one by one)
    : (Don't think makes any difference as far as my problem is conserned.)

    B. When File System is GPT, Options I tried

    a. For bootable USB Flash Drive creation:
    Using Rufus: GPT partition scheme for UEFI Computers and Fat32


    b. Other Bios Settings: Same as above.



    Fail result I. When UEFI Boot Support Disabled

    First Screen: WIndows Logo without the animating cursor. And It will stay at this screen. No further action.

    Then I will have to do force shutdown, remove the flash drive from the USB. And then restart the laptop. It will boot properly to the exusting Windows 8.1 pro x64. Everything back to where I started.

    Fail Result II: When UEFI Boot Support Enabled in Bios Settings
    This time No Windows Logo Appears, the first screen that I get is:
    First Screen: Loading Files... This will continue to the end and then next screen would be
    Next Screen: Simple Black Screen with No action. And It'll stay like this at this screen.

    Then again I have to force shutdown my lappi, remove the pendrive and start the lappi, and everything back to where I was.

    Fail Result III: Whenever trying to Upgrade from Windows 8.1 x64 by simply mounting the Win10TP iso and then running the setup.exe
    When I try to install simply by clicking setup.exe in the usb flash drive created above, it starts installing asks what to keep like personal files.. And goes till 88% after which it says system will restart in few moments and then it restarts for the first time while restarting it stucks at the windows logo itself and doesn't proceed further, I waited for 10 mins there bit still remains stuck, so did force reboot using power button and then laptop starts previous Windows 8.1 and then says
    "We could not Install Windows Technical Preview.
    We have set your PC back to the way it was right before intalling Windows Technical Preview
    0xC1900101-0x20017"

    Quote Originally Posted by gregrocker View Post
    Please expand the BIOS Boot Device Support so we can see the choices. Are you booting the flash stick as a UEFI device when you try to install in that mode?

    The flash stick remains suspect until it achieves an install on any PC. For installing in UEFI mode then follow Option One for UEFI Bootable USB Flash Drive - Create in Windows.

    Try these same steps for Overcoming Windows 7 Installation Failures - Windows 7 Help Forums
    Updated the OP with the current screenshot of Bios. Flash Drive has no issue. Tried to use on my friend's lappi and it worked great.

    Quote Originally Posted by jimbo45 View Post
    Hi there

    Do you have SECURE BOOT or PROTECTED BOOT option. This needs to be set to OFF or something like enable Legacy Boot

    cheers
    jimbo

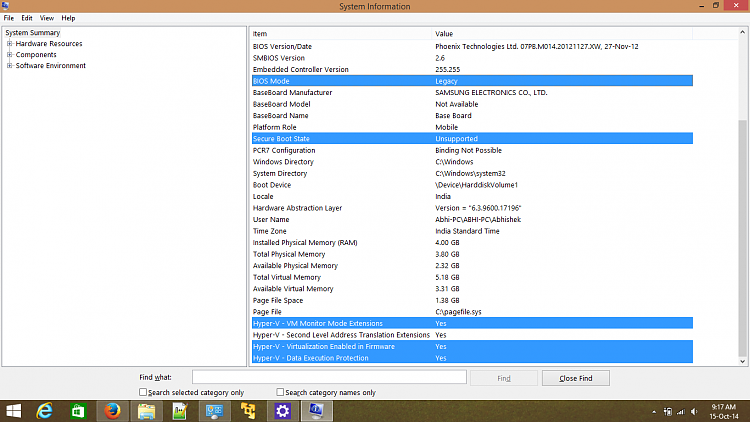

    Secure Boot is not supported by my System, as that can be seen from the Screenshot of My System Config:
    Click image for larger version.

Name:	Screenshot (8).png
Views:	113
Size:	150.4 KB
ID:	7041

    Quote Originally Posted by Mooly View Post
    I'm probably out of my depth on the BIOS options but will just mention these,

    1/ You have made the ISO file bootable by using a program such as "isotousb" ?


    2/ You say it got stuck when trying an upgrade. I've not done an upgrade but during my x86 install you would think it got stuck part way through. The reason, a buggy and incorrect wifi driver that W10 installs during the install procedure. It takes 90 minutes for me to complete a clean install because of this, and there is no way to stop it or disable it until it booted to the desktop.
    Quote Originally Posted by alphanumeric View Post
    I have two desktop PC's that 10 TP will not install on from a USB thumb drive. They both boot from the thumb drive but freeze at a black screen with a flashing cursor. They have a standard non UEFI BIOS. That same thumb drive installed 10 TP on my laptop that has UEFI, with no issues. I burned a DVD from the same ISO and was able to install 10 TP on my desktop PC. I tried 3 different methods for creating the bootable thumb drive and none of them worked on my desktop PC. Why the DVD worked and the thumb drive didn't, I have no idea.
      My ComputerSystem Spec
