  1.    06 Oct 2014 #1
    Join Date : Oct 2014
    Posts : 25
    Windows 7

    Windows 10 Install says I don't have enough space


    I have a 2 terrabyte HD as a backup/file server in my machine. My C drive is a 500 gig SSD. I partitioned the HD and left 625 gigs for Win10.
    I originally had a problem because my BIOS was not set to Legacy, but I fixed that.
    NOW the install program says I don't have enough space to install the program. I have 625 gigs.
    I also tried selecting my SSD, which has a 24 gig partition, and got the same message.

    How do I get past that?
      My ComputerSystem Spec
  2.    06 Oct 2014 #2
    Join Date : Oct 2013
    Penns Forrest
    Posts : 3,506
    Win_8.1-Pro, Win_10.1607-Pro, Mint_17.3

    Quote Originally Posted by mac173173 View Post
    I have a 2 terrabyte HD as a backup/file server in my machine. My C drive is a 500 gig SSD. I partitioned the HD and left 625 gigs for Win10.
    I originally had a problem because my BIOS was not set to Legacy, but I fixed that.
    NOW the install program says I don't have enough space to install the program. I have 625 gigs.
    I also tried selecting my SSD, which has a 24 gig partition, and got the same message.

    How do I get past that?

    How are you installing? As the primary OS, dual boot, or VM?

    This might be a problem:
    My C drive is a 500 gig SSD. I partitioned the HD and left 625 gigs for Win10.

    I'm sure you meant something else ...
    No, I get it - the HD / SSD difference.

    Is the 2TB HD external?
      My ComputerSystem Spec
  3.    07 Oct 2014 #3
    Join Date : Oct 2014
    Posts : 25
    Windows 7
    Thread Starter

    The 2TB is internal. It used to be my primary drive and has Win 7 on it. I installed the SSD and made it the primary drive in the BIOS, but Win 7 on the HDD is still bootable. I partitioned that drive and left a 625 partition to install 10.

    Both my SSD and HDD are MBR drives. I am not sure how this happened, but Win10 would not install on either. I found a setting in the BIOS to enable Legacy drives, and the install program stopped giving me the error message that my drive was MBR.

    NOW, when I select the 625 gig partition and try to install, it says the drive does not have enough room to install the OS. Take a look at the pic to see Disk Management window.

    Click image for larger version.

Name:	DiskMgmt.PNG
Views:	97
Size:	93.6 KB
ID:	6307
      My ComputerSystem Spec
  4.    07 Oct 2014 #4
    Join Date : Jul 2014
    San Jose, California
    Posts : 2,196
    Ubuntu14.04x64 MintMate17x64 Win10Prox64

    You can try to create a partition on the 625GB first, assign a letter then try again.
      My ComputerSystem Spec
  5.    07 Oct 2014 #5
    Join Date : Oct 2013
    Penns Forrest
    Posts : 3,506
    Win_8.1-Pro, Win_10.1607-Pro, Mint_17.3

    Thanks for the disk management shot - it's a big help

    Is Win7 on both drives?

    A few things I'd try first:

    I'm not sure which active partition (System Reserve on Disk 0 or Data on Disk 1) the machine uses to bootstrap. Probably System Reserve on Disk 0. This is a common misconfiguration when people do not remove a physical drive before installing a new drive.

    Disconnect the HD (Disk 0)
    Connect the SSD to the port that the HDD was connected - should be Disk 0 now

    See if the machine will start - if it does not then see this tutorial
    Startup Repair - Windows 7 Help Forums

    Run the startup repair 3 times - without restarting - even if it says Ok.

    Reconnect the HDD - should be disk 1 now
    Stop here and post another disk mgmnt screen shot.
      My ComputerSystem Spec
  6.    07 Oct 2014 #6
    Join Date : Oct 2014
    Posts : 25
    Windows 7
    Thread Starter

    Ok, follow along this, it's convoluted.

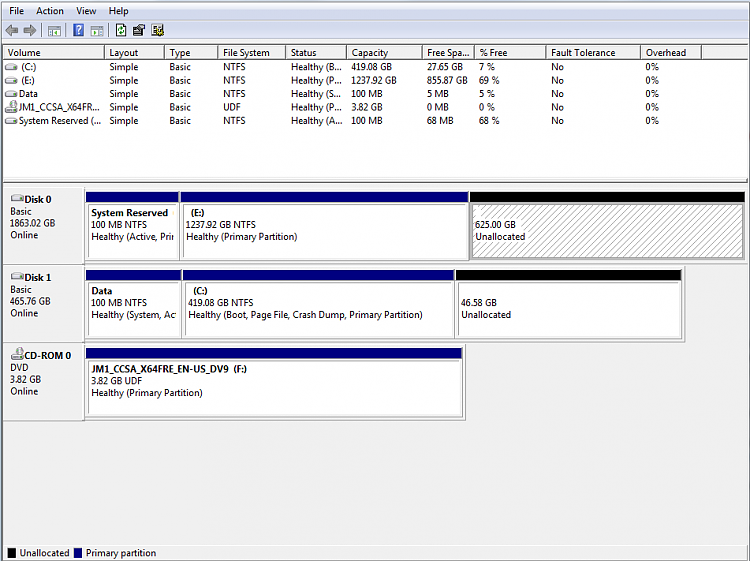

    I disconnected the HDD (Disk 0). The machine booted, no problem. I shut down the machine, reconnected the HDD and got this......
    Click image for larger version.

Name:	DiskMgmt v2.PNG
Views:	62
Size:	44.2 KB
ID:	6418
    So, I shut down, disconnected the HDD, and rebooted with only the one drive and got this....
    Click image for larger version.

Name:	DiskMgmtSSD.PNG
Views:	61
Size:	37.7 KB
ID:	6419
    THEN, I reconnected the HDD with the machine running (don't yell, I know...) and got this....
    Click image for larger version.

Name:	DiskMgmtSSD+HDD.PNG
Views:	54
Size:	52.5 KB
ID:	6420
    YAY. But, being the skeptic that I am, I rebooted.......
    Click image for larger version.

Name:	DiskMgmtSSD+HDDReboot.PNG
Views:	36
Size:	45.3 KB
ID:	6421
    So apparently my machine really, really wants that HDD as (Disk 0).
    Know any way to make it change its mind?
      My ComputerSystem Spec
  7.    07 Oct 2014 #7
    Join Date : Jul 2014
    San Jose, California
    Posts : 2,196
    Ubuntu14.04x64 MintMate17x64 Win10Prox64

    You have both disks marked as Active and you also have 2 reserved 100 MB partitions. Only one disk should be marked Active.

    Click image for larger version.

Name:	a.png
Views:	1937
Size:	152.7 KB
ID:	6427
    Last edited by topgundcp; 07 Oct 2014 at 23:00.
      My ComputerSystem Spec
  8.    08 Oct 2014 #8
    Join Date : Oct 2013
    Penns Forrest
    Posts : 3,506
    Win_8.1-Pro, Win_10.1607-Pro, Mint_17.3

    mac, could you do me a favor and change the label on the HDD 100 MB part to something this old brain can easily identify as the HDD part? Maybe HDD_100MB would be something I can wrap my head around.

    This doesn't have anything to do with solving the issue, but I can be easily confused when looking at disk mgmnt shots.

    Thanks - don't sweat it .. it's not really important.

    Post 5 and 7 are more germane to the issue - where you physically connect the SSD and changing the active flag. If your machine won't boot - see post# 5 re: Startup repair - three times!

    Bill
    .
      My ComputerSystem Spec
  9.    08 Oct 2014 #9
    Join Date : Oct 2014
    Posts : 25
    Windows 7
    Thread Starter

    Thanks, I am posting this from Windows 10. Switching the wires and running Repair did the trick. I had tried to just make the SSD active, but that made the machine unbootable. Switching the wires was kind of involved (fat hands, big vid card, yadda, yadda....) but that worked.

    Thanks very much for the help, I never would have gotten this install done without your help.
      My ComputerSystem Spec
  10.    08 Oct 2014 #10
    Join Date : Jul 2014
    San Jose, California
    Posts : 2,196
    Ubuntu14.04x64 MintMate17x64 Win10Prox64

    Glad that we could help. Thanks for reporting back
