Questions regarding Win10 Digital License and Cloning

Page 2 of 3 FirstFirst 123 LastLast
  1. Megahertz's Avatar
    Posts : 2,425
    Windows 7 HP 64 - Windows 10 Pro - Lubuntu
       #11

    I also have Windows + Linux. It will make a disk image or clone.
    Is your disk Legacy - MBR or EFI - GPT?

    Sorry, I made a confusion about the drag and drop. I think it was during a image restore and I drag and drop the partitions. But I'm not sure if it was with Macrium.
      My Computers

  2. ArthurDent's Avatar
    Posts : 215
    Windows 10 Pro (x64) 20H2 (OS Build 19042.630)
    Thread Starter
       #12

    Megahertz said:
    I also have Windows + Linux. It will make a disk image or clone.
    Is your disk Legacy - MBR or EFI - GPT?

    Sorry, I made a confusion about the drag and drop. I think it was during a image restore and I drag and drop the partitions. But I'm not sure if it was with Macrium.
    Hi Megahertz,

    Given the age of the laptop (bought in Dec 2008) I wasn't surprised to see it was MBR (UFEI / GPT isn't even an option in the BIOS)

    Art

    - - - Updated - - -

    Okay so an issue.

    In BIOS the boot priority is set as follows:

    1st Device - External Device
    2nd Device - Internal Optical Drive
    3rd Device - Internal Hard Disk

    I plug the Macrium Rescue USB stick into the pc & re-start

    I get the GRUB menu and if I select Windows it boots to my normal desktop not the USB stick and Macrium Reflect as I was expecting.

    Any ideas??

    Art

    - - - Updated - - -

    Okay ... Issue #2

    Boot the pc to windows using old SSD in the laptop.

    Launch Macrium Reflect.

    Connect the new SSD via a USB caddy.

    The new SSD doesn't show up.

    Launch EaseUS Partition Manager

    The new SSD doesn't show up.

    Launch Disk Management

    It says that Disk 1 is not Initialised, I click to initialise the disk and get an error - 'The Device is not Ready'

    Disk 0 is the internal SSD, Disk 1 is 'Unknown' and 'Not Initialised'

    Questions regarding Win10 Digital License and Cloning-disk-management-1.jpg

    When I right-click Disk 1, and click on Initialise Disk I get the same error message:

    Questions regarding Win10 Digital License and Cloning-disk-management-2.jpg

    I open up an Administrator Command Prompt and type in DISKPART then list disk

    DISKPART only shows me one disk:

    Questions regarding Win10 Digital License and Cloning-diskpart-1.jpg

    So, I leave the external SSD plugged in and restart the pc.

    I open Disk Management

    I get asked about initialising Disk 1, I say yes, get the error message.

    Now when I right click Disk 1, the 'Initialise Disk' option is greyed out.

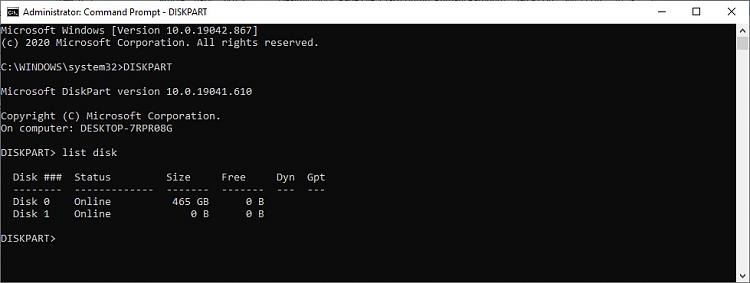

    I open up an Administrator Command Prompt and run DISKPART list disk again.

    Now I get two disks showing - but despite this I still can't initialise Disk 1 in Disk Management:

    Questions regarding Win10 Digital License and Cloning-diskpart-2.jpg

    Interesting that it says the drive is 'Online' but the size is 0Gb!

    Okay - so I take the USB caddy and swap the USB cable over (you never know).

    I take it to another pc.

    Same thing. Disk Management says it needs initialising then says 'The Device is not Ready"

    EaseUS Partition Manager can't see it either.

    DISPART shows the disk as 'Online' but size 0Gb as shown in the secnd DISPART screenshot above.

    So - is this 'brand new' straight out-of-the-box SSD faulty??

    An online Google search suggests this is the most likely explanation.

    HELP!

    Art
    Last edited by ArthurDent; 3 Weeks Ago at 16:25.
      My Computers

  3. Megahertz's Avatar
    Posts : 2,425
    Windows 7 HP 64 - Windows 10 Pro - Lubuntu
       #13

    - How did you make the Macrium Rescue USB stick? Was it from a ISO file?
    Use the following Diskpart CMD
    diskpart
    list disk (it will list all drives. Identify the USB drive number)
    select disk n (replace n by the USB drive number obtained with list disk)
    clean
    convert mbr
    create part primary
    select part 1
    format fs=ntfs quick
    assign
    active
    exit (to exit diskpart)

    Mount the iso, select all files and folders and copy to the root of the USB drive.
    It now boots as Legacy.
    During POST launch the boot menu and select the USB drive.

    - The new SSD is RAW - it hasn't been initialized. You don't have to initialize it as Macrium does it for you (it clean the disk and then initialize)
      My Computers

  4. ArthurDent's Avatar
    Posts : 215
    Windows 10 Pro (x64) 20H2 (OS Build 19042.630)
    Thread Starter
       #14

    Hi Megahertz,

    So you don't think the new SSD is faulty?

    Megahertz said:
    - How did you make the Macrium Rescue USB stick? Was it from a ISO file?
    The Rescue USB was made from inside Macrium Reflect (Create Rescue Media Wizard > Select Flash Drive > Build)

    Use the following Diskpart CMD
    diskpart
    list disk (it will list all drives. Identify the USB drive number)
    select disk n (replace n by the USB drive number obtained with list disk)
    clean
    convert mbr
    create part primary
    select part 1
    format fs=ntfs quick
    assign
    active
    exit (to exit diskpart)

    Mount the iso,
    Mount which iso & how? Not sure the program/application on the Rescue USB is an iso image - I'll have to check

    I re-ran the Rescue Media Wizard and put it onto a CD (using the Win PE 10 (WADK) WIM. I tested the disk and the pc boots from the CD into Macrium Reflect. So I'm getting there!
    Re-reading this I guess by 'mount' you mean run the Macrium Reflect s/ware??


    select all files and folders and copy to the root of the USB drive (and which files and folders do I copy - from where?)
    Again, re-reading I guess you mean the partitions I want to copy across to the new SSD?

    It now boots as Legacy.

    During POST launch the boot menu and select the USB drive.
    BIOS on the laptop in question is already set to the following boot order: 1st External Device, 2nd Internal Optical Drive, 3rd Internal Hard Disk.


    - The new SSD is RAW - it hasn't been initialized. You don't have to initialize it as Macrium does it for you (it clean the disk and then initialize)

    Thanks for all of your help so far.

    Art

    - - - Updated - - -

    UPDATE.

    Ran an Admin Command Prompt.

    Ran DISKPART

    List Disk

    Questions regarding Win10 Digital License and Cloning-diskpart-2.jpg

    Select Disk 1

    "Disk 1 is now the selected disk"

    Clean

    "DiskPart succeeded in cleaning the disk"

    convert mbr

    "DiskPart has encountered an error. The device is not ready. See System Event Log for more information."

    (I have two jpeg images of what happened but for some reason, I can't upload them!! Odd, because as you can see, I've already put a jpeg into this post!! - now sorted - see below)

    Questions regarding Win10 Digital License and Cloning-diskpart-error.jpg

    Questions regarding Win10 Digital License and Cloning-event-_viewer.jpg

    Error code was [email protected] *shrugs*

    Looking (to me at least) as if this brand-new SSD is faulty.

    Opinions??

    Art
    Last edited by ArthurDent; 3 Weeks Ago at 04:48.
      My Computers

  5. MisterEd's Avatar
    Posts : 504
    Windows 10 Pro 64-bit v20H2
       #15

    Is it possible the external SSD enclosure is faulty? I had one that failed and had to be replaced.
      My Computers

  6. ArthurDent's Avatar
    Posts : 215
    Windows 10 Pro (x64) 20H2 (OS Build 19042.630)
    Thread Starter
       #16

    Hi Me Ed.

    I have another caddy that I can try. I've already swapped the USB cable and tried the caddy in a different pc but get the same 'Device is not ready' error.

    Before swapping the caddy over, I tried a different hard disk (a Toshiba MK5075GSX) which opened in file explorer and also in Disk Management.

    Questions regarding Win10 Digital License and Cloning-read-only.jpg

    This seems to indicate that the Samsung SSD is 'dead on Arrival' ?

    Most odd.

    UPDATE:

    I've also tried plugging the external USB caddy into a different USB port on the pc

    So, in summary, I've tried the following steps. In all cases USB means the USB caddy with the Samsung SSD attached.

    Removed the USB and re-inserted.

    Inserted the USB and re-started the pc.

    Swapped over the cable between the USB and pc.

    Plugged the USB into a different port on the same pc.

    Plugged the USB into a different computer.

    Used DISKPART > list disk > select disk 1 > clean > convert mbr

    and each time got the same error 'The Device is not ready".

    I dug out a different USB caddy, connected that and went into Disk Management

    I got the message that the disk was not initialised and did I want to initialise as MBR or GUID.

    Chose MBR partitioning scheme:

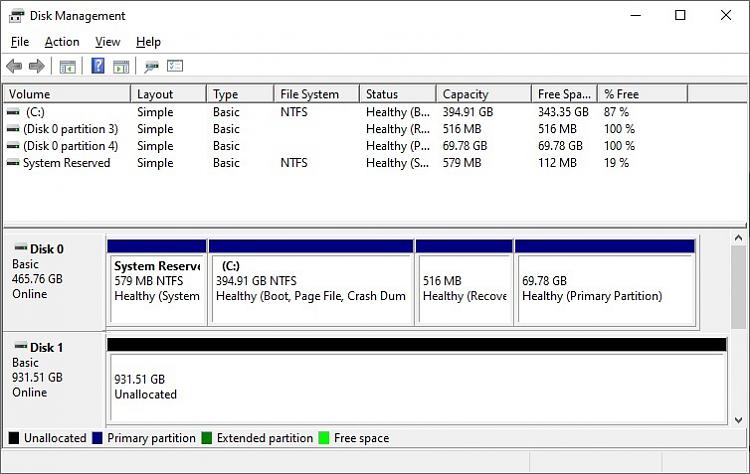

    External (new SSD) drive now 'Online' and Unallocated':

    Questions regarding Win10 Digital License and Cloning-disk-management-3-working-.jpg

    Just running Macrium Reflect cloning process now.

    Looks like there was an incompatability issue with the first USB caddy I tied - despite it working with a different hard disk!

    UPDATE 2:

    Well, the clone process has finished and anti-virus scan is currently in progress. Once finished, I'll extend the Windows partition into the free space at the end of the drive using EaseUS Partition Master (I thought you should have that option in Macrium Reflect - but I couldn't see it) and then swap the new drive into the pc and see if it will boot.

    Art
    Last edited by ArthurDent; 3 Weeks Ago at 05:48.
      My Computers

  7. Megahertz's Avatar
    Posts : 2,425
    Windows 7 HP 64 - Windows 10 Pro - Lubuntu
       #17

    Art, you're not reading and / or following my instructions.
    BIOS on the laptop in question is already set to the following boot order: 1st External Device, 2nd Internal Optical Drive, 3rd Internal Hard Disk. If you can't boot from the USB 128G flash drive, the drive isn't set correctly.
    The disk part instructions was to be applied to the USB 128G flash drive as you said you couldn't boot from it.

    You're trying to convert a drive (SSD) that hasn't been initialized. As I wrote, it doesn't need to be initialized.
    Were you able to boot from the Macrium USB rescue drive?
      My Computers

  8. ArthurDent's Avatar
    Posts : 215
    Windows 10 Pro (x64) 20H2 (OS Build 19042.630)
    Thread Starter
       #18

    Hi Megahertz,

    No, Iím not able to boot off the USB drive however I made a CD and was able to boot off that (I thought Iíd posted that info but canít see it anywhere in this thread)

    I didnít realise that your instructions referred to the USB thumb drive.

    Btw, the USB drive is only 16Gb (donít know where you have got the figure of 128Gb from) - just re-read my earlier posts and I mention a 128Gb USB stick so I see where you got that from - you werenít to know that was for transferring documents and files from the previous spiny disk hard drive (that preceded the 500Gb SSD) I hope that makes sense!

    Currently away from home so I canít test that out at the moment.

    I have managed to clone the old, internal, smaller SSD to the larger, external SSD which is connected to the pc via a USB interface using Macrium Reflect 7.3

    I just need to swap the old and new drives over then see if the pc will boot from the new disc.

    Thank you once again for your help and patience in trying to help/guide me through this process. It is very kind of you.

    Regards,

    Art
      My Computers

  9. Megahertz's Avatar
    Posts : 2,425
    Windows 7 HP 64 - Windows 10 Pro - Lubuntu
       #19

    Every partition has an ID and some boot instructions points to a partition ID that has the boot files.
    When you clone a disk, you first create new partitions (each with it's own ID) and then copy all files and folders from one drive to another.
    When booting from the new drive, it has instructions to look for a partition ID that is on the old drive and it doesn't find on the new drive.

    What I'm saying is that you should do a boot repair on the new drive to change the boot instructions so it looks for an ID of the new drive . Macrium has a very good boot repair.
      My Computers

  10. ArthurDent's Avatar
    Posts : 215
    Windows 10 Pro (x64) 20H2 (OS Build 19042.630)
    Thread Starter
       #20

    Hi again,

    Just to clarify, I put the new SSD in the pc, then boot the pc off the Rescue Drive and do a boot repair?

    Iím glad that the new SSD isnít faulty but I was getting more and more convinced that it was.

    Turns out that for some reason, the first USB caddy was incompatible with the SSD but swapping it for a second, seemingly identical unit and it was detected, could be initialised and cloned using Macrium

    Art
    Last edited by ArthurDent; 3 Weeks Ago at 11:19.
      My Computers
