anyone able to clarify what these 5 partitions are?

Page 1 of 4 123 ... LastLast

  1. Posts : 681
    Windows 10 x64 Pro
       #1

    anyone able to clarify what these 5 partitions are?


    My other pc's have 4, so i want to figure out what/why i have a difference here. Its one of those things :P

    anyone able to clarify what these 5 partitions are?-image.png
      My Computer

  2. dalchina's Avatar
    Posts : 29,953
    Win 10 Pro (1903)
       #2

    That looks like a standard UEFI Windows installation which has been upgraded.

    It looks as if there are two recovery partitions (provide advanced startup options and automated repair). (1st and last). One will be in use- probably the larger last one).

    The 4th is your ' C: ' of course.

    The 2nd and 3rd are created when Windows is installed.
    https://docs.microsoft.com/en-us/win...ive-partitions

    The FAT32 partition is your EFI partition
    EFI system partition - Wikiwand

    16Mb partition:
    Microsoft Reserved Partition - Wikiwand
      My Computers

  3. Kyhi's Avatar
    Posts : 3,545
    Windows 3.1 to Windows 10
       #3

    That looks like a standard UEFI Windows installation which has been upgraded.
    Yep...
      My Computer


  4. Posts : 681
    Windows 10 x64 Pro
    Thread Starter
       #4

    ok, i was kinda able to surmise a bit of what you guys mentioned via google. Here is the image from my other pc with a brand spanking new SSD i just put in. Not a fresh windows install but with a restoration from the old smaller ssd.

    anyone able to clarify what these 5 partitions are?-image.png

    in comparison to the first image, it seems the difference is the final partition. I do have the macrium PE recovery environment installed, but thats the same on both disks.

    Anything I can do to regain parity across the both of these? Can i get rid of one of those recovery partitions?

    thank you!
      My Computer

  5. dalchina's Avatar
    Posts : 29,953
    Win 10 Pro (1903)
       #5

    Only one will be in use, typically the larger. The one after the installation is likely to be that. Windows typically places this first when initially installed, then if more space is needed on an upgrade, creates one after the others.

    This is expected to change in later builds, I believe.

    One easy way to find out is to see which is the newer. Use a 3rd party partition manager, rt click the recovery partition, explore the content, see which is the newer from the dates.

    Otherwise work it out from
    anyone able to clarify what these 5 partitions are?-1.png
      My Computers


  6. Posts : 681
    Windows 10 x64 Pro
    Thread Starter
       #6

    seems computer management on the 4 partition system lists it as recovery (oem partition)

    on the pc with 5 partitions it lists one as recovery (oem partition) and one as (disk 0 partition 5) and (oem partition)

    so theyre both oem partitions but once is labled correctly as recovery.

    perhaps due to being an image from an old disk without formatting first or something and i enver noticed until now
      My Computer

  7. dalchina's Avatar
    Posts : 29,953
    Win 10 Pro (1903)
       #7

    Thank you for your reply.

    The OEM designation is misleading and has nothing to do with a much large manufacturer's recovery partition (factory reset).

    You now have the means to discover which is in use.
      My Computers


  8. Posts : 681
    Windows 10 x64 Pro
    Thread Starter
       #8

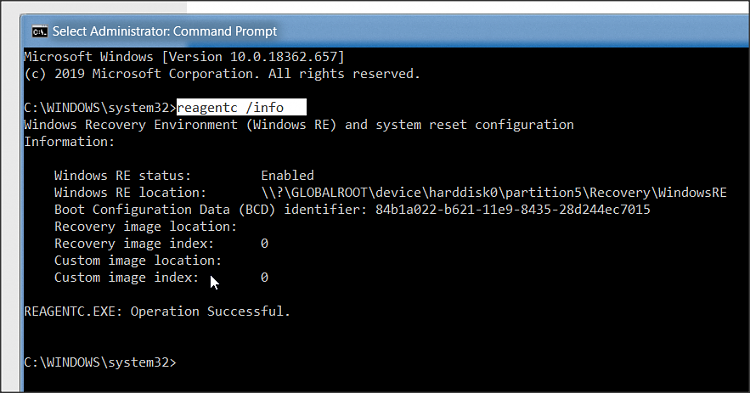

    ok, so reagentc shows the following.

    anyone able to clarify what these 5 partitions are?-image.png

    i presume this means partition 5 is in fact the proper one?
    Now i realize this is me being anal for lack of a better word, but im sure you get ALOT of that around here lol.

    first does this mean im safe to delete the first partition?

    second, can i then move the 5th to the front so its the same as everywhere else?

    how would I do so and expand the regained space into my c partition?

    Hope this isnt too big of an ask.

    Thanks for your time and help :)
      My Computer

  9. dalchina's Avatar
    Posts : 29,953
    Win 10 Pro (1903)
       #9

    You can confirm the partition number if you wish thus:
    anyone able to clarify what these 5 partitions are?-2.png

    Partition deletion and manipulation of C: is best handed with a 3rd party partition manager e.g. Minitool partition wizard or similar.
      My Computers


  10. Posts : 681
    Windows 10 x64 Pro
    Thread Starter
       #10

    ive never used a 3rd party partition tool as ive never had the need. Now is as good a time as any to start.

    Is that the gold standard/most widely used at current? Minitool?
      My Computer
