Repair Install of Windows 10 with an In-Place Upgrade fails...

Page 4 of 5 FirstFirst ... 2345 LastLast
  1. spapakons's Avatar
    Posts : 2,891
    Windows 10 Pro 64-bit 202H (Nov 2020 build 19042.867)
       #31

    I think the correct syntax is:

    chkdsk C: /f /r /b

    Where C the first partition (where Windows is), but it wouldn't harm to repeat the test to the other partitions, replace C with their drive letter. You should see a message that disk cannot be checked and asked to do it at next restart. Reply Yes and restart.
      My Computer


  2. Posts : 89
    Windows 10. Version 1903. OS Build 18362.239
    Thread Starter
       #32

    I did run chkdsk yesterday but without any of the parameters you requested. It appears to show there is no problem :-

    Checking file system on C: Stage 1: Examining basic file system structure ... 1003008 file records processed. File verification completed. 11287 large file records processed. 0 bad file records processed. Stage 2: Examining file name linkage ... 664 reparse records processed. 1147318 index entries processed. Index verification completed. 664 reparse records processed. Stage 3: Examining security descriptors ... Security descriptor verification completed. 72156 data files processed. CHKDSK is verifying Usn Journal... 41185680 USN bytes processed. Usn Journal verification completed. Windows has scanned the file system and found no problems. No further action is required. 248095743 KB total disk space. 96977472 KB in 271290 files. 149868 KB in 72157 indexes. 1124927 KB in use by the system. 65536 KB occupied by the log file. 149843476 KB available on disk. 4096 bytes in each allocation unit. 62023935 total allocation units on disk. 37460869 allocation units available on disk. ---------------------------------------------------------------------- Stage 1: Examining basic file system structure ... Stage 2: Examining file name linkage ... Stage 3: Examining security descriptors ...
    004E0F00903D050019C1060000000000E7010000B10000000000000000000000

    --------------------------------------------------------------------------------

    Binary data:

    In Words

    0000: 000F4E00 00053D90 0006C119 00000000
    0010: 000001E7 000000B1 00000000 00000000

    In Bytes

    0000: 00 4E 0F 00 90 3D 05 00 .N..=..
    0008: 19 C1 06 00 00 00 00 00 .Á......
    0010: E7 01 00 00 B1 00 00 00 ç...±...
    0018: 00 00 00 00 00 00 00 00 ........

    Today error 55 "A corruption was discovered in the file system structure on volume ??." does not appear, it 'has' appeared dozens of times in the last couple of days but not today. Should I still run chkdsk /r /v or wait and see what happens first ?
      My Computer

  3. spapakons's Avatar
    Posts : 2,891
    Windows 10 Pro 64-bit 202H (Nov 2020 build 19042.867)
       #33

    It probably refers to a volume that has been removed or changed. If it doesn't appear again you should be OK.
      My Computer


  4. Posts : 89
    Windows 10. Version 1903. OS Build 18362.239
    Thread Starter
       #34

    I did remove the second SSD I have in this machine but that was before I did the Repair Install so I'm assuming this can only refer to the current - and only drive I have on the machine at present?
      My Computer


  5. Posts : 38,358
    windows 10 professional version 1607 build 14393.969 64 bit
       #35

    When available please post images of the HD Tune results on these tabs:
    Health (SMART)
    Benchmark
    Full error scan
      My Computer

  6. spapakons's Avatar
    Posts : 2,891
    Windows 10 Pro 64-bit 202H (Nov 2020 build 19042.867)
       #36

    You can also use HD Sentinel so see a quick report of the disk's health. If it is 100% it could still have a problem and you can run the short and full test to see its condition. If the disk health reported is less than 100% you should consider to replace it, especially if it is under Warranty. Health over 90% means that it has a problem but still works. I would not trust it though. Health less than 90% is more severe, I would clone it to another disk so I won't have to reinstall everything again.
      My Computer


  7. Posts : 89
    Windows 10. Version 1903. OS Build 18362.239
    Thread Starter
       #37

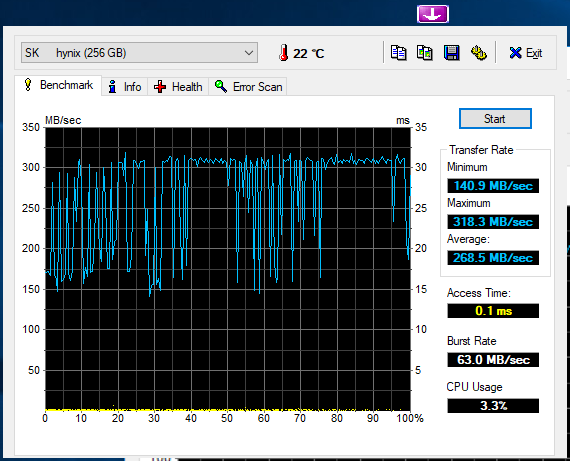

    HD Tune results...


    enc HD Tune results I did a few minutes ago... This error has appeared ~100 times this afternoon - that's after I wrote it was behaving itself earlier on. Its always the same file reference number...
    Attached Thumbnails Attached Thumbnails Repair Install of Windows 10 with an In-Place Upgrade fails...-hdtune_benchmark_sk______hynix.png   Repair Install of Windows 10 with an In-Place Upgrade fails...-hdtune_error_scan_sk______hynix.png   Repair Install of Windows 10 with an In-Place Upgrade fails...-hdtune_health_sk______hynix.png   Repair Install of Windows 10 with an In-Place Upgrade fails...-hdtune_health_sk______hynix.png
      My Computer


  8. Posts : 89
    Windows 10. Version 1903. OS Build 18362.239
    Thread Starter
       #38

    Just installed & ran HD Sentry...If I understand correctly it's basically telling me my 18 month old SK Hynix SSD has had it ? So why does HD Tune say its 100% OK. I've also ran DELL's hardware checking software and it also tells me the HD is good. I'm confused. Meanwhile I'll re-connect my second SSD tomorrow (I removed it when I was doing the Repair Install). Incidentally there seem to be some contradictions towards the end of the report - 76% Good - PERFECT - Problematic or weak sectors were not found

    Hard Disk Summary
    -------------------
    Hard Disk Number . . . . . . . . . . . . . . . . : 0
    Interface . . . . . . . . . . . . . . . . . . . : S-ATA Gen3, 6 Gbps
    Disk Controller . . . . . . . . . . . . . . . . : Intel(R) Chipset SATA/PCIe RST Premium Controller (RAID) [VEN: 8086, DEV: 2822] Version: 16.7.1.1012, 8-24-2018
    Disk Location . . . . . . . . . . . . . . . . . : Bus Number 0, Target Id 2, LUN 0
    Hard Disk Model ID . . . . . . . . . . . . . . . : SK hynix SC308 SATA 256GB
    Firmware Revision . . . . . . . . . . . . . . . : 30001P10
    Hard Disk Serial Number . . . . . . . . . . . . : FI72T000212102E6I
    Total Size . . . . . . . . . . . . . . . . . . . : 244191 MB
    Power State . . . . . . . . . . . . . . . . . . : Active
    Logical Drive(s) . . . . . . . . . . . . . . . . : C: []
    Current Temperature . . . . . . . . . . . . . . : 25 °C
    Power On Time . . . . . . . . . . . . . . . . . : 200 days, 4 hours
    Estimated Remaining Lifetime . . . . . . . . . . : 938 days
    Lifetime Writes . . . . . . . . . . . . . . . . : 7.02 TB
    Health . . . . . . . . . . . . . . . . . . . . . : ###############----- 76 % (Good)
    Performance . . . . . . . . . . . . . . . . . . : #################### 100 % (Excellent)


    The status of the solid state disk is PERFECT. Problematic or weak sectors were not found.
    The TRIM feature of the SSD is supported and enabled for optimal performance.
    The health is determined by SSD specific S.M.A.R.T. attribute(s): #231 SSD Life Left
    It is recommended to continuously monitor the hard disk status.


    (RED = my highlights)
      My Computer

  9. dalchina's Avatar
    Posts : 29,934
    Win 10 Pro (1903)
       #39

    If you look at the Help for HDD Sentinel, it says this (I can add no more):

    SSD health, temperature
    SSDs (and generally flash-based storage in memory cards, pendrives) work differently than hard disks: the memory cells in these devices experience wear during each write operations and each cells tolerate only a limited number of overwrite passes.
    The "wear-leveling" feature of the SSD tries to hide/minimise this effect but generally the health of the SSD is (even if it has no problems at all) slowly but surely decreasing. Most SSD devices report the overall health of the memory cells by various attributes: if there are no (other) problems found, Hard Disk Sentinel reads these attributes to determine the complete health of the solid state device.

    This is completely independent from software, Windows, restart, partitioning, formatting and so: as the amount of written data increases, the health slowly and surely decreases.


    Quite how it estimates the health I don't know. Mine's 93%- about 2.5 years old, used most days.
      My Computers


  10. Posts : 89
    Windows 10. Version 1903. OS Build 18362.239
    Thread Starter
       #40

    Thanks dalchina…

    SD Sentinel reported my SSD’s ‘health’ is down to 76%. This presumably means that my nominal 240 Gb drive now has a 180 Gb capacity? This Dell PC is 18 months old and assuming that they do not fit used drives in new PC’s, the drive has lost 25% of it’s capacity in 18 months.

    My initial thoughts were to contact Dell as this PC has a 3 year warranty. However I have run Dell’s own hardware checking software which reports the SSD as being OK. HD Tune also reported there were no problems. Earlier on this morning I downloaded and installed SK Hynix software (the SSD is an SK Hynix) and ran that. It reports ‘life remaining’ as being 76%. As they actually make the drives I’m presuming that this is creditable and two programmes reporting 76% would be quite a co-incidence...

    Having just checked I am using ~75Gb of storage, so now that the initial panic is past I can see there’s still plenty of overhead but I’m still wondering whether I should contact Dell. I suspect they will refer me to their own software’s results which would leave me snookered!

    Perhaps I should just carry on and run SK Hynix’s own software every month or so and see how quickly the drive deteriorates further?

    Maybe I should create a new thread for this as it appears to have wandered off topic a fair bit (my fault…)

    Thanks for your comments.
      My Computer
