How do I add Monitor for Extended Display: Only one VGA Port

Page 2 of 3 FirstFirst 123 LastLast
  1. Berton's Avatar
    Posts : 10,571
    Win10 Pro Versions 2004 and 2009/20H2, Win10 Pro IP_Dev, Win10 Home 1909
       #11

    I gather from the above that its the lack of an add-in graphics card that more likely hampered the dual display, rather than the secondary monitor I tried to use.
    Very possibly, all the times I've seen 2 monitors used the addition of an Add-in Graphics card has disabled the built-in/onboard adapter so the VGA or DVI port or both on those computers having both ports. Using HDMI seems to be a lot of trouble according to posts on forums.

    There are VGA splitters [maybe even DVD] to use 2 monitors but those show exactly the same information, I use them yearly when volunteering with a Health Fair group, lets me do data entry on a Notebook and the client view an external monitor to follow the progress of the work. On Notebooks the original use I had seen was for seminars where the presenter could watch the participants and a larger screen showed the subject matter behind him/her or in churches where projectors were used for the sanctuary.
      My Computers


  2. Posts : 74
    Windows 10
    Thread Starter
       #12

    There are VGA splitters [maybe even DVD] to use 2 monitors but those show exactly the same information,
    Do you mean those splitters only work to duplicate rather than extend the display?

    What might be the least troublesome way for me to set up an extended dual display given the desktop I now have: Dell Inspiron 580.

    I gather it comes down to installing another graphics card, but what should I look for in getting such a card in terms of such use?
    Last edited by eliuri; 28 Oct 2018 at 12:39. Reason: typos
      My Computer


  3. Posts : 810
    Win10
       #13

    When you got the VGA+HDMI working temporarily, were you able to see different windows on both monitors? Intel graphics can definitely handle 2 displays at once (I use it all the time) so I wouldn't necessarily give up on that route that quickly if it worked for a bit.
      My Computer


  4. Posts : 74
    Windows 10
    Thread Starter
       #14

    Yes. It did temporarily work as an extended display.

    But it wouldnt have been worth it the way it did that..

    Among other things, the entire taskbar migrated to the secondary IBM monitor, and I couldnt drag it back to the main Dell monitor. The display quality wasnt good at all... And for some reason, Windows kept labeling my main display as Display 2 and the secondary one as Display 1. I wouldnt have minded this, because I could tick in the option of display 2 being my main display. But wondering if that wasnt part of the issue..

    I had used that old IBM monitor as secondary display for two different laptops each running Windows 7 and each having different graphics cards. I didnt need an adapter because each of those laptops had VGA ports, unlike this Desktop which only has the one already in use by the Dell monitor. In both cases the extended display worked flawlessly and served my needs for this

    So, I'm not sure what the issue here really is...Whether it's Windows 10 related or due to my using HDMI->VGA adapter.

    I wouldn't mind getting another graphics card installed. Some might have better display controls than the integrated Intel graphics card I'm now using. But I'd like a sense of what to look for in getting the graphics card in terms of getting a well-working extended display
      My Computer

  5. Berton's Avatar
    Posts : 10,571
    Win10 Pro Versions 2004 and 2009/20H2, Win10 Pro IP_Dev, Win10 Home 1909
       #15

    eliuri said:
    Do you mean those splitters only work to duplicate rather than extend the display?
    Yes, a splitter only splits the same signal to 2 devices, may see it described as a Y-cable.
      My Computers


  6. Posts : 810
    Win10
       #16

    eliuri said:
    I wouldn't mind getting another graphics card installed. Some might have better display controls than the integrated Intel graphics card I'm now using. But I'd like a sense of what to look for in getting the graphics card in terms of getting a well-working extended display
    Yes, HDMI->VGA adapters can be finicky, especially with old monitors. A discrete graphics card may have better compatibility.

    Something like a GT710 (Amazon.com: ZOTAC PCI Express Video Card ZT-71301-20L: Computers Accessories) should work.

    If the card supports two simultaneous VGA outputs - one via the VGA port the other via the DVI-I port - then that is the simplest option. You would just need to get a $2 DVI-A->VGA adapter. However, I can't determine whether the GT710 supports two simultaneous analog outputs - I imagine it does but maybe someone with one of these cards can confirm.

    If it can't then you would have to enable both the onboard and discrete graphics. This should be an option in your BIOS.
      My Computer

  7. Berton's Avatar
    Posts : 10,571
    Win10 Pro Versions 2004 and 2009/20H2, Win10 Pro IP_Dev, Win10 Home 1909
       #17

    My ASUS of late 2016 has a GeForce GT710 card and its control panel/program does have settings for multiple monitors but I don't use the feature.
    Attachment 210358
      My Computers


  8. KCR
    Posts : 293
    Windows 10 Home, 64-bit, Version 20H2 (OS Build 19042.928)
       #18

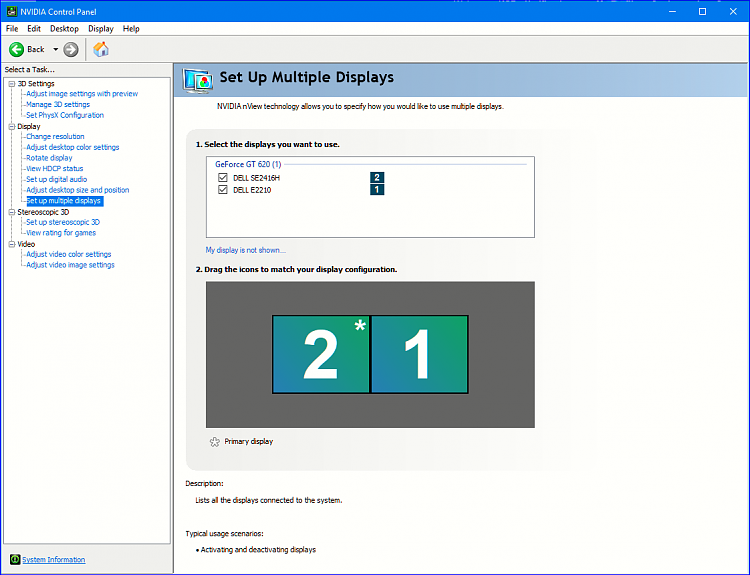

    So does my GeForce GT 620. . .

    How do I add Monitor for Extended Display: Only one VGA Port-image.png

    .
      My Computer


  9. Posts : 74
    Windows 10
    Thread Starter
       #19

    OK....So these GE Force graphic cards should support two monitors---either thru VGA or DVI-->VGA adapter--- without my making adjustments in the BIOS?

    I've never done anything in the BIOS, nor do I know how to. . Which is why I'm asking...

    When adding a dedicated graphics card to a system which already has an integrated one, does the integrated one become automatically disabled? If I'd want the option to access to both, would I have to change BIOS settings?

    I had a laptop with Nvidia graphics (and Win 7) which kept giving the option to use either Nvidia settings or native one. Might have been different because it was laptop?

    Thanks for your patience. This is all new to me..
      My Computer

  10. bobkn's Avatar
    Posts : 3,617
    Win 10 X64 Pro 21H1 19043.928
       #20

    eliuri said:
    (snip)
    When adding a dedicated graphics card to a system which already has an integrated one, does the integrated one become automatically disabled? If I'd want the option to access to both, would I have to change BIOS settings?

    I had a laptop with Nvidia graphics (and Win 7) which kept giving the option to use either Nvidia settings or native one. Might have been different because it was laptop?

    Thanks for your patience. This is all new to me..
    In the desktop PCs that I have known, adding a discrete graphics card disables the onboard graphics.

    The dual graphics available on some laptops is a power-saving measure: the integrated graphics are used for applications that don't require a powerful GPU. Things switch to the discrete graphics when demanding tasks (like games) are run. nVidia's name for that is Optimus. As far as I know, no desktop machines support it. It also doesn't allow you to run integrated and discrete graphics at the same time.
      My Computers
