How to repair windows10 system disk when MS tools fail

Page 1 of 5 123 ... LastLast

  1. Posts : 122
    windows
       #1

    How to repair windows10 system disk when MS tools fail


    Hi
    I have observed a number of situations where windows10 system crashed.
    After trying the common MS tools (e.g. sfc, dism, windows repair from windows installation usb) system can still not boot.
    Any suggestions for tools to use in this situation before giving up and reinstalling windows?
    Br Peter Lauritzen
    Seodenmark.com
      My Computer


  2. Posts : 39,278
    Win 10 Pro (22H2) (2nd PC is 22H2)
       #2

    Hi, setting aside the possibility of hardware failure other than the disk, have you checked the disk itself?

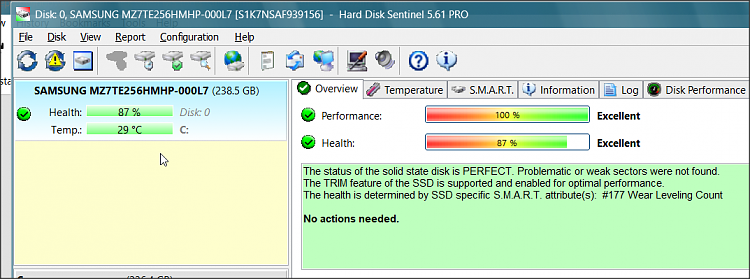

    a. Download and run Hard Disk Sentinel (SSDs too) - best instant apprasial I know of right on its GUI.
    Post a screenshot of the report for each disk in your PC similar to this:
    How to repair windows10 system disk when MS tools fail-1.png

    b. If ok, then from an admin command prompt run
    chkdsk c: /scan
    and report just the summary result (the last part).

    windows repair from windows installation usb
    c. Which repair exactly?

    d. Unfortunately you did not respond to this (which is there so we don't have to keep asking):

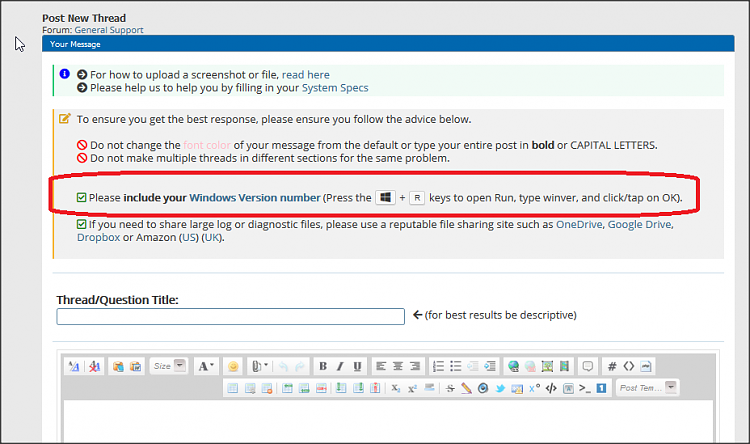

    How to repair windows10 system disk when MS tools fail-win-10-version.png

    e. There are no specs for your PC. Compare 'My Computers' below my post.
    Tutorials are available to help you... in the tutorial section. Please complete these as far as possible.

    g. Do you use disk imaging routinely, as is endlessly recommended here? E.g. Macrium Reflect (free).
    If so, you can avoid a clean install by restoring an image of your O/S partitions you previously created, if it's not possible to fix your O/S.

    If not, and you have to clean install, lesson learnt, alas.
    Last edited by dalchina; 13 Apr 2021 at 02:03.
      My Computers


  3. Posts : 4,166
    Windows 11 Pro 64 Bit 22H2
       #3

    As stated, on another computer. Download Hard Disk Sentinel and test the HDD on the Error Checking tab. Or you can download Disk Genius in my signature and create a Windows PE Rescue USB Flash drive in the app. Then boot the troubled computer to the USB Flash drive, in the app, go to the toolbar to Disk/View or Repair Bad Sectors/Verify Now. In either app, this will take a long time. if any of the Boxes are RED then the drive needs to be replaced. If the drive is healthy, Disk Genius has a few recovery or backup programs. As stated, did you try a Repair Install/In place Upgrade?
    If all else fails, then a Clean Install of Windows 10 would be the fastest and easiest way to go.
      My Computer


  4. Posts : 122
    windows
    Thread Starter
       #4

    Hi
    Thanks for replies.
    I will check your comments with the customer windows10 20h2 PC, which I will try to repair after it crashed yesterday and windows repair failed. Screenshot below.How to repair windows10 system disk when MS tools fail-92e1aea8-4961-43d3-9e95-1719c36b1494.jpeg
    What this says is:
    automatic repair failed, restart or use advanced options.
    however even after trying advanced options PC does not recover
    I will of course try to avoid reinstall.

    br Peter
      My Computer


  5. Posts : 7,592
    Windows 11 Pro 64 bit
       #5

    I don't faff about with Windows tools and just recover from the latest Reflect backup.
      My Computers


  6. Posts : 122
    windows
    Thread Starter
       #6

    Thanks Steve
    I am already using macrium for my own PCs as suggested in this forum.
    However problem here is that customer has not been taking backup of this PC before it crashed yesterday.
    Hence I need to see if I can recover it.
    Br Peter
      My Computer


  7. Posts : 7,592
    Windows 11 Pro 64 bit
       #7

    plaurits said:
    Thanks Steve
    I am already using macrium for my own PCs as suggested in this forum.
    However problem here is that customer has not been taking backup of this PC before it crashed yesterday.
    Hence I need to see if I can recover it.
    Br Peter
    You could try booting to the Reflect USB repair drive and select the option to fix boot problems. Also change the CMOS battery which may have run down and load the BIOS defaults since a corrupted BIOS can cause boot problems.
      My Computers


  8. Posts : 122
    windows
    Thread Starter
       #8

    good idea, will try that.
    so does this mean that macrium reflect can do more than MS tools?
      My Computer


  9. Posts : 39,278
    Win 10 Pro (22H2) (2nd PC is 22H2)
       #9

    Steve C said:
    I don't faff about with Windows tools and just recover from the latest Reflect backup.
    One downside to that is that personal data on the partition(s) restored also revert to that at the date the image was created.

    In these respects System Restore and in-place upgrade repair install are superior- when appropriate and available of course.
      My Computers


  10. Posts : 122
    windows
    Thread Starter
       #10

    So I guess conclusion for this thread is:
    if in-place upgrade repair install from MS does not work, there are no other tools which can help you?
    br Peter
      My Computer
