Marvell 91xx Config Missing Driver

Page 2 of 2 FirstFirst 12
  1. Stigg's Avatar
    Posts : 418
    Windows 10 Pro
       #11

    muchomurka said:
    Extracted driver for Marvell Unify Configuration device only (no Marvell SATA/RAID drivers): Attachment 226012
    Revert the Marvell SATA/RAID driver back to Standard SATA AHCI Controller driver.
    Thanks muchomurka, but I have tried using the Standard SATA AHCI Controller driver.
      My Computer

  2. Stigg's Avatar
    Posts : 418
    Windows 10 Pro
       #12

    edo101 said:
    Can't you just enable TRIM from the command prompt?
    Hi edo101.
    Unfortunately, that doesn't work.
    I am starting to think that the controller doesn't support it.
      My Computer


  3. Posts : 913
    CP/M
       #13

    Check your global TRIM status:
    Code:
    fsutil behavior query disabledeletenotify
    NTFS value should be 0.

    If not, you can enable TRIM for NTFS:
    Code:
    fsutil behavior set disabledeletenotify NTFS 0
    See Enable or Disable TRIM Support for Solid State Drives in Windows 10 | Tutorials for further info.
      My Computer


  4. Posts : 913
    CP/M
       #14

    Stigg said:
    Hi edo101.
    Unfortunately, that doesn't work.
    I am starting to think that the controller doesn't support it.
    How did you check whether it does work and whether controller supports TRIM? Afaik Std AHCI driver is sufficient.
      My Computer

  5. Stigg's Avatar
    Posts : 418
    Windows 10 Pro
       #15

    muchomurka said:
    How did you check whether it does work and whether controller supports TRIM? Afaik Std AHCI driver is sufficient.
    Hard Disk Sentinel was giving me warnings that TRIM was disabled every time I plugged my SSD into that controller, and Samsung Magician couldn't even see the drive.

    I tried using a command to enable it, but it said that already was.
      My Computer


  6. Posts : 913
    CP/M
       #16

    Stigg said:
    Samsung Magician couldn't even see the drive.
    This is the first thing you have to resolve.
    "Not Supported" in Magician does not mean "Not visible".

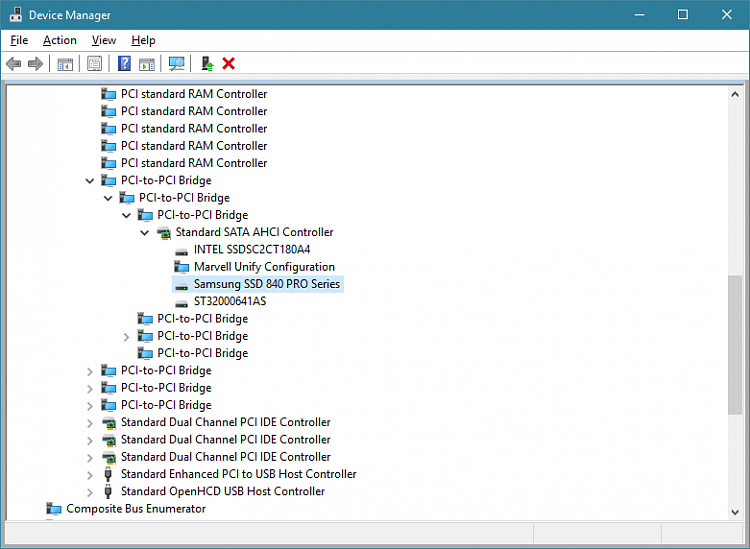

    Device manager - View by connection - find your ssd - make a screenshot & post it here. It should be connected directly to Marvell controller with AHCI driver:

    Marvell 91xx Config  Missing Driver-1.png
    Last edited by muchomurka; 03 Mar 2019 at 20:23.
      My Computer

  7. Stigg's Avatar
    Posts : 418
    Windows 10 Pro
       #17

    muchomurka said:
    This is the first thing you have to resolve.
    "Not Supported" in Magician does not mean "Not visible".

    Device manager - View by connection - find your ssd - make a screenshot & post it here. It should be connected directly to Marvell controller with AHCI driver:

    Marvell 91xx Config  Missing Driver-1.png
    Hi muchomurka.
    So sorry to take so long. I've been away.
    Here is the screenshot.

    Marvell 91xx Config  Missing Driver-standard-sata-ahci-controller.jpg
      My Computer


  8. Posts : 913
    CP/M
       #18

    Looks good, you should have trim enabled now. And if your ssd is visible in samsung magician, all is done.
      My Computer

  9. Stigg's Avatar
    Posts : 418
    Windows 10 Pro
       #19

    muchomurka said:
    Looks good, you should have trim enabled now. And if your ssd is visible in samsung magician, all is done.
    Yes.
    Thank you, muchomurka.

    It initially wasn't working with the standard controller, but for some reason, it's working now.
    I see that it is listed twice in the drop down list, so maybe that was it.
    Last edited by Stigg; 26 Mar 2019 at 21:11.
      My Computer

  10. Stigg's Avatar
    Posts : 418
    Windows 10 Pro
       #20

    I'm trying to revert this back to the Standard SATA AHCI Controller again, but I am getting this message.

    Marvell 91xx Config  Missing Driver-device-manager.png
      My Computer
