Mutiple BSODs Daily

Page 1 of 2 12 LastLast

  1. Posts : 8
    Microsoft Windows 10 Pro 64-bit 19042 Multiprocessor Free
       #1

    Mutiple BSODs Daily


    I upgraded my desktop PC from Windows 7 to Windows 10 4 weeks ago. It worked fine for the first 3 weeks but I've been getting multiple BSODs every day.

    I initially thought it was the PSU as it was 15 years old. I replaced it with a brand new Corsair PSU but the BSODs persist.
    My system specs are:

    Windows 10 Pro 20H2
    Asus P8P67 Pro Motherboard
    Intel Core i7-2600K CPU
    Corsair Vengeance DDR3 1600MHz 16Gb RAM

    I've attached the logs using the utility.
    Mutiple BSODs Daily Attached Files
      My Computer

  2. idgat's Avatar
    Posts : 915
    Windows 10 Pro
       #2

    Whip out the drive and insert a blank one. Do a clean install of Windows 10 and test.

    Make sure all the drivers are installed (use Control Panel > Device Manager) either via the installation, or using Windows update > Driver updates. At this stage, don't be tempted to install proprietary drivers or use driver searching programs - only do this if Windows is unable to install or provide drivers through update.

    EDIT Re-seat the RAM. If multiple sticks, remove and re-seat one-by-one.
      My Computer


  3. Posts : 8
    Microsoft Windows 10 Pro 64-bit 19042 Multiprocessor Free
    Thread Starter
       #3

    Yeah I think it will come to that. I was hoping for an immediate fix as this is my main PC which I use to work from home during the lockdown.

    idgat said:
    Whip out the drive and insert a blank one. Do a clean install of Windows 10 and test.

    Make sure al the drivers are installed (use Control Panel > Device Manager) either via the installation, or using Windows update > Driver updates.
    - - - Updated - - -

    idgat said:
    Whip out the drive and insert a blank one. Do a clean install of Windows 10 and test.

    Make sure all the drivers are installed (use Control Panel > Device Manager) either via the installation, or using Windows update > Driver updates. At this stage, don't be tempted to install proprietary drivers or use driver searching programs - only do this if Windows is unable to install or provide drivers through update.

    EDIT Re-seat the RAM. If multiple sticks, remove and re-seat one-by-one.
    I was wondering if there was anything in the logs that would explain what's causing it?
      My Computer


  4. Posts : 38,439
    windows 10 professional version 1607 build 14393.969 64 bit
       #4

    Update the specs in the "My Computer" section:

    System Specs - Fill in at Ten Forums
    In the left corner below in your post you find 'My System Specs'.
    After clicking it you can find a link a little below that says 'Update your System Spec', click on this link to get to the page where you can fill in your system specs.
    System Info - See Your System Specs - Windows 7 Help Forums

    Include PSU. cooler, case, peripherals and anything attached to the computer by wired or wireless (mouse, keyboard, headset, printer, xbox, USB wireless network card, etc.)








    The windows drive has 4.1 GB free space.

    1) Increase the free space > 35 GB.

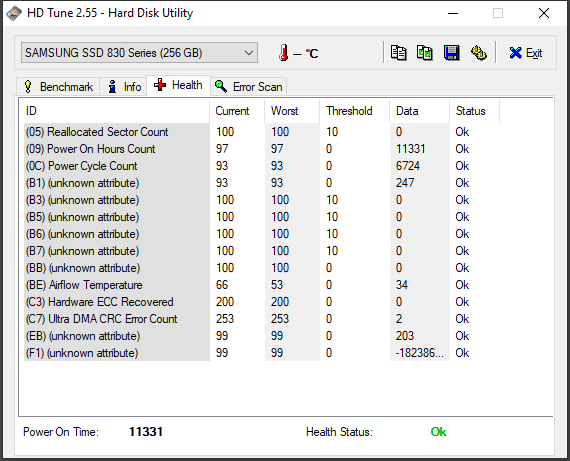

    2) Run HD Tune (free version) (all drives)
    HD Tune website
    Post images into the thread for results on these tabs:
    a) Health
    b) Benchmark
    c) Full error scan


    3) Run Sea Tools for Windows
    long generic test
    Post an image of the test result into the thread
    SeaTools for Windows |
    Seagate

    How to use SeaTools for Windows | Seagate Support US


    Take Screenshot in Windows 10
    https://support.microsoft.com/en-gb/...re-screenshots

    How to Upload and Post Screenshots and Files at Ten Forums



    4) Run:

    Tuneup.bat - Click here to go to the BSOD batch repository to download and run this batch file.

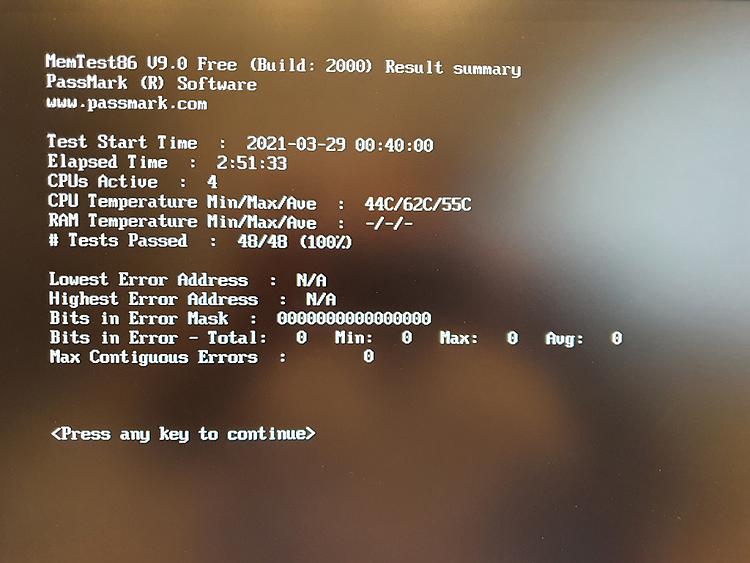

    5) Run Memtest86 version 9.0 (or newer version if available) for four passes.
    Repeat the test so that eight passes are performed.

    MemTest86 - Official Site of the x86 and ARM Memory Testing Tool

    Use a camera or smart phone camera to take pictures and post images into the thread.
    In case there are any problems uploading images use share links (one drive, drop box, or google drive)

    Memtest86 has a feature to produce a text report.
    Please post this in addition to the images.




    6) These steps / tests can be performed overnight:
    a) HD Tune full error scan
    b) Sea Tools for Windows long generic test
    c) Memtest86


    7) Open device manager > click view > click show hidden devices > manually expand all rows > look for any row displaying a yellow triangle with black exclamation mark or unknown device > post images into the thread





    8) Create a new restore point:
    Create System Restore Point in Windows 10





    Code:
    ------------------------
    Disk & DVD/CD-ROM Drives
    ------------------------
          Drive: C:
     Free Space: 4.2 GB
    Total Space: 476.3 GB
    File System: NTFS
          Model: Samsung SSD 850 EVO 500GB

          Drive: D:
     Free Space: 162.4 GB
    Total Space: 244.2 GB
    File System: NTFS
          Model: SAMSUNG SSD 830 Series


    Code:
    Renesas USB 3.0 eXtensible Host Controller - 0.96 (Microsoft)	PCI\VEN_1033&DEV_0194&SUBSYS_84131043&REV_04\4&108ABD8A&0&00E4	43

    Code:
    Virtual CloneDrive	ROOT\SCSIADAPTER\0000	This device is not working properly because the controlling firmware is reporting the resources for the device incorrectly.


    Code:
    24/03/2021 10:17	Windows Error Reporting	Fault bucket , type 0
Event Name: BlueScreen
Response: Not available
Cab Id: 0

Problem signature:
P1: 139
P2: 3
P3: fffffe0b8316b070
P4: fffffe0b8316afc8
P5: 0
P6: 10_0_19042
P7: 0_0
P8: 256_1
P9:
P10:

Attached files:
\\?\C:\WINDOWS\Minidump\032421-7765-01.dmp
\\?\C:\WINDOWS\TEMP\WER-19515-0.sysdata.xml
\\?\C:\WINDOWS\MEMORY.DMP
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WER9C8E.tmp.WERInternalMetadata.xml
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WER9C9E.tmp.xml
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WER9CFB.tmp.csv
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WER9D2B.tmp.txt

These files may be available here:
\\?\C:\ProgramData\Microsoft\Windows\WER\ReportQueue\Kernel_139_71be30194bc6ea86cfb75432a5a51f926503074_00000000_5e3923fc-a24b-4976-bbd9-4114265d2e36

Analysis symbol:
Rechecking for solution: 0
Report Id: 08a3cee6-1a25-496b-867f-e55c124fa60b
Report Status: 2097156
Hashed bucket:
Cab Guid: 0
    18/03/2021 11:18	Windows Error Reporting	Fault bucket , type 0
Event Name: BlueScreen
Response: Not available
Cab Id: 0

Problem signature:
P1: 139
P2: 4
P3: ffffb480dd13c010
P4: ffffb480dd13bf68
P5: 0
P6: 10_0_19042
P7: 0_0
P8: 256_1
P9:
P10:

Attached files:
\\?\C:\WINDOWS\Minidump\031821-9296-01.dmp
\\?\C:\WINDOWS\TEMP\WER-34453-0.sysdata.xml
\\?\C:\WINDOWS\MEMORY.DMP
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WERD929.tmp.WERInternalMetadata.xml
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WERD93A.tmp.xml
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WERD987.tmp.csv
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WERD9B7.tmp.txt

These files may be available here:
\\?\C:\ProgramData\Microsoft\Windows\WER\ReportQueue\Kernel_139_9da4b2a2193dec1e5824b99ec52a38656211a_00000000_662b8bfc-2778-488d-aa36-dd05c577ec09

Analysis symbol:
Rechecking for solution: 0
Report Id: 96d9d095-e8f2-4246-bb11-9f5b4c6e5f6d
Report Status: 2097156
Hashed bucket:
Cab Guid: 0
    24/03/2021 02:22	Windows Error Reporting	Fault bucket , type 0
Event Name: BlueScreen
Response: Not available
Cab Id: 0

Problem signature:
P1: 189
P2: ffffad84882a0f30
P3: 0
P4: 0
P5: 0
P6: 10_0_19042
P7: 0_0
P8: 256_1
P9:
P10:

Attached files:
\\?\C:\WINDOWS\Minidump\032421-7609-01.dmp
\\?\C:\WINDOWS\TEMP\WER-11015-0.sysdata.xml
\\?\C:\WINDOWS\MEMORY.DMP
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WER735B.tmp.WERInternalMetadata.xml
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WER737B.tmp.xml
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WER73D8.tmp.csv
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WER7408.tmp.txt

These files may be available here:
\\?\C:\ProgramData\Microsoft\Windows\WER\ReportQueue\Kernel_189_4b0187eda481269fab4a6b69613d8fa6c5cae_00000000_3d5255c3-b288-49ad-9611-db1793e62036

Analysis symbol:
Rechecking for solution: 0
Report Id: 17cc9aa8-92e9-46b3-9da8-2a3b2d98c657
Report Status: 2097156
Hashed bucket:
Cab Guid: 0
    24/03/2021 18:12	Windows Error Reporting	Fault bucket , type 0
Event Name: BlueScreen
Response: Not available
Cab Id: 0

Problem signature:
P1: 1a
P2: 61941
P3: 5f95082580a0
P4: d
P5: fffffb0d8dd79b00
P6: 10_0_19042
P7: 0_0
P8: 256_1
P9:
P10:

Attached files:
\\?\C:\WINDOWS\Minidump\032421-6937-01.dmp
\\?\C:\WINDOWS\TEMP\WER-25906-0.sysdata.xml
\\?\C:\WINDOWS\MEMORY.DMP
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WER7C34.tmp.WERInternalMetadata.xml
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WER7C45.tmp.xml
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WER7C73.tmp.csv
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WER7DAC.tmp.txt

These files may be available here:
\\?\C:\ProgramData\Microsoft\Windows\WER\ReportQueue\Kernel_1a_3bdd66526c680a5459b4c186da6bfae5ada459_00000000_cab_31c6b1b1-a7f9-4c47-82a7-f28eaea92636

Analysis symbol:
Rechecking for solution: 0
Report Id: 1f705e74-abd5-4aba-bc41-e9053578c6ce
Report Status: 4
Hashed bucket:
Cab Guid: 0

    Code:
    24/03/2021 10:18	Windows Error Reporting	Fault bucket 0x139_3_CORRUPT_LIST_ENTRY_ANALYSIS_INCONCLUSIVE!unknown_function, type 0
Event Name: BlueScreen
Response: Not available
Cab Id: 795a1290-ca48-4b05-a7dc-7c7101732b15

Problem signature:
P1: 139
P2: 3
P3: fffffe0b8316b070
P4: fffffe0b8316afc8
P5: 0
P6: 10_0_19042
P7: 0_0
P8: 256_1
P9:
P10:

Attached files:
\\?\C:\WINDOWS\Minidump\032421-7765-01.dmp
\\?\C:\WINDOWS\TEMP\WER-19515-0.sysdata.xml
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WER9C8E.tmp.WERInternalMetadata.xml
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WER9C9E.tmp.xml
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WER9CFB.tmp.csv
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WER9D2B.tmp.txt

These files may be available here:
\\?\C:\ProgramData\Microsoft\Windows\WER\ReportArchive\Kernel_139_71be30194bc6ea86cfb75432a5a51f926503074_00000000_cab_5e3923fc-a24b-4976-bbd9-4114265d2e36

Analysis symbol:
Rechecking for solution: 0
Report Id: 08a3cee6-1a25-496b-867f-e55c124fa60b
Report Status: 270532608
Hashed bucket:
Cab Guid: 0
    18/03/2021 11:18	Windows Error Reporting	Fault bucket 0x139_MISSING_GSFRAME_nt!RtlpGetStackLimitsEx, type 0
Event Name: BlueScreen
Response: Not available
Cab Id: 1275c4db-b35e-40db-a365-b7902a259676

Problem signature:
P1: 139
P2: 4
P3: ffffb480dd13c010
P4: ffffb480dd13bf68
P5: 0
P6: 10_0_19042
P7: 0_0
P8: 256_1
P9:
P10:

Attached files:
\\?\C:\WINDOWS\Minidump\031821-9296-01.dmp
\\?\C:\WINDOWS\TEMP\WER-34453-0.sysdata.xml
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WERD929.tmp.WERInternalMetadata.xml
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WERD93A.tmp.xml
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WERD987.tmp.csv
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WERD9B7.tmp.txt

These files may be available here:
\\?\C:\ProgramData\Microsoft\Windows\WER\ReportArchive\Kernel_139_9da4b2a2193dec1e5824b99ec52a38656211a_00000000_cab_662b8bfc-2778-488d-aa36-dd05c577ec09

Analysis symbol:
Rechecking for solution: 0
Report Id: 96d9d095-e8f2-4246-bb11-9f5b4c6e5f6d
Report Status: 270532608
Hashed bucket:
Cab Guid: 0
    24/03/2021 02:22	Windows Error Reporting	Fault bucket 0x189_nt!ObpReferenceObjectByHandleWithTag, type 0
Event Name: BlueScreen
Response: Not available
Cab Id: be41b33e-8ba0-4560-b16b-29bf7c33df38

Problem signature:
P1: 189
P2: ffffad84882a0f30
P3: 0
P4: 0
P5: 0
P6: 10_0_19042
P7: 0_0
P8: 256_1
P9:
P10:

Attached files:
\\?\C:\WINDOWS\Minidump\032421-7609-01.dmp
\\?\C:\WINDOWS\TEMP\WER-11015-0.sysdata.xml
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WER735B.tmp.WERInternalMetadata.xml
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WER737B.tmp.xml
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WER73D8.tmp.csv
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WER7408.tmp.txt

These files may be available here:
\\?\C:\ProgramData\Microsoft\Windows\WER\ReportArchive\Kernel_189_4b0187eda481269fab4a6b69613d8fa6c5cae_00000000_cab_3d5255c3-b288-49ad-9611-db1793e62036

Analysis symbol:
Rechecking for solution: 0
Report Id: 17cc9aa8-92e9-46b3-9da8-2a3b2d98c657
Report Status: 270532608
Hashed bucket:
Cab Guid: 0
    24/03/2021 18:12	Windows Error Reporting	Fault bucket 0x1a_61941_PAGE_TABLE_RESERVED_BITS_SET_IMAGE_hardware_ram, type 0
Event Name: BlueScreen
Response: Not available
Cab Id: b77f1a3c-a5f1-4a6c-af1a-1ddc8fd8ecd5

Problem signature:
P1: 1a
P2: 61941
P3: 5f95082580a0
P4: d
P5: fffffb0d8dd79b00
P6: 10_0_19042
P7: 0_0
P8: 256_1
P9:
P10:

Attached files:
\\?\C:\WINDOWS\Minidump\032421-6937-01.dmp
\\?\C:\WINDOWS\TEMP\WER-25906-0.sysdata.xml
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WER7C34.tmp.WERInternalMetadata.xml
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WER7C45.tmp.xml
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WER7C73.tmp.csv
\\?\C:\ProgramData\Microsoft\Windows\WER\Temp\WER7DAC.tmp.txt

These files may be available here:
\\?\C:\ProgramData\Microsoft\Windows\WER\ReportArchive\Kernel_1a_3bdd66526c680a5459b4c186da6bfae5ada459_00000000_cab_31c6b1b1-a7f9-4c47-82a7-f28eaea92636

Analysis symbol:
Rechecking for solution: 0
Report Id: 1f705e74-abd5-4aba-bc41-e9053578c6ce
Report Status: 268435456
Hashed bucket:
Cab Guid: 0

    Code:
    Event[24751]:
      Log Name: System
      Source: Microsoft-Windows-Subsys-SMSS
      Date: 2021-03-24T23:02:45.4640000Z
      Event ID: 12
      Task: N/A
      Level: Error
      Opcode: Info
      Keyword: N/A
      User: S-1-5-18
      User Name: NT AUTHORITY\SYSTEM
      Computer: PATRE-Core-i7
      Description:
    The crash dump file could not be created due to a lack of free space on the destination drive. Increasing the amount of free space on the destination drive may help prevent this error.
    Last edited by zbook; 3 Weeks Ago at 20:54.
      My Computer


  5. Posts : 8
    Microsoft Windows 10 Pro 64-bit 19042 Multiprocessor Free
    Thread Starter
       #5

    Here's what I've done:

    1. Swapped RAM sticks around
    2. Increased free space
    3. Ran HD Tune:

    Mutiple BSODs Daily-screenshot-2021-03-28-18.22.01.pngMutiple BSODs Daily-screenshot-2021-03-28-18.22.13.pngMutiple BSODs Daily-screenshot-2021-03-28-18.25.46.png

    Mutiple BSODs Daily-screenshot-2021-03-28-18.29.52.pngMutiple BSODs Daily-screenshot-2021-03-28-18.29.58.pngMutiple BSODs Daily-screenshot-2021-03-28-18.51.11.png

    4. Ran SeaTools:

    Mutiple BSODs Daily-screenshot-2021-03-28-20.43.13.png

    5. Ran Tuneup.bat

    Dropbox - Tuneup Batch.txt - Simplify your life

    6. Ran MemTest86

    Mutiple BSODs Daily-2021-03-29-08.19.41.jpg

    Mutiple BSODs Daily-2021-03-29-08.19.51.jpg

    Dropbox - memtest86-usb.zip - Simplify your life

    7. Checked Device Manager

    Mutiple BSODs Daily-screenshot-2021-03-29-09.19.16.png

    8. Ran V2 Log Collector

    Dropbox - PATRE-CORE-I7-(2021-03-29_09-03-50).zip - Simplify your life
      My Computer


  6. Posts : 38,439
    windows 10 professional version 1607 build 14393.969 64 bit
       #6

    The last recorded crash was on 03/26/2021.

    For Memtest86 please post images and text reports for each 4 pass test.
      My Computer


  7. Posts : 8
    Microsoft Windows 10 Pro 64-bit 19042 Multiprocessor Free
    Thread Starter
       #7

    zbook said:
    For Memtest86 please post images and text reports for each 4 pass test.
    I've edited the post to include the images.
      My Computer


  8. Posts : 38,439
    windows 10 professional version 1607 build 14393.969 64 bit
       #8

    Was there a second test of 4 passes to make a total of 8 passes?


    If the second test of 4 passes displays pass then monitor the computer for 3 more days.

    Reliability Monitor is the Best Windows Troubleshooting Tool You Aren’t Using
      My Computer


  9. Posts : 8
    Microsoft Windows 10 Pro 64-bit 19042 Multiprocessor Free
    Thread Starter
       #9

    zbook said:
    Was there a second test of 4 passes to make a total of 8 passes?
    No sorry missed that. I'll do that now.
      My Computer


  10. Posts : 38,439
    windows 10 professional version 1607 build 14393.969 64 bit
       #10

    That was great progress.
      My Computer



Page 1 of 2 12 LastLast

  Related Discussions
Our Sites
Site Links
About Us
Windows 10 Forums is an independent web site and has not been authorized, sponsored, or otherwise approved by Microsoft Corporation. "Windows 10" and related materials are trademarks of Microsoft Corp.

Designer Media Ltd
All times are GMT -5. The time now is 10:09.
Find Us




Windows 10 Forums
