Bad System Config Info

finlay113 said:

Also I ran DiskParInfo, here is the results:

Code:

    The script has found the above  storage device(s) in total.
=======================================================================

It looks as if PowerShell is missing from your Windows.
DiskParInfo.bat does not work without PowerShell.

Hello,

Sorry if there has been any confusion but I will try and clear up exactly which drives are which as I don't think I have made it very clear. So I have 3 drives currently in my system:

• C drive - My M.2 128GB which had my version of windows that I have been using for the last few years (since I built my PC in 2018) and am now unable to access
• E drive - the 1TB crucial SSD which I more recently purchased and installed, also this drive is where I attempted install the new version of windows to trouble shoot what has happened to my C drive but now cannot access this version either as it seems to have gone RAW
• D drive - 1TB HDD which I got when I built my PC

So at the moment the only version of windows I have is the rescue media which I created using this:
Win10XPE - Build Your Own Rescue Media

I should be able to create a fresh install of windows on my D drive though if that is what is needed to get the rest of the data required.

- - - Updated - - -

jumanji said:

EDIT:My google search reveals "Bad system config info windows 10 on boot up" was resolved by most people with BayAreaTexan post dated 23 Dec 2015 here https://answers.microsoft.com/en-us/...9507aad?page=2

How To Fix The Bad_System_Config_Info Error In Windows 10

Was it an upgrade from Windows 7?

I had already tried this above solution but it did not work for me. Also I ran miniTool partition wizard and here was the result:

Can you access drive C and E via Win10XPE?

I can access most of my files in the C drive but my E drive is completely unusable at the moment, it says it needs formatting when I click on it.

At this point though I am not worried about data recovery, I would basically just like to get my E drive back to being usable and fresh install windows onto it as my C drive seems to have a lot of damaged blocks so I will just be removing that from my system and replacing it with a new drive.

Have you tried to format drive E? If MiniTool does not work, try DiskPart

I can try now, if I am able to format the E drive in Win10XPE am I able to then fresh install windows onto the E drive using windows 10 install media?

If you are able to format it, you can use Win10XPE to clean install Windows 10 on it. You don't need a separate installation medium at all because Win10XPE can mount a Windows ISO file.

Oh ok, do you have a link to a tutorial I can follow to mount the windows ISO to it?

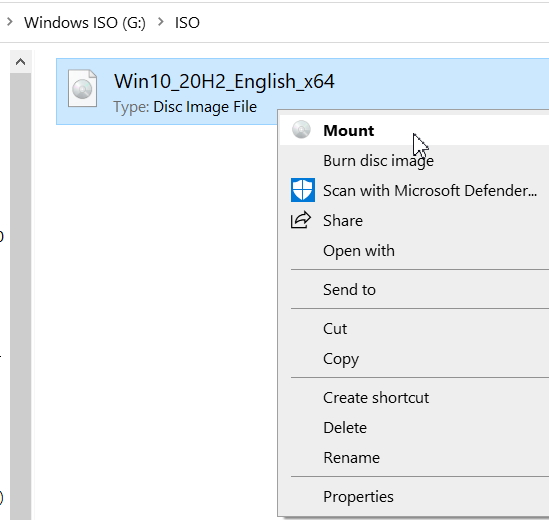

Boot into Win10XPE.
Go to the device containing the Windows ISO file.
Right-click on the file and select "Mount".
In the mounted ISO, open the "sources" folder.
In the "sources" folder, double-click on the "setup.exe" file to start Windows Setup.

finlay113 said:

I can try now, if I am able to format the E drive in Win10XPE am I able to then fresh install windows onto the E drive using windows 10 install media?

Even if you are unable to format it, Windows Setup will do it for you.
Just select a partition as shown below:
