Types of System Image

  1. Stevekir's Avatar
    Posts : 305
    Windows 10 Home 64 bit (with Creators OS)
       06 Aug 2016 #1

    Types of System Image

    First off: I know about Macrium. Also, I use FreeFileSync to backup my personal files (Documents, Pictures etc.). This post concerns system images only: those made by Windows Backup and Restore routine..

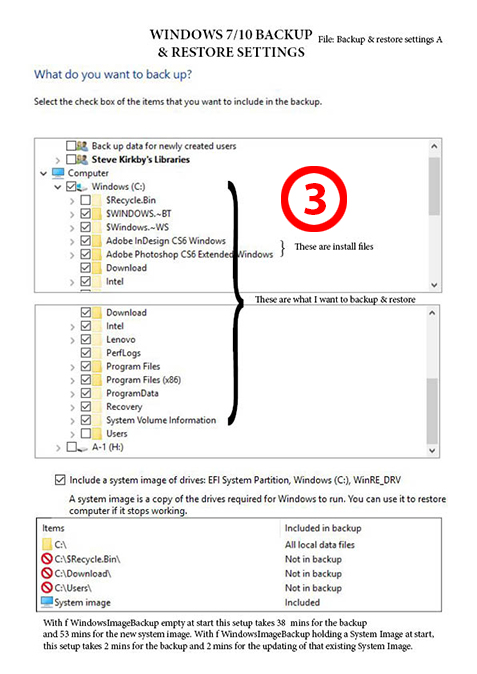

    There are 3 ways of creating a System Image using Windows Backup and Restore routine. Please see the attachments. 1 involves manually creating a System Image; 2 involves using Windows Backup and Restore routine with it set to the default "Let Windows choose (recommended)" which results in a System Image (forget the personal files); and 3 which is set using "Let me choose, You can select libraries and folders and...." which I have set up (at least I think I have) to produce only a System Image.

    My question: Will each of the three above setups (especially 3, my home-grown one) produce a System Image capable of restoring the OS? EDIT: "2" in this para corrected to "3".

    I ask because my computer shop has asked me to have a System Image file available which he can use to restore my system following a fault. He said that it would be safer to make two, in different ways, and I plan to do this by creating 1 (weekly) and 3 (daily). (2 can take a long time when personal files have been much revised). Thanks for help.
    Click image for larger version.

Name:	Post on Sys s 02.jpg
Views:	2
Size:	64.9 KB
ID:	94568 Click image for larger version.

Name:	xbngnghty.jpg
Views:	2
Size:	176.0 KB
ID:	94578
    Attached Thumbnails Attached Thumbnails Backup & restore settings A.jpg   xbngnghty.jpg
      My ComputerSystem Spec

  2.    07 Aug 2016 #2

    Hi, for Windows 10, to completely restore it, you need an image including the relevant set of partitions. Think partitions, not folders.

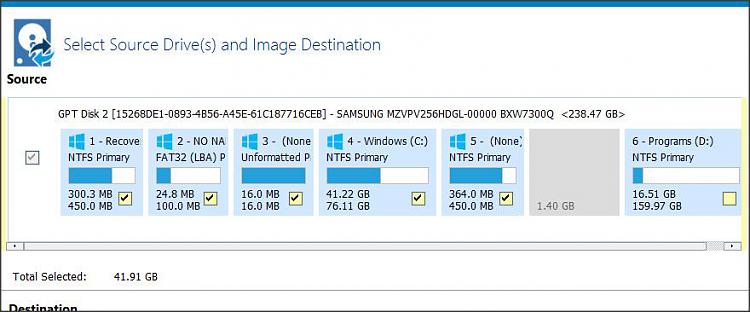

    Here's Macrium's Backup Windows selection:
    Click image for larger version.

Name:	Snap 2016-08-07 at 08.43.50.jpg
Views:	2
Size:	49.3 KB
ID:	94651

    Beyond that, recovery also depends on what you may have on other partitions. E.g. relocated folders (Documents, Desktop etc) - relocation of these is supported from a tab in the property sheet.

    So to restore a working situation you may need to image other partitions as well, depending on your particular configuration.
      My ComputersSystem Spec
