  1.    17 Oct 2015 #1
    Join Date : Oct 2015
    Posts : 65
    Windows 10 Pro

    Windows 10 wrongly labels my secondary HDD as "System" in backup

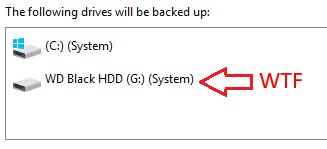

    I am trying to create a system image of my SSD (where my OS is installed) but cannot because windows 10 claims my secondary HDD is also a "System" drive when it is not. I do not have enough space to create a system image of both of these drives.

    Click image for larger version.

Name:	asdf.png
Views:	44
Size:	3.6 KB
ID:	43270

    Does anyone know why this is happening? There is nothing on my secondary hard drive except programs and regular files (movies, music, pictures, documents, etc).
    Last edited by Ocman76; 19 Oct 2015 at 21:53.
      My ComputerSystem Spec
  2.    17 Oct 2015 #2
    Join Date : Oct 2013
    NW Florida
    Posts : 9,237
    Windows 10 Enterprise and Pro/Windows 7 Enterprise/Linux Mint

    Would you please post a screenshot of Disk Management? Disk Management - How to Post a Screenshot of

    If you have moved any user files, installed programs to your secondary drive, windows will insist on including it in a system image. If you have the system reserved on it, the same.
      My ComputersSystem Spec
  3.    17 Oct 2015 #3
    Join Date : Oct 2015
    Posts : 65
    Windows 10 Pro
    Thread Starter

    Hey I remember you form seven forums! Nice to see you again

    For clarification, my WD Black HDD is the one I do not want to include in the system image.

    Here is the screenshot, it appears there is a small partition I didn't know about. I wonder what its for...

    Click image for larger version.

Name:	Drives.png
Views:	21
Size:	46.6 KB
ID:	43274
      My ComputerSystem Spec
  4.    17 Oct 2015 #4
    Join Date : Oct 2013
    NW Florida
    Posts : 9,237
    Windows 10 Enterprise and Pro/Windows 7 Enterprise/Linux Mint

    it looks like a system reserved Partition. Did you used to have Windows installed on it? Try unplugging 1 wire from all hard drives that windows is not installed on and try to boot. That will tell you if that 'System Reserved' is being used now or just a leftover from a previous install. I suspect it is a leftover.
      My ComputersSystem Spec
  5.    17 Oct 2015 #5
    Join Date : Oct 2015
    Posts : 1,967
    Windows 10 Pro X64

    Hi,

    Here is the screenshot, it appears there is a small partition I didn't know about. I wonder what its for...
    It seems that disk was once part of a pack of dynamic disks. Note also that both partitions have the same drive letter assigned.

    Cheers,
      My ComputersSystem Spec
  6.    17 Oct 2015 #6
    Join Date : Oct 2015
    Posts : 65
    Windows 10 Pro
    Thread Starter

    Quote Originally Posted by essenbe View Post
    Did you used to have Windows installed on it? Try unplugging 1 wire from all hard drives that windows is not installed on and try to boot.
    No, windows was never installed on this drive. I just unplugged it and restarted with no issues.
      My ComputerSystem Spec
  7.    17 Oct 2015 #7
    Join Date : Oct 2013
    NW Florida
    Posts : 9,237
    Windows 10 Enterprise and Pro/Windows 7 Enterprise/Linux Mint

    Then, I would move all data to another drive, delete all partitions and create a Primary Partition of the whole drive and replace the data. That should solve your problem. Just make sure it is a simple primary partition.
      My ComputersSystem Spec
  8.    17 Oct 2015 #8
    Join Date : Oct 2015
    Posts : 65
    Windows 10 Pro
    Thread Starter

    Do you think it will be possible to remove the files from the HDD even though some of them (such as icon files) will be in use by the system? I am afraid I will try to cut and paste the contents of the drive only to have windows tell me 4 hours into the operation that some of the files are "in use" and can't be moved. That would be a disaster; it will probably take 10+ hours to move all the files
      My ComputerSystem Spec
  9.    18 Oct 2015 #9
    Join Date : Jul 2014
    San Jose, California
    Posts : 2,057
    Ubuntu14.04x64 MintMate17x64 Win10Prox64

    From the screen shot. Your disk is a dynamic disk. You might want to download Mini Tool Partition Wizard which allows to convert from Dynamic Disk back to Basic Disk.
    About Dynamic disk: The way to convert dynamic disk to basic disk without damaging data or causing data loss .
    Download: Free download Magic Partition Manager Software, partition magic alternative, free partition magic, partition magic Windows 7 and server partition software - Partition Wizard Online
      My ComputerSystem Spec
  10.    18 Oct 2015 #10
    Join Date : Oct 2015
    Posts : 65
    Windows 10 Pro
    Thread Starter

    Quote Originally Posted by topgundcp View Post
    You might want to download Mini Tool Partition Wizard which allows to convert from Dynamic Disk back to Basic Disk.

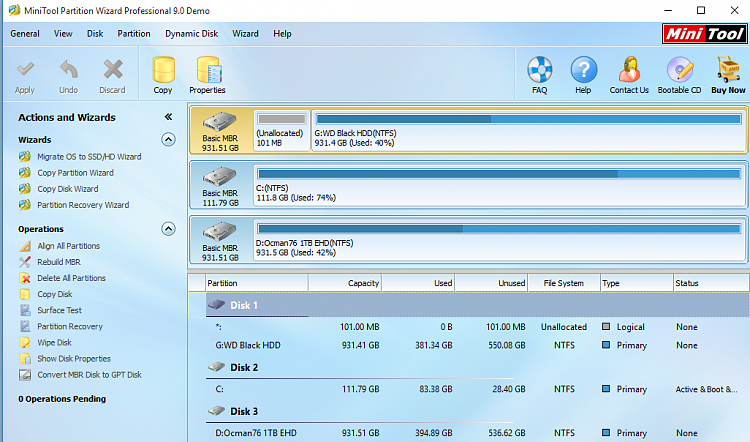

    I was able to convert from dynamic to basic disk:

    Click image for larger version.

Name:	Untitled.png
Views:	2
Size:	295.9 KB
ID:	43413

    But this has not solved my problem. Windows still thinks it is a system drive
      My ComputerSystem Spec
