I don't think that is the case on this thread, though.

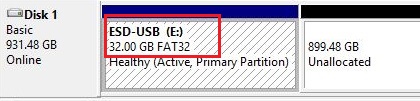

The Disk Mgmt capture in post# 1 looks as though sam1964 put the install media on the 1 TB drive and not on a flash drive.
I've almost done this, select the wrong device, but caught my mistake before committing.
The best hope is to recover the partition(s) (I think we agree on that)
NavyLCDR, what about this? Thread starter
-- purchases 2-3 good quality equal size usb sticks or good quality 2TB HDs
-- using Macrium Reflect portable version -- either clones source usb stick AS IS onto target usb stick, or
-- using Macrium Reflect portable version -- full images source usb stick AS IS onto target ext HD, maybe make two full images at least
-- now, having two or more "AS IS un-fixed un-altered copies" of the source usb, he can experiment with the original
That worked in the older W95-98SE days, will that work now?
Then do the recovery on the image. I would begin as @Slartybart suggests, and recover the partition(s) first, then go for the data itself.
I'm afraid the first 32 GB won't be completely recovered, but the ISO is only a few GBs so only that much data would be affected by overwrites. I was surprised how well it worked the first time I used it. When it works, it's a beautiful thang, when it doesn't there are other tools. PW partition recovery is the first thing I suggest - if it can't find the partitions ... on to another tool to recover the data.
I'll bow out until sam does something that needs my attention. Other members know PW as well as I do, perhaps better - so we're all waiting on sam.
I'm just having a conversation now
There are many people around with Problems in External HDD, including I myself, where there is nothing wrong with HDD itself.
Seems that Windows can not handle properly external USB HDD and I think an attempt to FIX the HDD may end in LOST of all Data.
My advise is: DO NOT TRY TO RECOVER data, it is all there, just WIndows can not read USB/NTFS properly and is showing RAW.
I had a issue with my USB HDD, it was working normally, suddenly there was an error, I could not access the HDD, I run Scan and Fix and at end I LOST almost 1TB of Data.
But before you go ahead with recovery, I would try first to connect the HDD to other PC with other OS, not W10.
Also, in case you want to recover, I would do it in other OS than W10.
From what I am seeing , the common of all the problems are USB Hdd´s, Windows 10 and it results in unrecognized FS (File System).
My thinking is, if indeed there is a problem with W10 not handling properly external USB Devices, then any attempt to further working on the Device will likely result in Lost of Data, there are no Magics or the like here. That was happening to me, I tried to fix it and Data was gone.
That is my own opinion.
You are right, thats what happen with my external hard drive. Its now showing on 32GB FAT 32 and rest is unallocated.
Based on my reading,
I should try to recover the formatted data from unallocated space on 1TB external hard drive.
Once I recover all data, I can recover partition.
Am I Right ???
